Euroboor TUBE.55/AIR Pneumatic Magnetic Drilling Machine Applications
- Offshore oil and gas platforms requiring explosion-safe drilling equipment
- Petrochemical plants and refineries where electrical tools are restricted
- Mining operations and underground industrial environments
- Pipe, tube, and structural steel fabrication facilities
- Maintenance and installation work on pipelines and cylindrical structures
- Industrial countersinking and drilling on curved or flat steel surfaces
Ideal for environments where spark-free pneumatic equipment is required, including ATEX-sensitive industrial areas.
Euroboor TUBE.55/AIR Pneumatic Magnetic Drilling Machine Specifications
| Model | TUBE.55/AIR |
|---|---|
| Power Source | Pneumatic Air Motor |
| Maximum Annular Cutter Diameter | 55 mm (2 3/16") |
| Minimum Annular Cutter Diameter | 12 mm (7/16") |
| Twist Drill Capacity | 1 – 23 mm (1/16" – 15/16") |
| Countersinking Capacity | 12 – 55 mm (7/16" – 2 3/16") |
| No-Load Speed | 380 RPM |
| Rotation Direction | Clockwise |
| Magnetic Force | 900 kg (1,984 lbs) |
| Stroke | 167 mm (6 9/16") |
| Spindle | MT3 with 3/4" Weldon |
| Power Supply Pressure | 6.3 bar (90 PSI) |
| Air Consumption | 66 m³/hr |
| Air Hose Connection | 3/8" Inside Diameter |
| Minimum Pipe Diameter | 80 mm (3 1/8") |
| Minimum Material Thickness | 3 mm (1/8") |
| Machine Dimensions | 345 × 245 × 630–730 mm (13 9/16" × 9 5/8" × 24 13/16" – 28 3/4") |
| Magnet Dimensions | 275 × 190 × 90 mm (10 13/16" × 7 1/2" × 3 9/16") |
| Net Weight | 16.7 kg (36.8 lbs) |
Euroboor TUBE.55/AIR Pneumatic Magnetic Drilling Machine Performance & Construction

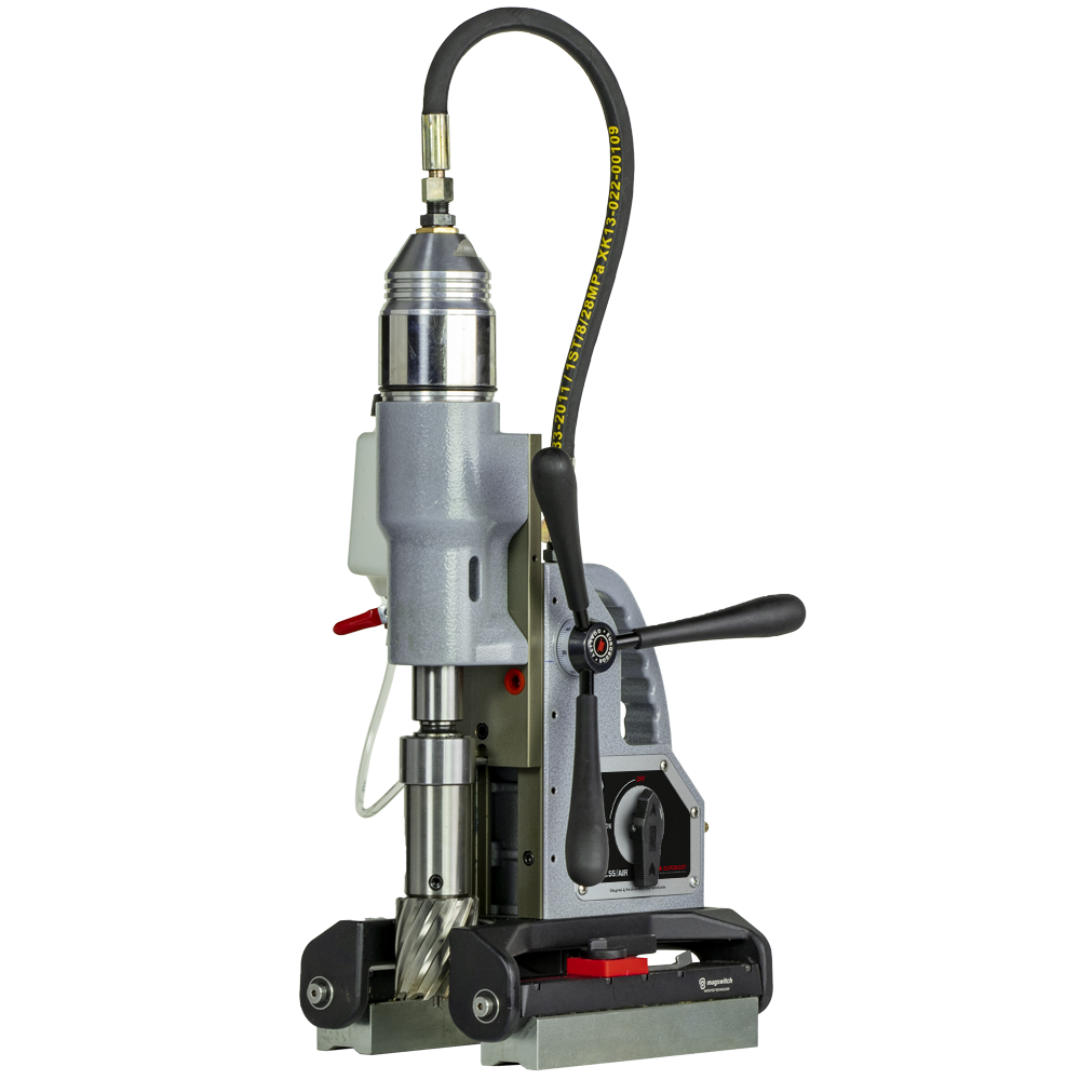

- Air-powered spark-free motor ensures safe operation in hazardous or explosive environments.

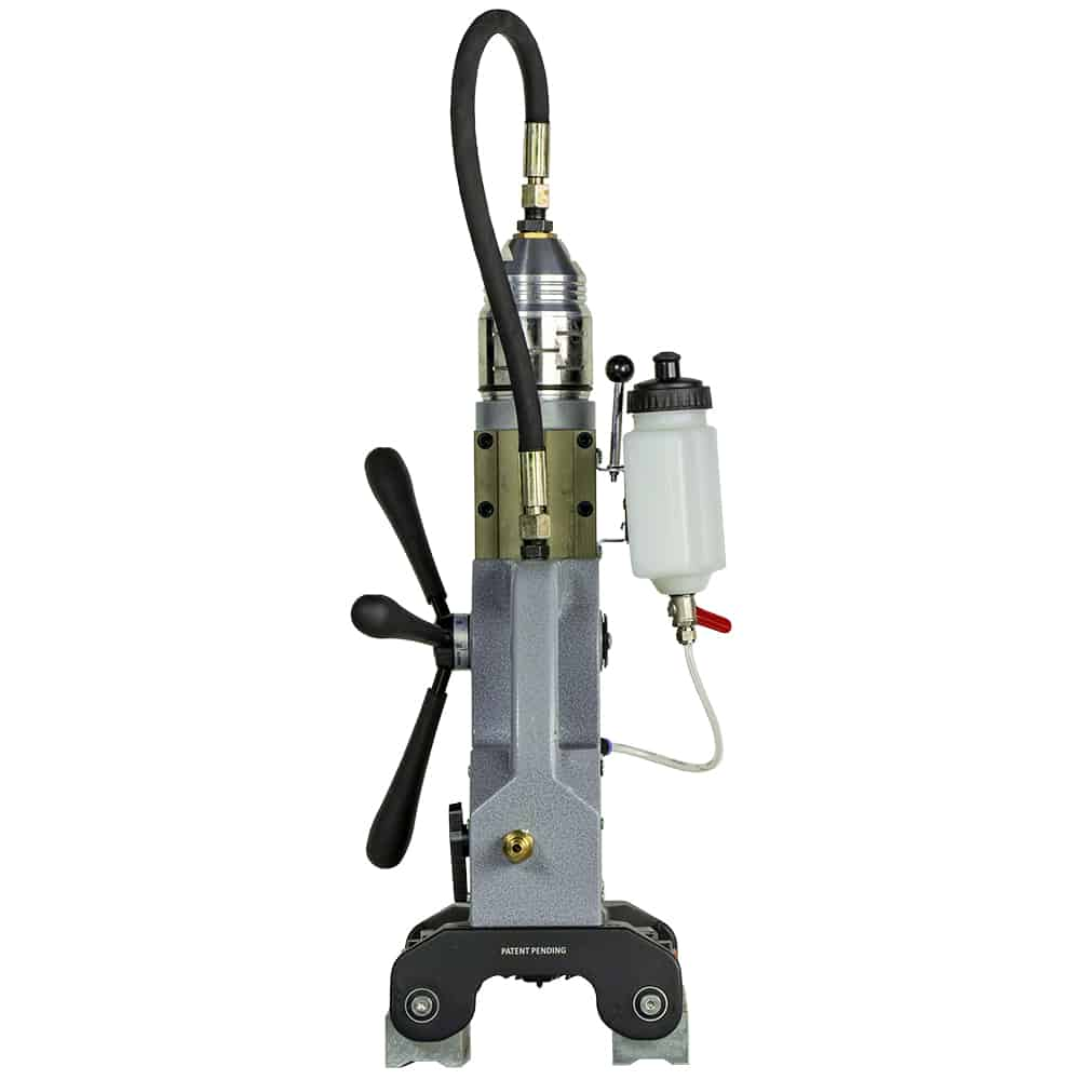

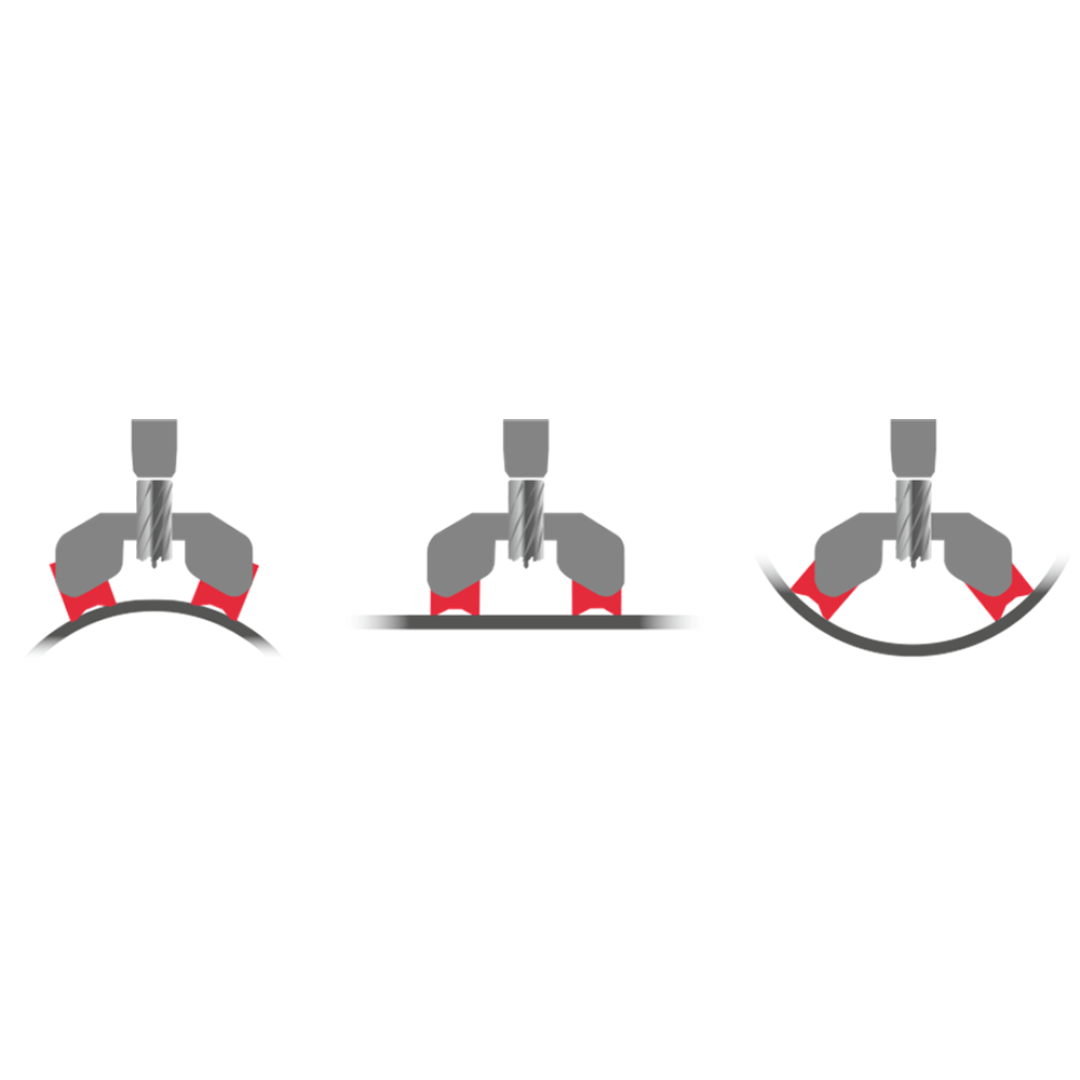

- Permanent dual magnetic base delivers strong holding power on both round pipes and flat steel surfaces.
- Powerful 900 kg magnetic force provides excellent stability during heavy-duty drilling operations.
- Large 167 mm stroke allows deeper drilling and increased versatility when working with thicker materials.

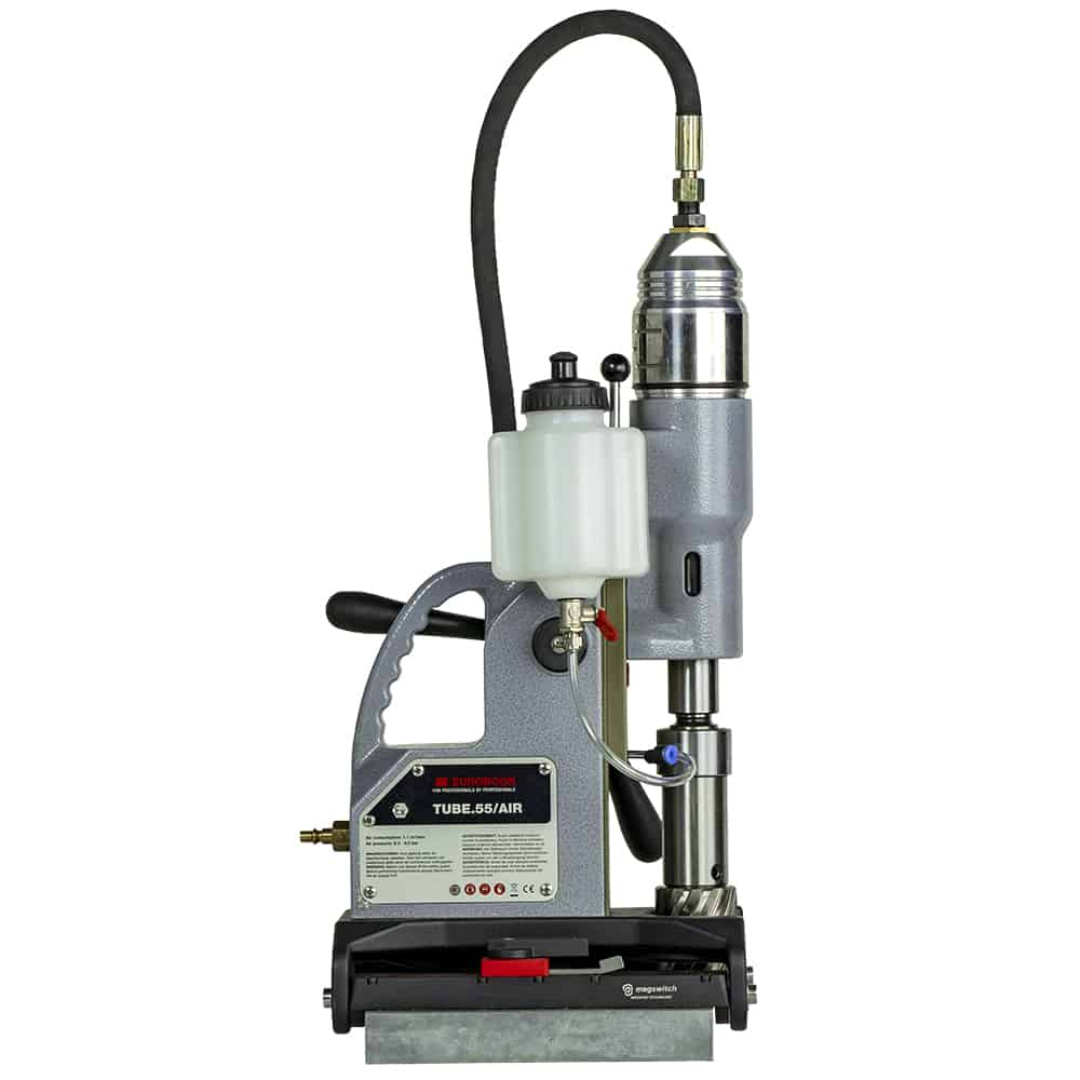

- Integrated cooling and lubrication system improves cutter life and maintains cutting efficiency.
- Robust gearbox with grease lubrication designed for reliable long-term industrial operation.
- Precision MT3 spindle with 3/4" Weldon connection supports a wide range of annular cutters and accessories.

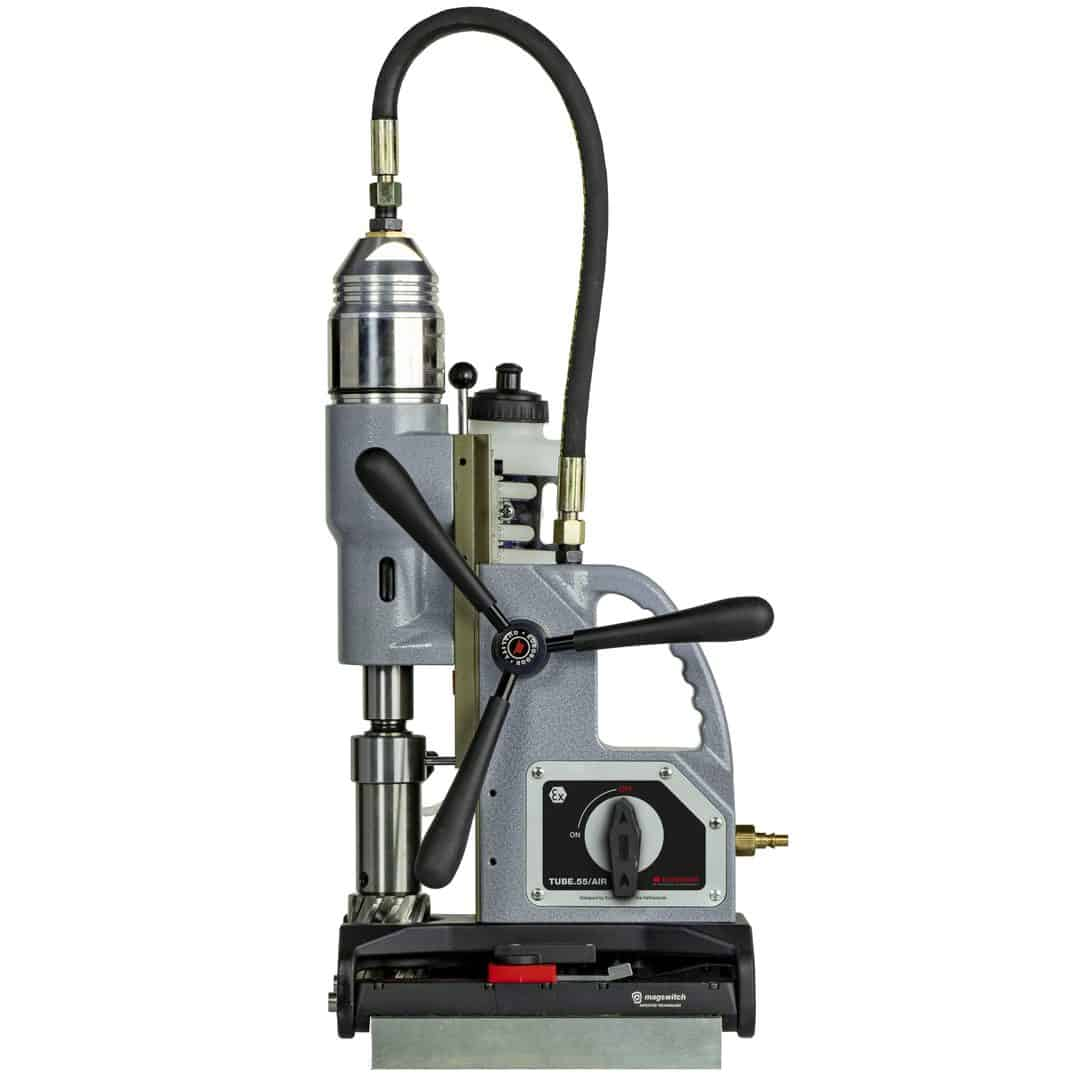

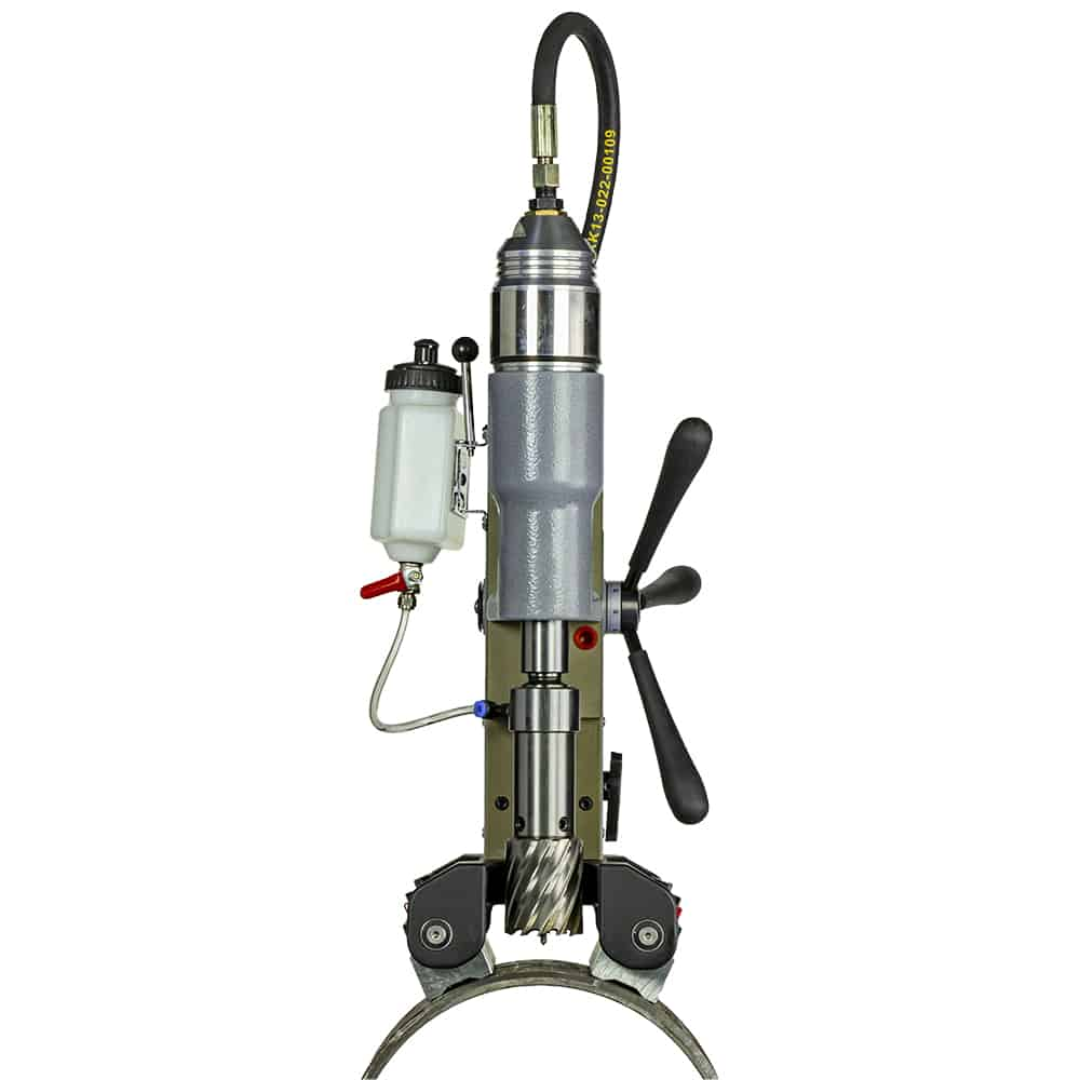

- Portable and compact design enables easy positioning on pipes, tubes, and structural steel components.
Euroboor TUBE.55/AIR Pneumatic Magnetic Drilling Machine Package Contents
- 1 × Euroboor TUBE.55/AIR Pneumatic Magnetic Drilling Machine
- 1 × Durable metal transport case
- 3 × Capstan hub handles
- 1 × MT3 spindle holder (3/4" Weldon – 19.05 mm) with cooling/lubrication ring
- 1 × Drift key
- 1 × Integrated lubrication and cooling system
- Allen keys: 2.5 mm, 4 mm, and 5 mm
- 2 × Open-end spanners (19 / 22 mm – 3/4" / 7/8")

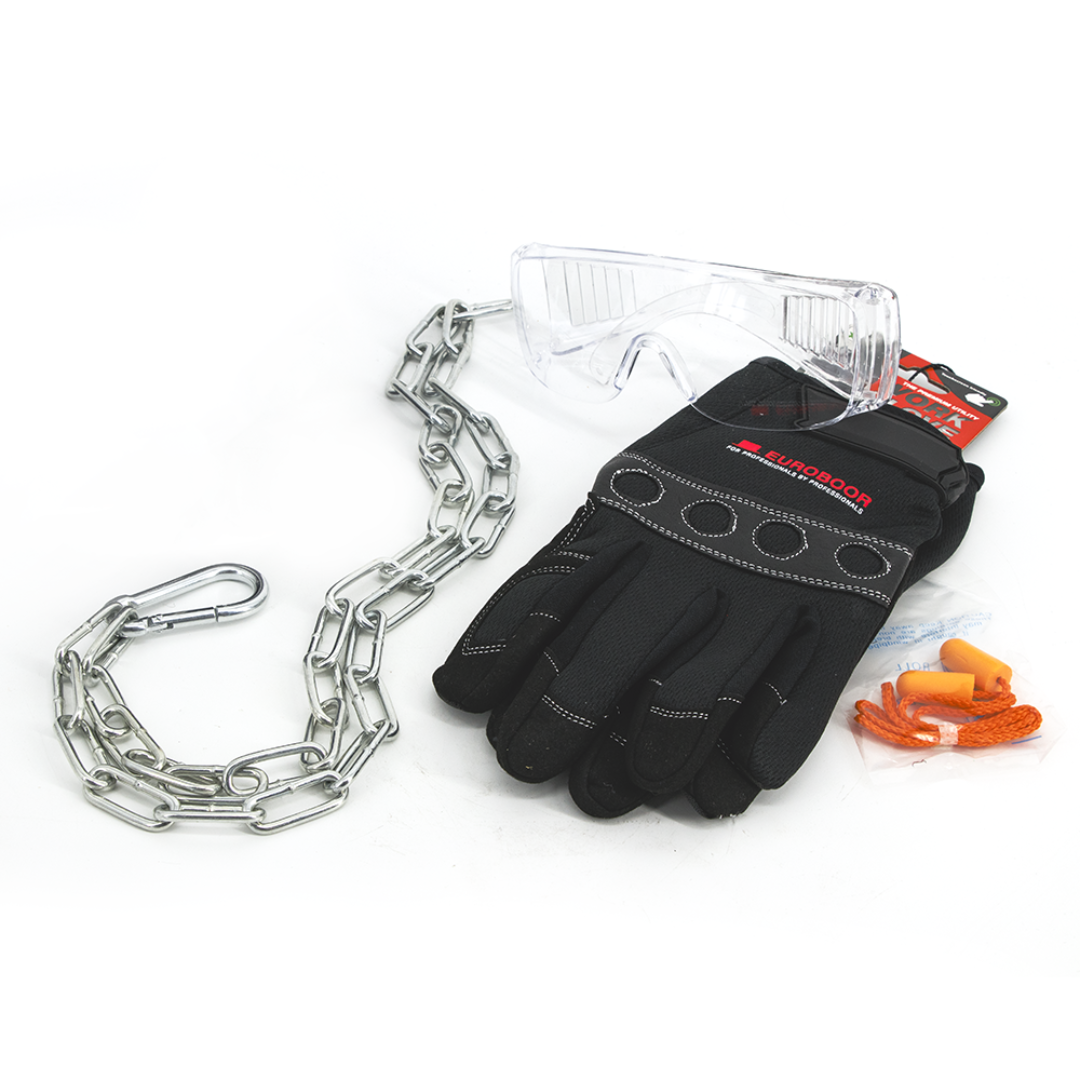

- 1 × Safety chain
- 1 × Ear protection
- 1 × Safety goggles
- 1 × Safety gloves
- 1 × User manual
Why Choose the Euroboor TUBE.55/AIR Pneumatic Magnetic Drilling Machine
- Explosion-safe pneumatic motor ideal for hazardous work environments.
- Powerful magnetic base for stable drilling on pipes, tubes, and flat steel.
- Large annular cutter capacity up to 55 mm for heavy-duty drilling tasks.
- Portable design built for field work, maintenance, and industrial installation.
- Professional-grade construction engineered for offshore, mining, and petrochemical industries.
The Euroboor TUBE.55/AIR Pneumatic Magnetic Drilling Machine provides powerful, safe, and reliable drilling performance in environments where electric tools cannot be used.
