Euroboor ECO.80S+ Magnetic Drilling Machine Applications
- Structural steel fabrication and construction
- Bridge construction and infrastructure projects
- Heavy equipment manufacturing
- Railway maintenance and steel track work
- Shipbuilding and marine fabrication
- Industrial plant maintenance and repair operations
- Precision drilling and countersinking of thick steel plates
Ideal for fabrication shops and field operations that require powerful magnetic drilling capability with precision control and reliable safety protection.
Euroboor ECO.80S+ Magnetic Drilling Machine Specifications
| Model | ECO.80S+ |
|---|---|
| Maximum Annular Cutter Diameter | 3-1/8" |
| Twist Drill Capacity | 1/16" – 1-1/4" |
| Countersinking Capacity | 3/8" – 3-3/8" |
| Spindle Type | MT3 Morse Taper / Weldon 3/4" |
| Stroke | 10-1/4" |
| Magnetic Holding Force | 6,615 lbs |
| Gearbox | 4-Speed Oil Lubricated Gearbox |
| Rotation Direction | Clockwise |
| No-Load Speeds | 200 / 300 / 415 / 650 RPM |
| Loaded Speeds | 150 / 200 / 275 / 400 RPM |
| Motor Power | 1,700 W |
| Total Power Consumption | 1,800 W |
| Power Supply Voltage | 110 – 120 Volt |
| Power Supply Frequency | 60 Hz |
| Power Supply Connection | NEMA 5-15 Plug |
| Machine Weight | 60.2 lbs |
| Machine Dimensions (L × W × H) | 14-3/8" × 12-3/8" × 20-1/16" – 27-15/16" |
| Magnet Dimensions | 8-11/16" × 4-5/16" × 2-1/2" |
| Application Type | Drilling and Countersinking |

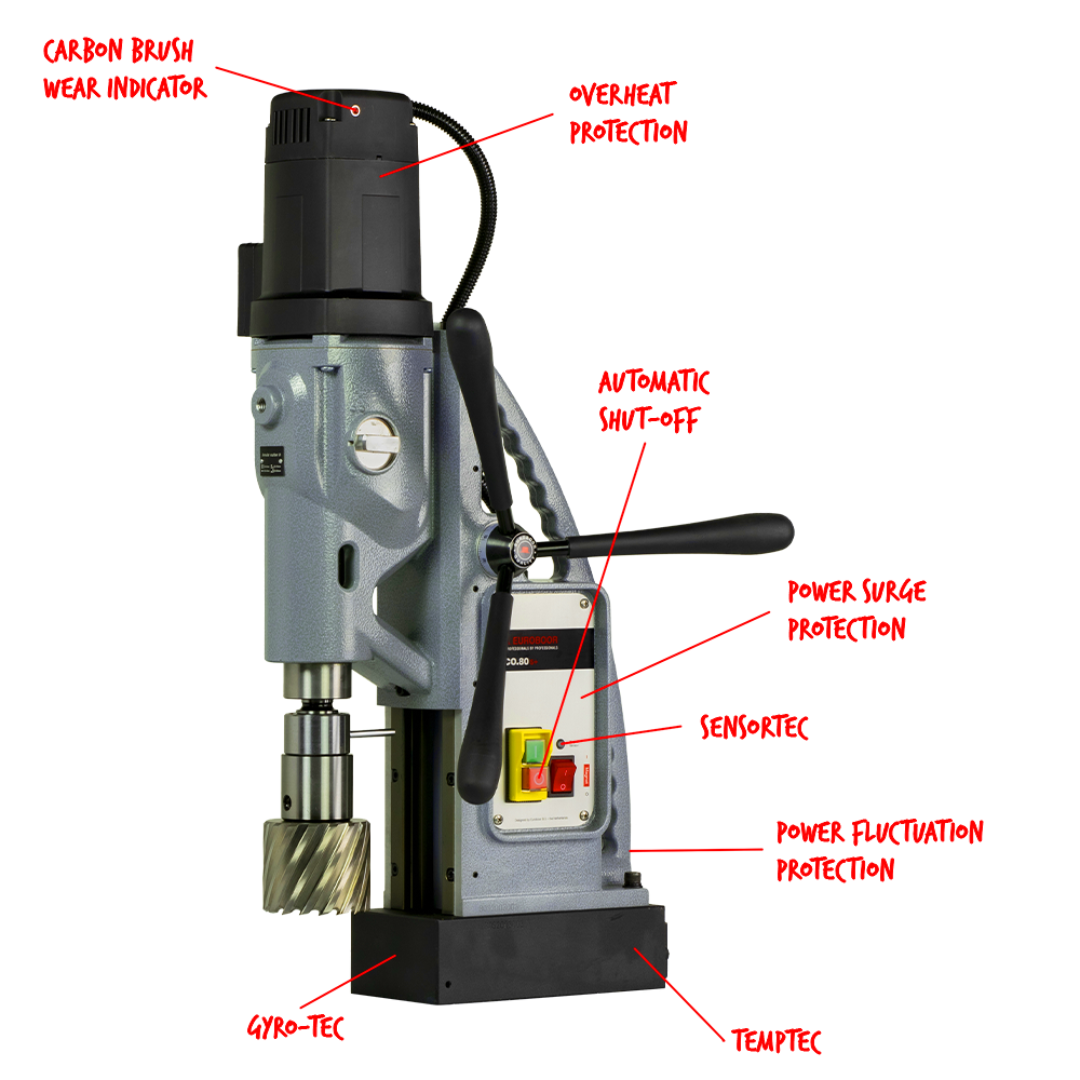

Euroboor ECO.80S+ Magnetic Drilling Machine Performance & Technology
- Four-speed oil lubricated gearbox delivers optimal torque and cutting performance for a wide range of drilling applications.
- Morse Taper 3 spindle with integrated cooling and lubrication ensures efficient heat dissipation and extends tool life.
- Dual coil CNC-machined magnetic base provides superior holding power while consuming less energy.
- Overheat protection system safeguards the motor and electronics during heavy workloads.
- Power fluctuation and power surge protection prevents electrical damage when operating on unstable power supplies.
- Gyro-Tec safety monitoring detects excessive vibration or sudden displacement and automatically stops the machine.
- Automatic shut-off safety system protects the operator in unsafe drilling conditions.
- Carbon brush wear indicator provides early maintenance alerts to prevent unexpected downtime.
- Magnetic LED indicator confirms proper magnetic engagement before drilling begins.
- Smart restart technology prevents accidental startup after power interruptions.
Euroboor ECO.80S+ Magnetic Drilling Machine Package Contents
- 1 × Euroboor ECO.80S+ Magnetic Drilling Machine
- 1 × Heavy-duty metal transport case
- 3 × Capstan hub feed handles
- 1 × MT3 – Weldon 31.75 mm (1-1/4") spindle holder with cooling/lubrication ring
- 1 × Weldon 31.75 mm to 19.05 mm adapter (1-1/4" to 3/4")
- 1 × Drift key
- 1 × Side handle
- 1 × Integrated lubrication and cooling system
- Allen keys: 2.5 mm, 4 mm, 5 mm, and 6 mm

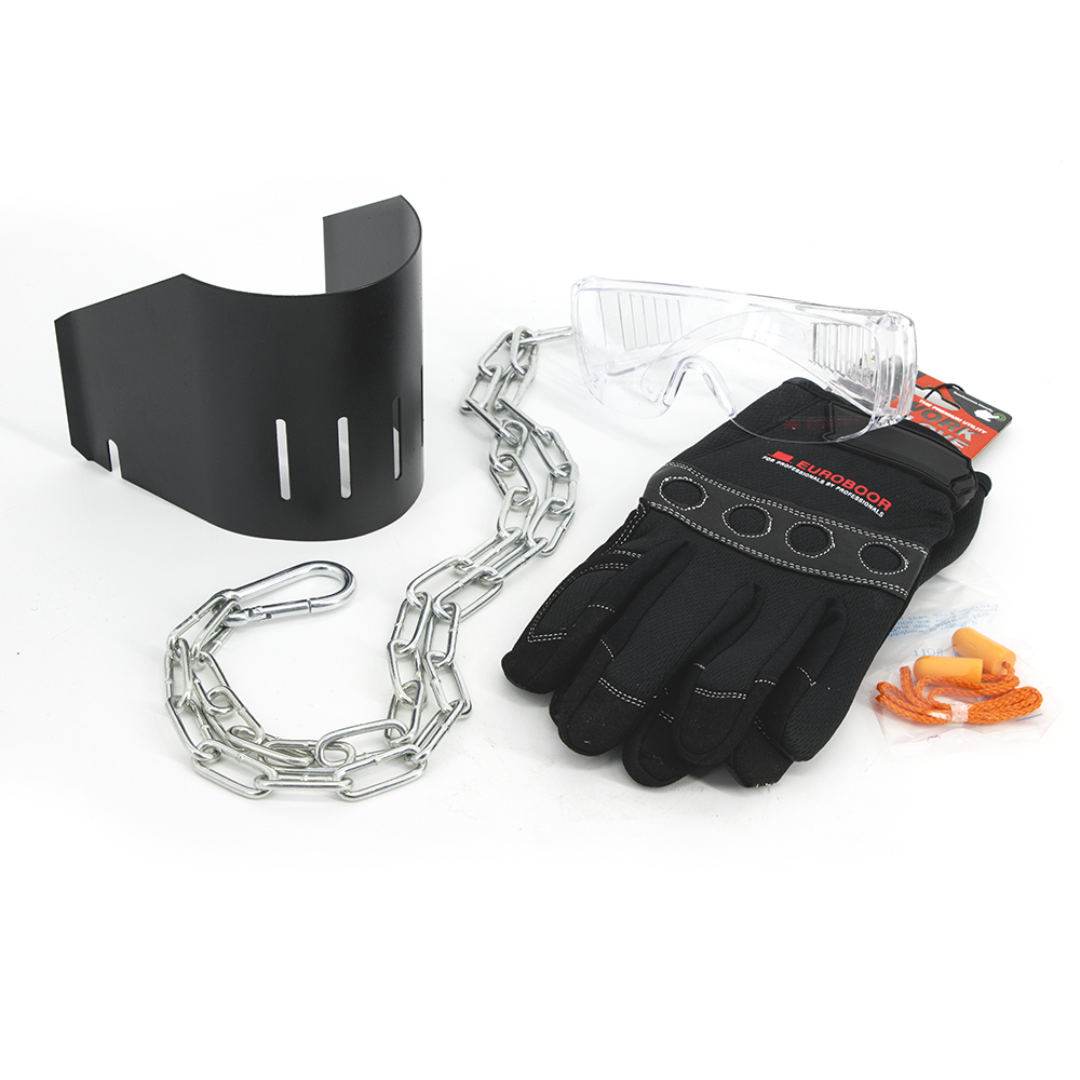

- 1 × Protective safety guard
- 1 × Safety chain
- 1 × Ear protection
- 1 × Safety goggles
- 1 × Safety gloves
- 1 × User manual
Why Choose the Euroboor ECO.80S+ Magnetic Drilling Machine
- Powerful magnetic holding force for stable drilling on steel structures
- 4-speed gearbox suitable for both annular cutters and twist drills
- Advanced electronic safety systems protect both operator and equipment
- High torque performance for large diameter drilling applications
- Durable construction designed for industrial jobsite environments
The Euroboor ECO.80S+ Magnetic Drilling Machine is engineered for professionals who demand powerful drilling capability, safety, and durability in structural steel and fabrication environments.
