Euroboor ECO.40S+/P Magnetic Drilling Machine Applications
- Structural steel construction and bridge repair projects
- Vertical and overhead drilling in steel structures
- Steel fabrication workshops and industrial manufacturing plants
- Shipbuilding, rail infrastructure, and heavy equipment repair
- On-site drilling for structural beams, plates, and frameworks
- Precision annular drilling and countersinking in structural steel
The permanent magnet design makes this machine especially suitable for vertical or upside-down drilling jobs where magnetic reliability and operator safety are critical.
Euroboor ECO.40S+/P Magnetic Drilling Machine Specifications
| Model | ECO.40S+/P |
|---|---|
| Maximum Annular Cutter Diameter | 1 9/16 in |
| Annular Cutter Range | 7/16 in – 1 9/16 in |
| Twist Drill Capacity | 1/16 in – 5/8 in |
| Countersinking Capacity | 3/8 in – 1 3/4 in |
| Stroke | 5 7/8 in |
| Spindle Connection | 3/4 in Weldon |
| Rotation Direction | Clockwise |
| No-Load Speed | 600 RPM |
| Load Speed | 380 RPM |
| Magnetic Force | 1,984 lb |
| Magnet Dimensions (L × W × H) | 7 3/16 in × 3 3/4 in × 1 3/4 in |
| Machine Height | 12 3/16 in – 18 1/8 in |
| Machine Length | 14 5/16 in |
| Machine Width | 7 1/16 in |
| Net Weight | 27.1 lb |
| Motor Power | 10.5 Amp |
| Total Power Consumption | 10.5 Amp |
| Voltage | 110 – 120 Volt |
| Power Supply Frequency | 50 – 60 Hertz |
| Power Connection | NEMA 5-15 Plug |
| Power Supply Type | AC Electric |
| Gearbox Lubrication | Oil Lubricated |
Euroboor ECO.40S+/P Magnetic Drilling Machine Safety & Performance Features
- Permanent Magnet Technology ensures continuous magnetic adhesion even during power loss, providing exceptional safety for vertical or overhead drilling.
- Gyro-Tec Safety System uses an internal gyroscopic sensor to detect sudden machine movement and immediately shuts down the motor.
- Automatic Shut-Off Protection prevents damage to the motor when carbon brushes reach their wear limit.
- Carbon Brush Wear Indicator LED alerts operators when brush replacement is required.
- Integrated Motor Cable eliminates exposed wiring and reduces the risk of cable damage during transport and repositioning.
- Oil-Lubricated Gearbox provides smooth mechanical operation and increased durability during continuous drilling applications.
- Power Fluctuation Protection safeguards internal electronics from unstable electrical supply.
- Power Surge Protection prevents voltage spikes from damaging sensitive electrical components.

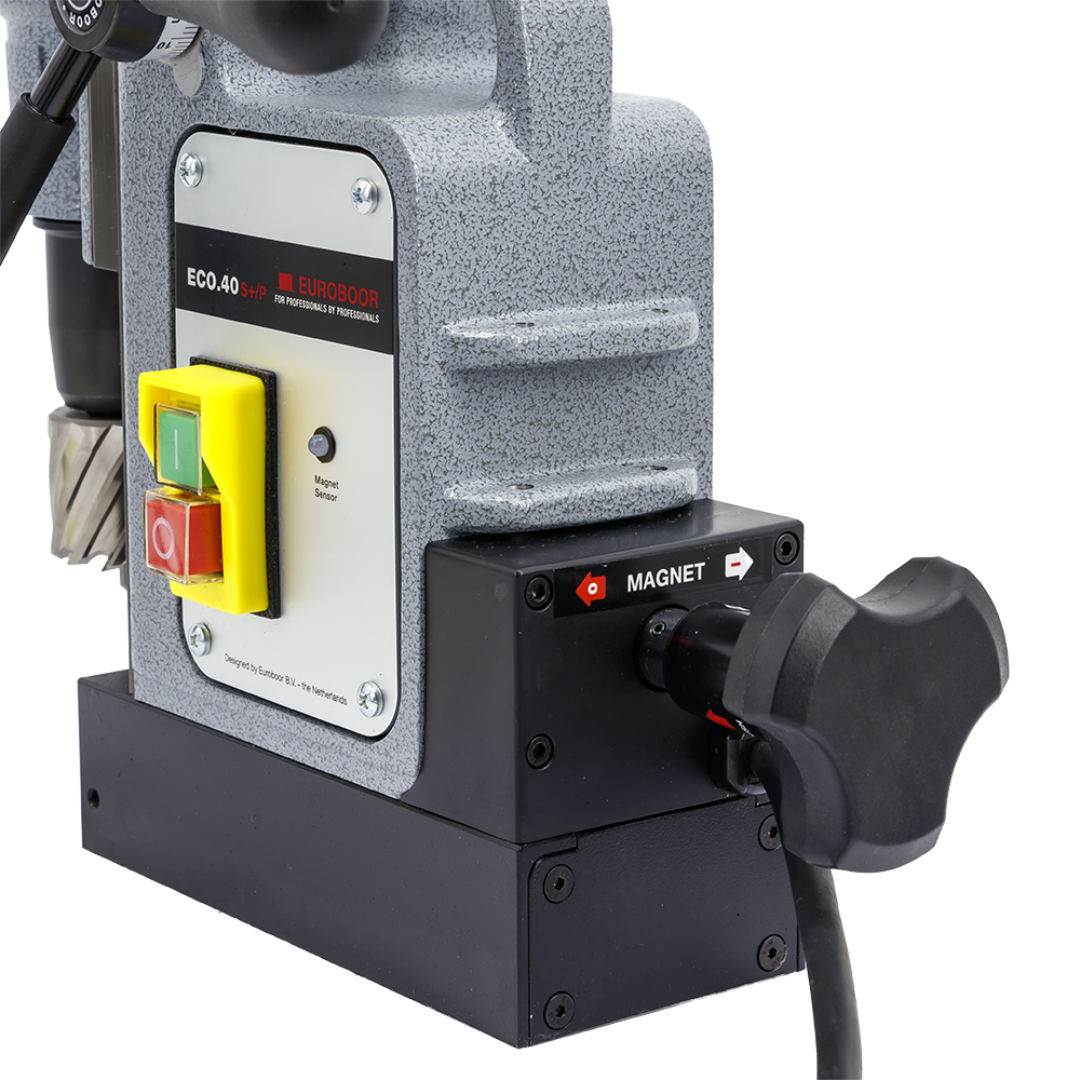

- SensorTec Magnet LED Indicator clearly displays magnet status for improved operator awareness and safety.
Euroboor ECO.40S+/P Magnetic Drilling Machine Package Contents
- 1 × Carrying case
- 1 × Euroboor ECO.40S+/P Magnetic Drilling Machine
- 3 × Capstan hub handles
- 1 × Lubrication / cooling system
- 1 × Protection guard
- 1 × Safety chain
- 1 × Allen key 2.5 mm (3/32")
- 1 × Allen key 3 mm (1/8")
- 1 × Allen key 4 mm (5/32")
- 1 × Allen key 5 mm (13/64")
- 1 × Ear protection
- 1 × Safety goggles
- 1 × Safety gloves
- 1 × User manual
Why Choose the Euroboor ECO.40S+/P Magnetic Drilling Machine
- Permanent magnet technology improves safety during vertical and overhead drilling.
- Advanced Gyro-Tec safety system automatically shuts down the motor during sudden movement.
- Compact and portable design ideal for on-site steel drilling applications.
- Oil-lubricated gearbox ensures durability and smooth operation.
- Professional drilling performance for structural steel fabrication and construction.
The Euroboor ECO.40S+/P Magnetic Drilling Machine combines advanced safety technologies, permanent magnetic stability, and reliable drilling power into one of the safest magnetic drilling machines available. For professionals who never compromise on safety or performance, this mag drill delivers dependable results in every industrial drilling application.
