Euroboor ECO.30S+ Magnetic Drilling Machine Applications
- Steel construction and fabrication
- On-site installation and maintenance work
- Drilling and countersinking in confined spaces
- Structural beam and plate drilling
- Mobile and workshop-based metalworking tasks
Ideal for professionals requiring maximum portability without compromising drilling power or safety.
Euroboor ECO.30S+ Magnetic Drilling Machine Specifications
| Annular Cutter Capacity | 1/2" – 1 3/16" |
|---|---|
| Twist Drill Capacity | 1/16" – 1/2" |
| Countersinking Capacity | 3/8" – 1 3/8" |
| Stroke | 3 9/16" |
| Rotation Direction | Clockwise |
| No-Load Speed (Gear 1) | 775 RPM |
| Load Speed (Gear 1) | 400 RPM |
| Magnetic Force | 2,645 lbs |
| Weight | 18.7 lbs (8.5 kg) |
| Height | 11 6/16" – 15 1/16" |
| Length | 10 13/16" |
| Power Supply | 110 – 120V / 60 Hz |
| Power Connection | NEMA 5-15 Plug |
| Current | AC |

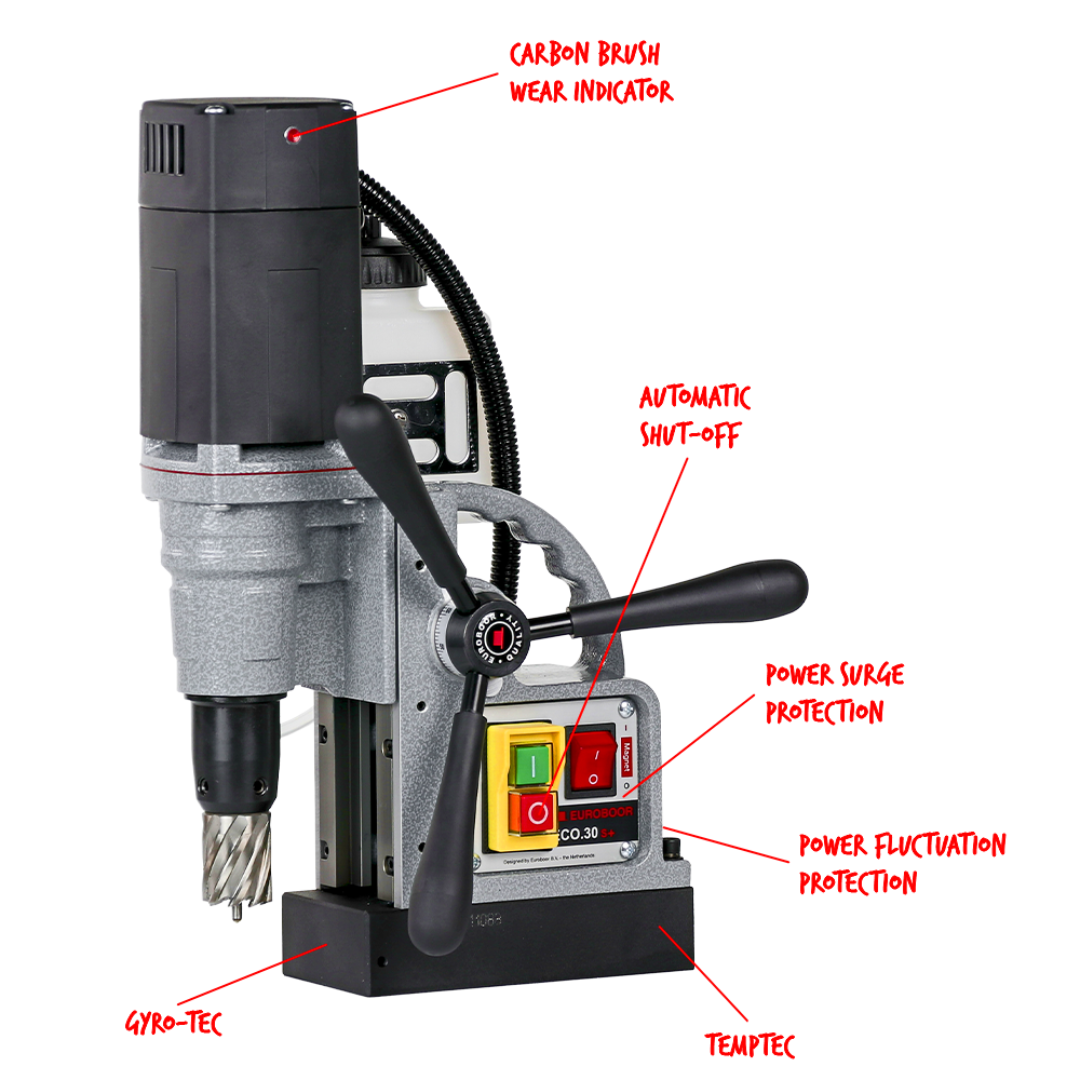

Euroboor ECO.30S+ Magnetic Drilling Machine Performance & Safety Features
- One-Speed Oil Lubricated Gearbox ensures smooth transmission, reduced wear, and extended service life.
- Direct Spindle Drive with integrated cooling and lubrication system for efficient cutting performance.
- Gyro-Tec Safety System protects the user in case of excessive vibration or sudden displacement.
- Automatic Shut-Off Function enhances operator safety.
- Power Surge & Fluctuation Protection safeguards internal components in unstable power conditions.
- Carbon Brush Wear Indicator allows timely maintenance and prevents unexpected breakdowns.
- Strong Dual Coil CNC Machined 2-Way Magnet reduces energy usage, limits heat buildup, and increases magnetic stability.
- Integrated Slide System provides high accuracy, minimal vibration, and extended lifecycle.
- High-Precision Height Adjustment for low maintenance and minimal wear correction.
- Reversible Feed Handles for flexible operation in confined workspaces.
- Timely Service Notification reduces unexpected downtime and unnecessary part replacement.
Euroboor ECO.30S+ Magnetic Drilling Machine Package Contents
- 1x Carrying Case
- 1x Euroboor ECO.30S+ Magnetic Drilling Machine
- 3x Capstan Hub Handles
- 1x Lubrication/Cooling System
- Allen Keys: 2.5 mm (3/32"), 3 mm (1/8"), 4 mm (5/32"), 5 mm (13/64")
- 1x Protection Guard
- 1x Safety Chain
- 1x Ear Protection
- 1x Safety Goggles
- 1x Safety Gloves
- 1x User Manual
Why Choose the Euroboor ECO.30S+ Magnetic Drilling Machine
- Lightest 1 3/16" magnetic drilling machine in its class.
- Compact design for drilling in restricted spaces.
- Advanced electronic safety systems for operator and machine protection.
- Powerful 2,645 lbs magnetic holding force for secure positioning.
- Reduced maintenance costs and extended machine lifespan.
The Euroboor ECO.30S+ Magnetic Drilling Machine delivers compact power, precision, and advanced safety technology in a lightweight and durable design—making it the ideal solution for professional metal drilling applications.
