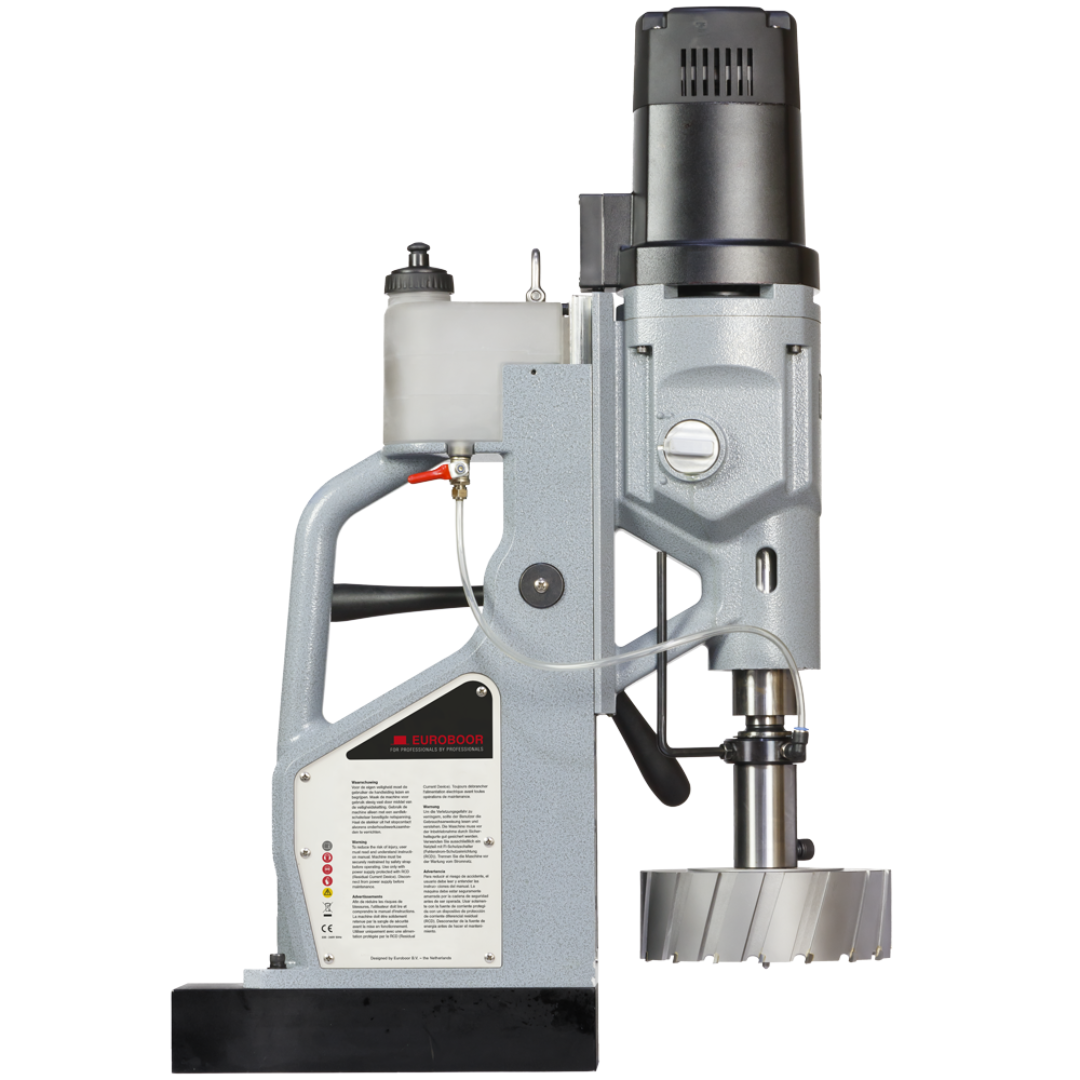

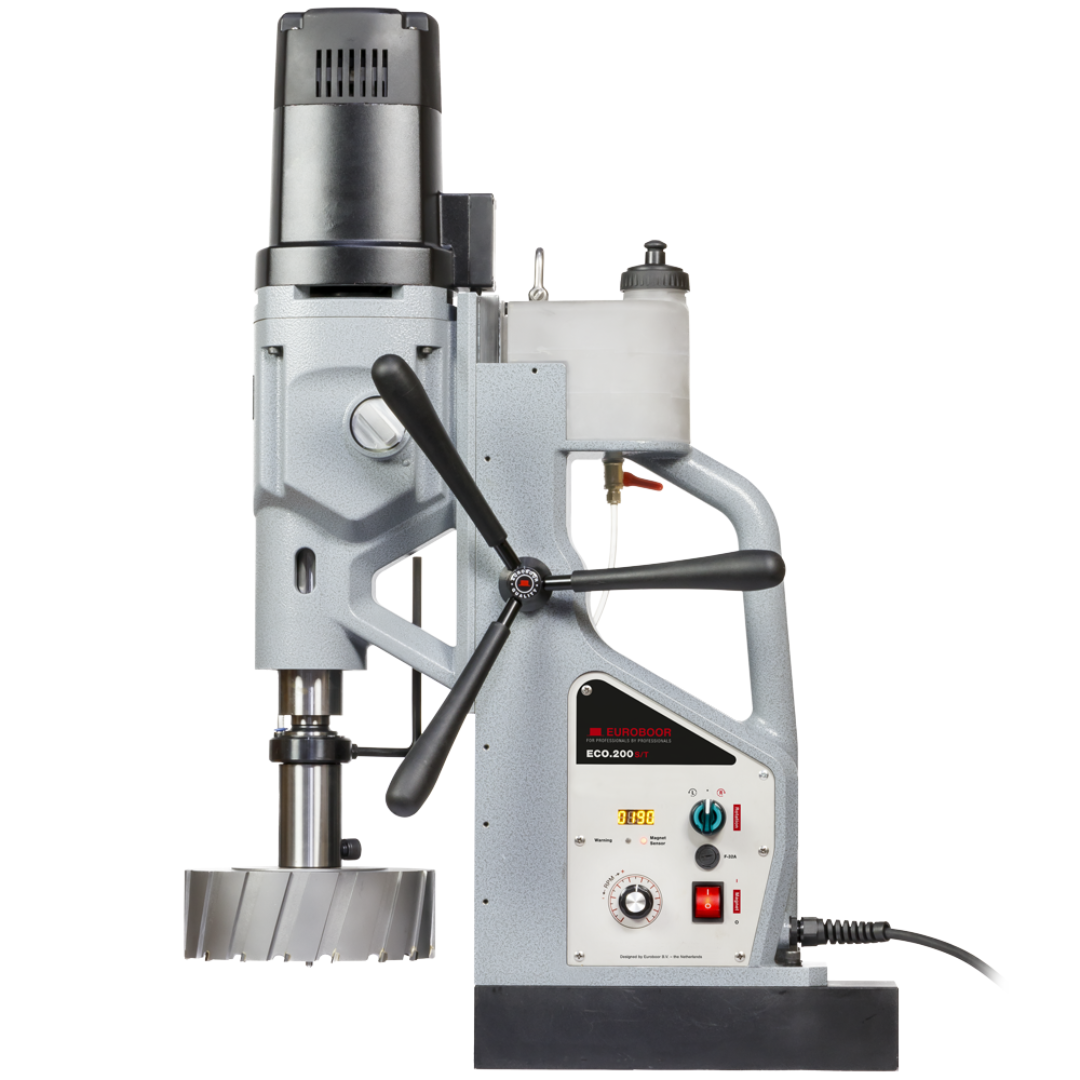

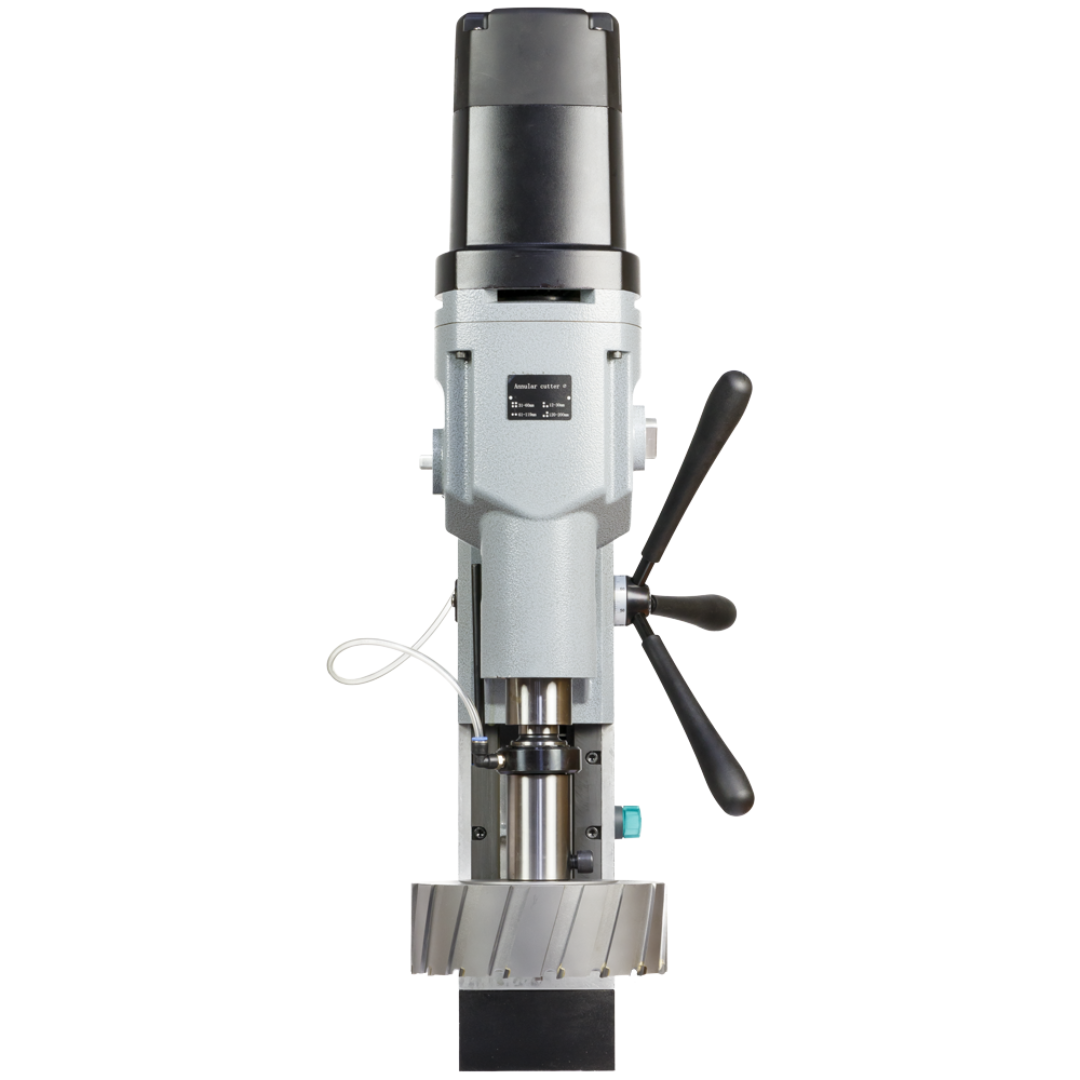

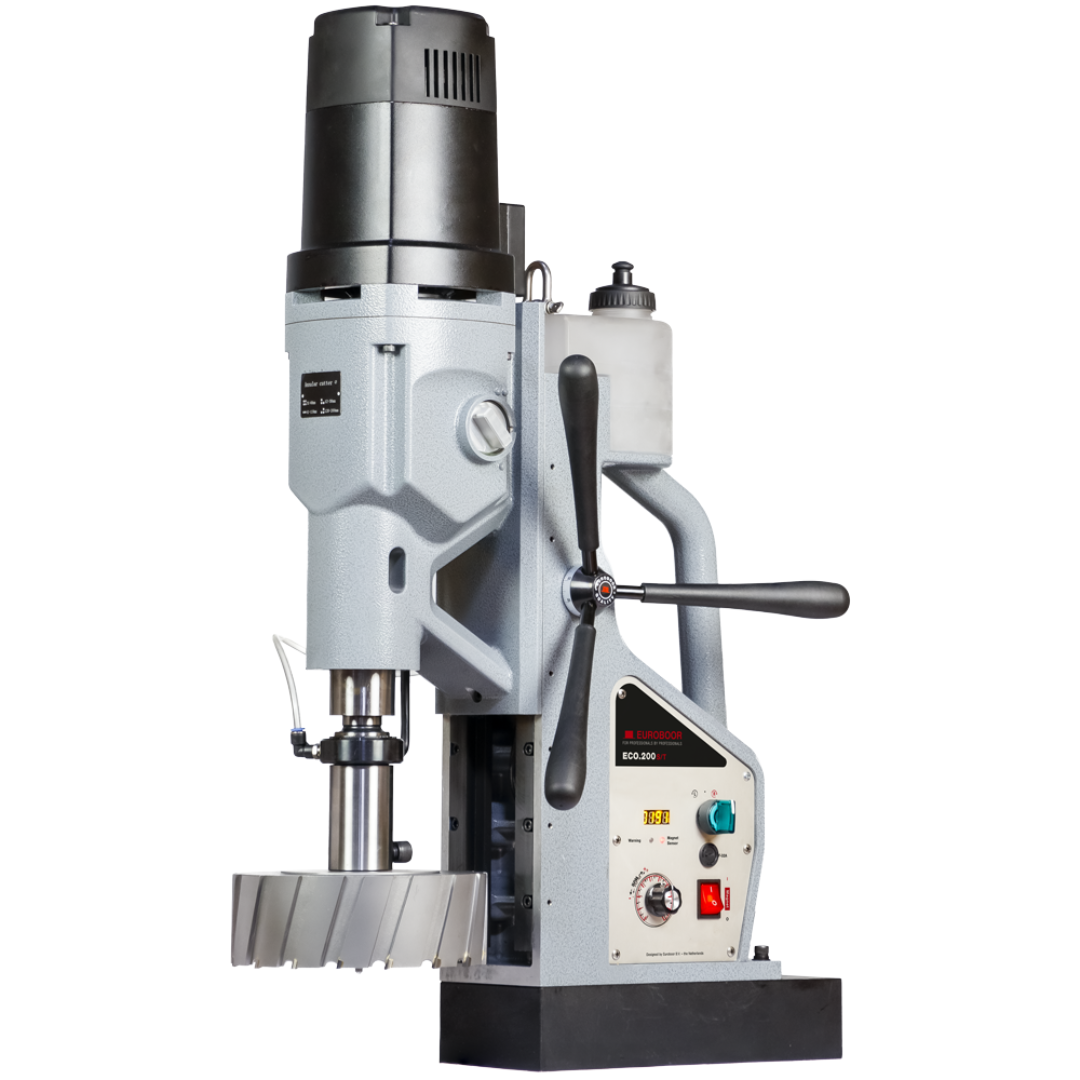

Euroboor ECO.200S/T Magnetic Drilling Machine 110 V Applications
- Heavy structural steel fabrication and construction projects
- Industrial metalworking, machining, and maintenance operations
- Large diameter hole cutting using annular cutters up to 8 inches
- Thread tapping and countersinking on thick steel workpieces
- Bridge construction, shipbuilding, and heavy equipment manufacturing
- On-site drilling where stationary machines cannot be used
Built for professionals who need maximum drilling power and extreme cutting capacity in portable magnetic drilling equipment.
Euroboor ECO.200S/T Magnetic Drilling Machine 110 V Specifications
| Model | ECO.200S/T |
|---|---|
| Maximum Annular Cutter Capacity | 200 mm / 7 7/8" |
| Maximum Twist Drill Diameter | 50 mm / 2" |
| Maximum Countersinking Diameter | 205 mm / 8 1/16" |
| Maximum Tapping Capacity | M3 – M48 |
| Motor Type | High-Efficiency Brushless Motor |
| Motor Power | 2,600 W |
| Total Power | 2,750 W |
| Magnetic Force | 3,680 kg (8,113 lbs) |
| Spindle | MT4 / Weldon 31.75 mm (1 1/4") |
| Stroke | 255 mm (10 1/16") |
| Machine Height Range | 650 – 905 mm (25 9/16" – 35 5/8") |
| Power Supply | 110 – 120 Volt • 60 Hz • AC |
| Rotation Direction | Bidirectional (R/L Rotation) |
| Gearbox | 4-Speed Oil Lubricated Gearbox |
Euroboor ECO.200S/T Magnetic Drilling Machine 110 V Performance & Technology
- Brushless Motor Technology eliminates friction from carbon brushes, delivering greater efficiency, higher power output, reduced energy consumption, and longer motor lifespan.
- Massive 200 mm (8") drilling capacity allows professionals to perform extremely large diameter drilling operations directly on steel structures and heavy components.
- Adjustable electronic speed control allows precise matching of drill speed with cutter diameter and material type for improved performance and longer cutter life.
- Right / Left rotation enables accurate and efficient tapping operations for threaded holes in steel and other metals.
- Oil-lubricated gearbox ensures smooth mechanical operation, reduced wear, and long-term reliability even under heavy industrial loads.
- Integrated digital display provides real-time feedback on motor revolutions, allowing operators to fine-tune cutting speeds for optimal drilling results.
- Magnet LED indicator (SensorTec) confirms that sufficient magnetic force is present for safe drilling operation.
- Advanced electronic protection systems safeguard the machine against overload, power fluctuations, and operational hazards during demanding work conditions.
Euroboor ECO.200S/T Magnetic Drilling Machine 110 V Package Contents
- 1 × Metal transport case
- 1 × Euroboor ECO.200S/T Magnetic Drilling Machine
- 3 × Capstan hub feed handles
- 1 × Spindle holder MT4 – Weldon 31.75 mm (1 1/4") with cooling / lubrication ring
- 1 × Spindle holder MT3 – Weldon 19.05 mm (3/4") with cooling / lubrication ring
- 1 × Morse taper reducing adapter MT4 → MT3
- 1 × Drift key
- 1 × Lubrication / cooling system
- 1 × Allen key 2.5 mm (3/32")
- 1 × Allen key 5 mm (13/64")
- 1 × Allen key 6 mm (14/64")

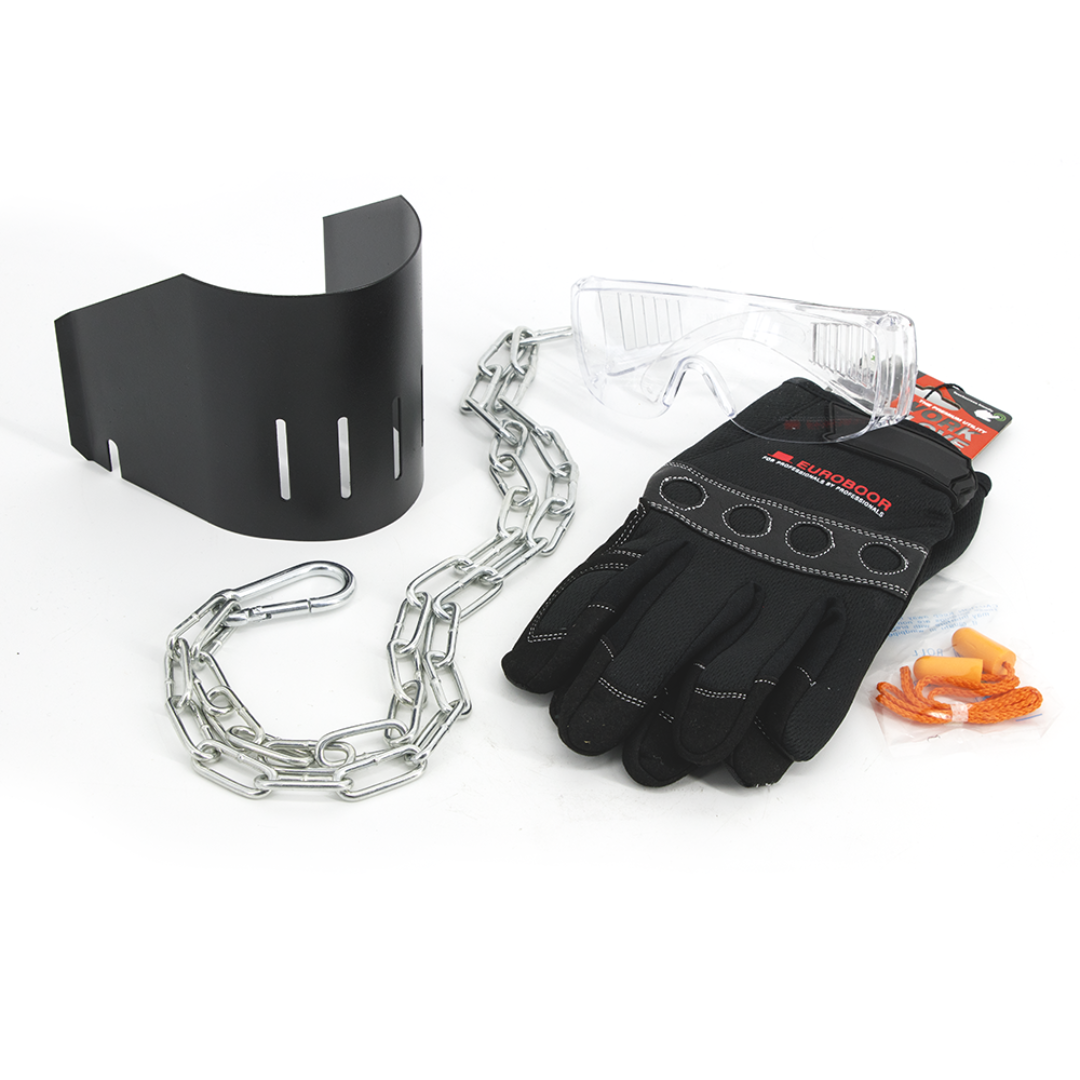

- 1 × Safety chain
- 1 × Ear protection
- 1 × Safety goggles
- 1 × Safety gloves
- 1 × User manual
Why Choose the Euroboor ECO.200S/T Magnetic Drilling Machine 110 V
- Extreme 8" annular cutter drilling capacity for heavy industrial applications.
- Powerful and efficient brushless motor technology.
- Precision adjustable speed and digital RPM monitoring.
- Right/left rotation designed for professional tapping operations.
- Robust magnetic base delivering over 8,000 lbs of holding force.
- Industrial reliability with oil-lubricated gearbox and electronic safety systems.
The Euroboor ECO.200S/T Magnetic Drilling Machine 110 V is built for professionals who need unmatched drilling capacity, precision control, and reliable industrial performance in demanding steel fabrication environments.
