Euroboor ECO.100S+/CT2 Magnetic Drilling Machine Applications
- Structural steel fabrication and construction
- Precision drilling and hole alignment on steel plates
- Thread tapping and countersinking operations
- Slot milling and machining on complex workpieces
- Bridge construction and infrastructure maintenance
- Heavy machinery installation and industrial maintenance
- Fabrication shops requiring highly accurate magnetic drilling systems
The integrated cross table system enables precise hole positioning and milling operations without moving the magnetic base, significantly improving machining accuracy and efficiency.
Euroboor ECO.100S+/CT2 Magnetic Drilling Machine Specifications
| Model | ECO.100S+/CT2 |
|---|---|
| Maximum Annular Cutter Diameter | 4" |
| Threading Capacity | 1/8" – 1-3/16" |
| Twist Drill Capacity | 1/16" – 1-1/4" |
| Countersinking Capacity | 3/8" – 4-1/8" |
| Spindle Type | MT3 Morse Taper / Weldon 1-1/4" |
| Stroke | 10-1/4" |
| Magnetic Holding Force | 9,700 lbs |
| Rotation Direction | Bidirectional |
| Gearbox | 4-Speed Oil Lubricated Gearbox |
| No-Load Speed | 42 – 620 RPM |
| Loaded Speeds | 85 / 152 / 270 / 480 RPM |
| Motor Power | 1,900 W |
| Total Power Consumption | 2,200 W |
| Power Supply Voltage | 110 – 120 Volt |
| Power Supply Frequency | 60 Hertz |
| Power Supply Connection | NEMA 5-15 Plug |
| Machine Weight | 121 lbs |
| Machine Dimensions (L × W × H) | 19-9/16" × 14-3/4" × 24-3/16" – 31-1/4" |
| Cross Table Travel (X Axis) | 4-5/16" |
| Cross Table Travel (Y Axis) | 4-3/4" |
| Application Type | Drilling, Countersinking, Threading, Milling |
Euroboor ECO.100S+/CT2 Magnetic Drilling Machine Performance & Technology
- Integrated cross table positioning system allows precise X/Y positioning after the magnet is fixed to the surface.
- Milling functionality enables slot creation and machining on complex workpieces.
- Four-speed oil lubricated gearbox ensures smooth power transfer and extended internal component life.
- Bidirectional rotation supports efficient tapping operations and safe tool withdrawal.
- Electronic speed adjustment allows operators to optimize cutting speeds for various materials and tools.
- Precision spindle with threaded retaining ring ensures strong coupling to the motor and minimizes play during heavy machining operations.
- Dual-coil CNC-machined magnetic base provides strong holding power while reducing energy consumption.
- Gyro-Tec safety monitoring system stops the machine automatically if excessive vibration or displacement is detected.
- Overload, power surge, and power fluctuation protection safeguard the machine's electronics and motor.
- Carbon brush wear indicator and Smart Restart technology help prevent unexpected downtime and simplify maintenance.
- Magnet LED indicator confirms proper magnetic engagement before drilling begins.
Euroboor ECO.100S+/CT2 Magnetic Drilling Machine Package Contents
- 1 × Euroboor ECO.100S+/CT2 Magnetic Drilling Machine
- 1 × Heavy-duty metal transport case
- 3 × Capstan hub feed handles
- 1 × Extension spindle MT3 (IBK.MC3-L121)
- 1 × MT3 – Weldon 31.75 mm (1-1/4") spindle holder with cooling/lubrication ring
- 1 × Weldon 31.75 mm to 19.05 mm adapter (1-1/4" to 3/4")
- 1 × Drift key
- 1 × Side handle
- 1 × Lubrication and cooling system
- Allen keys: 2.5 mm, 3 mm, 4 mm, and 5 mm

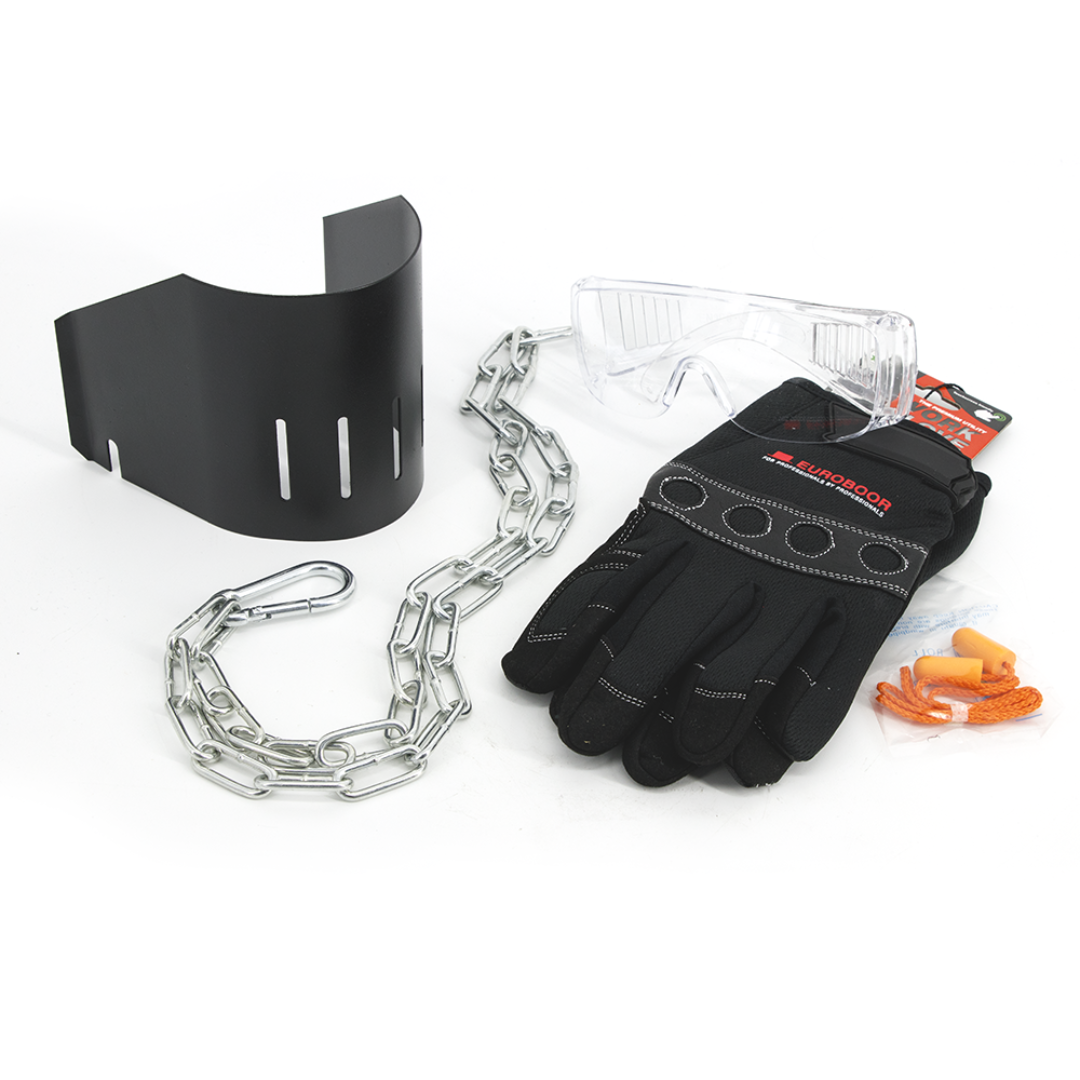

- 1 × Safety chain
- 1 × Ear protection
- 1 × Safety goggles
- 1 × Safety gloves
- 1 × User manual
Why Choose the Euroboor ECO.100S+/CT2 Magnetic Drilling Machine
- Integrated cross table system for precise X/Y positioning.
- Supports drilling, tapping, countersinking, and milling in one machine.
- High magnetic holding force for stable machining on steel surfaces.
- Advanced safety electronics protect both operator and equipment.
- Industrial-grade construction designed for demanding fabrication environments.
The Euroboor ECO.100S+/CT2 Magnetic Drilling Machine delivers exceptional precision and versatility, making it ideal for professional fabrication shops and industrial environments requiring advanced magnetic drilling and milling capabilities.
