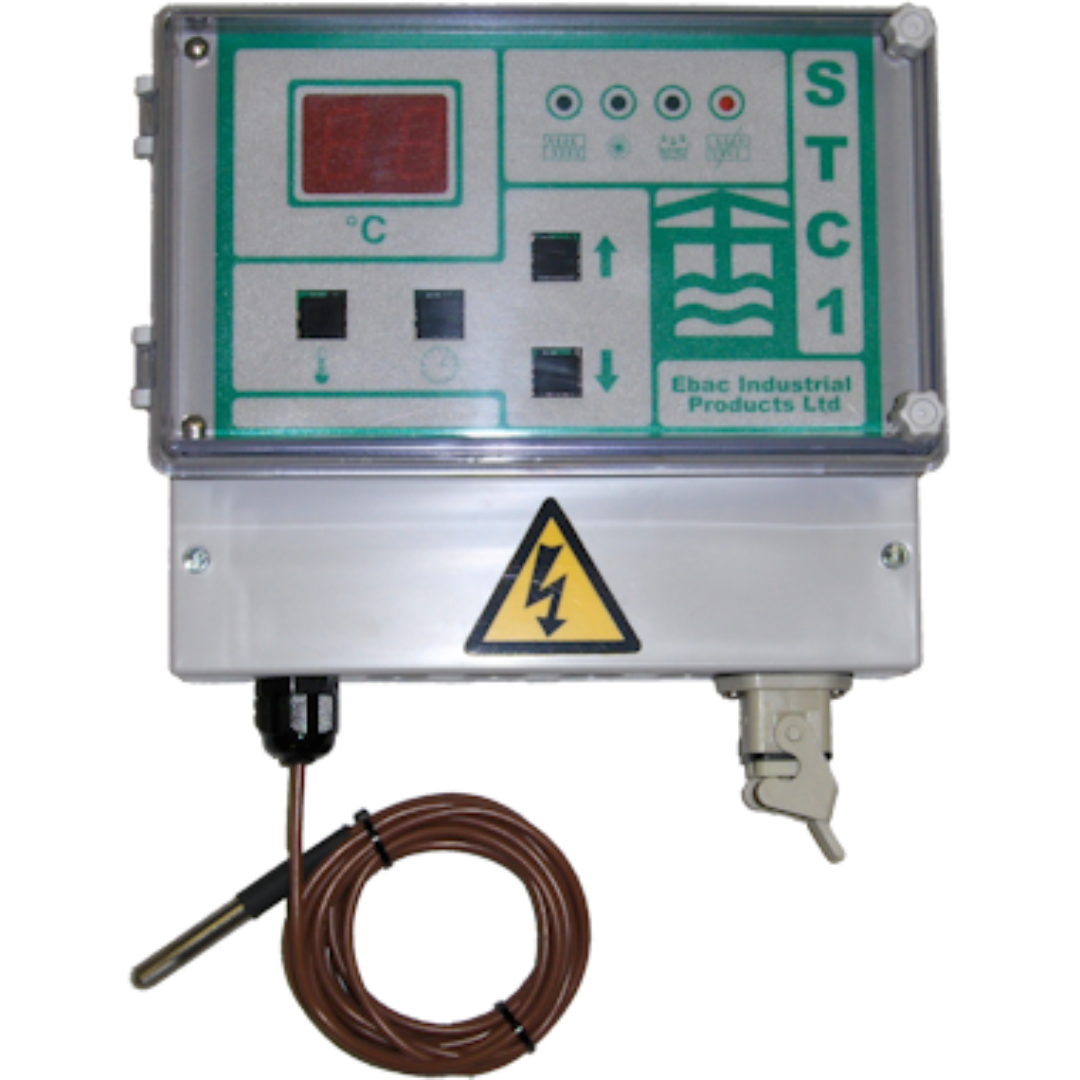

Ebac STC1 Controller 1352400 Applications
- Timber drying kiln control systems
- Small woodworking kiln installations
- Cabinet making workshops
- Furniture manufacturing operations
- Wood retailers producing kiln dried lumber
- Professional woodworking and craft shops
- Replacement controller for Ebac timber dryers
The Ebac STC1 Controller 1352400 provides reliable electronic control for Ebac timber drying equipment, enabling precise drying cycle management and consistent lumber quality.
Ebac STC1 Controller 1352400 System Control Functions
The Ebac STC1 Controller 1352400 integrates two key control systems that regulate the drying environment within the kiln:
- Proportional drying timer controls the drying cycle to manage moisture removal.
- Adjustable thermostat regulates heating cycles within the drying chamber.
- Crossover control capability allows the drying and heating systems to operate independently or interact with each other.
- Electronic monitoring system provides real-time operational feedback.
- Facility for vent control supports additional airflow regulation where required.
This control flexibility allows operators to maintain optimal drying conditions while preventing excessive drying speeds that could damage timber.
Ebac STC1 Controller 1352400 Features
- Adjustable temperature control for precise kiln temperature regulation.
- Proportional drying time control for accurate moisture removal cycles.
- Electronic control system ensures stable and consistent operation.
- Wall mountable design for convenient installation outside the kiln.
- Durable plastic enclosure designed for industrial environments.
- IP69 sealed enclosure protects against moisture and dust.
- Vent control capability for additional kiln airflow management.
- Integrated crossover control linking heating and drying functions.
Ebac STC1 Controller 1352400 Installation
Ebac Industrial Products recommends mounting the Ebac STC1 Controller 1352400 outside the drying kiln to allow convenient monitoring and adjustments during operation. The enclosure includes mounting points on the underside of the control box for simple wall installation.
- A top hook mounting point allows the controller to be hung initially.
- Two lower fixing points secure the unit firmly to the wall.
- The front cover can be removed to access internal mounting holes.
- The controller should be installed level to ensure proper operation.
Once mounted, the system provides easy access to temperature monitoring and drying cycle adjustments during kiln operation.
Ebac STC1 Controller 1352400 Specifications
| Product Name | Ebac STC1 Controller 1352400 |
|---|---|
| Part Number | 1352400 |
| Power Requirements | 115 / 230 V |
| Phase | Single Phase |
| Frequency | 50 / 60 Hz |
| Height | 203 mm |
| Width | 222 mm |
| Depth | 108 mm |
| Weight | 1.2 kg |
| Enclosure Type | Plastic IP69 Sealed Enclosure |
Ebac STC1 Controller 1352400 Package Contents
- 1 × Ebac STC1 Controller 1352400 Control Panel
- 1 × STC1 Owner's Manual
Why Choose the Ebac STC1 Controller 1352400
- Designed specifically for Ebac timber drying systems.
- Provides precise control of drying and heating cycles.
- Improves consistency and reliability of kiln drying operations.
- Supports multiple Ebac dryer models including LD800, LD82, LD3000, and FD100.
- Durable sealed enclosure suitable for workshop environments.
The Ebac STC1 Controller 1352400 provides reliable and precise operational control for Ebac timber drying systems, ensuring consistent kiln performance and high-quality dried lumber.
