Ebac CD60 Dehumidifier 11264FR-US Applications
- Commercial offices and laboratory environments
- Warehouses and storage facilities
- Restaurants, bars, and hospitality locations
- Museums and archival storage rooms
- Computer and telecommunications equipment rooms
- Locker rooms, basements, and crawl spaces
- Industrial facilities requiring reliable humidity control
The Ebac CD60 Dehumidifier 11264FR-US helps eliminate excess humidity that causes condensation, mold growth, corrosion, and long-term structural damage in commercial and industrial environments.
Ebac CD60 Dehumidifier 11264FR-US Specifications
| Model | CD60 |
|---|---|
| Part Number | 11264FR-US |
| Power Requirement | 110V / 1 Phase / 60 Hz |
| Power Consumption | 880 W |
| Current Draw | 7 A |
| Typical Moisture Extraction | 56 Pints per Day |
| Airflow | 170 CFM |
| Noise Level | 57 dBA |
| Refrigerant | R454c |
| Effective Coverage Volume | 8,370 cu.ft. |
| Minimum Operating Temperature | 33°F |
| Maximum Operating Temperature | 95°F |
| Height | 17 in |
| Width | 20 in |
| Depth | 14 in |
| Weight | 80 lbs |
| Compressor Type | Rotary |
Ebac CD60 Dehumidifier 11264FR-US Performance & Construction

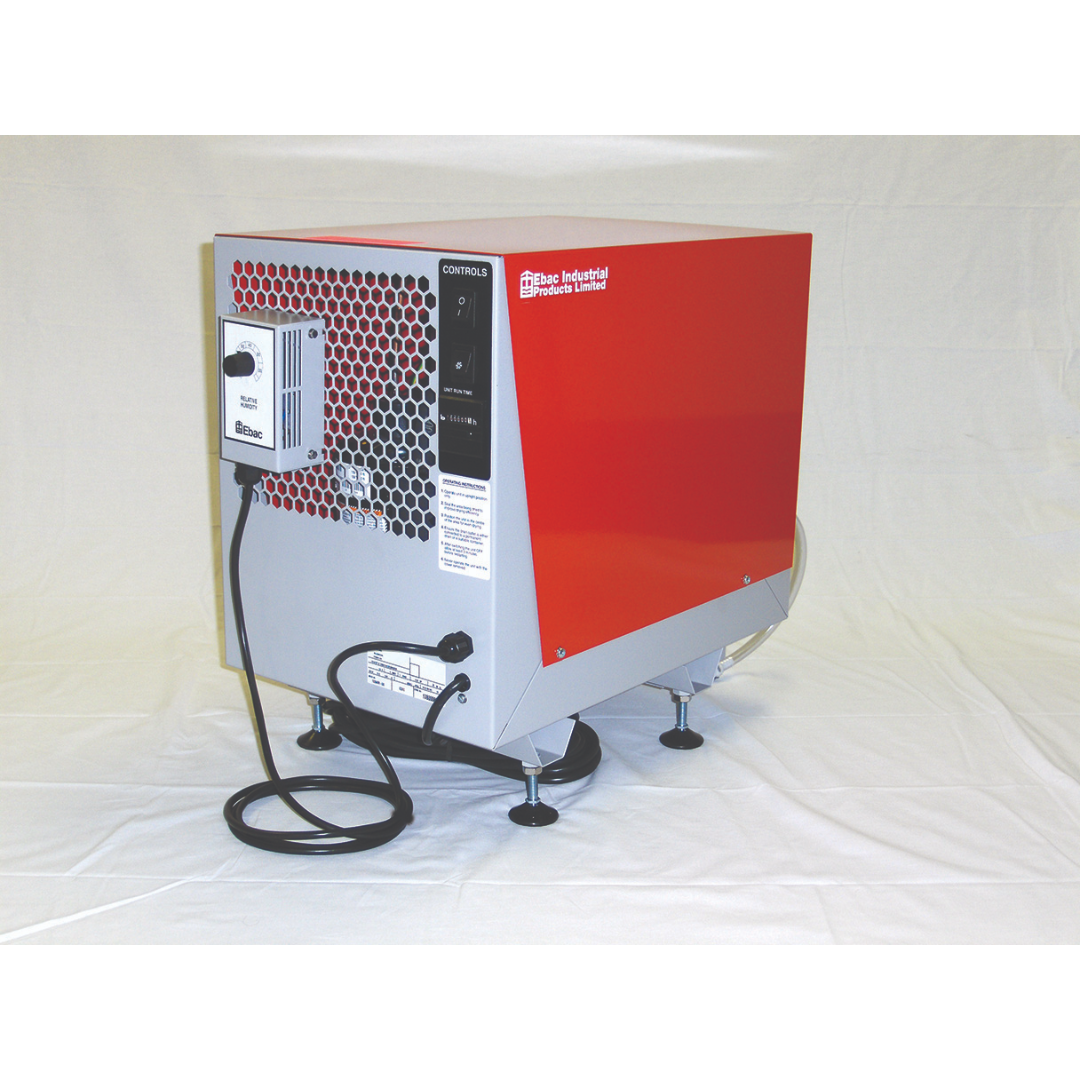

- Adjustable Control Humidistat maintains the desired humidity level automatically.
- Remote Humidistat Capability allows flexible control placement for convenient system management.
- High Efficiency Rotary Compressor delivers strong moisture extraction with reduced operating costs.
- Hot Gas Defrost System automatically melts frost buildup to maintain efficient operation in low temperatures.
- Electronic Defrost Control ensures stable performance across varying environmental conditions.
- Integrated High Capacity Condensate Pump automatically removes collected moisture to higher drainage points.
- Hours Run Meter allows easy monitoring of system operation and maintenance scheduling.
- Epoxy Powder-Coated Steel Chassis provides long-term durability and corrosion resistance.
- Quick Disconnect Hose Coupling simplifies installation and maintenance.
- Standard 115V Plug enables quick installation without special electrical requirements.
Ebac CD60 Dehumidifier 11264FR-US Dehumidification Process
- Air is drawn into the Ebac CD60 Dehumidifier 11264FR-US by a high-efficiency internal fan.
- The air passes across a cold evaporator coil where moisture condenses.
- Condensed water collects in the condensate tray and is pumped away by the internal condensate pump.
- The air then passes through the condenser coil where recovered heat slightly warms the air.
- The discharged air returns to the room warmer and significantly drier.
- Continuous air circulation gradually reduces humidity levels in the controlled space.
- An automatic defrost system prevents frost buildup during cooler operating conditions.
- The humidistat cycles the system on and off to maintain the desired humidity level efficiently.
Using an advanced refrigeration-based drying process, the Ebac CD60 Dehumidifier 11264FR-US efficiently removes excess moisture while maintaining reliable industrial performance.
Ebac CD60 Dehumidifier 11264FR-US Included Components
- 1 × CD60 Dehumidifier
- 1 × CD60 Owner’s Manual
- 1 × PVC Drain Tube (3/8" I/D – 7.8 m Long)
- 1 × Quick Release Hose Coupling
Why Choose the Ebac CD60 Dehumidifier 11264FR-US
- Removes up to 56 pints of moisture per day for powerful humidity control.
- High capacity condensate pump enables drainage to elevated locations.
- Energy-efficient rotary compressor reduces operating costs.
- Durable industrial construction designed for long-term reliability.
- Remote humidistat support for flexible control installation.
- Compact design suitable for commercial and industrial environments.
The Ebac CD60 Dehumidifier 11264FR-US combines high capacity moisture removal, durable construction, and simple installation to provide dependable humidity control in demanding commercial and industrial spaces.
