Castaly Super CNC Router (Rotary 12 Tools ATC) Applications
- Cabinet and furniture manufacturing including panels, doors, and decorative components
- Nested-based production for modular furniture and cabinetry systems
- Advertising and signage production including acrylic cutting and engraving
- Die and mold machining for aluminum, plastics, PVC, and composite materials
- 3D contouring and complex machining across multiple material types
Designed for manufacturers requiring fast tool changes, high-speed machining, and precision performance in demanding production environments.
Castaly Super CNC Router (Rotary 12 Tools ATC) Specifications
| Models | SUPER-408RT / SUPER-510RT / SUPER-512RT / SUPER-612RT / SUPER-714RT |
|---|---|
| Control System | SYNTEC CNC Control System |
| Tool Changer | Rotary Automatic Tool Changer (8 ISO30 Tools) |
| Spindle | HSD 12.8 HP (9.6 kW), Air-Cooled, 6,000–24,000 RPM |
| Table | 6-Zone Vacuum Table |
| Machine Frame | Heavy Duty Welded Steel with Quenching Process |
| Drive System | Yaskawa AC Servo Motors with SHIMPO Gearboxes |
| X / Y Drive | Helical Rack & Pinion (TBI / HIWIN) |
| Z Axis | Precision Ball Screw (TBI / HIWIN) |
| Linear Guides | HIWIN Square Rails (X, Y, Z) |
| Inverter | 11 kW |
| Electrical Components | Schneider (France), Siemens Wiring, Omron Switches |
| Lubrication | Automatic Lubrication System with Filter |
| Max Travel Speed | 2,350 IPM |
| Max Working Speed | 1,100 IPM |
| Power Requirement | 3 Phase, 220V, 53 AMP |
| Working Sizes | Multiple Configurations (408 / 510 / 512 / 612 / 714) |
| Net Weight | 4,020 – 6,320 lbs (Model Dependent) |
| File Formats | *.plt, *.dst, *.dxf, *.bmp, *.dwg, *.uoo |
Castaly Super CNC Router (Rotary 12 Tools ATC) Performance & Construction

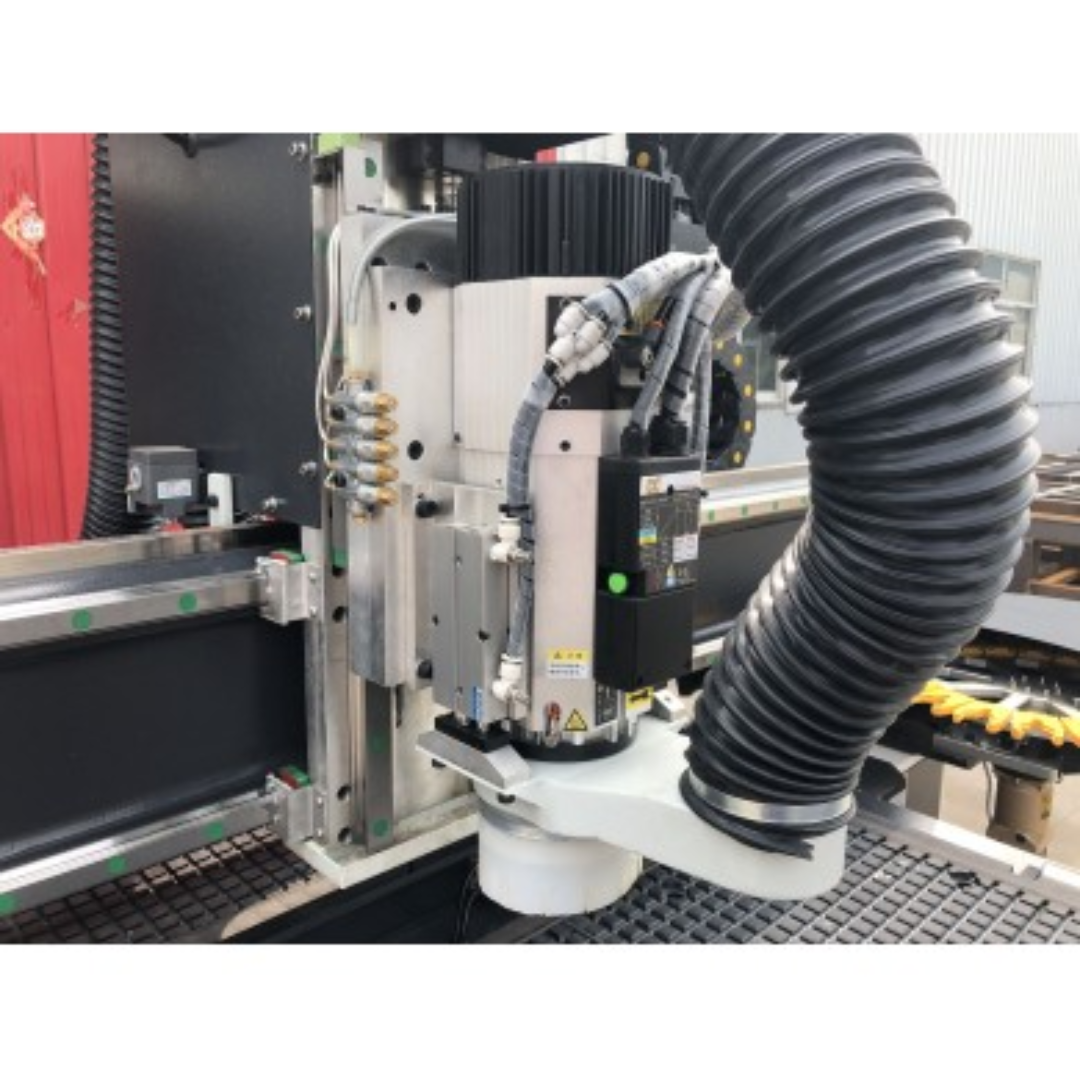

- Rotary automatic tool changer allows rapid tool switching to increase production efficiency.
- High-performance AC servo drive system ensures precise, high-speed motion control.
- Advanced Syntec CNC controller supports G-code programming and onboard operation.
- Rigid stress-relieved steel frame provides long-term stability and consistent machining accuracy.

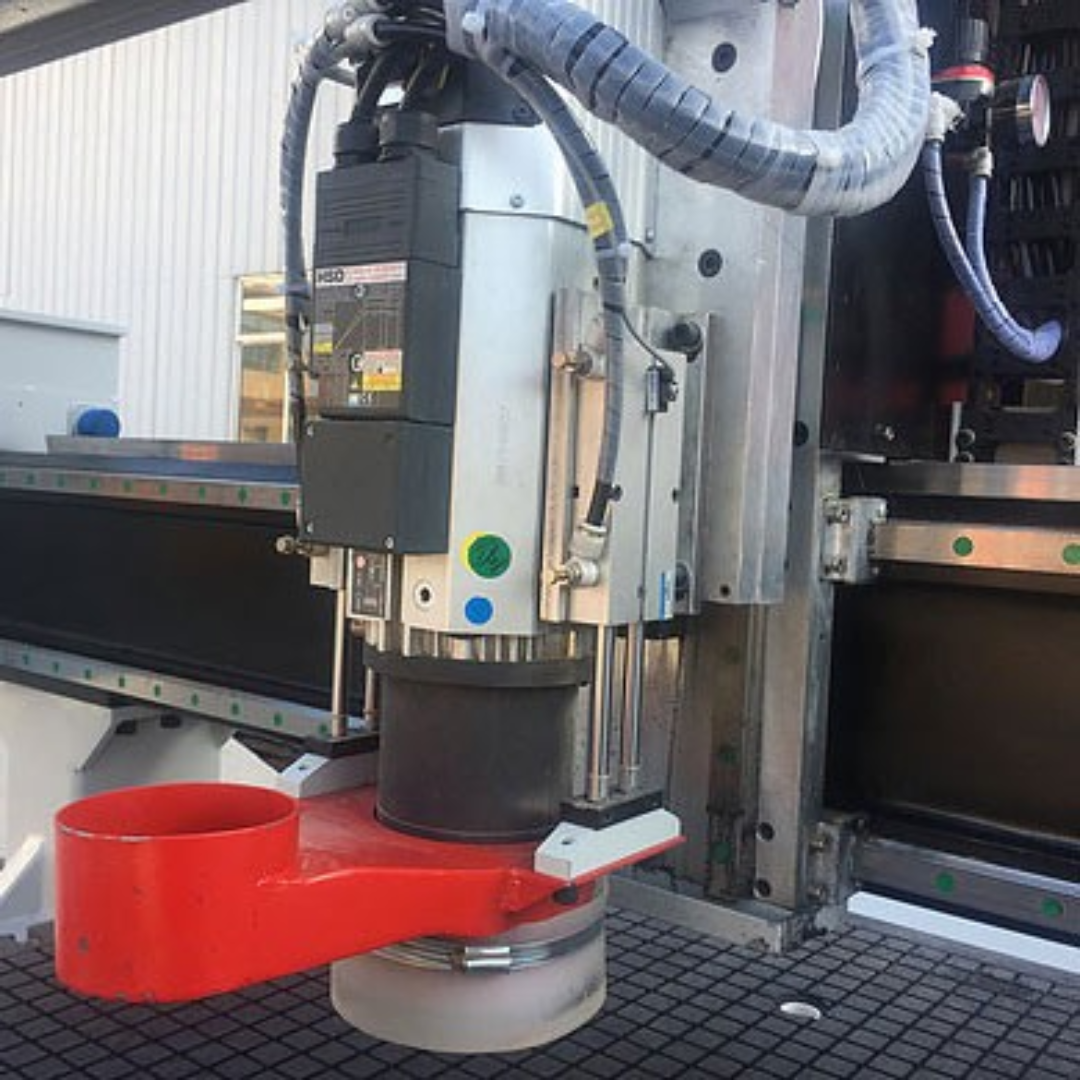

- High-speed HSD spindle with CP4 bearings ensures reliable cutting and long service life.
- Precision rack & pinion drive system enables fast and accurate movement on X and Y axes.
- Ball screw Z-axis assembly ensures superior vertical precision and durability.
- Linear guideways with recirculating bearings provide smooth travel and maximum precision.
- 6-zone vacuum table delivers strong hold-down for nesting and panel processing.
- Automatic spindle braking system improves cycle times and tool change efficiency.
- Optional CAD/CAM compatibility supports DXF file import and G-code generation.
Castaly Super CNC Router (Rotary 12 Tools ATC) Accuracy & Inspection Standards
- X, Y, Z axis parallel vertical accuracy: 0.001" (0.03 mm)
- Machine repositioning accuracy: 0.001" (0.02 mm)
- Working accuracy: 0.002" (0.05 mm)
- Grating ruler travel accuracy: 0.002" (0.05 mm)
Manufactured to strict industrial tolerance standards for consistent, repeatable machining performance.
Why Choose the Castaly Super CNC Router (Rotary 12 Tools ATC)
- Rotary tool changer increases productivity and reduces downtime.
- High-speed machining with precision servo-driven system.
- Industrial-grade construction for long-term durability.
- Flexible configurations for various production requirements.
- Ideal for woodworking, plastics, and light metal machining.
The Castaly Super CNC Router (Rotary 12 Tools ATC) is a powerful and versatile CNC solution designed to deliver speed, precision, and reliability in demanding manufacturing environments.
