Castaly Pro CNC Router Applications
- Automated nesting and panel processing for cabinet and furniture manufacturing
- Production of cupboard doors, wooden doors, and decorative panels
- High-volume processing for computer tables, cabinetry, and modular furniture
- Advertising applications including signage, acrylic cutting, and display fabrication
- Die and mold production using aluminum, plastic, PVC, and composite materials
Ideal for production facilities requiring automated material handling, precision drilling, and high-speed routing in a continuous workflow environment.
Castaly Pro CNC Router Specifications
| Models | PRO-408 / PRO-510 / PRO-512 |
|---|---|
| Control System | SYNTEC CNC Control System (PC-Based) |
| Tool Changer | Automatic Rotary Tool Changer (8–12 ISO30 Tools) |
| Drill Bank | 9 (5 + 5) “L” Configuration HSD Drill Bank |
| Spindle | HSD 12.8 HP (9.6 kW), Air Cooling, 0–24,000 RPM |
| Table | 6-Zone Vacuum Table |
| Driving System | Yaskawa AC Servo Motors with SHIMPO Gearboxes |
| X / Y Drive | Helical Rack & Pinion (TBI / HIWIN) |
| Z Axis | Precision Ball Screw (TBI / HIWIN) |
| Linear Guides | HIWIN Square Rails (X, Y, Z) |
| Inverter | 11 kW |
| Electrical Components | Schneider (France) |
| Limit Switch | Omron (Japan) |
| Cabling | Siemens Industrial Cable |
| Lubrication | Automatic Central Lubrication System |
| Max Travel Speed | 2,350 IPM |
| Max Working Speed | 1,100 IPM |
| Power Requirement | 3 Phase, 220V, 53 AMP |
| Working Sizes | 408 / 510 / 512 Configurations Available |
| Net Weight | 8,810 – 10,550 lbs (Model Dependent) |
| File Formats | *.plt, *.dst, *.dxf, *.bmp, *.dwg, *.uoo |
Castaly Pro CNC Router Performance & Construction
- Fully automated nesting system with infeed scissor lift and outfeed conveyor for continuous production flow.
- Rotary automatic tool changer with up to 12 tools increases machining efficiency and reduces downtime.
- Integrated HSD drill bank enables multi-directional drilling for cabinetry and panel processing.
- Rigid stress-relieved steel frame ensures long-term stability, repeatability, and precision.

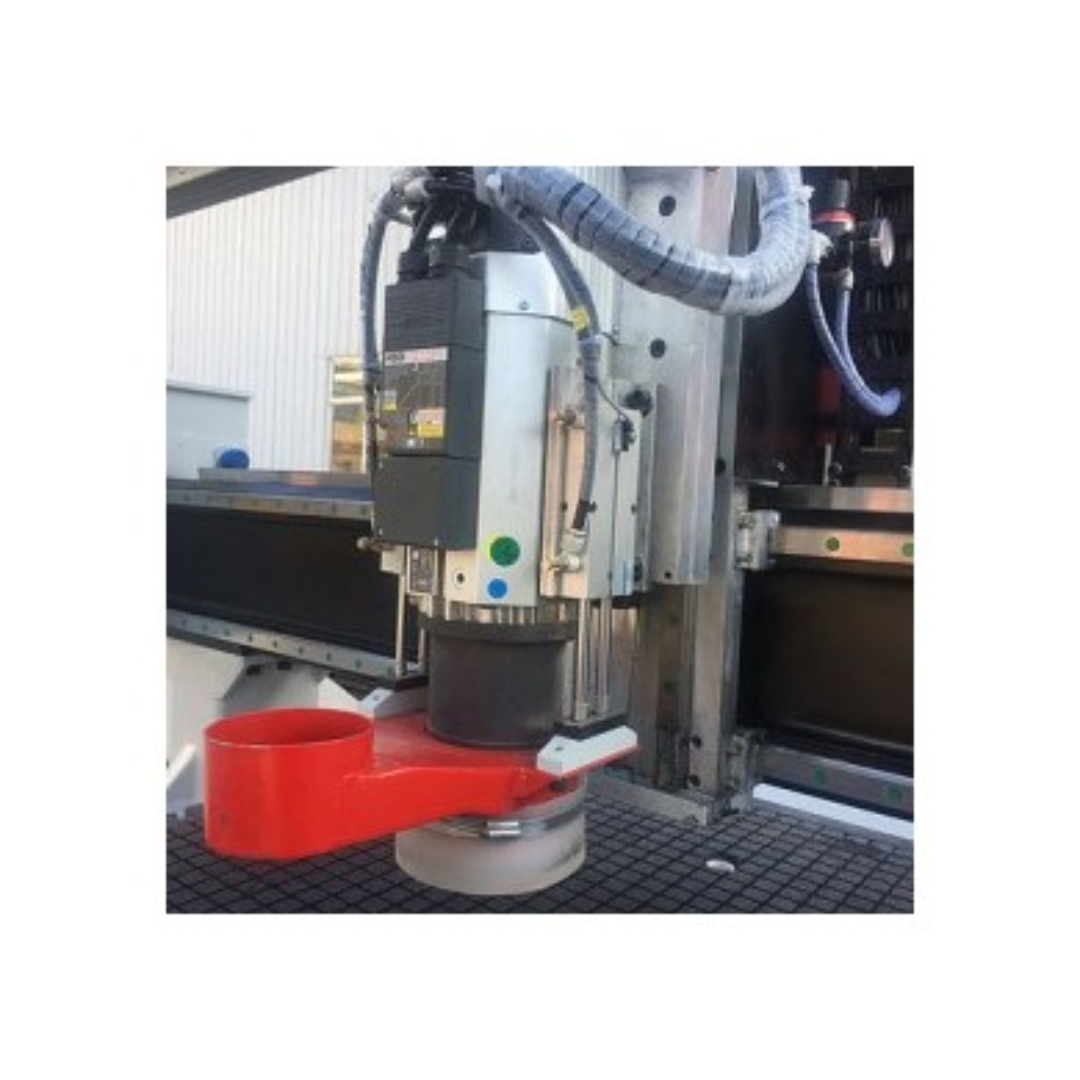

- High-performance HSD spindle with CP4 bearings and air cooling for durability and consistent operation.
- Advanced Syntec CNC control system supports G-code programming and conversational operation.
- Precision motion system with helical rack & pinion drives and ball screw Z-axis for accuracy and speed.
- Linear guideways with recirculating bearings provide smooth, high-speed travel and precision positioning.

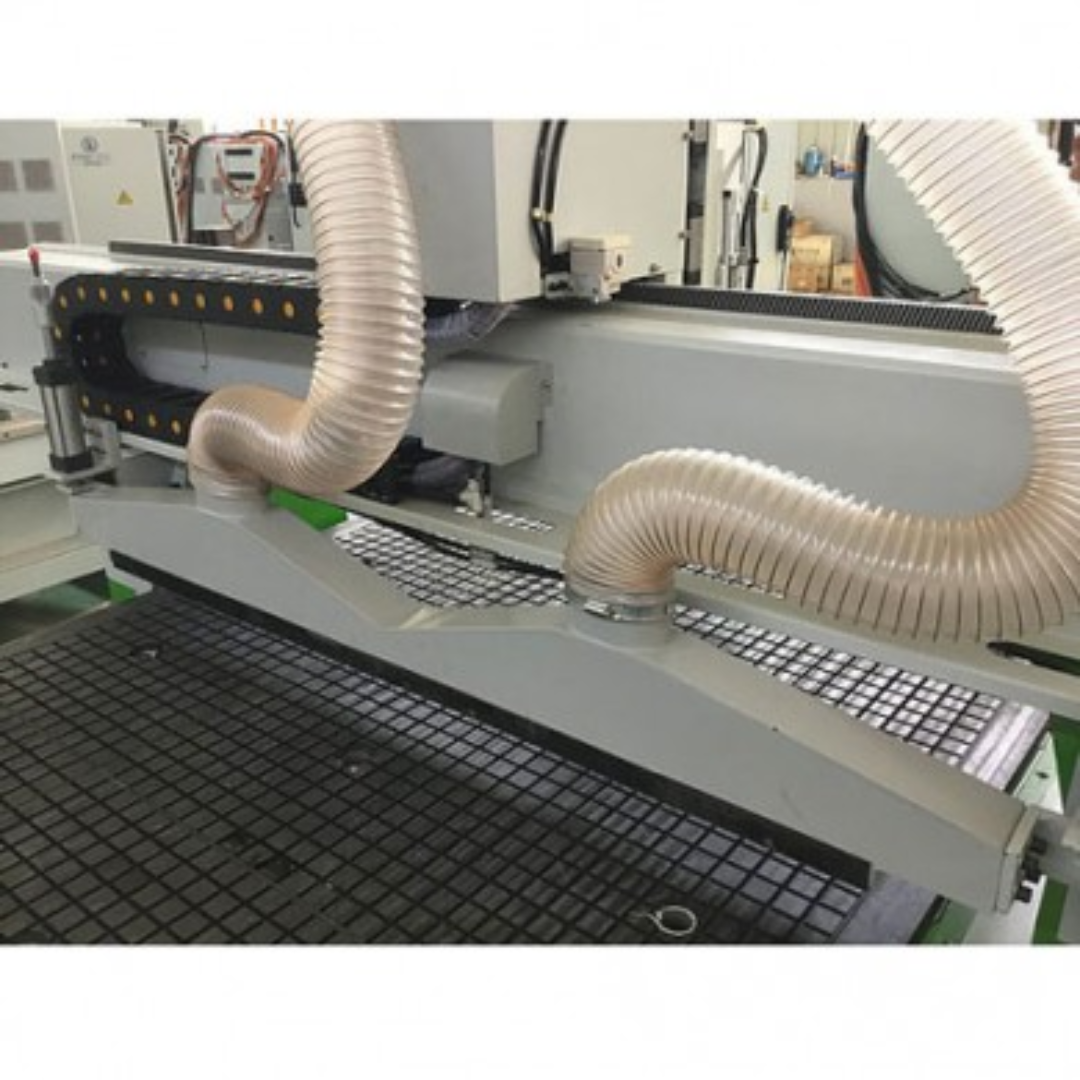

- 6-zone vacuum table ensures strong material hold-down for nesting applications.
- Automatic spindle braking enables faster tool changes and improved cycle times.
- Optional CAD/CAM integration allows DXF import, editing, and seamless G-code generation.
Castaly Pro CNC Router Accuracy & Inspection Standards
- X, Y, Z axis parallel vertical accuracy: 0.001" (0.03 mm)
- Machine repositioning accuracy: 0.001" (0.02 mm)
- Working accuracy: 0.002" (0.05 mm)
- Grating ruler travel accuracy: 0.002" (0.05 mm)
Engineered to meet strict industrial tolerance requirements for consistent, repeatable high-precision production.
Why Choose the Castaly Pro CNC Router
- Automated material handling system reduces labor and increases throughput.
- High-speed machining with precision servo-driven motion system.
- Integrated drill bank and tool changer for multi-process efficiency.
- Industrial-grade components from leading global brands.
- Flexible configuration options for different production needs.
The Castaly Pro CNC Router is a complete production solution for manufacturers seeking automation, precision, and high-output performance in modern CNC routing operations.
