Castaly Outlaw CNC Jamb & Louver 3 axis-Machining Center Applications
- Door jamb machining including hinge pockets and dado operations
- Louver and shutter rail production with variable angle slotting
- High-volume door and window component manufacturing
- Precision woodworking applications requiring repeatable slotting and routing
Optimized for manufacturers producing door systems and louver components with high precision and repeatable quality.
Castaly Outlaw CNC Jamb & Louver 3 axis-Machining Center Specifications
| Controller | Syntec #60WA CNC Control with Industrial PC |
|---|---|
| Servo System | 1500W AC Servo Motors & Drives |
| Working Stations | 4 Multi-Function Stations |
| Main Spindle | 9 kW ISO-30 Quick Change Electro Spindle (Air Cooled) |
| Secondary Spindle | 6 kW Collet Style Electro Spindle (Air Cooled) |
| Drilling Unit | 2.2 kW Collet Style Spindle |
| Chisel Unit | 4-Way Chisel with Servo Z-Axis Control |
| Drive System | Helical Rack & Pinion (X, Y) + Ball Screw (Z) |
| Linear Guides | CSK 35 Heavy Duty Square Rails |
| Max Travel Speed | 200 FPM (60 m/min) |
| Max Working Speed | 50 FPM (15 m/min) |
| Lubrication | Automatic Oil Lubrication via PLC |
Castaly Outlaw CNC Jamb & Louver 3 axis-Machining Center Workpiece Capacity
- Jamb Processing Capacity: Max Length 120", Width 14", Height 6"
- Louver/Shutter Rail Capacity: Max Length 120", Width 1-3/4", Height 6"
- Clamping System: Fixed pin stop at Z=0 with lift bars and 7 upper blocks using 14 guide rails and 7 side cylinders
Designed to securely hold and position parts for precise, repeatable machining across multiple operations.
Castaly Outlaw CNC Jamb & Louver 3 axis-Machining Center Performance & Construction

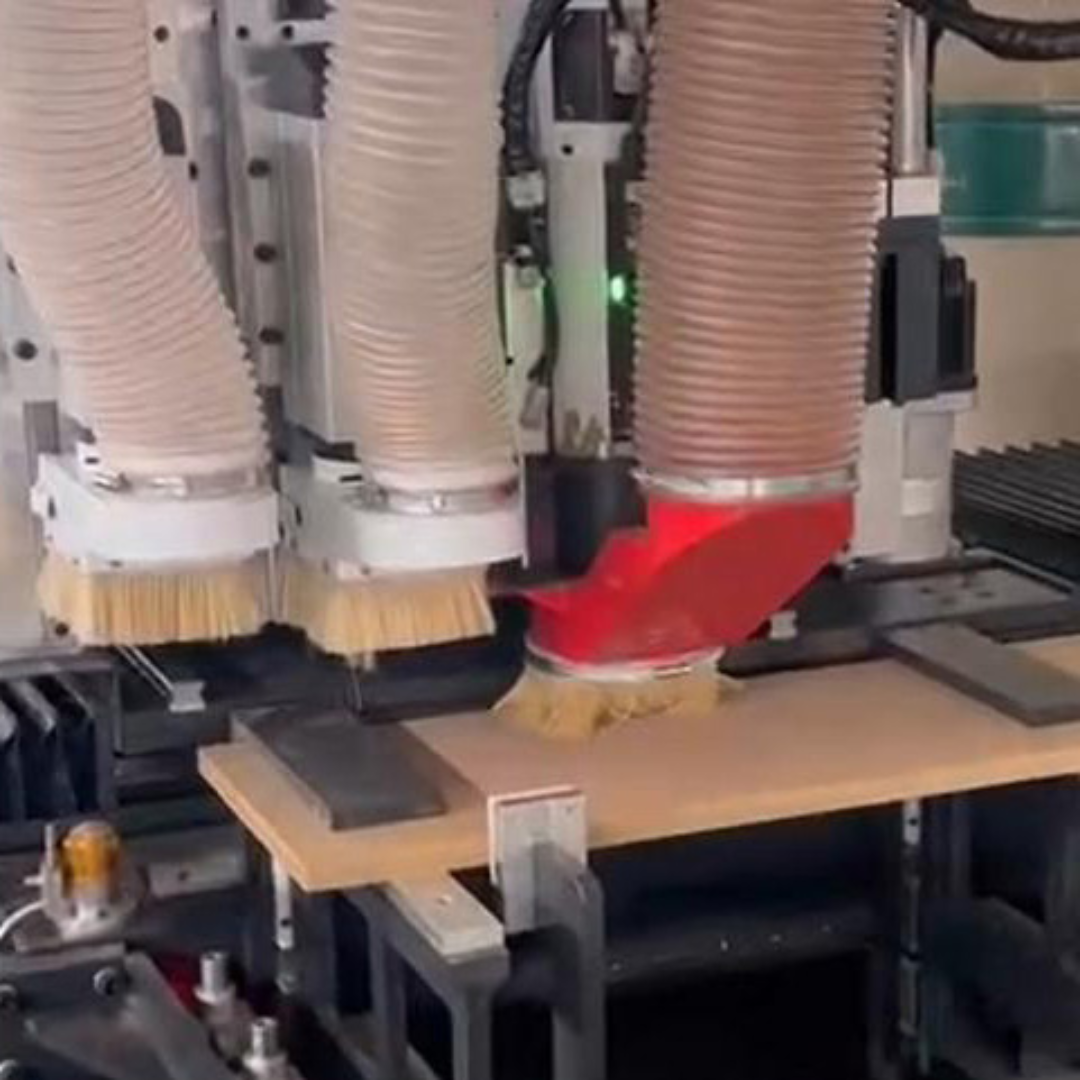

- Multi-station machining system enables simultaneous routing, drilling, and chiseling operations.
- Precision clamping system with fixed pin stops and pneumatic cylinders ensures accurate part positioning.
- Rigid stress-relieved steel frame provides long-term stability and machining consistency.

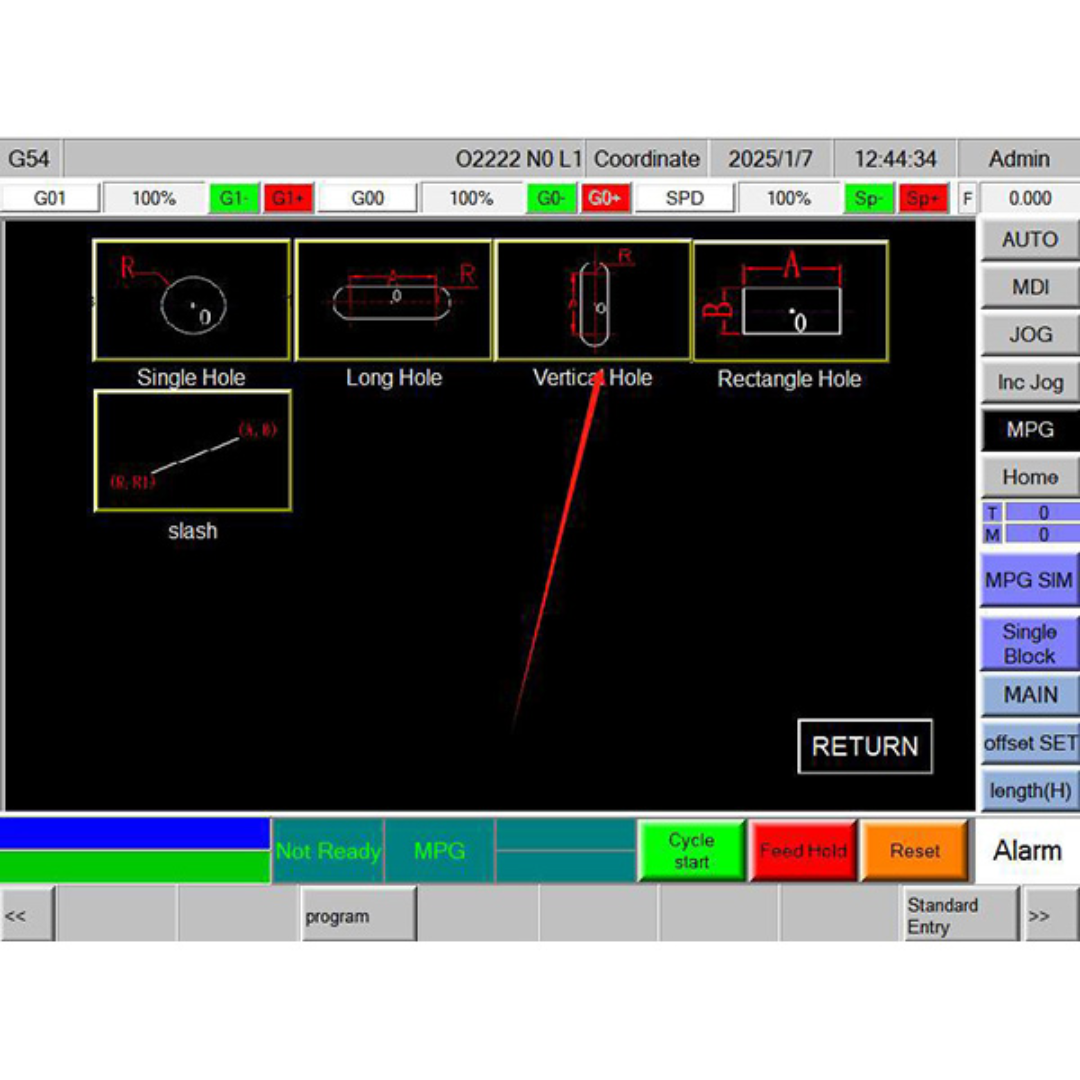

- High-performance Syntec control system supports advanced CNC programming and reliable automation.
- Automatic spindle braking system improves cycle times with faster tool deceleration.
- Precision linear motion system with preloaded bearings ensures smooth, accurate travel.
- Helical rack and pinion drive delivers high-speed movement with excellent positioning accuracy.
- Ball screw Z-axis assembly ensures vertical precision and long-term durability.
- Compact moving gantry design minimizes footprint while maximizing productivity.
Castaly Outlaw CNC Jamb & Louver 3 axis-Machining Center Accuracy & Tolerance
- X, Y, Z axis parallel vertical accuracy: 0.001" (0.02 mm)
- Machine repositioning accuracy: 0.001" (0.02 mm)
- Working accuracy: 0.002" (0.05 mm)
- Grating ruler travel accuracy: 0.002" (0.05 mm)
Built to maintain tight tolerances and consistent machining quality for high-precision production environments.
Why Choose the Castaly Outlaw CNC Jamb & Louver 3 axis-Machining Center
- Specialized solution for jamb and louver production.
- Multi-spindle and multi-function capability for increased productivity.
- High-speed operation with precision servo-driven control.
- Robust construction for long-term industrial use.
- Consistent accuracy and repeatability for high-volume manufacturing.
The Castaly Outlaw CNC Jamb & Louver 3 axis-Machining Center is a purpose-built CNC solution for manufacturers seeking efficient, accurate, and automated production of door and louver components.
