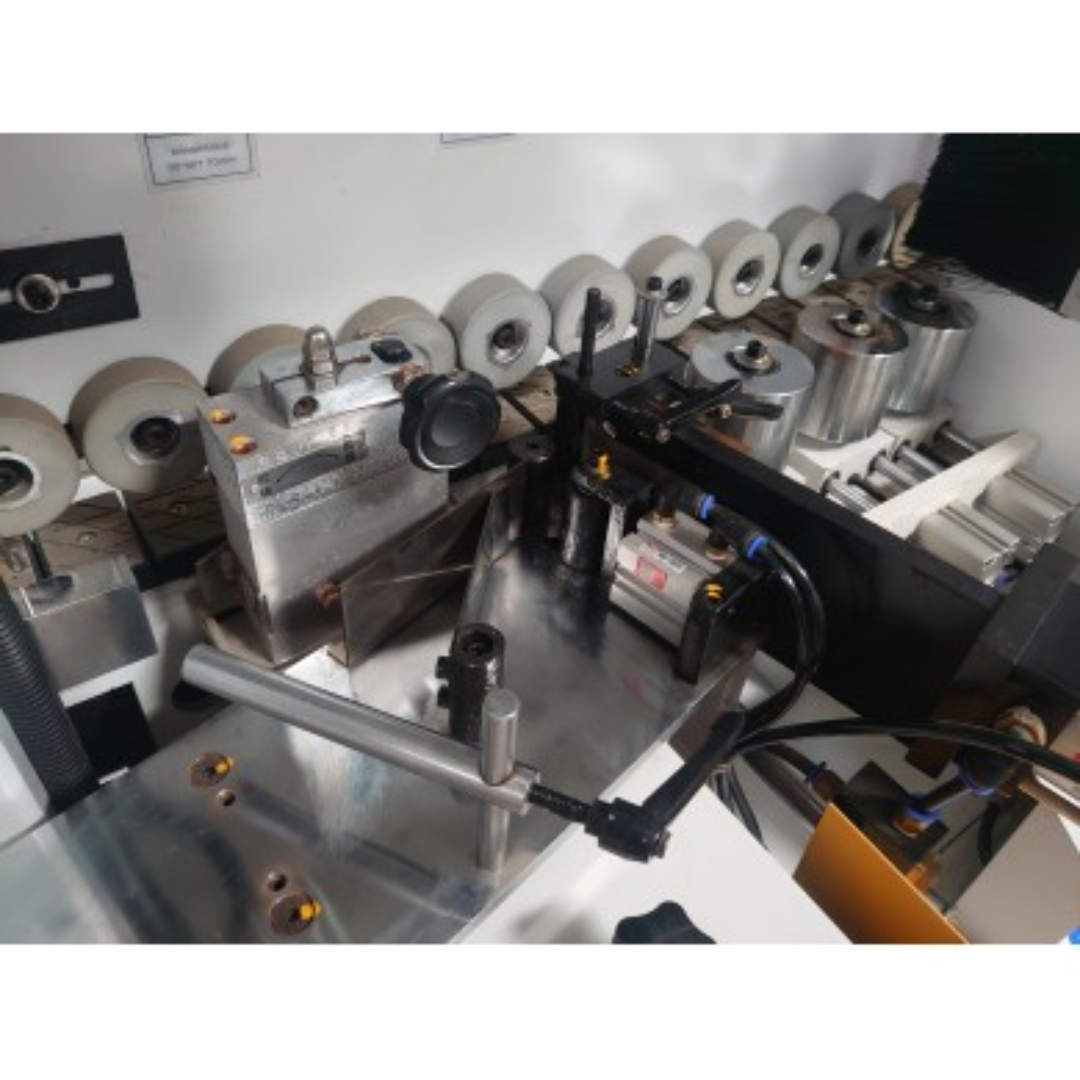

Internal trimming and finishing units of the Castaly Edge Bander EB-M8PMCR during operation.

Roll over image to zoom in Click on image to zoom

Castaly Edge Bander EB-M8PMCR

Name: Castaly Edge Bander EB-M8PMCR
Brand: Castaly
SKU: Castaly Edge bander EB-M8PMCR
Price: 29689.00 USD
Availability: InStock

Iron Line Verified

Authorized Dealer: Castaly

Official Partner

IN STOCK & READY TO SHIP

SKU: Castaly Edge bander EB-M8PMCR

Quick Specs

Power: 14.4 kW total power • 2.3 kW heating glue tank • 1.5 kW feed motor • 0.75 kW gluing roller
Performance: 43 or 60 FPM feed speed • 12,000 RPM pre-mill (2.25 kW × 2) and double end trimming motors (0.7 kW × 2) • 0.8 kW corner rounding motor • 1400 RPM dual polishing motors (0.18 kW × 2)
Capacity: 10–60 mm workpiece thickness • 0.4–3 mm edging band thickness • 6.3" minimum workpiece length • 3.5" minimum workpiece width
Stations: Pre-mill • Hot melt gluing • Pneumatic guillotine end cutting • Double end trimming • Fine edge trimming • Corner rounding • 2 sets scraping heads • Polishing
Hardware: 3,380 lbs net weight • Precision ground chain track • Mechanical digital thickness adjustment • Outrigger support for wide panels

Price:

$29,689.00

Quantity:

Equipment financing available. Up to 60 months Terms. Learn more

We Cover Sales Tax Excluding (Illinois)

Share this product

Section 179
Tax Savings

Save up to $6,234.69 on this equipment Estimate Your Tax Deduction

Calculate Savings →

Commercial Buyer?

Unlock volume pricing and dedicated facility support with Trade Accounts
(Requires minimum of 2+ items)

Order Placed

Ships Out

Delivered

*Please Note: This timeline is an estimate. Certain products may require an additional 1 week for manufacturing. Please speak with your sales rep, Matthew, for official details and confirmation before placing your order.

CALL US FOR THE MOST ACCURATE AND COMPETITIVE LTL SHIPPING RATE, (888) 308-5580

Get Questions Answered

Fast & Free

Experience: 20+ Years B2B • Origin: US-Based Support

EXPRESS SHIPPING

Most orders process in 1-3 days. Yes, even if it weights 400lb

Hassle-Free Returns

No restocking fees. Ever.

Manufacturer Warranty

Fully backed by the brands you trust.

Dedicated Rep Mathew

Speak to a US-Based Equipment Specialist: (888) 308-5580

Flexible Financing

Get Upto 60 Months Financing

Castaly Edge bander EB-M8PMCR Overview

The Castaly Edge bander EB-M8PMCR features automatic feed stations including pre-mill, hot melt gluing, pneumatic guillotine end cutting, double end trimming, fine edge trimming, scraping, corner rounding, and polishing. Designed with heavy-duty construction and synchronized edge feeding, it ensures stable operation and a smooth finished edge.

Feed Speed: 43 or 60 FPM for optimized throughput depending on configuration.

Castaly Edge bander EB-M8PMCR Processing Units

Pre-Mill Unit: 2 × 2.25 kW motors at 12,000 RPM for accurate edge preparation.
Hot Melt Gluing Unit: 2.3 kW heating tank with synchronously driven glue roller.
Pneumatic Guillotine: Clean end cutting of edge band material.
Double End Trimming: Two 0.7 kW motors (12,000 RPM) for front and rear trimming.
Fine Edge Trimming: Dual high-frequency motors for smooth top and bottom finishing.
Corner Rounding Unit: 0.8 kW motor for automatic corner rounding.
Scraping Heads: 2 sets for precision edge refinement.
Polishing Unit: Dual 0.18 kW motors at 1400 RPM for final surface finish.

Castaly Edge bander EB-M8PMCR Construction & Stability

Heavy, robust frame design to eliminate vibration and ensure precision.
Pressure beam with staggered rubber rollers for optimal workpiece guidance.
Precision ground chain track with rubber pads to prevent marring.
Mechanical digital thickness adjustment mounted on heavy cast columns.
Side pressure unit with driven and idle rollers for straight edge banding.
Sound and safety covers with integrated dust extraction ports.
Outrigger support for wider workpieces.

Castaly Edge bander EB-M8PMCR Technical Specifications

Specification	Value
Workpiece Thickness	10 ~ 60 mm
Edging Band Thickness	0.4 ~ 3 mm
Minimum Workpiece Length	6.3"
Minimum Workpiece Width	3.5"
Feed Speed	43 or 60 FPM
Feed Motor	1.5 kW
Heating Glue Tank	2.3 kW
Gluing Roller Motor	0.75 kW
Pre-Mill Motor	2 × 2.25 kW
Corner Rounding Motor	0.8 kW
Total Power	14.4 kW
Machine Net Weight	3380 LBS

General Information

Model: EB-M8PMCR
FOB Los Angeles, CA (USA)
Payment Terms: 50% deposit / 50% balance before shipment
Warranty: 1 year
Delivery Time: xx days after deposit
Training, installation, tooling & rigging optional
Customer responsible for local regulations and utility connections
