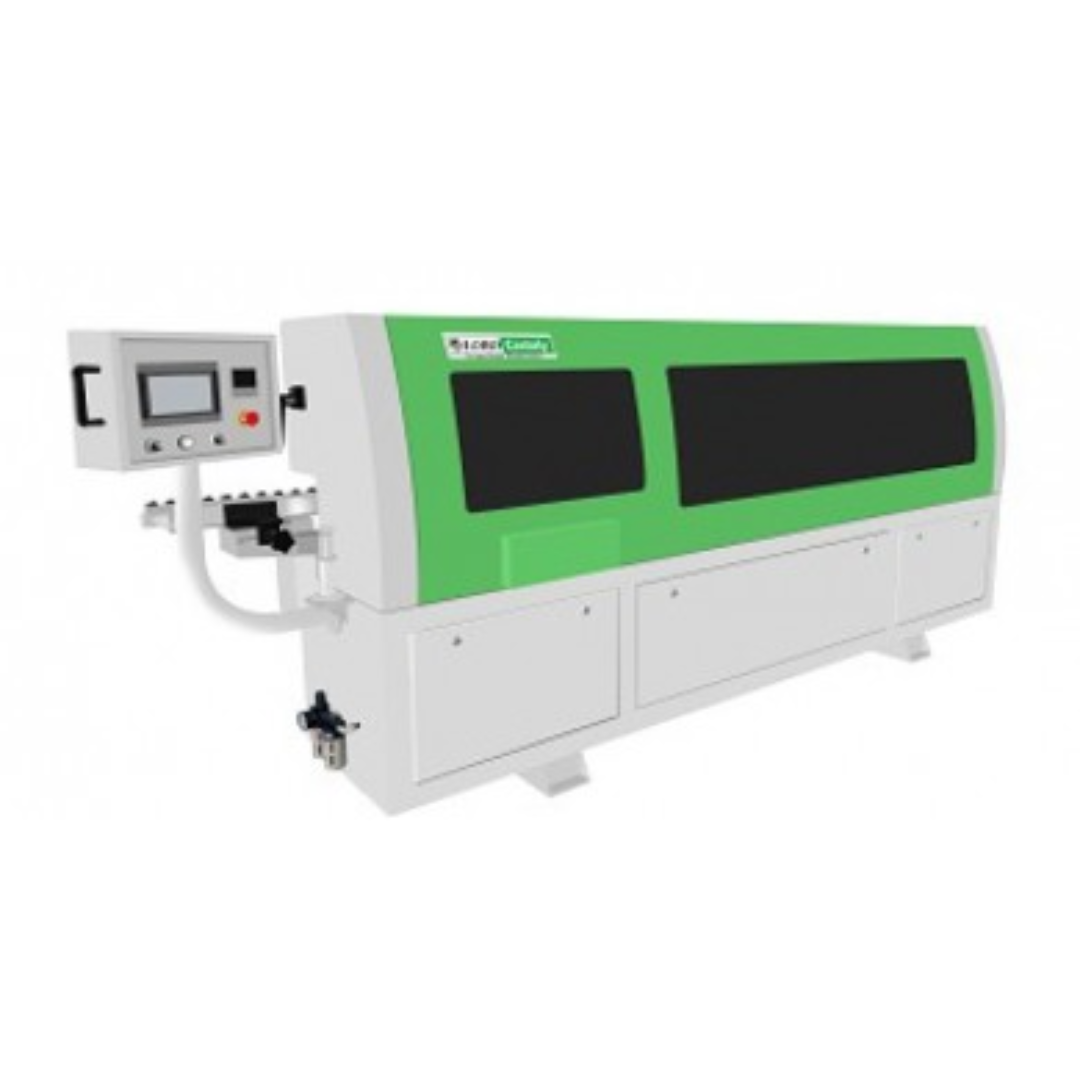

Castaly Edge Bander EB-M5 Overview
The Castaly Edge Bander EB-M5 integrates automatic feed stations for pre-milling, gluing, end cutting, double end trimming, fine trimming, scraping, and polishing into one streamlined workflow. The edging material feeds automatically (strip or coil) and stays synchronized with panel movement to ensure even glue distribution and accurate trimming.
Feed Speed: 43 or 60 FPM for optimized productivity and stable throughput.

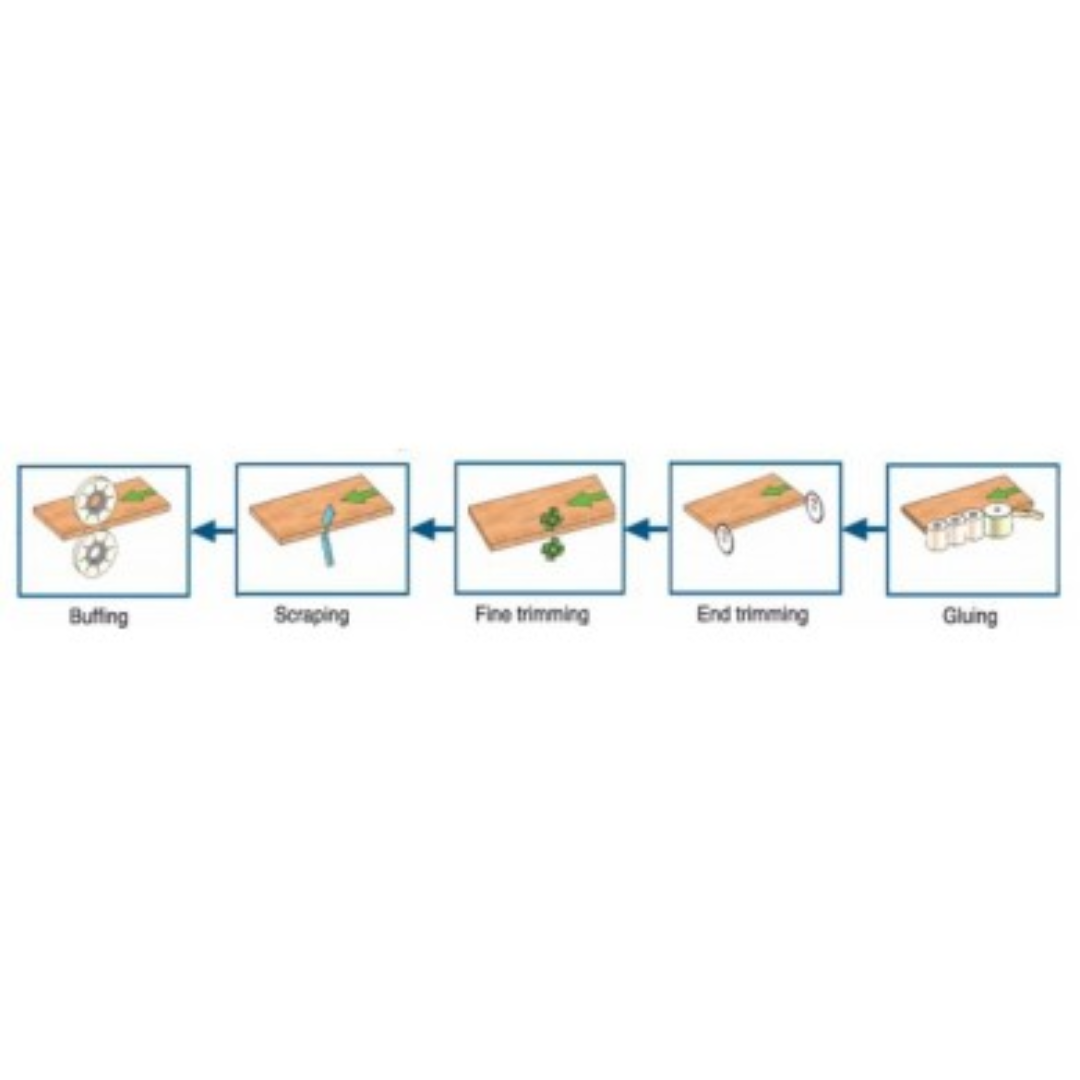

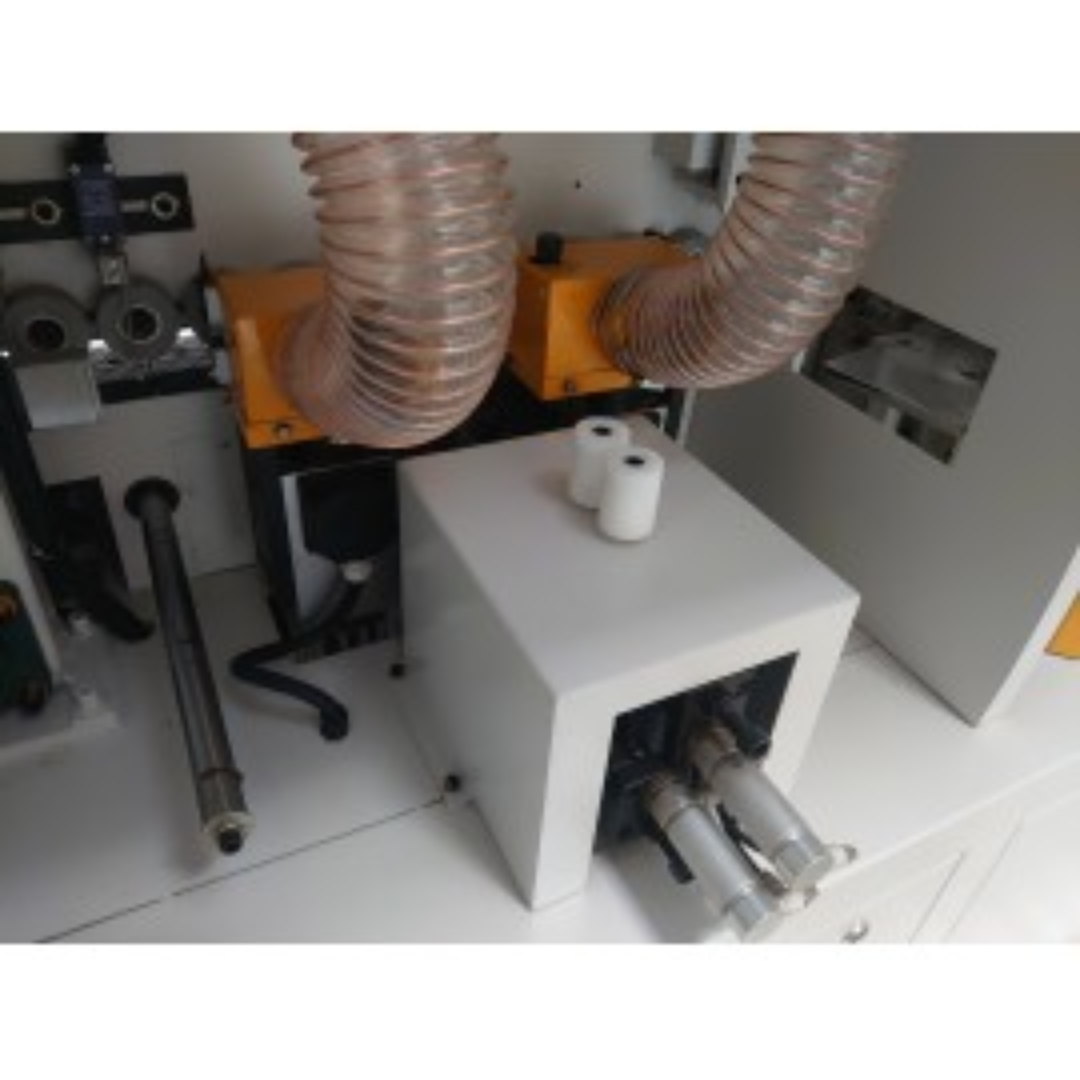

Castaly Edge Bander EB-M5 Processing Units
- Pre-Mill Station: Prepares panel edges for stronger glue adhesion and cleaner finish.
- Hot Melt Gluing Unit: 2.3 kW heating glue tank with synchronized glue roller application.
- Pneumatic Guillotine: Clean cutting of band material at panel ends.

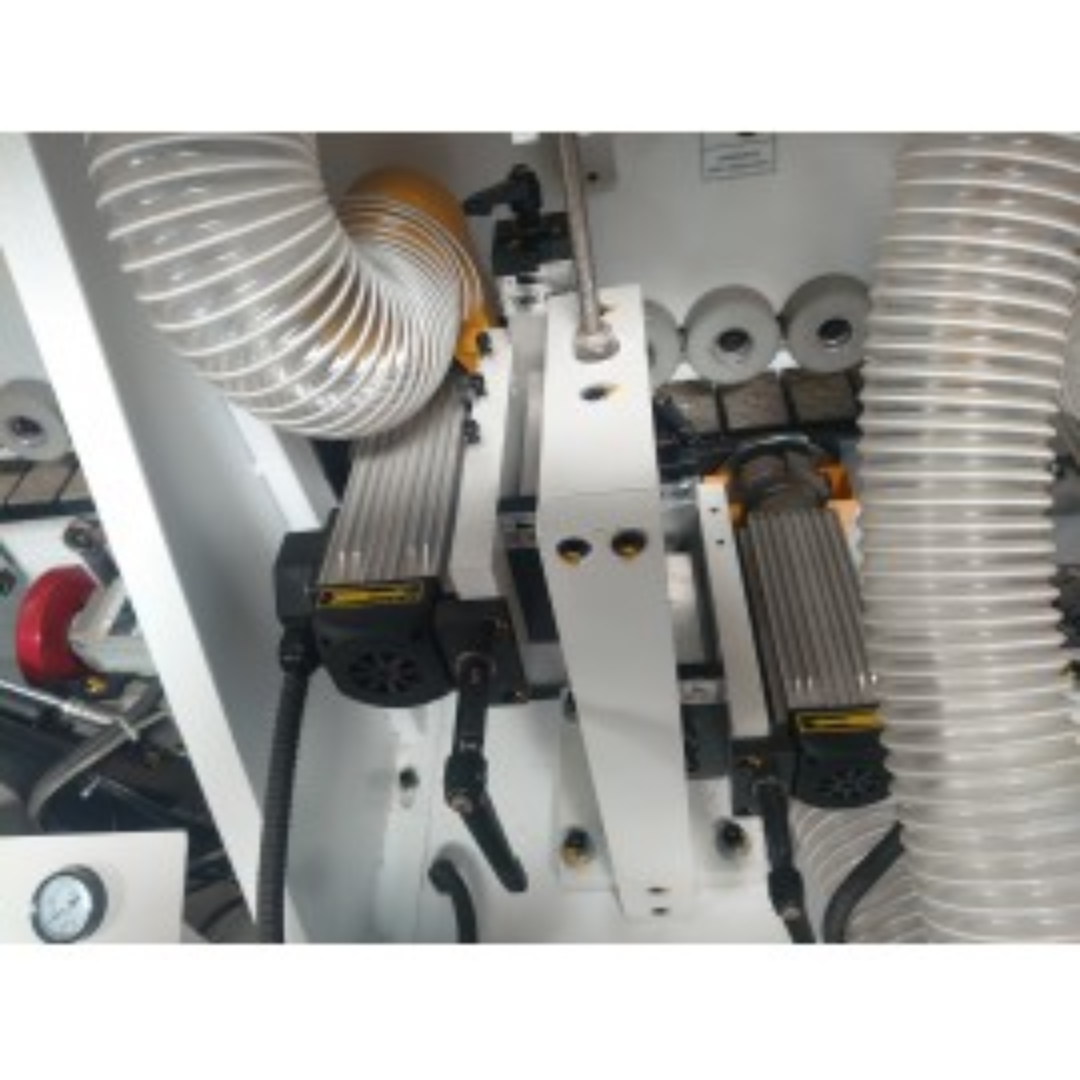

- Double End Trimming: 0.7 kW × 2 motors at 12,000 RPM for precise front and rear trimming.
- Fine Edge Trimming: Dual 0.7 kW motors at 12,000 RPM for smooth top and bottom finishing.
- Scraping Heads: 2 sets for removing micro imperfections after trimming.
- Polishing Unit: Dual 0.18 kW motors at 1400 RPM for final edge finishing.
Castaly Edge Bander EB-M5 Construction & Stability
- Heavy-duty frame design reduces vibration and improves precision.
- Pressure beam with staggered rubber rollers for optimal workpiece control.
- Chain track with precision round guides for smooth linear tracking.
- Rubber pads prevent marring of panel surfaces.
- Mechanical digital readout thickness adjustment for accurate setup.
- Side pressure unit with independent adjustment for straight edge banding.
- Sound/safety covers with integrated dust extraction outlets.
- Outrigger support for wider workpieces.
Castaly Edge Bander EB-M5 Technical Specifications
| Specification | Value |
|---|---|
| Machine Net Weight | 2060 LBS |
| Workpiece Thickness | 10 ~ 60 mm |
| Edging PVC Band Thickness | 0.4 ~ 3 mm |
| Minimum Workpiece Length | 6.3" |
| Minimum Workpiece Width | 2.5" |
| Heating Glue Tank Power | 2.3 kW |
| End Trimming Motor | 0.7 kW × 2 (12,000 RPM) |
| Fine Trimming Motor | 0.7 kW × 2 (12,000 RPM) |
| Scraping Heads | 2 Sets |
| Polish Motor | 0.18 kW × 2 |
| Polish Wheel Speed | 1400 RPM |
| Feed Motor | 1.5 kW |
| Feed Speed | 43 or 60 FPM |
| Total Power | 7.7 kW |
General Information
- Model: EB-M5
- FOB Los Angeles, CA (USA)
- Warranty: 1 year
- Delivery Time: xx days after deposit
- Training, installation, tooling & rigging optional
- Customer responsible for local regulations and utility connections
