Castaly CREATIVE CNC Router (5 Axis Head) UNIVERSAL CNC Applications
- Advanced 3D woodworking and sculptural machining
- Complex mold making for metal and composite materials
- Architectural elements and decorative panels
- Cabinet, door, and furniture component production
- Advertising signage, acrylic forming, and display fabrication
- Plastic, PVC, and composite material machining
- Precision prototyping and custom manufacturing
Ideal for manufacturers requiring full 5-axis flexibility for complex geometries and high-precision 3D production.
Castaly CREATIVE CNC Router (5 Axis Head) UNIVERSAL CNC Specifications
| Model | CREATIVE-510 |
|---|---|
| Control System | SYNTEC CNC Control System |
| Spindle | 16 HP (12 KW) Air-Cooled, 6,000–24,000 RPM |
| 5-Axis Head | Double Pendulum 360° Universal Spindle |
| Tool Changer | Automatic 12 pcs HSK F63 Rotary Tool Changer |
| Drive System | Yaskawa AC Servo Motor with SHIMPO Gearbox |
| X/Y Transmission | Helical Rack & Pinion (TBI / HIWIN) |
| Z Transmission | Ball Screw (TBI / HIWIN) |
| Linear Rails | HIWIN Square Rails (Taiwan) |
| Table | 6-Zone Vacuum Table |
| Max Travel Speed | 1,575 IPM |
| Max Working Speed | 800 IPM |
| Working Size | 61" × 122" × 20" |
| Machine Size | 95" × 158" × 101" |
| Net Weight | 6,600 lbs |
| Electrical | 3 Phase, 220V, 82 AMP |
| Inverter | 15 KW |
| Electrical Components | Schneider (France), Omron (Japan), Siemens Cabling |
| Control Switch | Moeller (Germany) |
| Additional Features | MPG Hand Wheel, Pneumatic Position Cylinders, X-Axis Safety Cover |
| Lubrication | Automatic with filtration system |
| Supported Formats | .plt, .dst, .dxf, .bmp, .dwg, .uoo |
Castaly CREATIVE CNC Router (5 Axis Head) UNIVERSAL CNC Performance & Construction

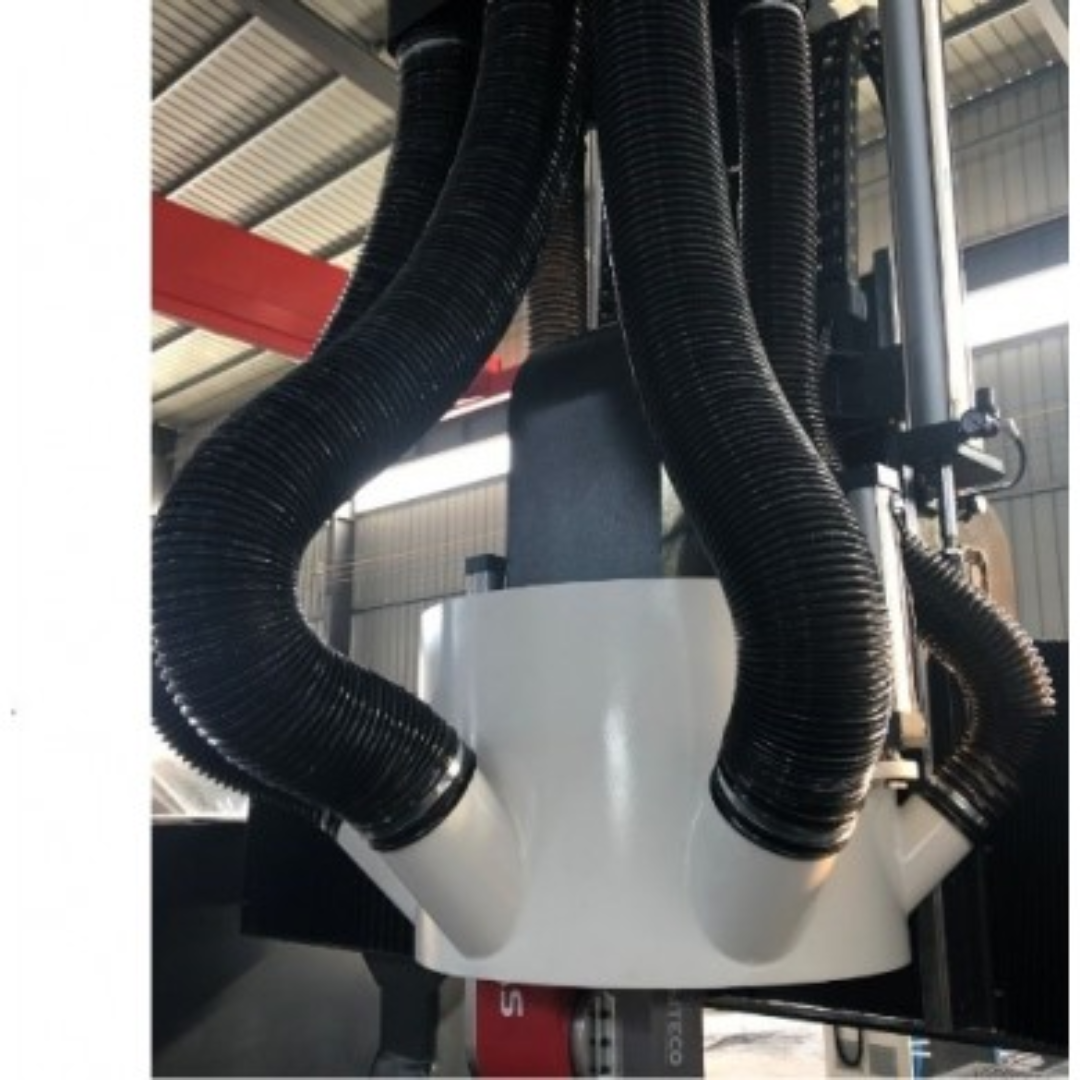

- 5-axis universal machining head enables complex multi-angle cutting and true 3D production.
- High-power 16 HP spindle delivers exceptional cutting performance across a wide range of materials.

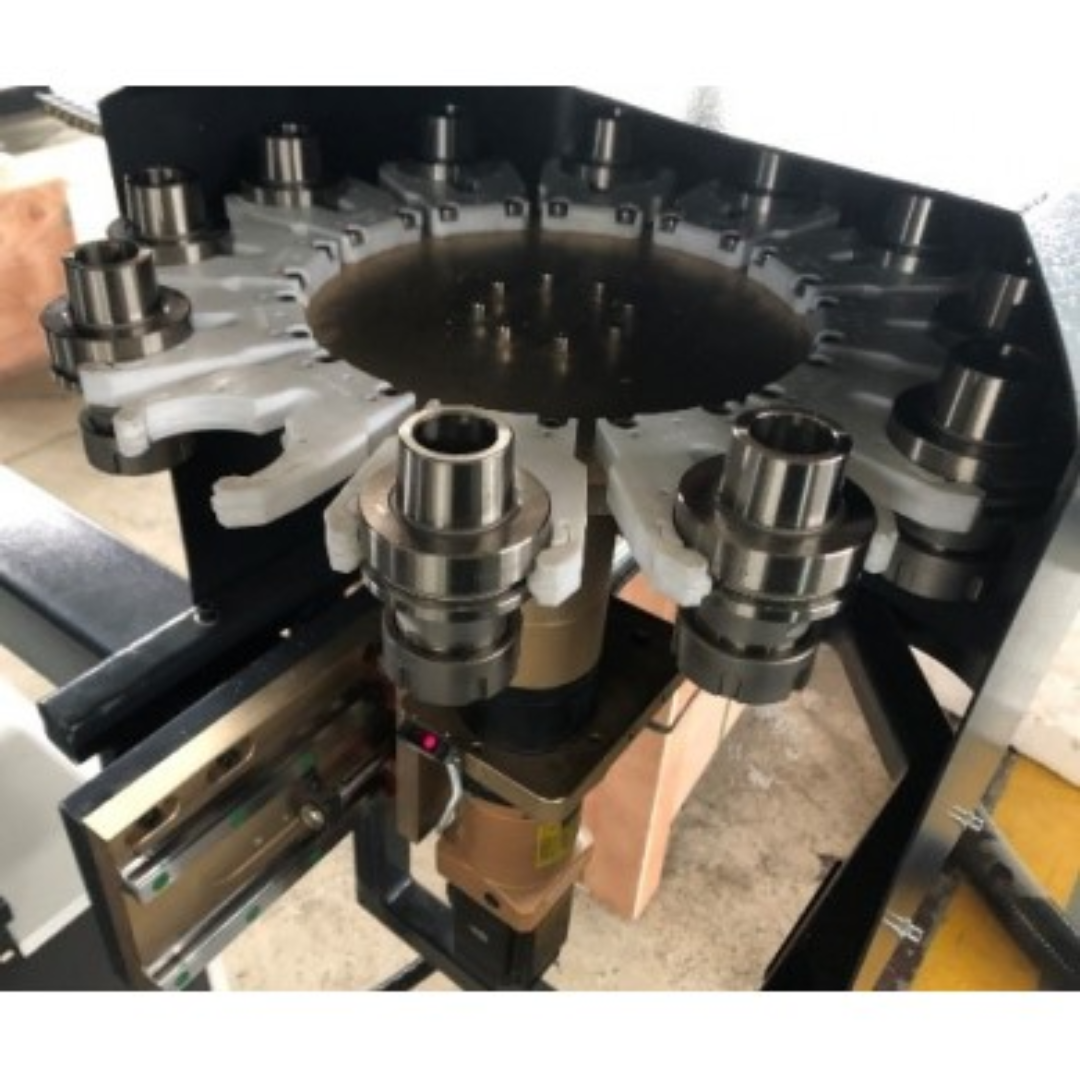

- Automatic rotary tool changer increases efficiency and minimizes downtime.
- Full AC servo system with gearbox ensures high torque, speed, and precision motion control.
- Heavy-duty welded steel frame with quenching process provides long-term stability and accuracy.
- Precision linear motion system with preloaded guides for smooth and accurate movement.
- Advanced vacuum table system with 6-zone configuration for superior material hold-down.
- Automatic lubrication system reduces maintenance and extends machine life.
- Direct G-code compatibility with onboard storage eliminates the need for DNC systems.
- Moving gantry design maximizes workspace efficiency and reduces floor space requirements.
Castaly CREATIVE CNC Router (5 Axis Head) UNIVERSAL CNC Accuracy & Inspection Standards
- X, Y, Z axis parallel vertical accuracy: 0.001" (0.03 mm)
- Machine repositioning accuracy: 0.001" (0.02 mm)
- Working accuracy: 0.002" (0.05 mm)
- Grating ruler travel accuracy: 0.002" (0.05 mm)
Engineered for high-precision, multi-axis machining where accuracy and repeatability are critical.
Castaly CREATIVE CNC Router (5 Axis Head) UNIVERSAL CNC Commercial Terms
- Pricing: FOB Los Angeles, CA (tooling, rigging, freight, and taxes not included)
- Payment Terms: 50% deposit, 50% balance prior to shipment
- Warranty: 1 Year
- Delivery Time: To be confirmed after deposit
- Optional Services: Training, installation, tooling, and rigging
- Optional Add-On: Rotary axis / lathe attachment available
- Customer Responsibility: Compliance with local regulations and utility connections
Why Choose the Castaly CREATIVE CNC Router (5 Axis Head) UNIVERSAL CNC
- True 5-axis capability for complex geometries and advanced manufacturing.
- High-power spindle and premium components ensure industrial performance.
- Precision engineering delivers consistent, high-tolerance results.
- Flexible applications across wood, plastics, composites, and metals.
- Expandable system with optional features for specialized production needs.
The Castaly CREATIVE CNC Router (5 Axis Head) UNIVERSAL CNC is a top-tier solution for manufacturers seeking advanced 5-axis machining, superior accuracy, and maximum production flexibility.
