Castaly CNC Side Boring / Drilling Machine (1S) Overview
The Castaly CNC Side Boring / Drilling Machine (1S) features X, Y, and Z axis brushless high-torque AC servo motors for precise positioning and smooth operation. Equipped with a DSP NC controller that accepts standard G-code programming and conversational input, this machine supports efficient mass production with automatic drilling cycles and pneumatic hold-down clamping.
Max Travel Speed: 1,380 IPM | Max Working Speed: 393 IPM
Castaly CNC Side Boring / Drilling Machine (1S) Key Features
- All X, Y, Z axes driven by high-torque AC servo motors.

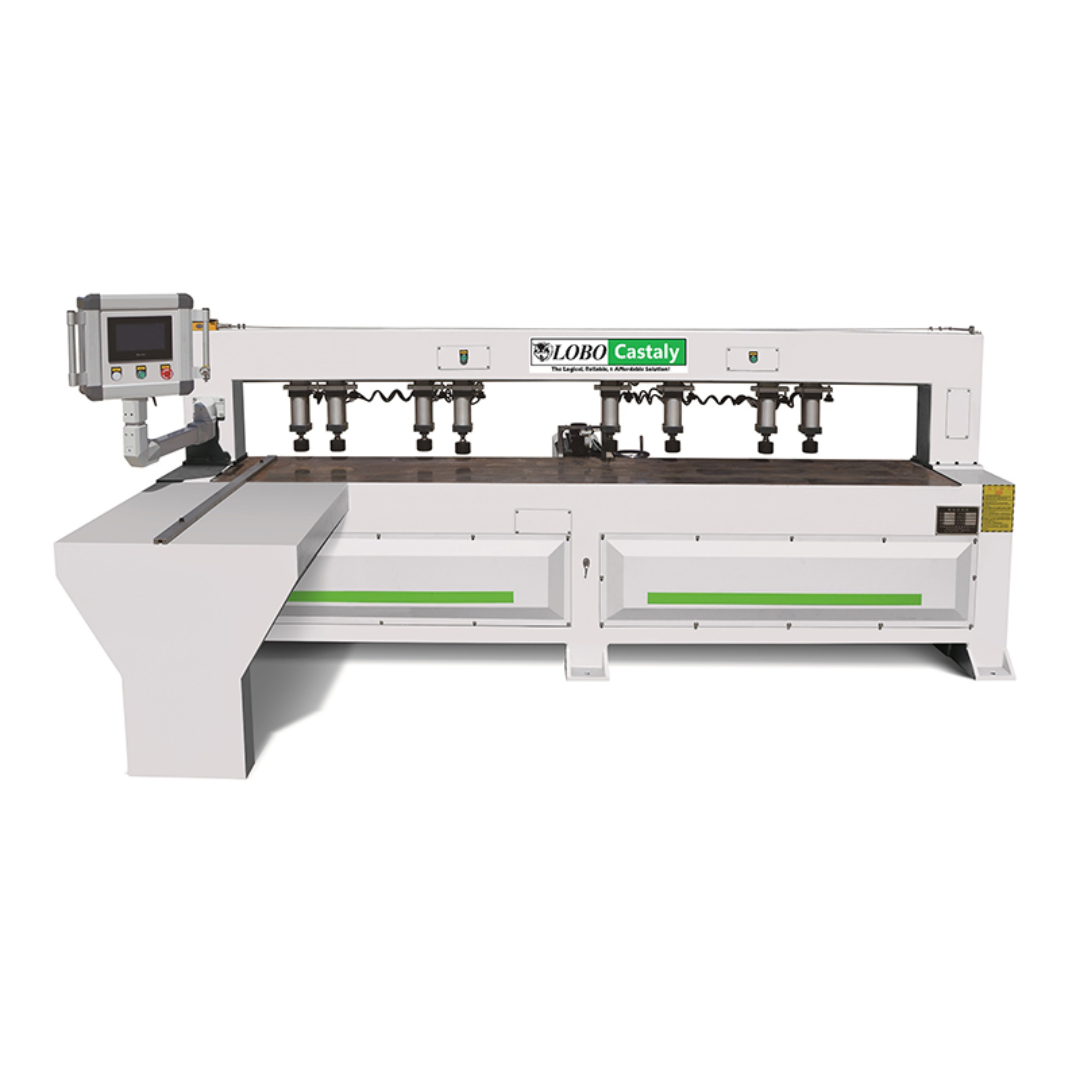

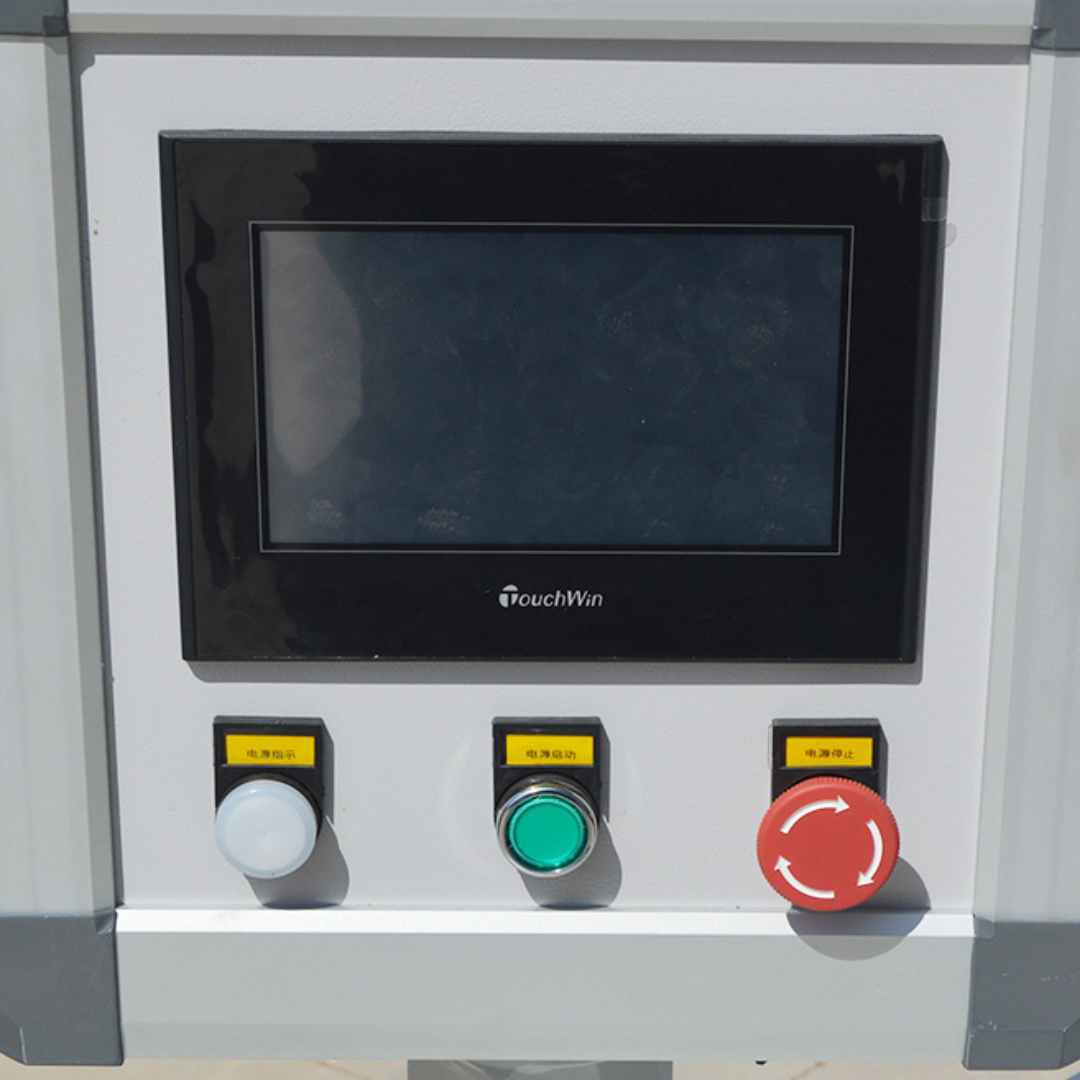

- Touchscreen interface for easy drilling project input.
- Automatic drilling cycle with pneumatic hold-down cylinder.
- Rigid steel frame stress-relieved for accuracy and repeatability.

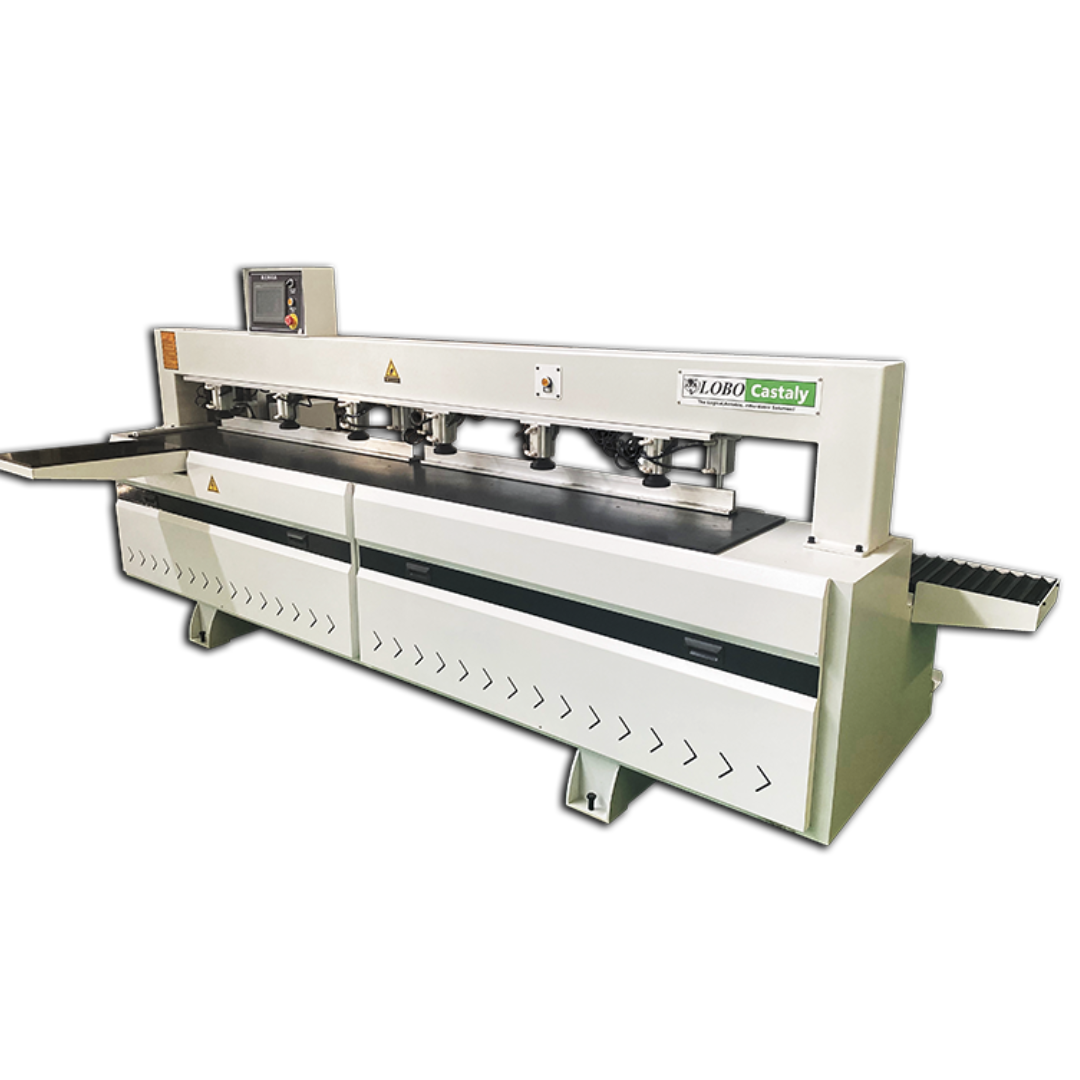

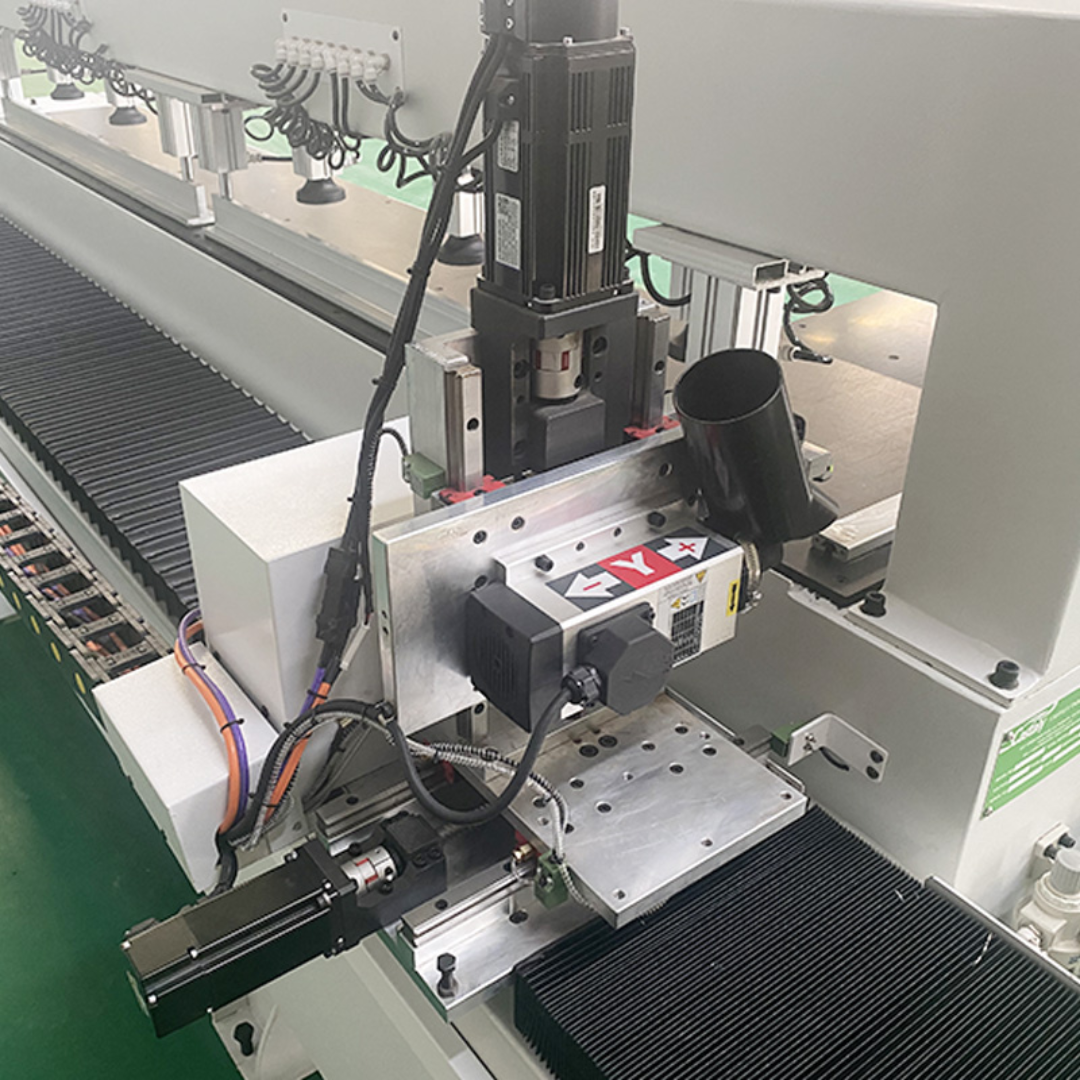

- Precision linear guides with recirculating bearings.
- X & Y axes with Taiwan TBI / HIWIN helical rack & pinion drive.
- Z axis with Taiwan TBI / HIWIN precision ball screw.
- German Siemens OEM cables and Schneider electrical components.
- DSP control system compatible with G-code and conversational programming.
Castaly CNC Side Boring / Drilling Machine (1S) Technical Specifications
| Specification | Details |
|---|---|
| Control System | DSP Control System |
| Spindle | 3 HP (2.2 kW) Air Cooling, 6,000–18,000 RPM |
| Drive System | AC Servo 750W Drive & Motor |
| Table | 19” PVC Table with Air Cylinder Press + 42” Extend Table |
| X/Y Structure | Taiwan TBI or HIWIN Helical Rack & Pinion |
| Z Structure | Taiwan TBI or HIWIN Ball Screw |
| Linear Rails | Taiwan HIWIN Square Rails |
| Inverter | 3 kW |
| Max Travel Speed | 1,380 IPM |
| Max Working Speed | 393 IPM |
| Power | 3 Phase, 220V |
| Machine Weight | 1,720 lbs |
| Machine Size | 110” x 55” x 63” |
| Supported Formats | *.plt, *.dst, *.dxf, *.bmp, *.dwg, *uoo |
| CAD/CAM Software | Optional |
Castaly CNC Side Boring / Drilling Machine (1S) Production Advantages
- High-speed servo-driven accuracy for repeatable side drilling.
- Automatic clamping system for mass production efficiency.
- Heavy-duty welded frame with quenching process for durability.
- Precision components from Taiwan and Germany ensure long-term reliability.
- Compatible with industry-standard CAD/CAM drawing software.
General Information
- Model: BR-9622CNC-1S
- FOB Los Angeles, CA (USA)
- Warranty: 1 year
- Delivery Time: xx days after deposit
- Training, installation, tooling & rigging optional
- Customer responsible for local regulations and utility connections
