Castaly Basic CNC Router Applications
- Three-dimensional woodworking and decorative panel processing
- Cabinet, cupboard, and wooden door manufacturing
- Window frames, furniture panels, and auxiliary processing
- Advertising signage, logo production, and acrylic cutting
- PVC, plastic sheets, and composite material machining
- Light metal engraving including aluminum and copper molds
- Custom fabrication including gaming cabinets and display panels
Ideal for small to medium shops seeking an affordable and reliable CNC routing solution across multiple industries.
Castaly Basic CNC Router Specifications
| Models | BASIC-404 / BASIC-408 (T) / BASIC-510 / BASIC-612 / BASIC-714 |
|---|---|
| Control System | NK105 G2 DSP Controller |
| Spindle | 6 HP (4.5 KW) Air-Cooled, 6,000–18,000 RPM |
| Drive System | Yako2811 Driver with Step Motor |
| X/Y Transmission | Helical Rack & Pinion |
| Z Transmission | Ball Screw (TBI / HIWIN) |
| Linear Rails | HIWIN Square Rails (Taiwan) |

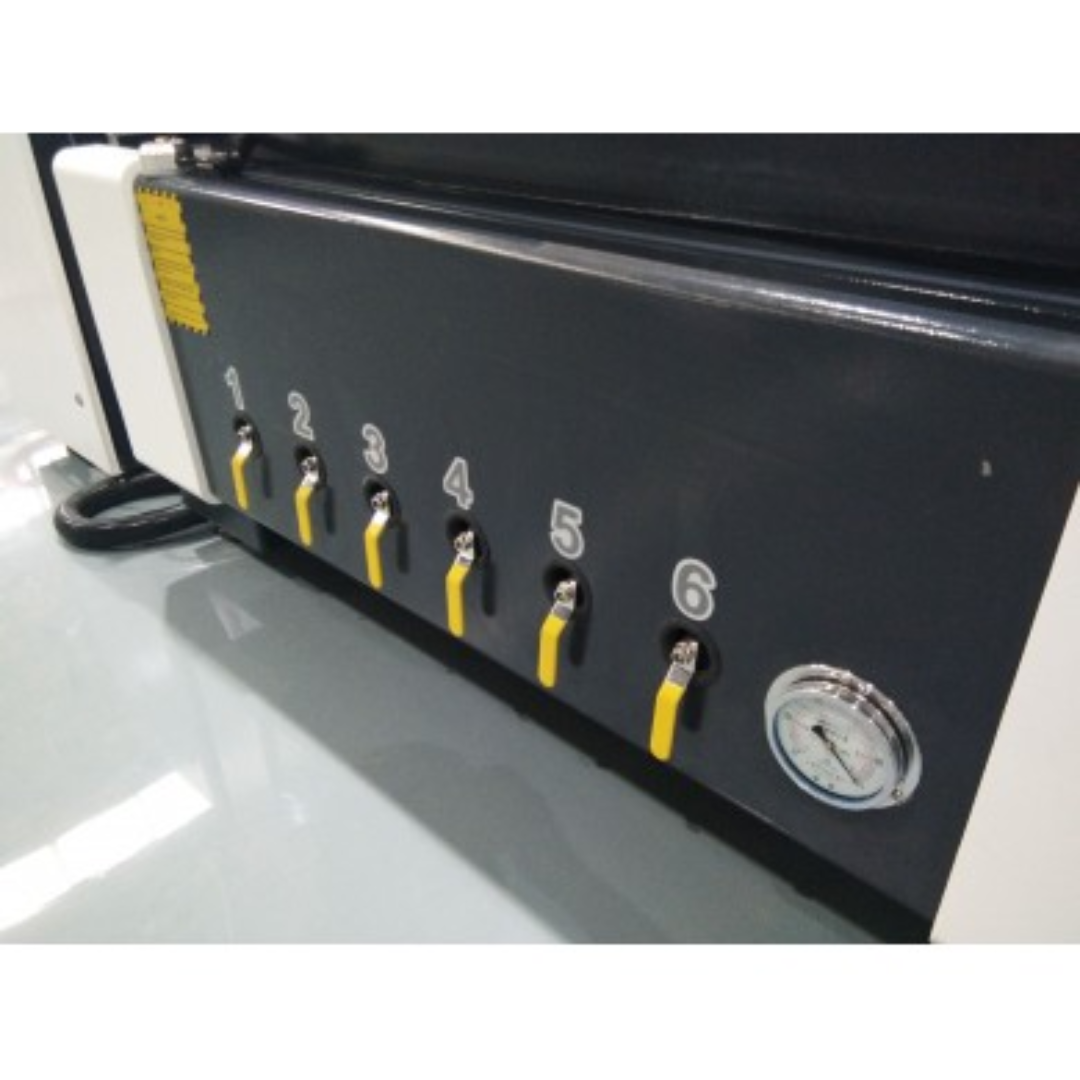

| Table Options | 4-Zone Vacuum Table / 6-Zone Vacuum Table / Aluminum T-Slot Table |
| Max Travel Speed | 1,200 IPM |
| Max Working Speed | 950 IPM |
| Electrical | 3 Phase, 220V, 25 AMP |
| Inverter | 5 KW |
| Lubrication | Manual with aluminum oil pipe |
| Supported Formats | .plt, .dst, .dxf, .bmp, .dwg, .uoo |
Castaly Basic CNC Router Performance & Construction
- Rigid steel frame construction stress-relieved for long-term accuracy and durability.
- DSP control system supports standard G-code programming with onboard conversational features.
- High-speed air-cooled spindle delivers consistent cutting performance for a variety of materials.
- Precision motion system with rack & pinion drives and ball screw Z-axis for smooth operation.

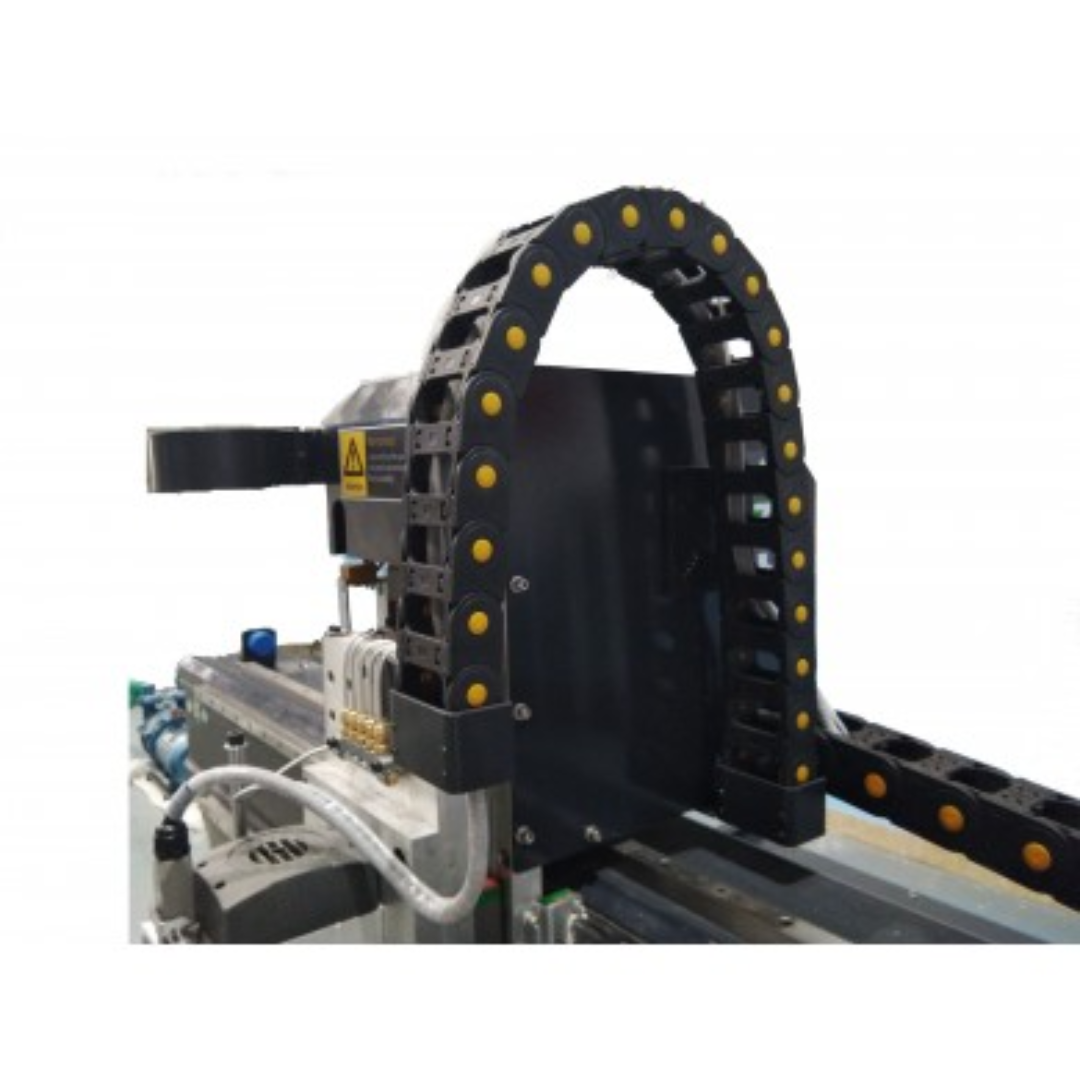

- Moving gantry design maximizes workspace efficiency and reduces floor space requirements.
- Flexible table configurations including vacuum and T-slot options for different applications.
- Automatic spindle braking system improves efficiency with faster tool deceleration.
- Optional CAD/CAM integration enables easy file import, editing, and G-code generation.
- Optional rotary axis attachment expands capability for cylindrical and 4th-axis machining.
Castaly Basic CNC Router Accuracy & Inspection Standards
- X, Y, Z axis parallel vertical accuracy: 0.001" (0.03 mm)
- Machine repositioning accuracy: 0.001" (0.02 mm)
- Working accuracy: 0.004" (0.10 mm)
- Grating ruler travel accuracy: 0.002" (0.05 mm)
Engineered to deliver consistent and repeatable results for everyday production tasks.
Castaly Basic CNC Router Commercial Terms
- Pricing: FOB Los Angeles, CA (tooling, rigging, freight, and taxes not included)
- Payment Terms: 50% deposit, 50% balance prior to shipment
- Warranty: 1 Year
- Delivery Time: To be confirmed after deposit
- Optional Services: Training, installation, tooling, and rigging
- Optional Add-On: Rotary axis / lathe attachment available
- Customer Responsibility: Compliance with local regulations and utility connections
Why Choose the Castaly Basic CNC Router
- Cost-effective CNC solution with industrial-grade construction.
- Multiple model sizes to fit different production requirements.
- Easy-to-use DSP control system ideal for beginners and professionals.
- Versatile machining capabilities across wood, plastics, and light metals.
- Upgradeable with optional accessories for expanded functionality.
The Castaly Basic CNC Router provides an excellent balance of affordability, reliability, and performance, making it a strong entry-level or supplemental CNC solution for a wide range of manufacturing environments.
