Castaly ARTISAN-RT CNC Router (Vertical & Horizontal) Applications
- Three-dimensional woodworking and wave panel processing
- Cabinet, cupboard, and wooden door manufacturing
- Window frame and panel machining
- Advertising signage, logo production, and acrylic fabrication
- Plastic, PVC, and composite material cutting
- Metal mold engraving including aluminum, copper, and light steel
- Custom components such as furniture panels and gaming cabinets
Designed for manufacturers requiring flexible vertical and horizontal machining in one powerful CNC platform.
Castaly ARTISAN-RT CNC Router (Vertical & Horizontal) Specifications
| Model | ARTISAN-510 |
|---|---|
| Working Size | 63" (X) × 126" (Y) × 12" (Z) |
| Control System | Syntec FC 60-WA CNC Controller |
| Main Spindle | 9 KW (12 HP) Air-Cooled, 6,000–24,000 RPM |

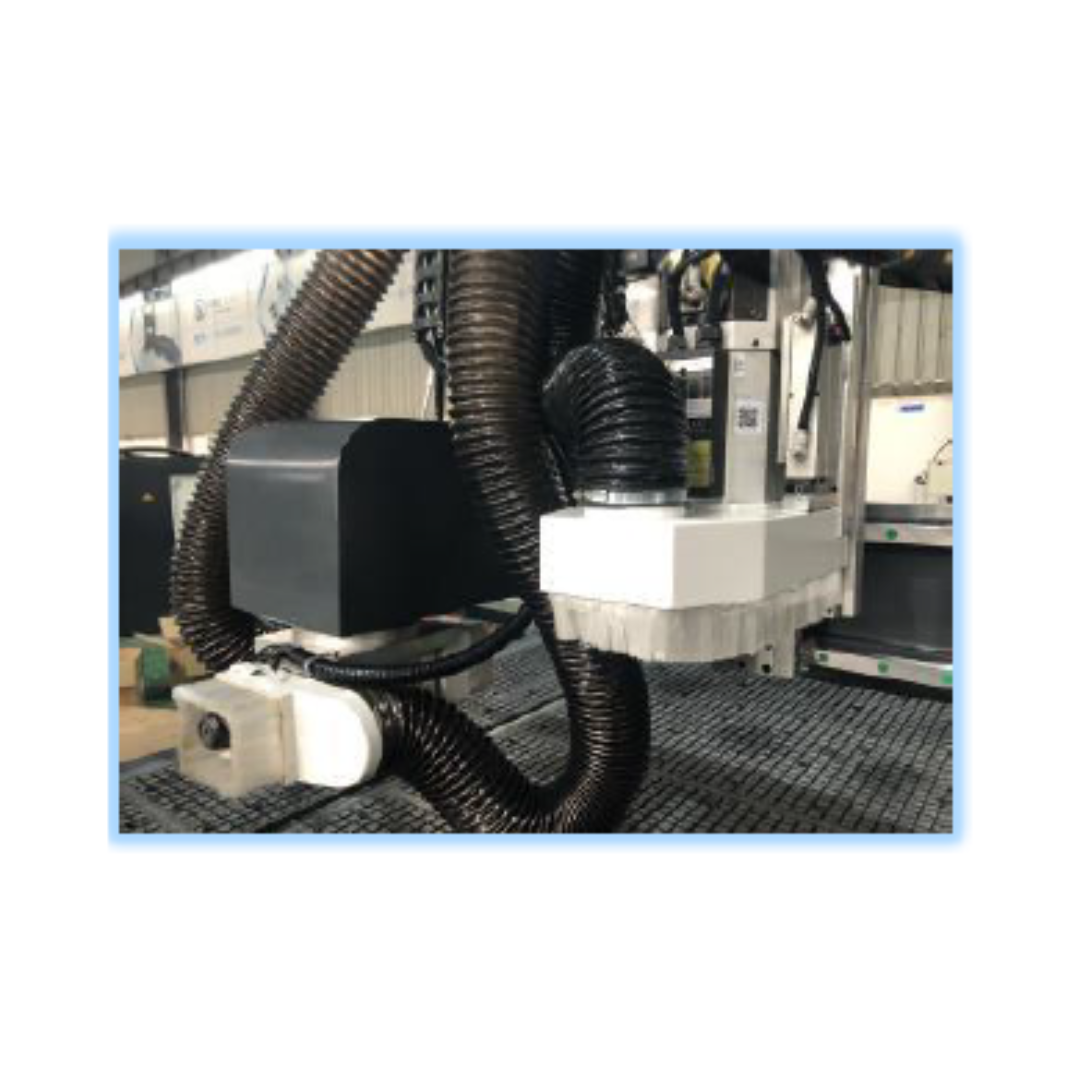

| Horizontal Spindle | 3.5 KW (4.7 HP) Double Horizontal Spindle |
| Tool Changer | Automatic 12 pcs ISO30 Linear Tool Change |
| Drive System | AC Servo Motor & Drive (All Axis) |
| X/Y Transmission | Helical Rack & Pinion (TBI / HIWIN) |
| Z Transmission | Ball Screw (TBI / HIWIN) |
| Linear Rails | HIWIN Square Rails (Taiwan) |
| Table | 6-Zone Vacuum Table with Pods |
| Max Travel Speed | 1,950 IPM |
| Max Working Speed | 790 IPM |
| Machine Size | 99" × 134" × 101" |
| Net Weight | 3,750 lbs |
| Electrical | 3 Phase, 220V, 62 AMP |
| Inverter | 11 KW |
| Electrical Components | Schneider (France), Omron (Japan), Siemens Cabling |
| Control Switch | Moeller (Germany) |
| Lubrication | Automatic with filtration system |
| Supported Formats | .plt, .dst, .dxf, .bmp, .dwg, .uoo |
Castaly ARTISAN-RT CNC Router (Vertical & Horizontal) Performance & Construction
- Vertical and horizontal machining capability allows multi-surface processing without repositioning.
- Automatic 12-position ISO30 tool changer increases productivity and reduces downtime.
- High-performance HSD spindle with precision CP4 DB bearings ensures durability and clean cutting.
- All-servo drive system delivers high torque, speed, and precise positioning across all axes.
- Heavy-duty stress-relieved steel frame ensures long-term stability and repeatable accuracy.
- Moving gantry design optimizes floor space while maintaining structural rigidity.
- Precision linear motion system with preloaded guides for smooth and accurate movement.

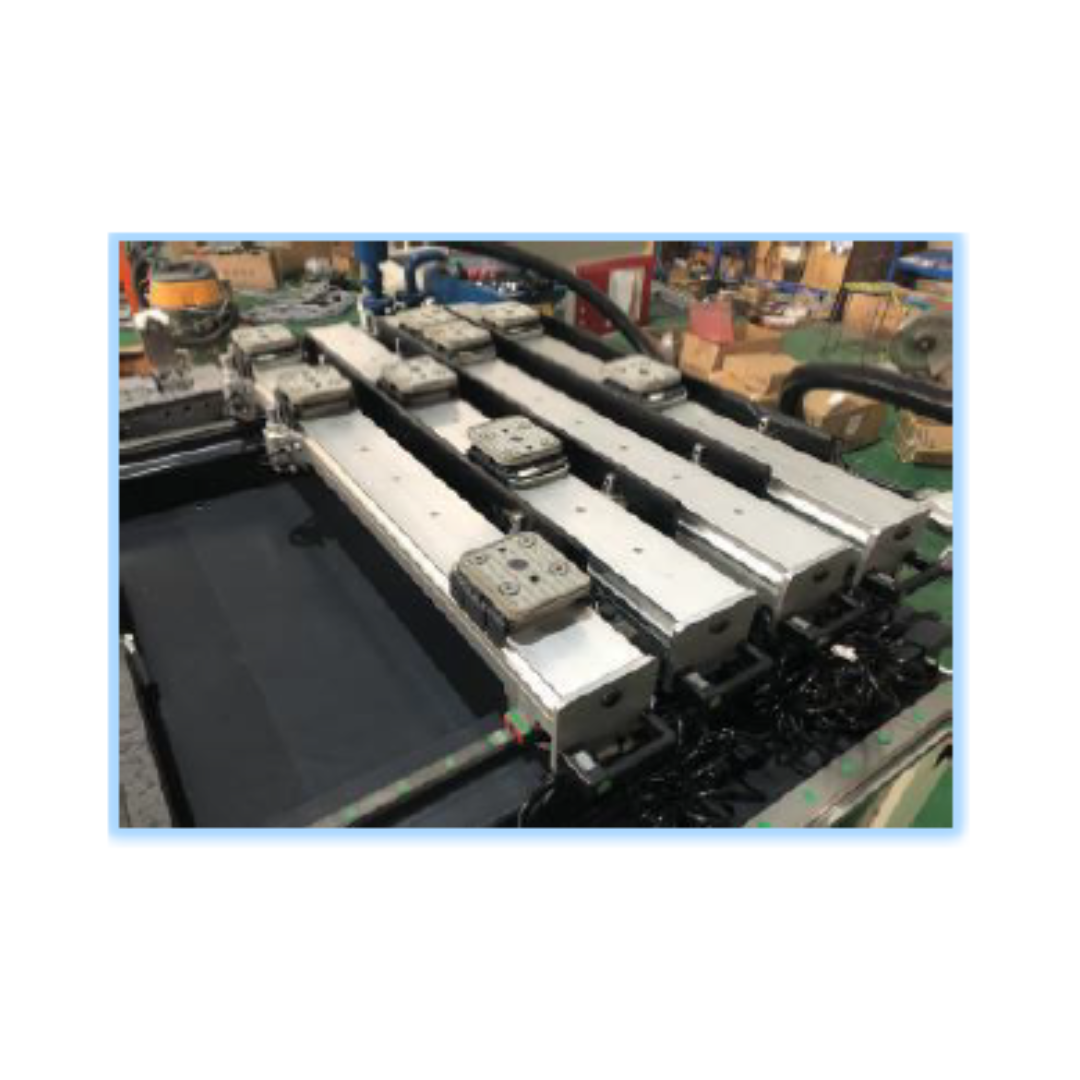

- Advanced vacuum table system with 6-zone configuration for strong material hold-down.
- Automatic lubrication system enhances machine longevity and reduces maintenance.
- Direct G-code compatibility with onboard storage eliminates the need for DNC systems.
Castaly ARTISAN-RT CNC Router (Vertical & Horizontal) Accuracy & Inspection Standards
- X, Y, Z axis parallel vertical accuracy: 0.001" (0.03 mm)
- Machine repositioning accuracy: 0.001" (0.02 mm)
- Working accuracy: 0.002" (0.05 mm)
- Grating ruler travel accuracy: 0.002" (0.05 mm)
Built for high-precision industrial applications requiring tight tolerances and consistent repeatability.
Castaly ARTISAN-RT CNC Router (Vertical & Horizontal) Commercial Terms
- Pricing: FOB Los Angeles, CA (tooling, rigging, freight, and taxes not included)
- Payment Terms: 50% deposit, 50% balance prior to shipment
- Warranty: 1 Year
- Delivery Time: To be confirmed after deposit
- Optional Services: Training, installation, tooling, and rigging
- Customer Responsibility: Compliance with local regulations and utility connections
Why Choose the Castaly ARTISAN-RT CNC Router (Vertical & Horizontal)
- Dual-orientation machining increases flexibility and reduces setup time.
- High-speed servo system ensures fast and accurate production cycles.
- Robust industrial construction for long-term reliability.
- Advanced control system supports complex programming and automation.
- Versatile processing across wood, plastics, composites, and light metals.
The Castaly ARTISAN-RT CNC Router (Vertical & Horizontal) is a powerful, versatile CNC solution engineered for manufacturers who demand precision, efficiency, and multi-directional machining capabilities in one machine.
