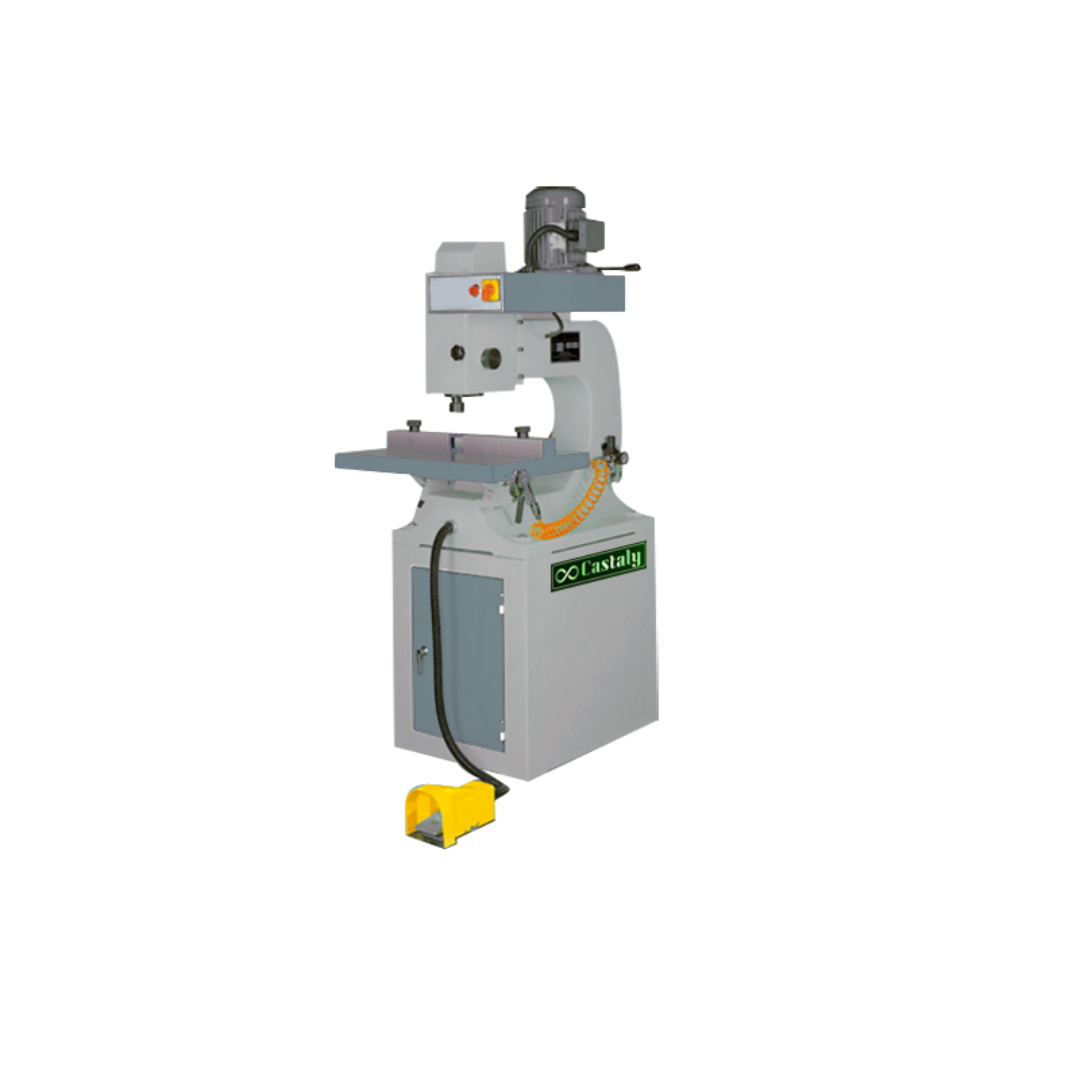

Castaly 20" Overarm Router RT-20 Applications
- Template and pattern routing
- Furniture component shaping
- Chair, table, and curved part duplication
- Custom woodworking and millwork production
- High-speed contour cutting and trimming operations
Engineered for professional woodworking shops requiring accurate, repeatable routing with pneumatic control and high spindle speeds.
Castaly 20" Overarm Router RT-20 Specifications
| Model | RT-20 |
|---|---|
| Chuck to Table Top (Max.) | 7" |
| Throat Clearance | 20" |
| Spindle Travel | 4" |
| Vertical Adjustment of Head | 3-1/8" |
| Table Size | 18" × 24" |
| Table Tilt | 45° |
| Depth End Stop | 6 Point Adjustable |
| Drive Motor | 3 HP, 3 Phase, 230V |
| Spindle Speed | 10,000 / 20,000 RPM |
| Collet Sizes | 1/4", 3/8", 1/2" |
| Net Weight | 485 lbs |
| Gross Weight | 616 lbs |
Castaly 20" Overarm Router RT-20 Performance & Construction
- Pneumatic vertical spindle travel operated by foot pedal for hands-free control and efficient routing cycles.
- Vertical stops adjustment at the head allows precise positioning for different cutting depths and repeat operations.
- Six-position adjustable depth stop system enables quick and accurate depth settings for multi-step routing processes.
- Mechanical brake system enhances operator safety and reduces spindle stopping time.
- Rugged dynamically balanced spindle manufactured from heat-treated chrome-molybdenum alloy steel for strength and long service life.
- Precision high-speed sealed bearings ensure accurate rotation, reduced vibration, and extended durability.
- Precision ground cast iron table provides a stable, flat surface for consistent routing accuracy.
- Tilting table up to 45° supports angled routing and specialized shaping applications.
- Heavy-duty sheet metal stand delivers structural rigidity and vibration control in industrial environments.
Why Choose the Castaly 20" Overarm Router RT-20
- Pneumatic spindle control for faster and more efficient operation.
- Dual spindle speeds (10,000 / 20,000 RPM) for versatile routing performance.
- Heavy-duty 3 HP industrial motor for consistent power delivery.
- Precision-engineered spindle and bearing system for smooth, accurate cuts.
- Robust 485 lb construction for stability and long-term durability.
The Castaly 20" Overarm Router RT-20 combines pneumatic precision control, high-speed routing capability, and rugged industrial construction—making it an excellent solution for professional woodworking facilities focused on accuracy, efficiency, and long-term performance.
