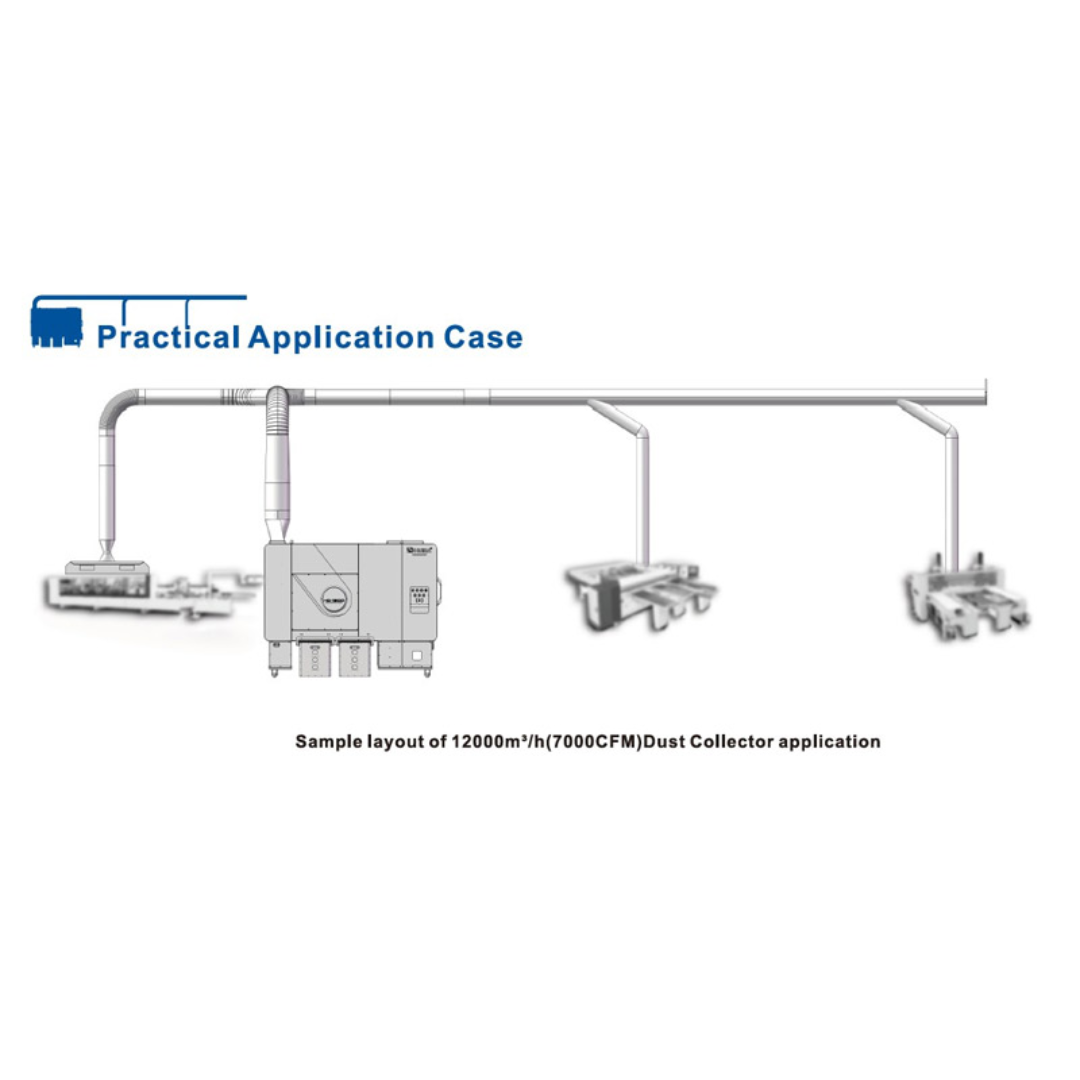

Castaly DG-HD1600-OD 20 HP Outdoor Air-Jet Dust Collector Applications
- Cabinet and kitchen manufacturing plants
- Furniture production facilities
- CNC router and panel processing operations
- Sanding, molding, shaping, and finishing departments
- Metallurgy, chemical and industrial processing plants
Ideal for facilities requiring centralized outdoor dust collection with high air volume and strict emission compliance.
Castaly DG-HD1600-OD 20 HP Outdoor Air-Jet Dust Collector Specifications
| Model | DG-HD1600-OD |
|---|---|
| Air Capacity | 9,400 CFM |
| Motor Power | 20 HP |
| Sound Rating | 75 – 85 dB |
| Static Pressure | >12 InH₂O |
| Inlet Diameter | 20" |
| Auto Cleaning Air-Jet Valves | 2 Sets |
| Filter Cartridge Size | 325 mm Dia × 1000 mm |
| Cartridge Quantity | 20 Units |
| Rotary Air-Lock Valve | 1 Set |
| Differential Pressure Transmitters | 1 Set |
| Manual Water Extinguishers | 2 Sets |

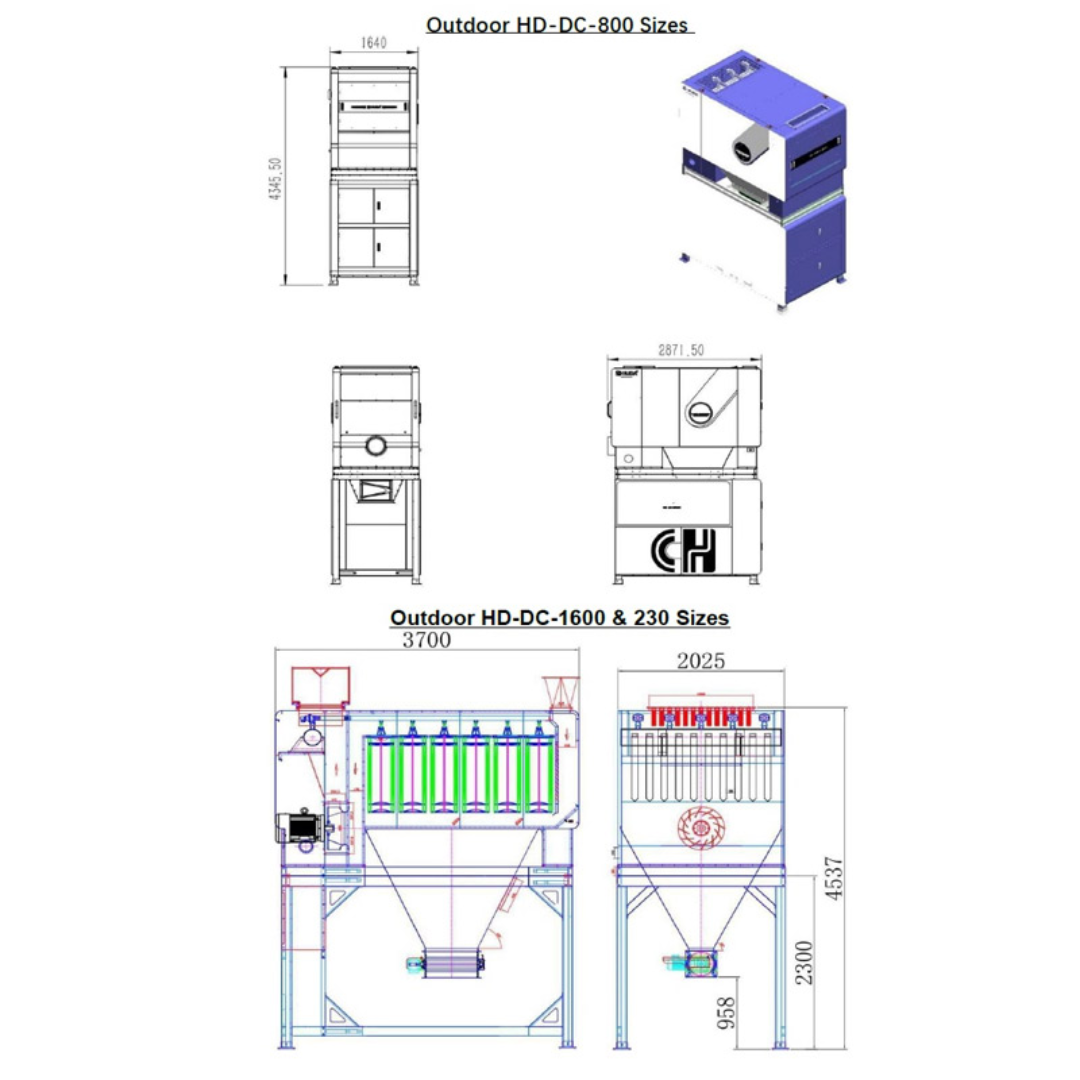

| Machine Size | 146" L × 79" W × 178" H |

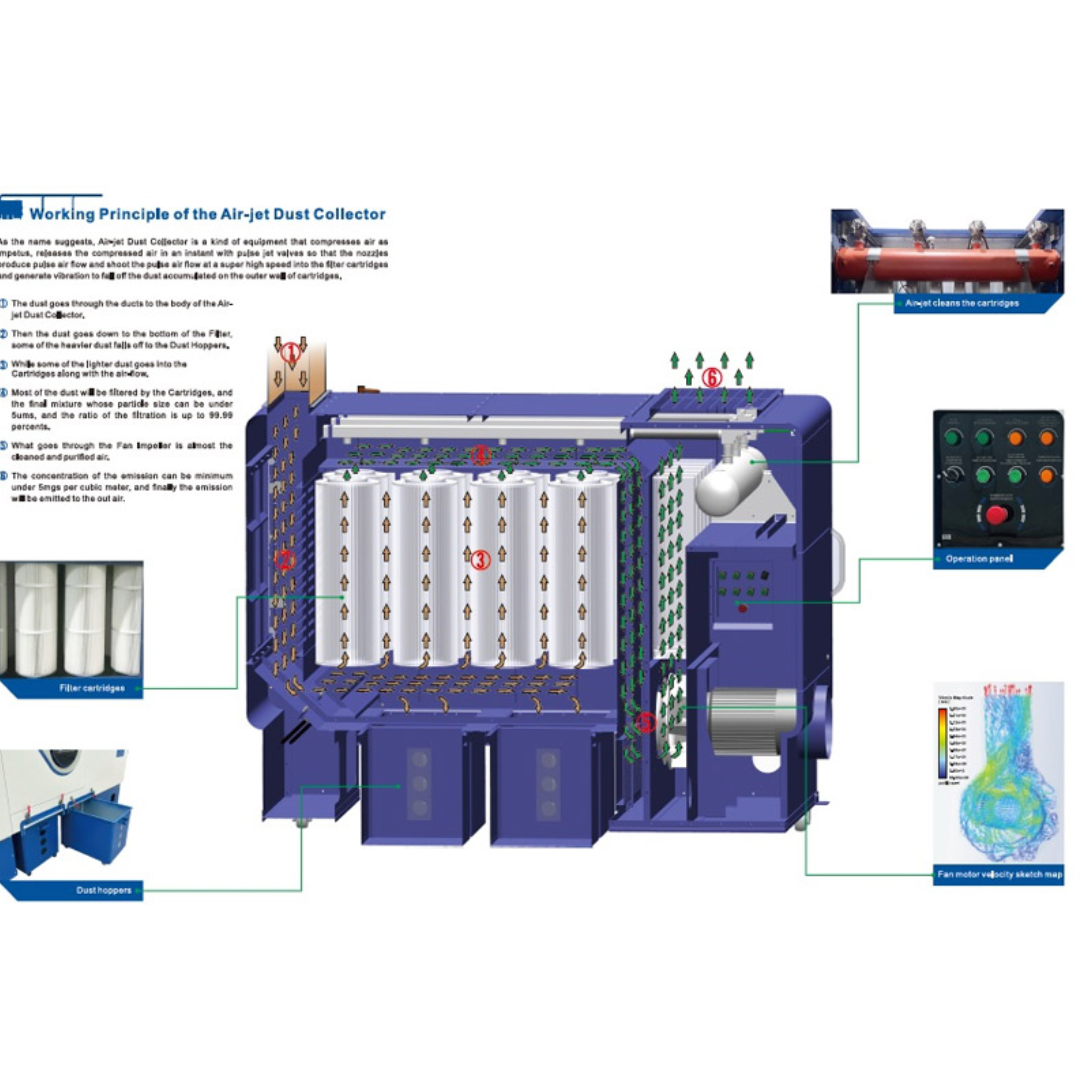

Castaly DG-HD1600-OD 20 HP Outdoor Air-Jet Dust Collector Pulse Jet Cleaning System
The Castaly DG-HD1600-OD 20 HP Outdoor Air-Jet Dust Collector uses compressed air released through pulse jet valves to generate high-speed airflow inside the cartridges. This creates vibration that dislodges accumulated dust from the outer cartridge surface.
- Dust enters through ducting into the collector housing.
- Heavier particles drop into bottom dust hoppers.
- Fine particles enter filter cartridges with airflow.
- Cartridges filter particles under 5 microns.
- Filtration efficiency up to 99.99%.
- Emission concentration can be under 5 mg per cubic meter.
Castaly DG-HD1600-OD 20 HP Outdoor Air-Jet Dust Collector Construction & Compliance
- CE certified (including ATEX directives), UL and GB approved standards.
- 2mm galvanized zinc sheet with anti-static spray surface.
- PLC and VFD components from Mitsubishi, Schneider, Siemens, Omron, Rockwell and more.

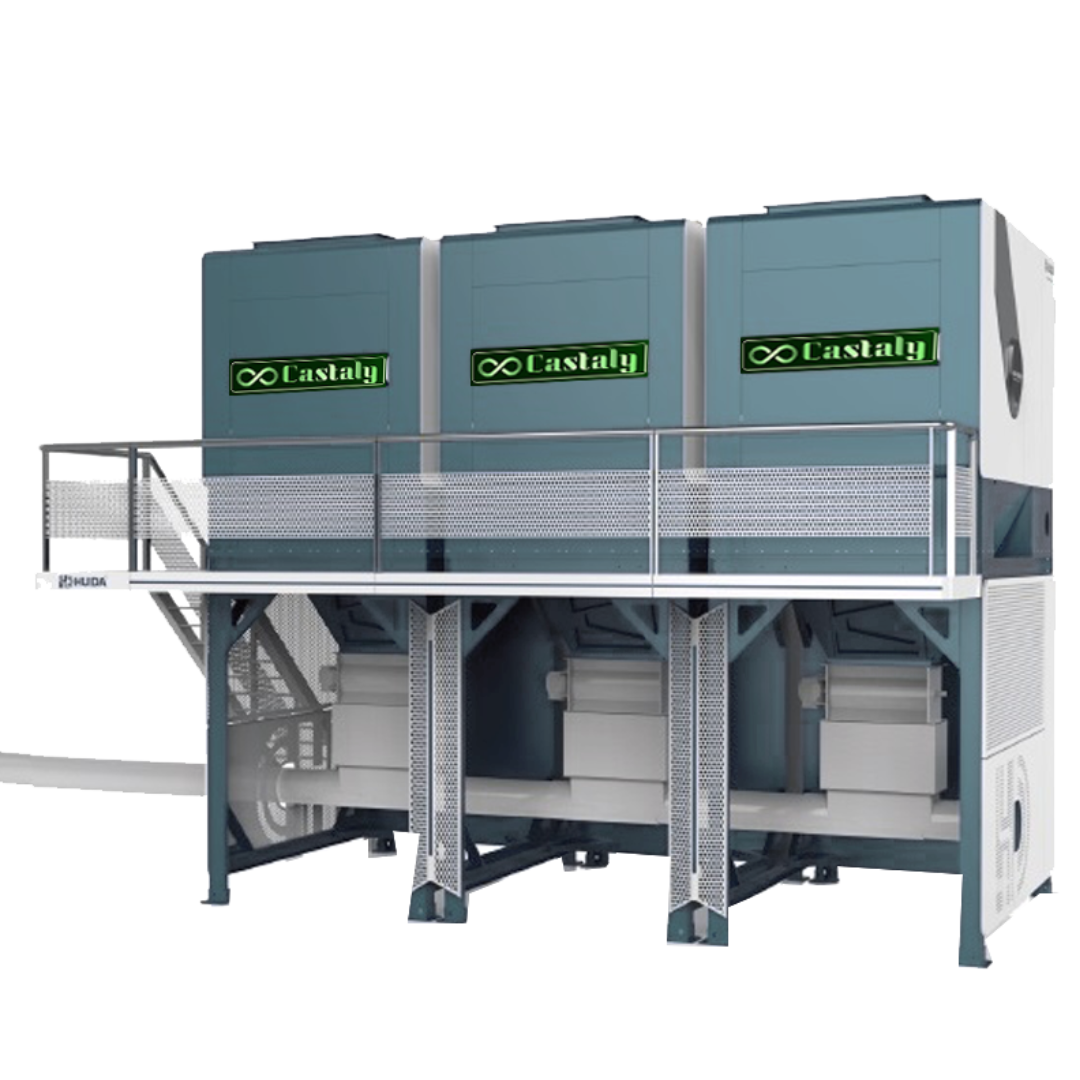

- Heavy-duty steel frame built for outdoor installation.
- Dust-cleaning ratio of 99% and filtration efficiency up to 99.99%.
Castaly DG-HD1600-OD 20 HP Outdoor Air-Jet Dust Collector Available Options
- Extended HMI Controller – $890.00
- Combustible Dust & ATEX Safety Package – $7,990.00
- Automatic Water Extinguisher System – $4,690.00
Why Choose the Castaly DG-HD1600-OD 20 HP Outdoor Air-Jet Dust Collector
- High-capacity 9,400 CFM airflow for demanding operations.
- Advanced pulse-jet auto-cleaning system.
- Industrial-grade global brand components.
- Low emissions and strong compliance certifications.
- Expandable with safety and automation upgrades.
The Castaly DG-HD1600-OD 20 HP Outdoor Air-Jet Dust Collector is engineered for high-volume industrial facilities that demand reliable, compliant, and high-efficiency dust extraction.
