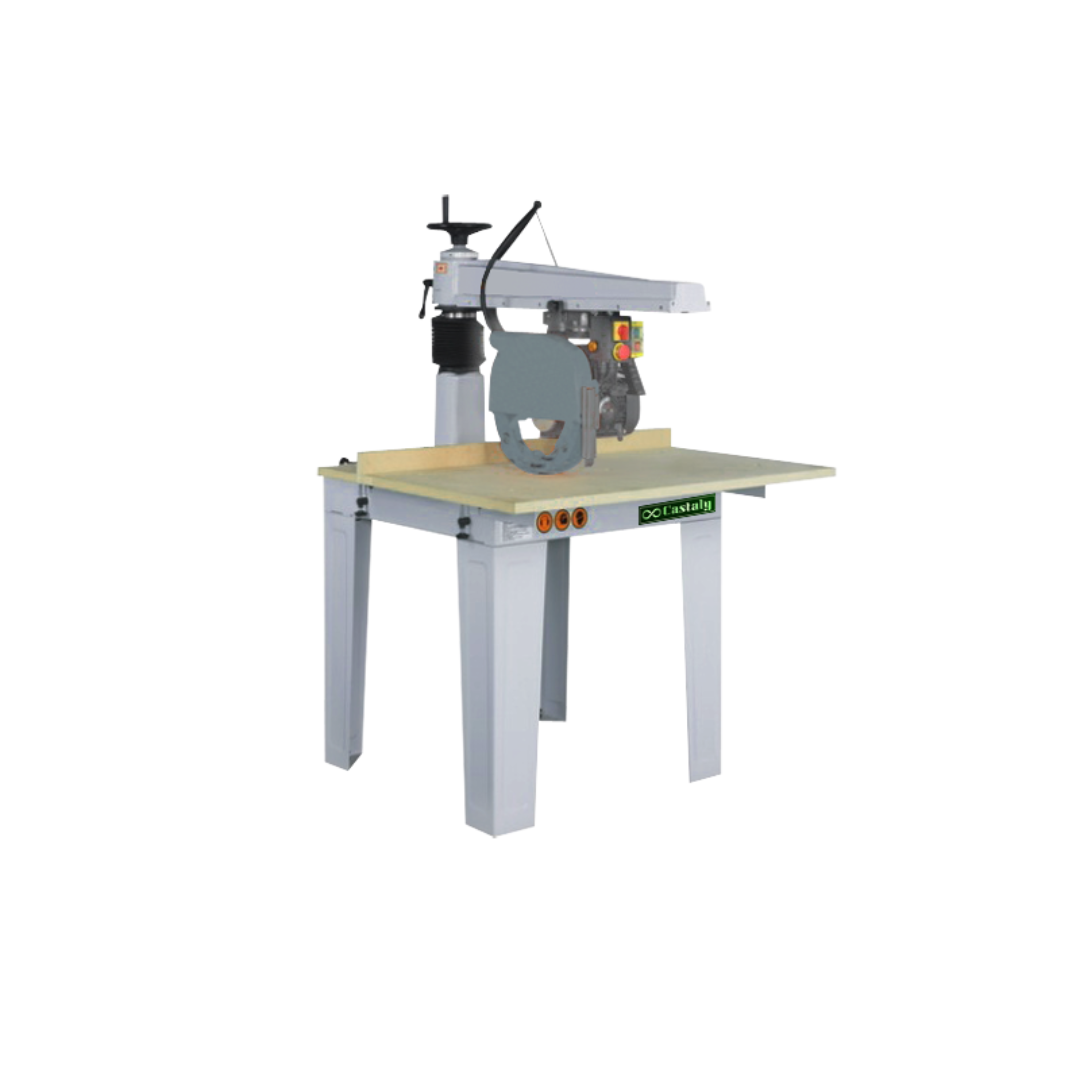

Castaly 14" Radial Arm Saw RS-640 Applications
- Cabinet and furniture production
- Precision crosscutting of solid wood and panels
- Miter and bevel cutting for frames and doors
- Trimming and dimensioning lumber
- General industrial woodworking operations
Ideal for workshops and production facilities requiring accurate crosscuts with flexible angle adjustments.
Castaly 14" Radial Arm Saw RS-640 Specifications
| Model | RS-640 |
|---|---|
| Motor | 4.5 HP, 3 Phase, 230V |
| Motor Speed | 2900 RPM |
| No. of Head Travel Bearings | 8 |
| Spindle Diameter | 1" |
| Saw Blade Diameter | 12" – 14" |
| Max. Trimming Width | 33-3/4" |
| Max. Depth of Cut | 4-1/8" |
| Max. Cross Cut Length | 24-1/2" |
| Table Size (L × W) | 35" × 43-1/4" |
| Head Swiveling (Horizontal) | 0° – 180° |
| Head Tilting (Vertical) | 0° – 90° |
| Machine Size | 44" × 43-1/4" × 69" |
| Net Weight | 510 lbs |
| Gross Weight | 595 lbs |
Castaly 14" Radial Arm Saw RS-640 Performance & Construction
- Laser cutting guide projects a straight cutting line for improved precision and faster setup.
- Hardened and precision-ground rail provides maximum wear resistance and long-term slide accuracy.
- Eight ball-bearing head travel system ensures effortless and smooth saw head movement.
- One-piece cast iron arm enhances rigidity and minimizes vibration during operation.
- High-performance self-braking motor increases operator safety and reduces blade stopping time.
- Quick position stops at 45° (left and right) allow rapid and repeatable miter adjustments.

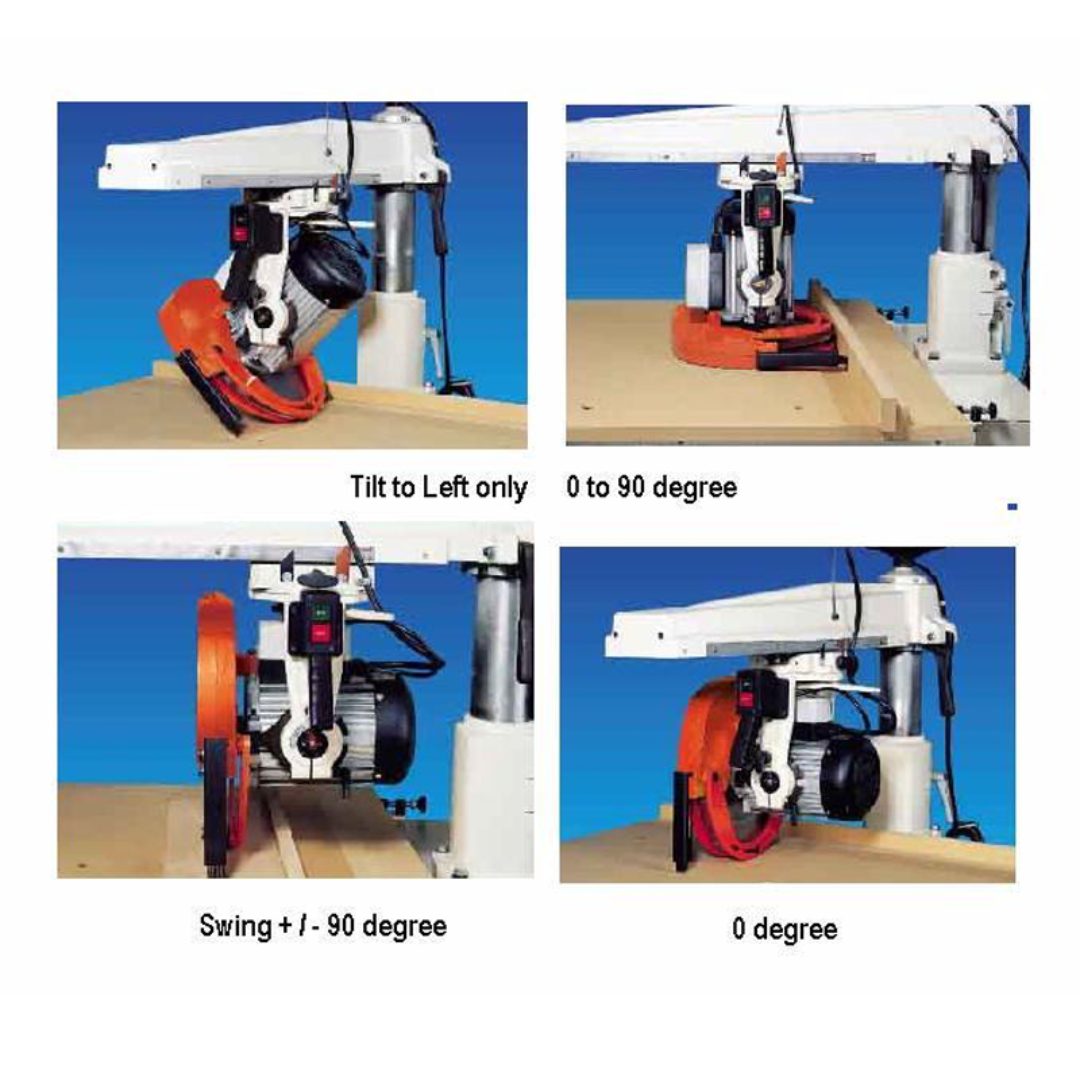

- Full horizontal swivel (0°–180°) and vertical tilt (0°–90°) for versatile cutting flexibility.
- Safety blade guard enhances protection during operation.
- Anti-kickback attachment included to improve material control and reduce risk.
- Overload protection switch safeguards the motor under demanding cutting conditions.
- Heavy sheet metal stand provides stable support and industrial durability.
Why Choose the Castaly 14" Radial Arm Saw RS-640
- 4.5 HP industrial motor delivering consistent power at 2900 RPM.
- Laser-guided straight cutting for improved accuracy.
- Compact footprint with robust 510 lb construction.
- Smooth ball-bearing arm travel for controlled precision cuts.
- Comprehensive safety features including self-braking motor and overload protection.
The Castaly 14" Radial Arm Saw RS-640 combines industrial-grade strength, precision engineering, and operator-focused safety features—making it a dependable solution for professional woodworking shops requiring consistent crosscut and angle cutting performance.
