Virutex SVN460 Multiple Fastening System Tilting + Swivelling 5046400 Applications

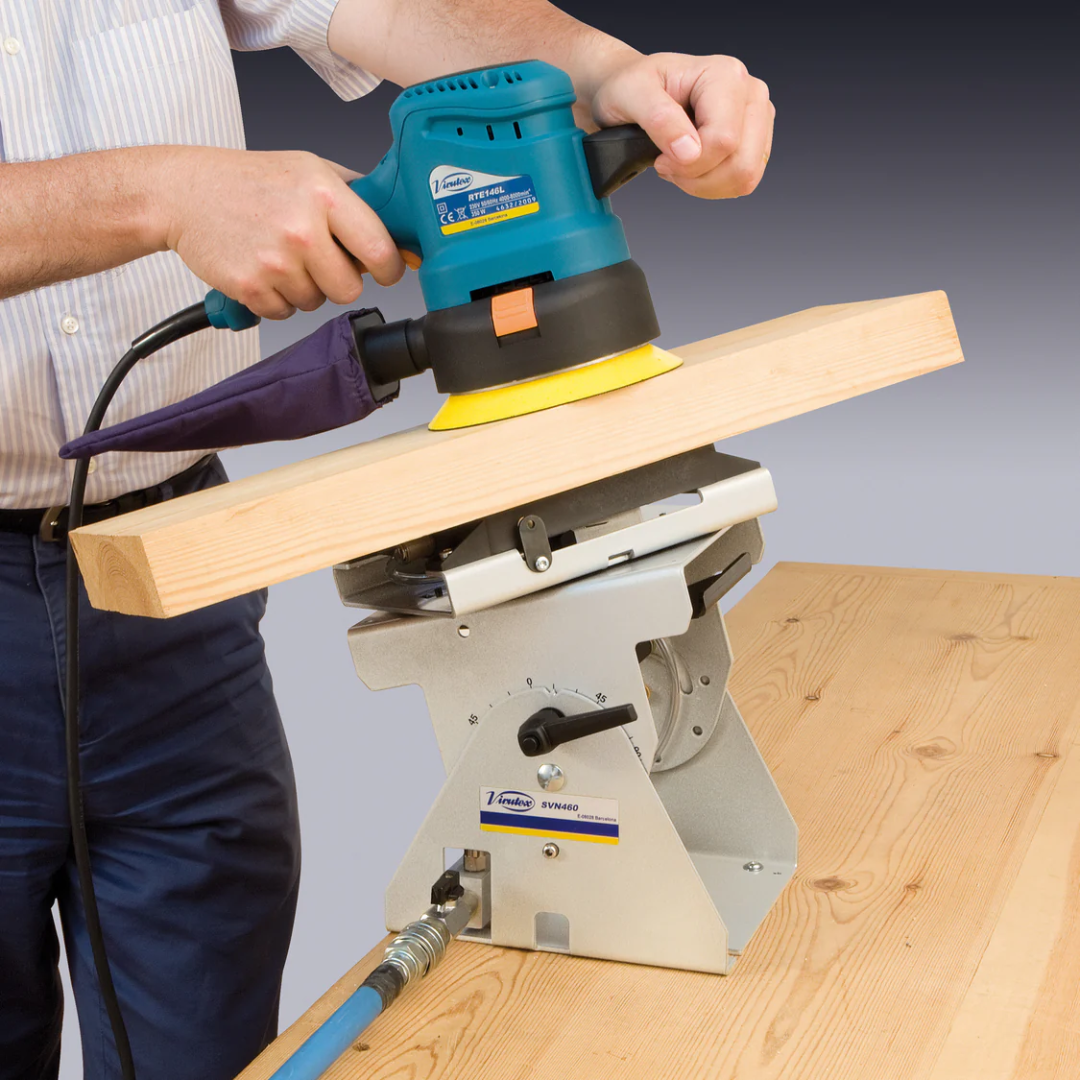

- Edge machining, trimming, and finishing without repositioning the workpiece
- Routing, sanding, and drilling operations on angled or flat surfaces
- Workholding for panels, boards, and components in vertical or inclined positions

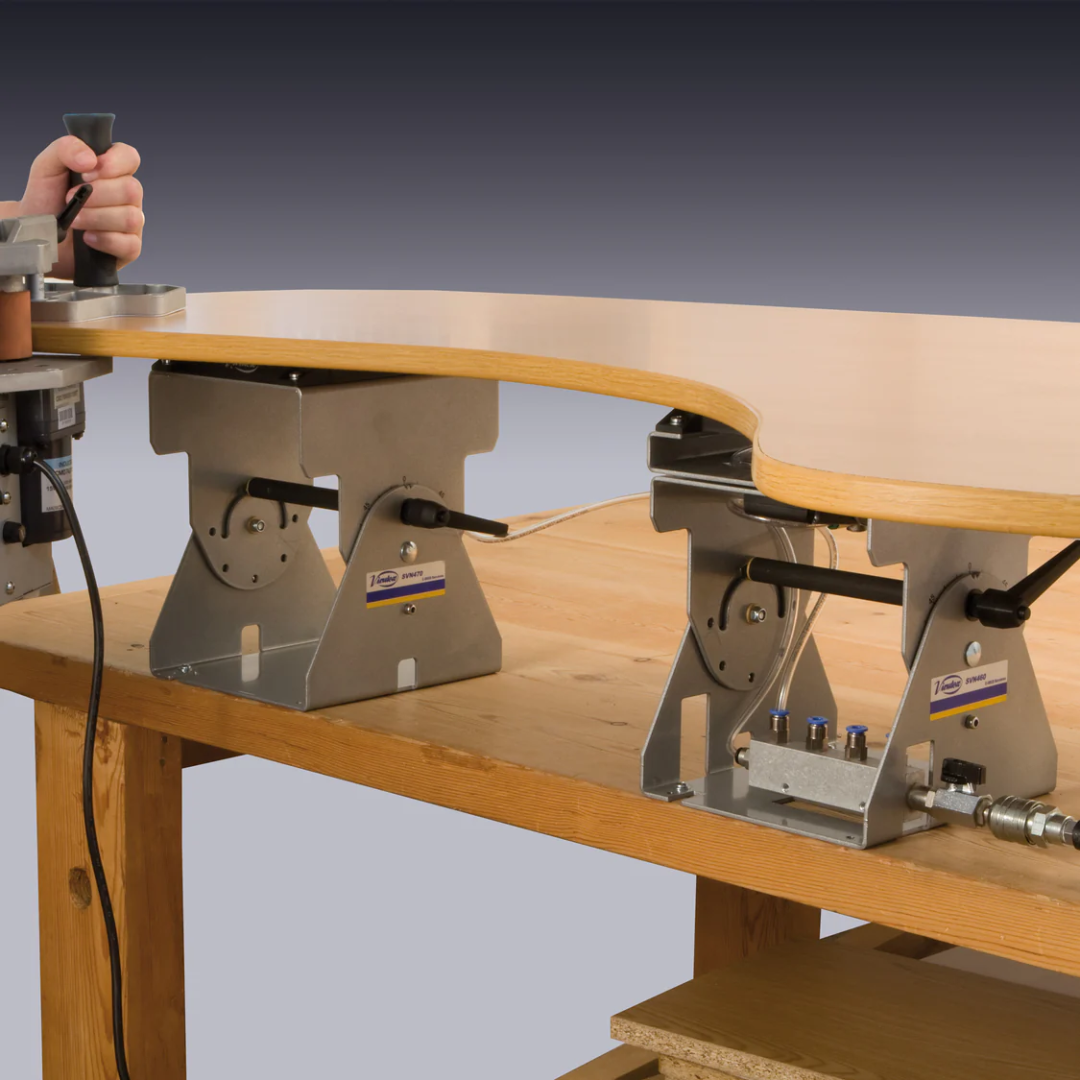

- Multi-unit setups for handling larger panels and complex shapes
- Workshop and on-site applications requiring flexible positioning and secure fixation
Perfect for professionals who need maximum access to all sides of a workpiece while maintaining a secure, non-marking hold.
Virutex SVN460 Multiple Fastening System Tilting + Swivelling 5046400 Specifications
| Base System | SVN250 Vacuum Pad Integrated |
|---|---|
| Support Type | Tilting and Swivelling Adjustable Base |
| Auxiliary Connections | Up to 4 units (SVN250 or SVN470) |
| Air Distribution | Integrated distributor with 4 outlets |
| Connection Type | Quick-connect pneumatic system |
| Mounting | G-clamp for fast workbench attachment |
| Included Accessories | 3 rubber seals (different perimeters), air distributor, quick connectors |
Virutex SVN460 Multiple Fastening System Tilting + Swivelling 5046400 Performance & Construction

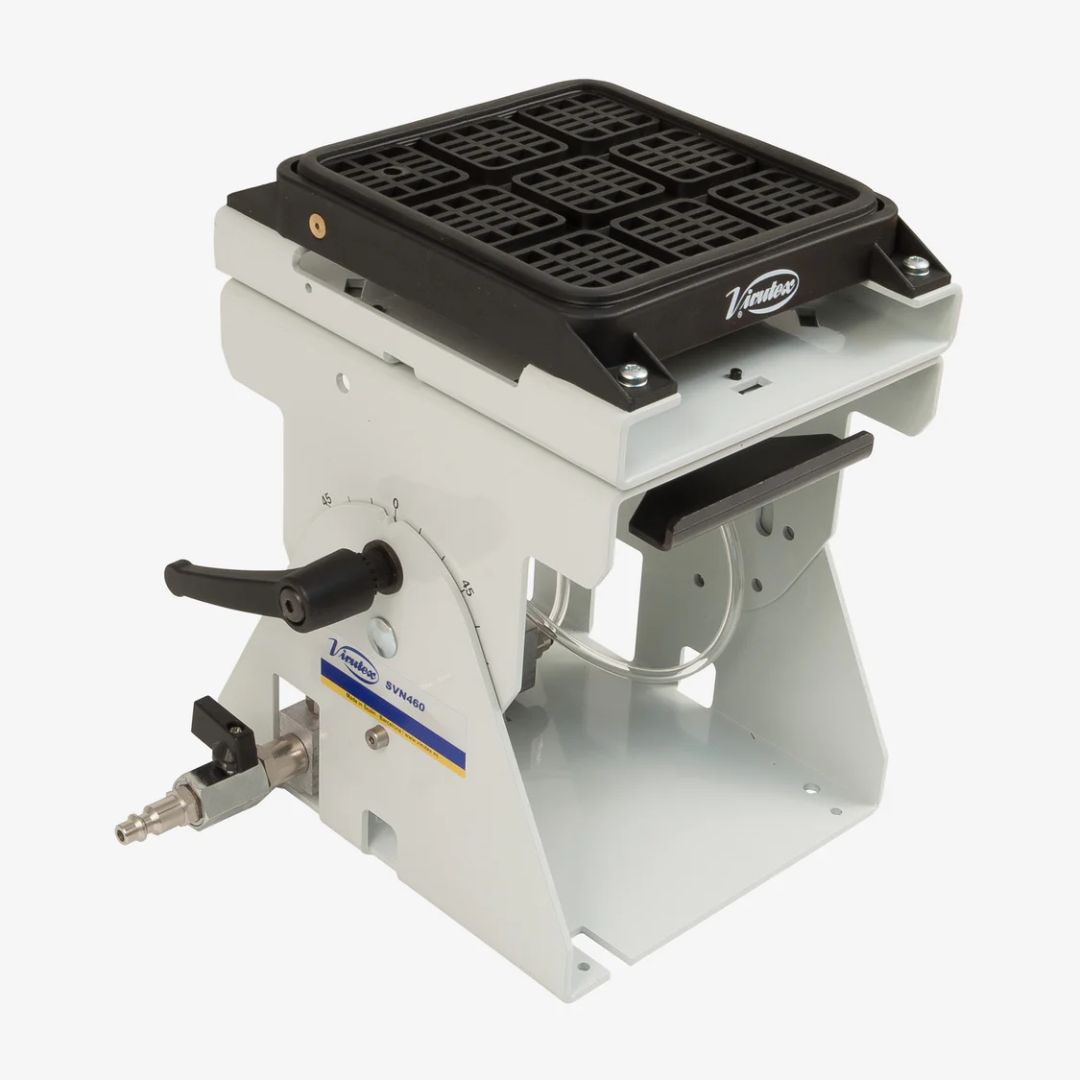

- Integrated SVN250 vacuum system delivers strong, non-marking fixation for smooth, non-porous materials.

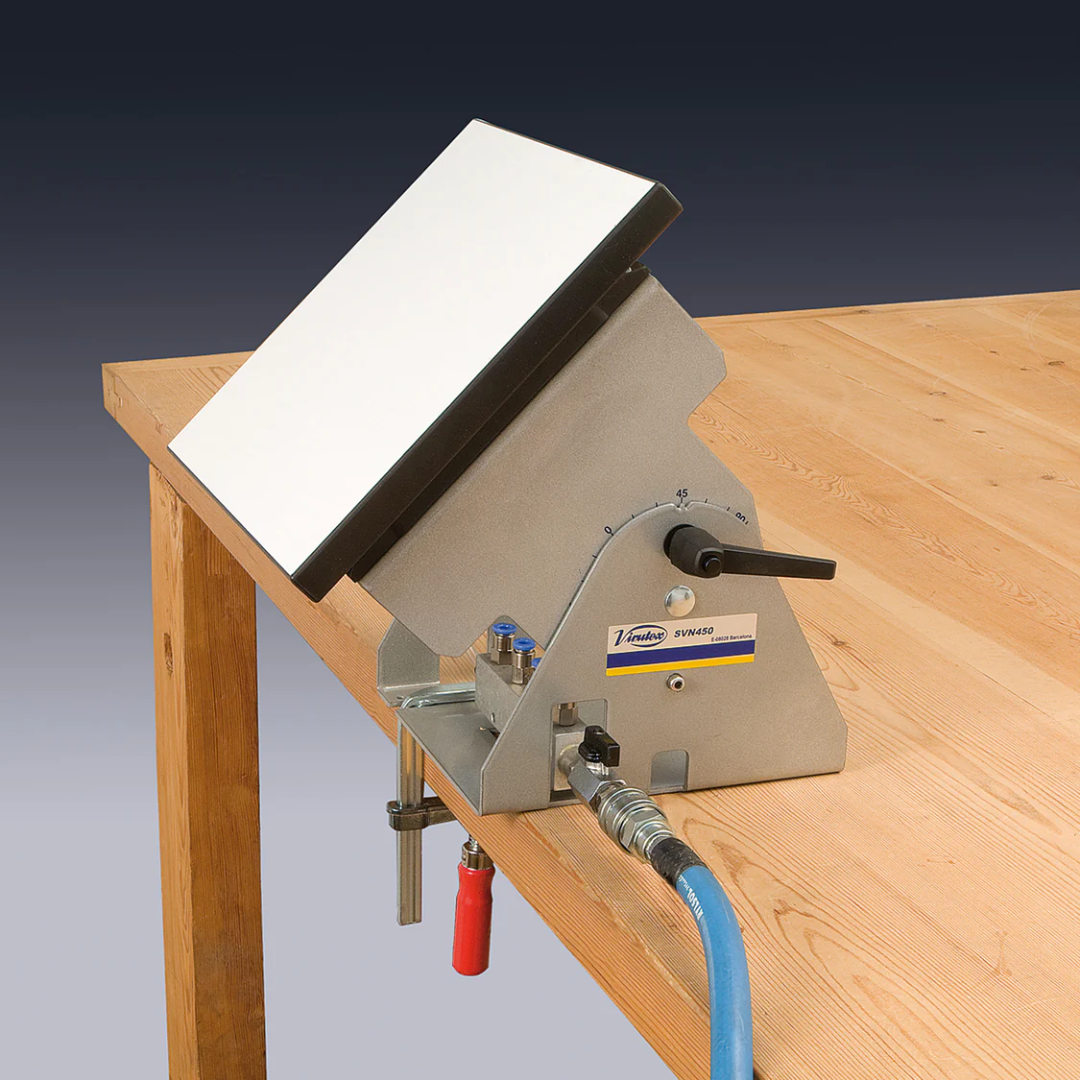

- Tilting and swivelling support enables precise angle adjustment for optimal working positions.
- Full surface access allows machining of edges and faces without repositioning the workpiece.
- Multi-unit expansion capability with distributor supporting up to four auxiliary SVN250 or SVN470 units.
- Quick pneumatic connection system ensures fast setup and efficient airflow distribution.
- Stable G-clamp mounting provides secure and rapid attachment to workbenches.

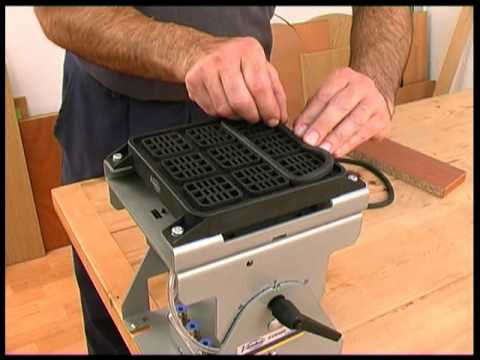

- Customizable suction zones using included rubber seals for different workpiece sizes and shapes.
- Professional-grade versatility suitable for both stationary workshop use and mobile applications.
Why Choose the Virutex SVN460 Multiple Fastening System Tilting + Swivelling 5046400
- Enables complete machining access without repositioning workpieces.
- Flexible tilting and swivelling improves ergonomics and precision.
- Expandable system supports larger and more complex setups.
- Quick installation with integrated pneumatic distribution.
- Reliable, non-marking vacuum hold for high-quality finishes.
The Virutex SVN460 Multiple Fastening System Tilting + Swivelling 5046400 is a versatile, professional-grade solution designed to maximize efficiency, flexibility, and precision in advanced woodworking and fabrication tasks.
