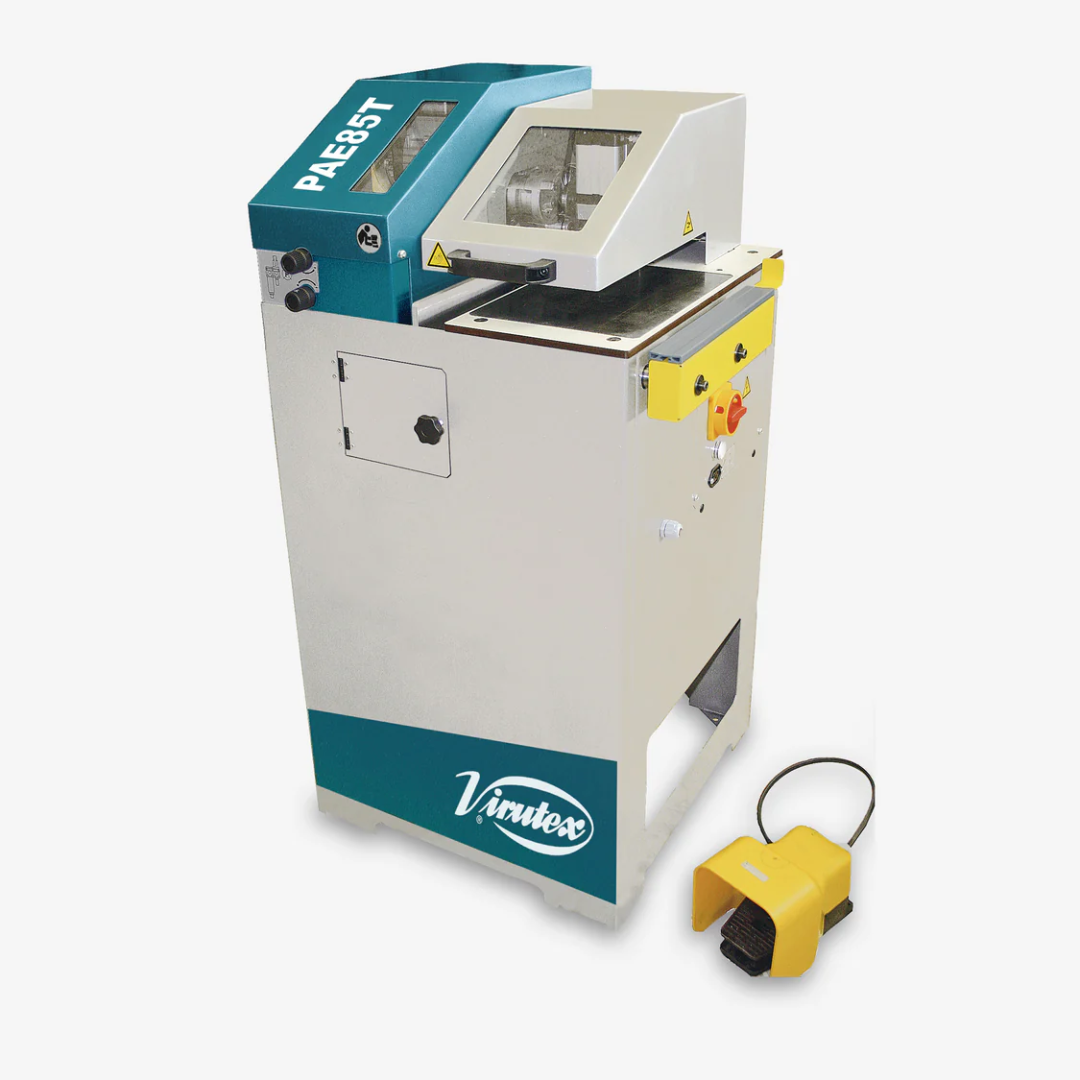

Virutex PAE85T Corner Round Trimmer For Hot Melt Edgebanders 8500700 Applications
- Automatic corner rounding of edge-banded panels
- Processing straight, curved, and postformed panel corners
- Furniture manufacturing and cabinet production lines
- Industrial edge finishing following hot melt edgebanding processes
Designed for high-production environments where precision, repeatability, and finish quality are critical.
Virutex PAE85T Corner Round Trimmer For Hot Melt Edgebanders 8500700 Specifications
| Corner Radius (Standard) | R = 2 mm or 10° chamfer |
|---|---|
| Optional Radius | R = 3 mm (standard option), up to R = 10 mm on request |
| Working Speed | 10,000 RPM |
| Voltage | 230 V / 50–60 Hz |
| Operating Pressure | 6 Bar (Pneumatic System) |
| Max Panel Dimensions | Up to 130 mm × 300 mm |
| Min Panel Dimensions | 100 mm × 130 mm |
| Max Trimming Capacity | Up to 60 mm edge height |
Virutex PAE85T Corner Round Trimmer For Hot Melt Edgebanders 8500700 Performance & Features
- Automatic Corner Trimming efficiently processes straight, curved, and postformed corners with consistent precision.

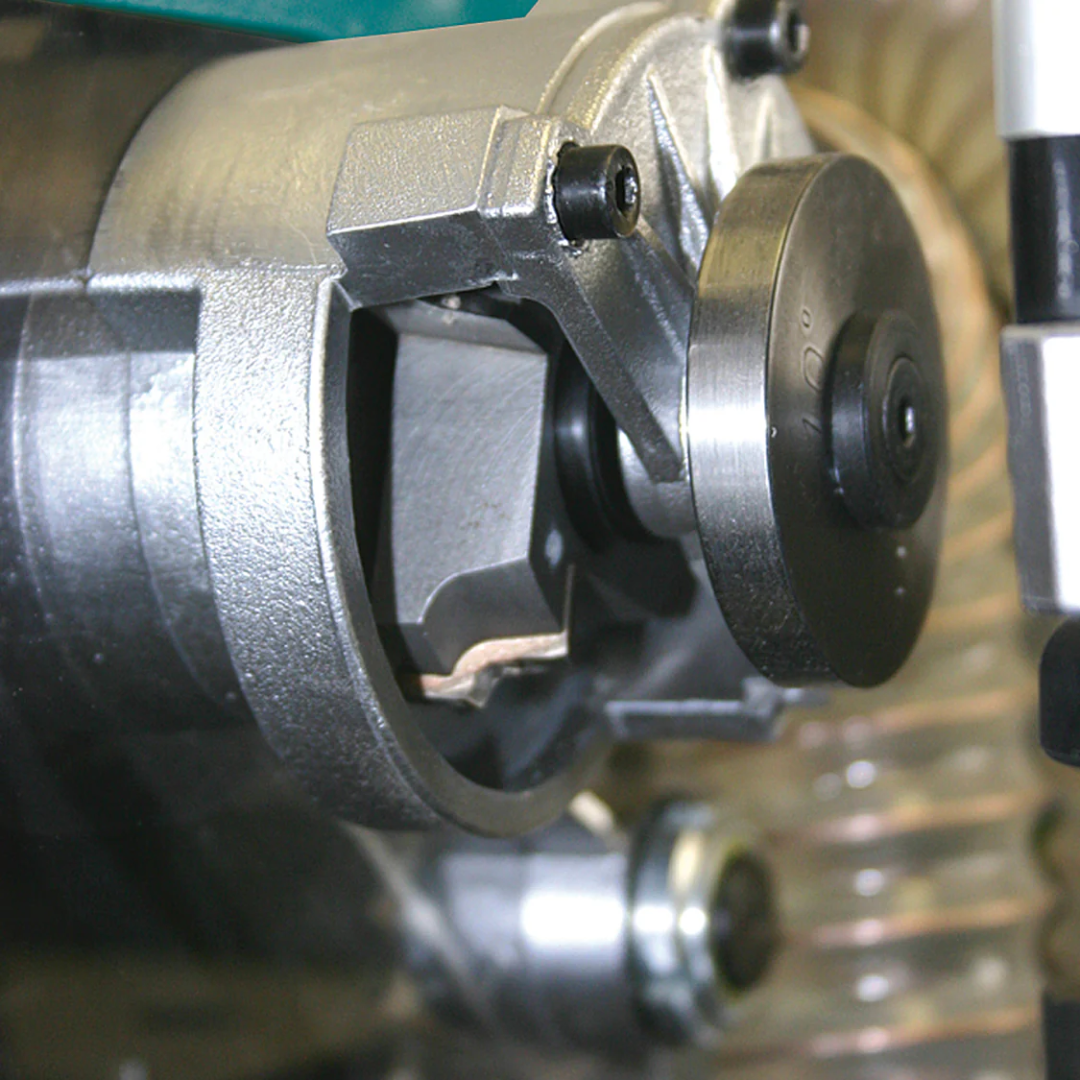

- Large Diameter Cutter ensures superior finish quality and smooth rounded edges.
- Pneumatic Presser System securely holds panels in place during operation, improving safety and accuracy.

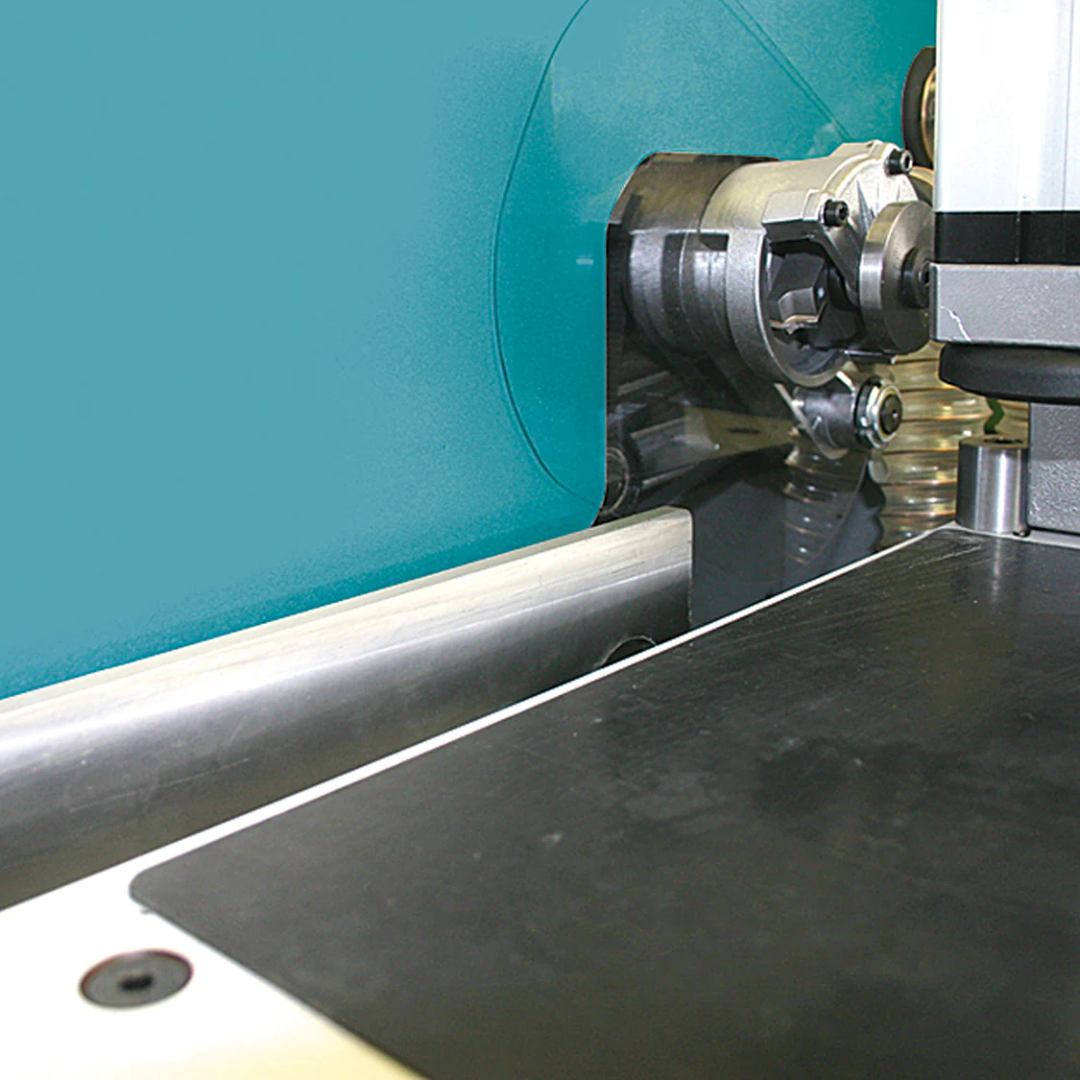

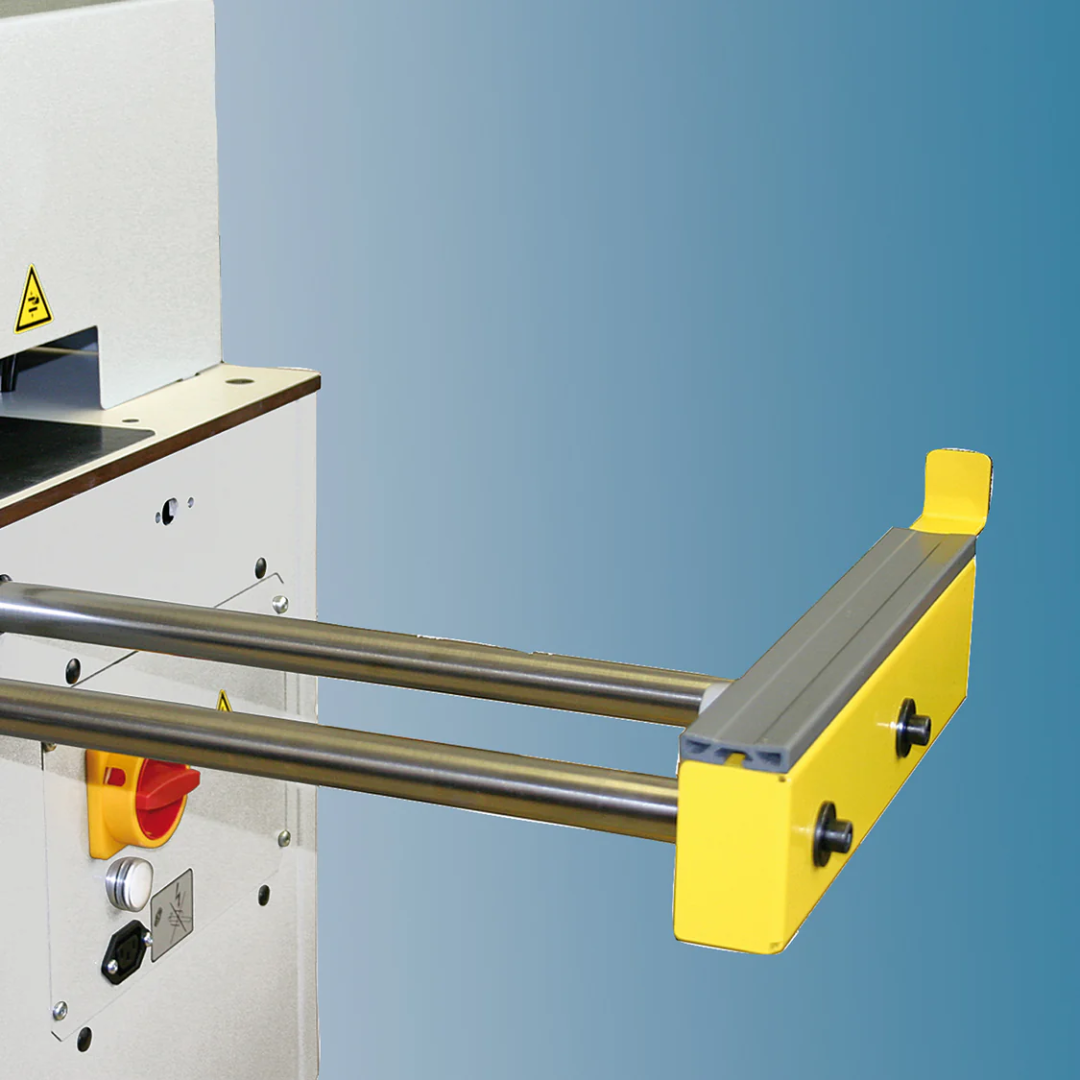

- Extendable Guide supports larger workpieces and enhances positioning control.
- Quick Positioning Guide allows fast and accurate alignment of panels for increased productivity.
- Independent Copier System prevents accidental panel damage by separating the guide mechanism from the cutting bit.
- Custom Radius Capability supports multiple radius options to meet specific finishing requirements.
- Industrial Construction designed for continuous operation in demanding production environments.
Why Choose the Virutex PAE85T Corner Round Trimmer For Hot Melt Edgebanders 8500700
- High-quality corner finishing with large-diameter cutting system.
- Handles straight, curved, and postformed panels with ease.
- Pneumatic clamping ensures stability and operator safety.
- Flexible radius options for diverse production needs.
- Reliable, repeatable performance for industrial workflows.
The Virutex PAE85T Corner Round Trimmer For Hot Melt Edgebanders 8500700 is an essential solution for manufacturers seeking precision corner finishing, improved efficiency, and consistent results in edge-banding operations.
