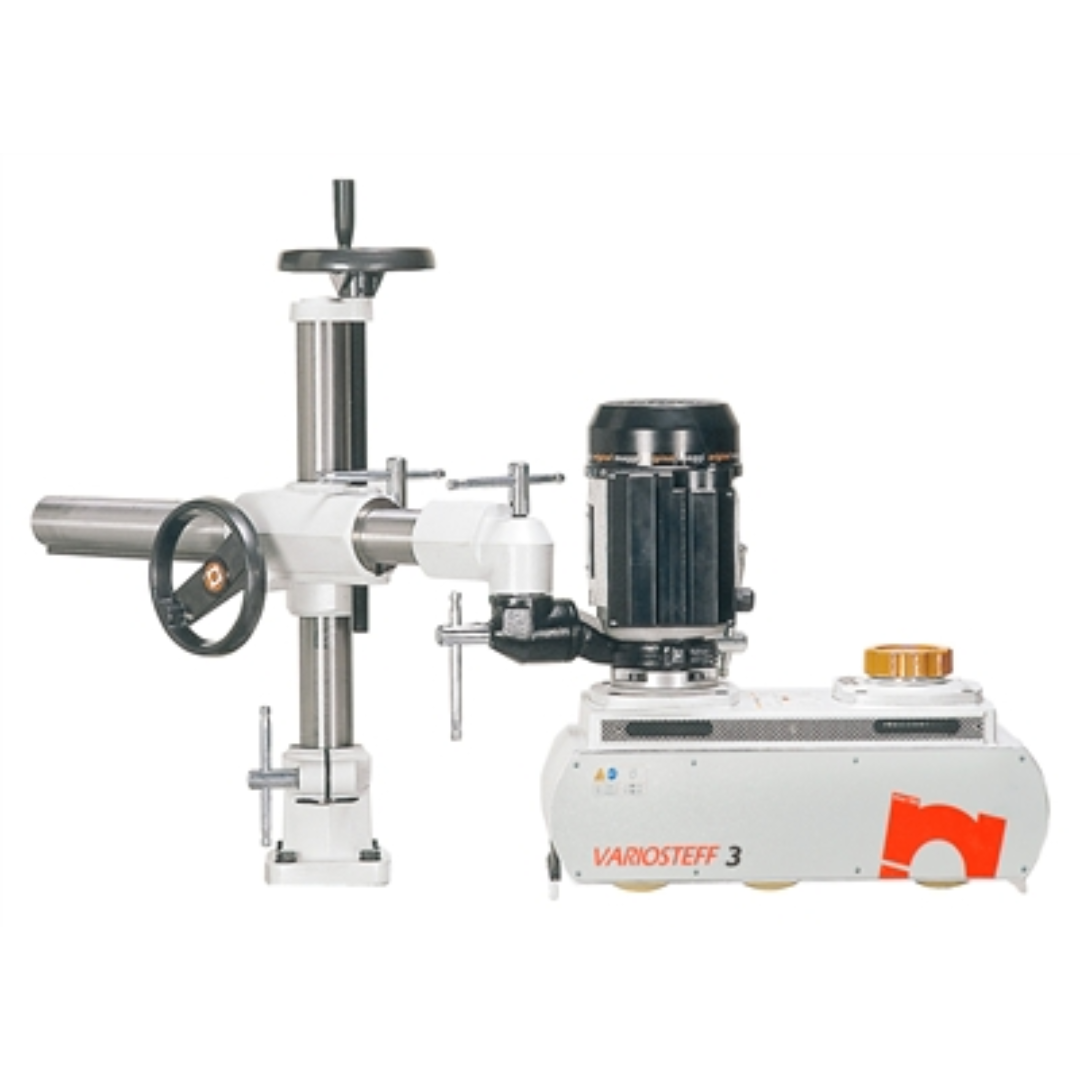

Vario Steff 3 Variable Speed Power Feeder Applications
- Shapers, table saws, and precision router table operations
- Applications requiring fine-tuned feed speed adjustments
- Processing hardwoods, softwoods, and delicate materials
- Operations where finish quality depends on optimal feed rate control
Ideal for users who require continuous speed adjustment without stopping the machine or changing gear configurations.
Vario Steff 3 Variable Speed Power Feeder Specifications
| Model | Vario 3 |
|---|---|
| Motor Power | 1 HP |
| Three-Phase Motor Power | 0.75 kW |
| Single-Phase Motor Power | 0.52 kW |
| Speed Control | Variable (Knob-Controlled) |
| Feed Speed Range | 9 – 59 FPM |
| Metric Feed Speed Range | 3 – 18 m/min |
| Number of Rollers | 3 |
| Roller Diameter | 4-3/4" (Ø120 mm) |
| Roller Width | 2-1/4" (60 mm) |
| Roller Hardness | 50–60 Shore (Natural Rubber) |
| Vertical Travel | 1" |
| Spring Travel | 20 mm |
| Machine Weight | 147 lbs |
| Gross Weight | 33 kg |
| Packaging Dimensions | 670 × 570 × 330 mm |
Vario Steff 3 Variable Speed Power Feeder Performance & Construction
- Variable speed adjustment system using a belt-driven conical aluminum pulley for smooth, continuous speed changes.
- Knob-controlled speed setting allows quick adjustments without changing gear positions.
- Min–Max indicator plate shows correct rotation direction to achieve desired speed.
- Three precision rollers provide consistent pressure and smooth material feeding.
- Powerful 1 HP motor delivers reliable performance for demanding woodworking tasks.
- Sintered case hardened gears ensure durability and long service life.
- Bronze alloy main drive gear improves smooth operation and reduces wear.
- Natural rubber rollers (60 shore) provide excellent grip while protecting surfaces.
- Optional polyurethane and steel rollers available for specialized applications.
- Calibrated spring support system maintains consistent roller pressure and feed accuracy.
- 1" vertical travel allows flexibility for varying material thicknesses.
- Electrostatic paint finish enhances durability and corrosion resistance.
- Universal support column included for flexible installation and positioning.
- Optional 230V single-phase configuration available (additional cost applies).
Why Choose the Vario Steff 3 Variable Speed Power Feeder
- Continuous variable speed control for precise feeding performance.
- No gear changes required, improving workflow efficiency.
- Durable construction designed for professional use.
- Improves safety, accuracy, and finish quality in woodworking operations.
The Vario Steff 3 Variable Speed Power Feeder is the ideal solution for woodworkers who demand precision control, flexibility, and consistent feeding performance in high-quality machining applications.
