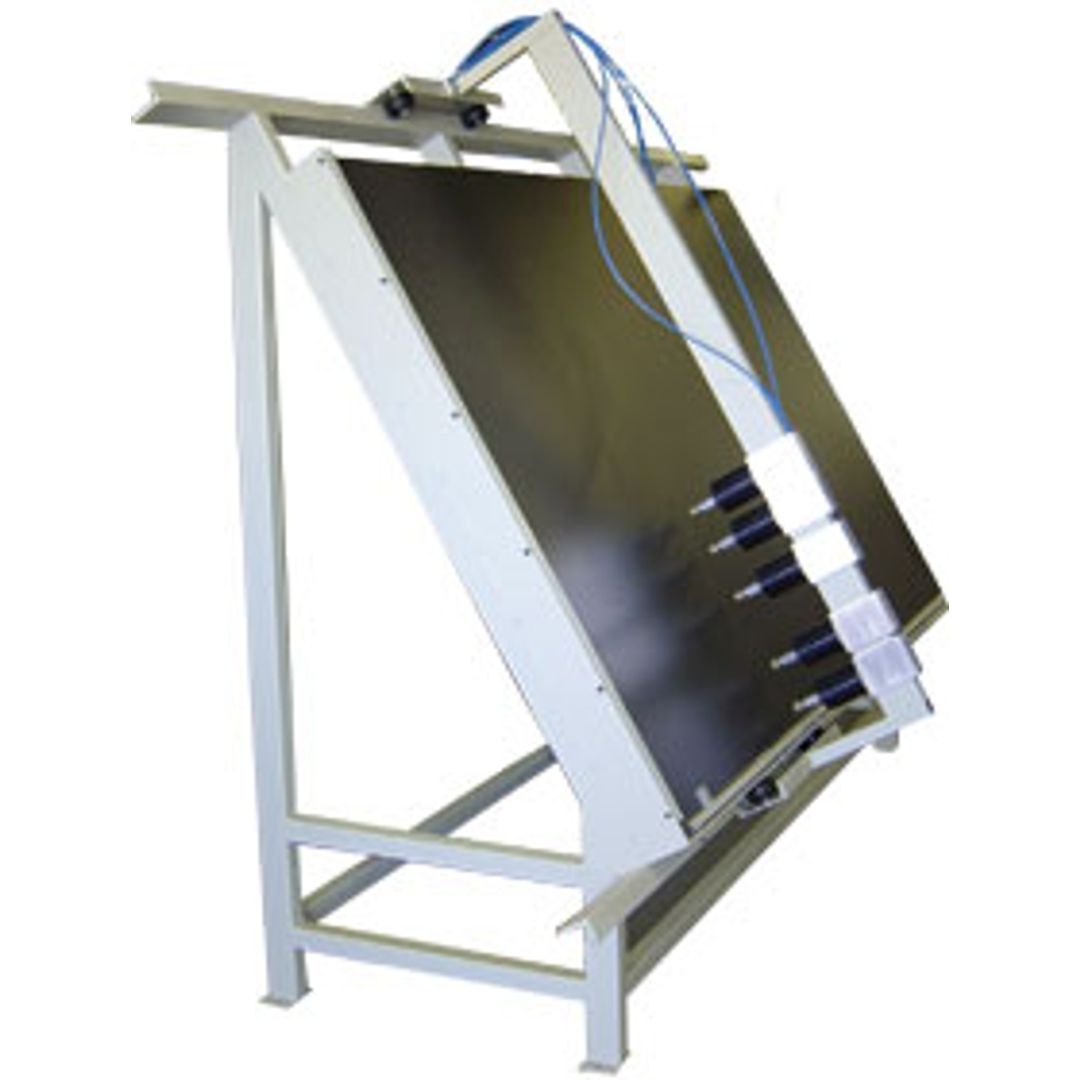

Unique 79/80 Face Frame Assembly Easel Highlights
- Welded Frame Construction: Heavy industrial welded steel frame for long-term accuracy and rigidity.
- 5 Standard Overarm Cylinders: Every table ships with an overarm and 5 hold-down cylinders standard.
- Face-Down Assembly: Frames assemble face down, so material-thickness variance lands on the back — virtually eliminating major face sanding.
- Ergonomic 60° Table Design: Laminated table surface set at a 60-degree working angle for faster, more comfortable assembly.
- Two Table Lengths: 8' (Model 79) or 12' (Model 80) — both include a squaring bar; an optional second zone is available for double production.
- Excellent Package Pricing with a Drill Tub: Pairs with Unique's 71/73 Pocket Boring Machine for a complete face-frame assembly cell.
Unique 79/80 Face Frame Assembly Easel Specifications
| Brand | Unique Machine & Tool Co. |
|---|---|
| Model 79 | 60° laminated 5' x 8' assembly table, squaring bar, overarm with (5) hold-down cylinders |
| Model 80 | 60° laminated 5' x 12' assembly table, squaring bar, overarm with (5) hold-down cylinders |
| Table Surface | 1-1/2" thick laminated MDF, phenolic work surface |
| Clamp Cylinders | 3" bore, toggle-activated |
| Second Zone | Optional, available on Model 79 or 80 |
| Warranty | 1 year, parts only |
Important Note: Freight is F.O.B. Phoenix, AZ — the buyer arranges and pays freight on this item. An "Extra Overarm & 2nd Squaring Bar" configuration is available on the 12' (Model 80) table for higher-volume double production.
