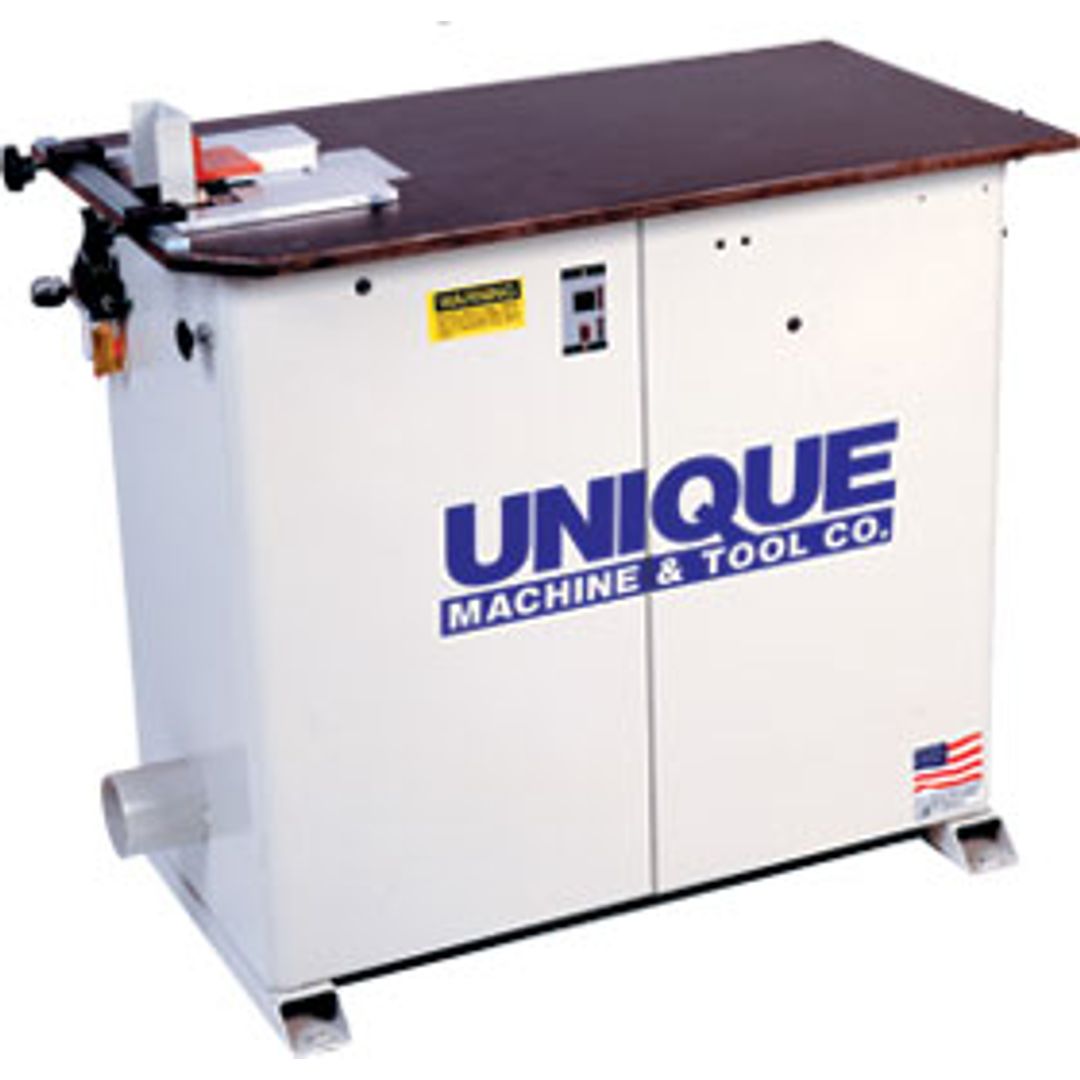

Unique 71/73 Pocket Boring Machine Highlights
- Single or Double Spindle: Model 71 drills one hole per cycle; Model 73 drills two — a second spindle can be added in the field by a dealer technician.
- Heavy-Duty Baldor Motor: 1-1/2 HP belt-driven motor with upgraded steel pulleys and long-lasting heavy-duty bearings.
- Precision Machined Drill Head: Precision-ground spindles and collets for accurate, repeatable boring.
- Safe, Simple Operation: Hand button cycle start with air-controlled adjustable cycle.
- Bottom-Up Clamping: Parts are clamped from the bottom up so material thickness variance lands on the back of the frame — saving sanding and assembly time.
- Industrial Guidance System: Heavy-duty construction with a phenolic work surface and (2) adjustable squaring bars.
Unique 71/73 Pocket Boring Machine Specifications
| Brand | Unique Machine & Tool Co. |
|---|---|
| Model 71 | Single-spindle boring tub, 1 drill with counter bore |
| Model 73 | Double-spindle boring tub, 2 drills with counter bore |
| Motor | 1-1/2 HP Baldor belt-driven motor |
| Electrical | 120V, 1PH, 15A |
| Air Requirement | 100 PSI |
| Work Surface | Phenolic |
| Squaring Bars | (2) adjustable |
| Warranty | 1 year, parts only |
Important Note: Freight is F.O.B. Phoenix, AZ — the buyer arranges and pays freight on this item. Pairs with Unique's 79/80 Face Frame Assembly Easel for a complete assembly cell.
