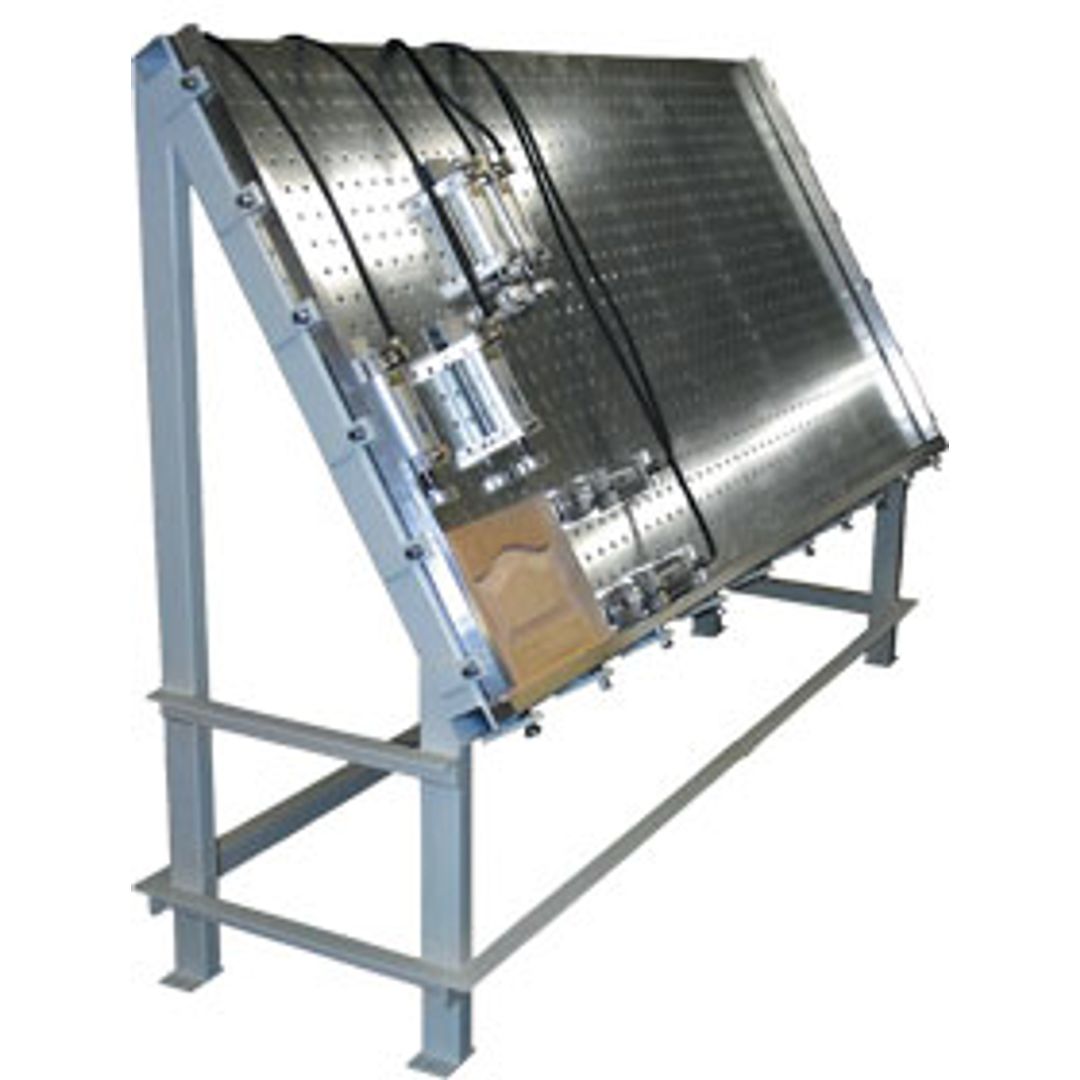

Unique Door Clamp Table Highlights
- Magnetic Cylinder Positioning: Magnet & pin combination mounted air cylinders let the operator move clamps to any location on the table.
- Equal Corner Pressure: Clamps provide equal pressure on all four door corners — ideal for Unique miter doors.
- Two Standard Squaring Bars: 1" x 1-1/2" adjustable aluminum squaring bars for double production.
- Heavy-Duty Welded Frame: One-piece welded frame with a perforated (2" on-center) galvanized steel work surface.
- Two Sizes Available: 4'x8' (280-4-60, 6 cylinders) or 6'x12' (285, 10 cylinders) — optional dual-zone / overarm upgrades available on either.
- High Clamp Force: 2-1/2" bore clamp cylinders deliver 441 lbs of force each at 90 PSI.
Unique Door Clamp Table Specifications
| Brand | Unique Machine & Tool Co. |
|---|---|
| Model 280-4-60 | 4'x8' table, 60° orientation, 6 cylinders, 1 foot valve, 2 squaring bars |
| Model 285 | 6'x12' table, 60° orientation, 10 cylinders, 2 foot valves, 2 squaring bars |
| Clamp Cylinder | 2-1/2" bore, 441 lbs force at 90 PSI, 1.5 CFM air required |
| Squaring Bars | 1" x 1-1/2" adjustable aluminum |
| Work Surface | Perforated galvanized steel, 2" on-center |
| Warranty | 1 year, parts only |
Important Note: Freight is F.O.B. Phoenix, AZ — the buyer arranges and pays freight on this item, especially given the size of these tables.
