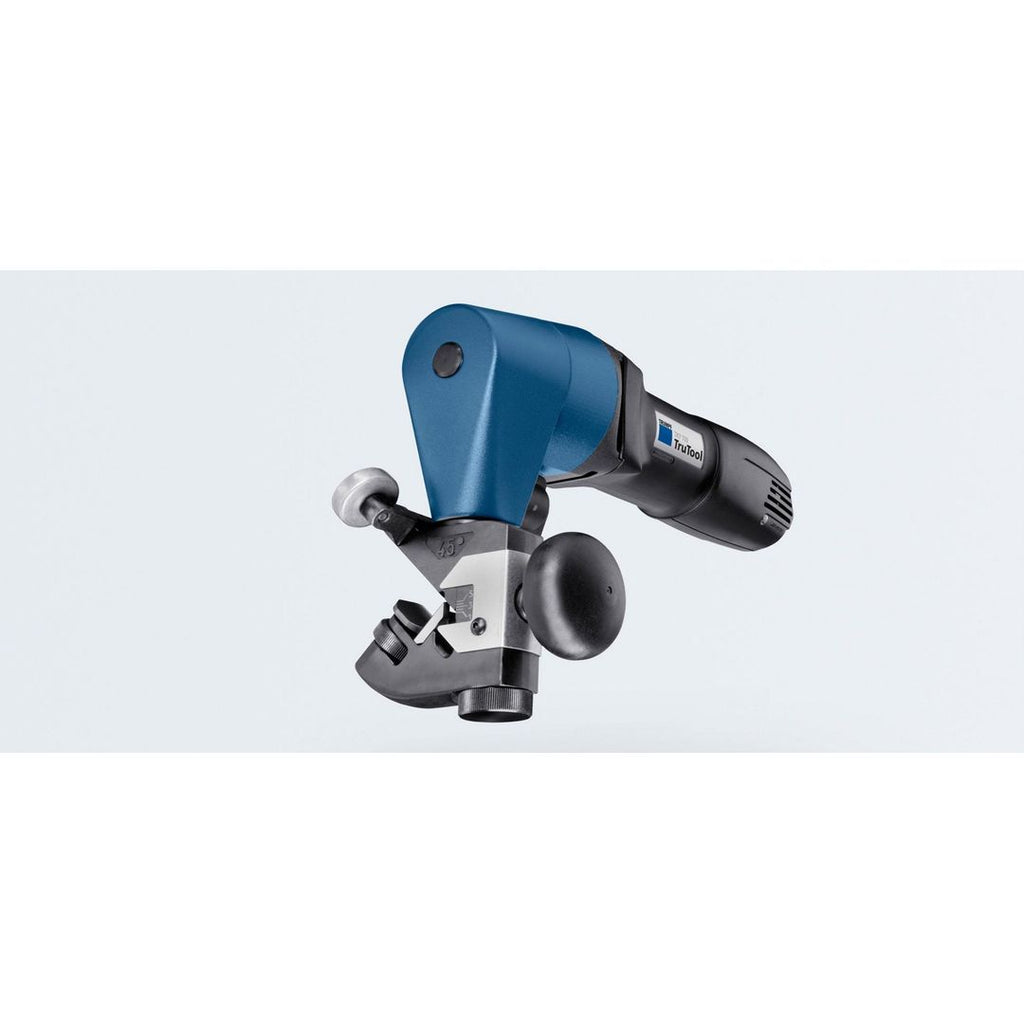

TKF 700 Highlights
- Lightweight: At just 12 lbs., the TruTool TKF 700 is the lightest and smallest model in its class.
- The right setting: Chamfer height and sheet thickness can be easily adjusted without tools.
- Ideal for limited space conditions: You can rotate the cutting direction by 90° to the right or left.
- 30°, 37.5° or 45°: Choose from three carriers for individual bevel angles.
- The right choice of cutter: A standard cutter handles aluminum and mild steel up to 400 N/mm²; a high-tensile cutter handles 85,000-114,000 psi materials.
- For small parts: Well-suited to processing small workpieces; can be used stationary in a work station.
TKF 700 Specifications
| Brand | TRUMPF |
|---|---|
| Model | TruTool TKF 700 |
| Max. Chamfer Length, Steel 400 N/mm2 | 7 mm |
| Max. Chamfer Height, Steel 400 N/mm2 | 5 mm |
| Max. Chamfer Length, Steel 600 N/mm2 | 5.7 mm |
| Max. Chamfer Height, Steel 600 N/mm2 | 4 mm |
| Max. Chamfer Length, Steel 800 N/mm2 | 4 mm |
| Max. Chamfer Height, Steel 800 N/mm2 | 3 mm |
| Smallest Radius | 40 mm |
| Working Speed (Max.) | 1.5 m/min |
| Nominal Power Consumption | 1700 W |
| Sheet Thickness | 1 mm - 20 mm |
| Length | 342 mm |
| Height | 240 mm |
| Weight | 5.3 kg (12 lbs.) |
Standard Accessories Included with the TKF 700
- Carrying case
- Operator's manual
Important Note: This is a professional metal-fabrication power tool shipped via commercial freight.
