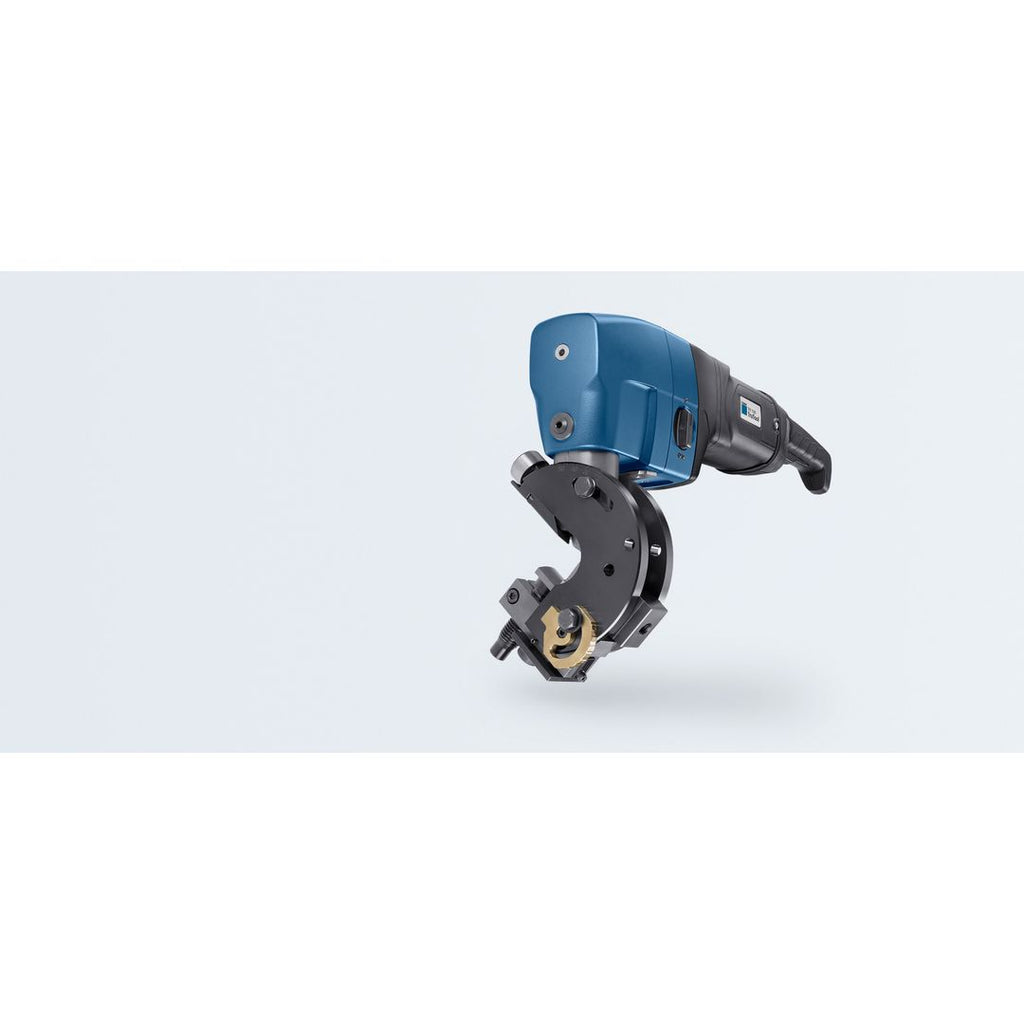

TRUMPF TruTool TKF 1500 Beveler with 2-Gear Gearbox

Name: TRUMPF TruTool TKF 1500 Beveler with 2-Gear Gearbox
Brand: TRUMPF
SKU: 2606427
Price: 9100.00 USD
Availability: InStock

★★★★★

Iron Line Verified

Authorized Dealer: TRUMPF

Official Partner

IN STOCK & READY TO SHIP

SKU: 2606427

Price:

$9,100.00

Quantity:

Financing as low as ~$151 / month (60 mo. terms) Estimate your payment

We pay your sales tax! (IL excluded) 📦

Share this product

Max. Chamfer Length, Steel 400 N/mm2 (1st/2nd gear): 15 mm / 15 mm.
Max. Chamfer Height, Steel 400 N/mm2 (1st/2nd gear): 10.6 mm / 10.6 mm.
Max. Chamfer Length, Steel 600 N/mm2 (1st/2nd gear): 11 mm / 9 mm.
Max. Chamfer Height, Steel 600 N/mm2 (1st/2nd gear): 7.8 mm / 6.4 mm.
Max. Chamfer Length, Steel 800 N/mm2 (1st/2nd gear): 9 mm / 6 mm.
Price: $9,100.

Order Placed

Ships Out

Delivered

*Please Note: This timeline is an estimate. Certain products may require an additional 1 week for manufacturing. Please speak with your sales rep, Matthew, for official details and confirmation before placing your order.

CALL US FOR THE MOST ACCURATE AND COMPETITIVE LTL SHIPPING RATE, (888) 308-5580

Get Questions Answered Fast

Experience: 20+ Years B2B • Origin: US-Based Support

EXPRESS SHIPPING

Most orders process in 1-3 days. Yes, even if it weights 400lb

Hassle-Free Returns

No restocking fees. Ever.

Manufacturer Warranty

Fully backed by the brands you trust.

Dedicated Rep Mathew

Speak to a US-Based Equipment Specialist: (888) 308-5580

Flexible Financing

Get Upto 60 Months Financing

TRUMPF • Beveler • TKF 1500 (2-Gear Gearbox)

TRUMPF TruTool TKF 1500 Beveler with 2-Gear Gearbox

The TRUMPF TruTool TKF 1500 Beveler with 2-Gear Gearbox is equipped with a powerful 2,600 W motor and a 2-gear gearbox that adapts processing speed to the specific application. Hand protection integrated in the motor and a low-vibration soft grip ensure safe, consistent, oxide-free results on straight sheets, T-beams, or tubes.

TKF 1500 (2-Gear Gearbox) Highlights

2-gear gearbox: Guarantees perfect results matched to material thickness, strength, and workpiece type.
2600 W motor: The extremely powerful motor ensures a high degree of durability.
Work safely: Hand protection, integrated in the motor, ensures safe operation.
The right setting: Quick and easy adjustment of chamfer height and sheet thickness.
Continuously adjustable from 20° to 55°: The carrier supports a wide range of bevel angles.
Adapted speed: The 2-gear gearbox lets you process a wider variety of materials; a reduced stroke rate is recommended on high-tensile materials for a high-quality welding edge.

TKF 1500 (2-Gear Gearbox) Specifications

Brand	TRUMPF
Model	TruTool TKF 1500 (2-Gear Gearbox)
Max. Chamfer Length, Steel 400 N/mm2 (1st/2nd gear)	15 mm / 15 mm
Max. Chamfer Height, Steel 400 N/mm2 (1st/2nd gear)	10.6 mm / 10.6 mm
Max. Chamfer Length, Steel 600 N/mm2 (1st/2nd gear)	11 mm / 9 mm
Max. Chamfer Height, Steel 600 N/mm2 (1st/2nd gear)	7.8 mm / 6.4 mm
Max. Chamfer Length, Steel 800 N/mm2 (1st/2nd gear)	9 mm / 6 mm
Max. Chamfer Height, Steel 800 N/mm2 (1st/2nd gear)	6.4 mm / 4.2 mm
Smallest Radius	55 mm
Working Speed (Max., 1st/2nd gear)	1.25 m/min / 2 m/min
Nominal Power Consumption	2600 W
Sheet Thickness	4 mm - 160 mm
Length	607 mm
Height	361 mm
Weight	19.5 kg

Standard Accessories Included with the TKF 1500 (2-Gear Gearbox)

Carrying case
Operator's manual

Important Note: This is a professional metal-fabrication power tool shipped via commercial freight.

Key Information

Order Cutoff Time: 2:00 PM EST
Order Handling Time: 1–3 business days (Monday–Friday)
Transit Time: 1–7 business days (Monday–Friday)
Total Estimated Delivery Time: 3–11 business days (Monday–Friday)
Shipping Availability: Free Shipping On some Items In The Contiguous United States only
