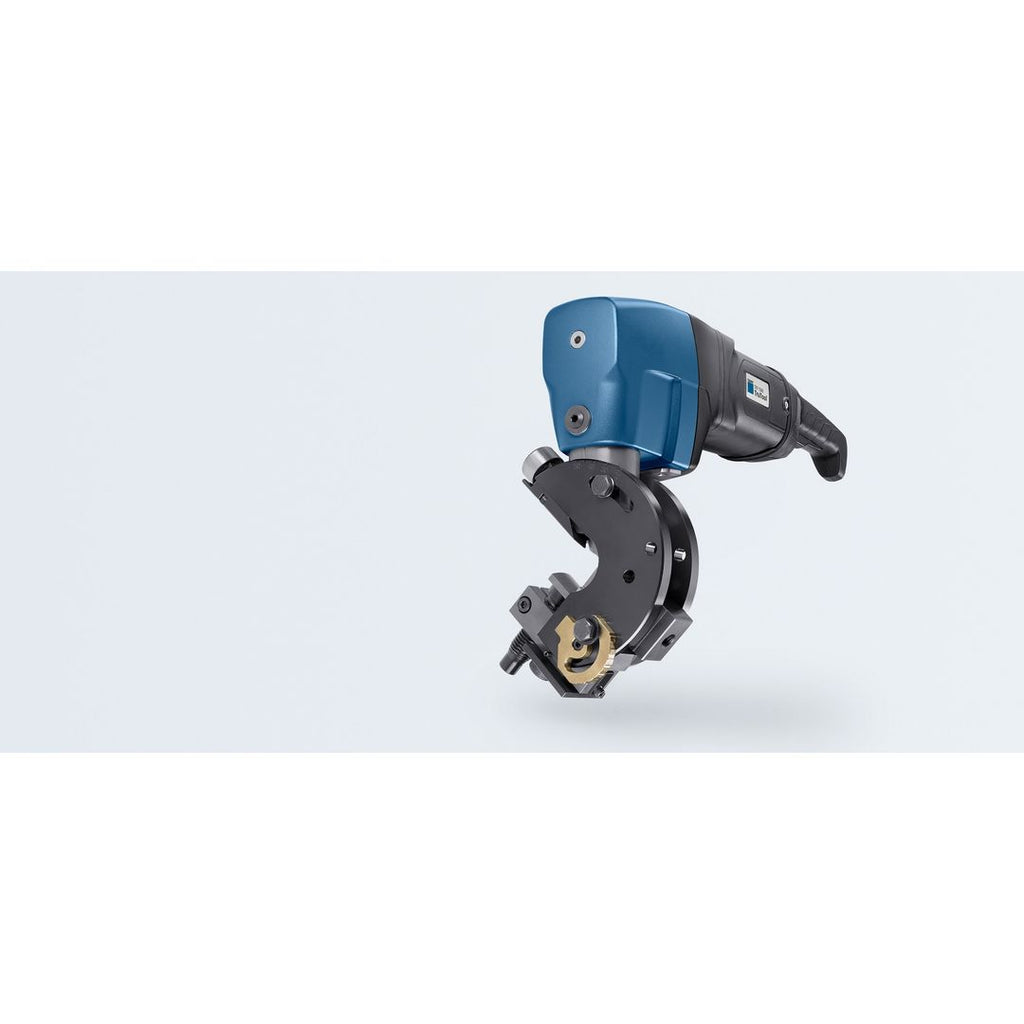

TKF 1500 Highlights
- 2600 W motor: The extremely powerful motor ensures a high degree of durability.
- Work safely: Hand protection, integrated on the motor, provides a high degree of operating safety.
- The right setting: It is quick and easy to adjust the optimal settings for chamfer height and sheet thickness.
- Continuously adjustable from 20° to 55°: The carrier supports a wide range of bevel angles.
- The right choice: Five cutting tools are available, each reground many times for a long service life and reduced operating costs.
TKF 1500 Specifications
| Brand | TRUMPF |
|---|---|
| Model | TruTool TKF 1500 |
| Max. Chamfer Length, Steel 400 N/mm2 | 15 mm |
| Max. Chamfer Height, Steel 400 N/mm2 | 10.6 mm |
| Max. Chamfer Length, Steel 600 N/mm2 | 9 mm |
| Max. Chamfer Height, Steel 600 N/mm2 | 6.4 mm |
| Max. Chamfer Length, Steel 800 N/mm2 | 6 mm |
| Max. Chamfer Height, Steel 800 N/mm2 | 4.2 mm |
| Smallest Radius | 55 mm |
| Working Speed (Max.) | 2 m/min |
| Nominal Power Consumption | 2600 W |
| Sheet Thickness | 4 mm - 160 mm |
| Length | 554 mm |
| Height | 361 mm |
| Weight | 16.5 kg |
Standard Accessories Included with the TKF 1500
- Carrying case
- Operator's manual
