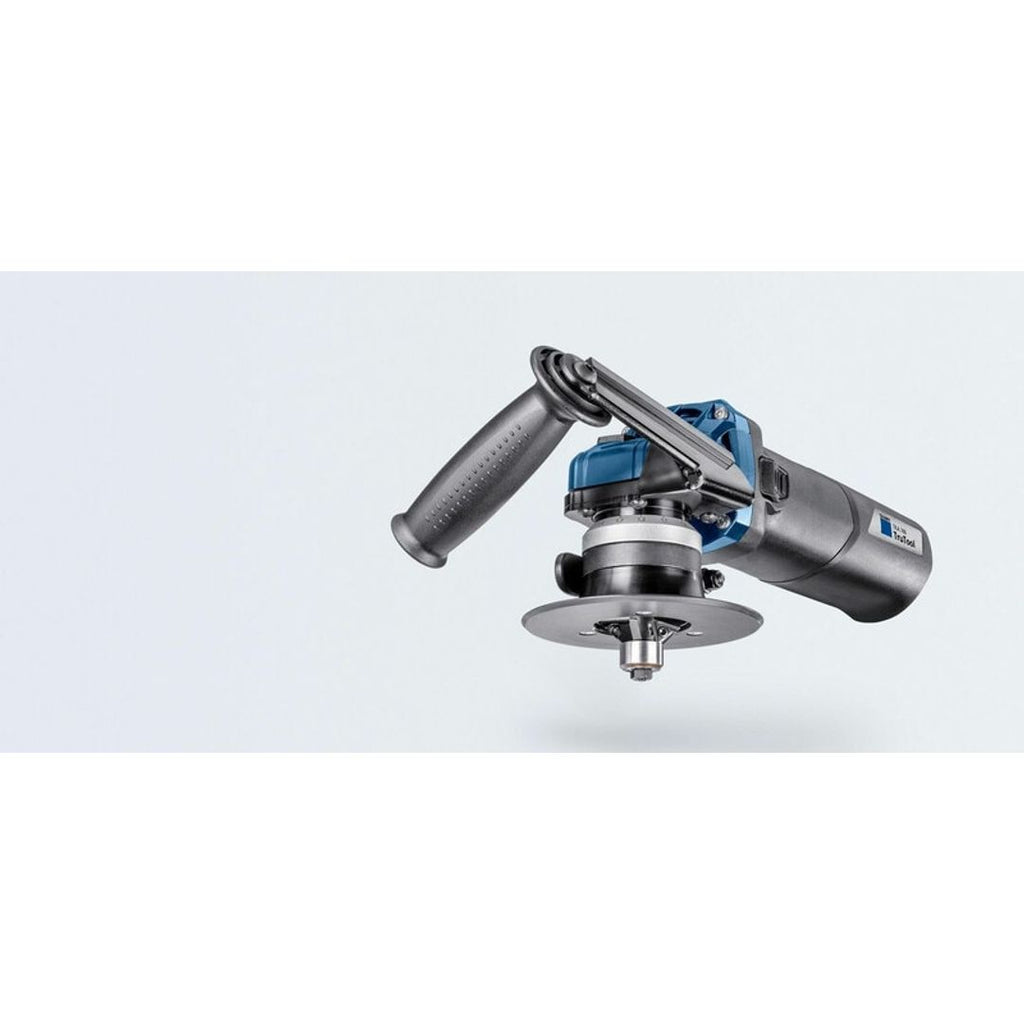

TKA 700 Highlights
- Perfect for every angle: Optional 0°-multi-edge cutter mounts and 15°-60° mounts in 5° increments
- Versatile use: Straight edges, inner and outer contours, holes, and tube processing
- Fixed setting: Selected chamfer length is maintained continuously, preventing accidental adjustment
- Strong performance: 1700W motor is extraordinarily compact with very high power density
- Reduced vibrations: Buffer elements in the gearing combined with a perfectly positioned hand grip
- Sold without tool: Choose the right angle and indexable insert holder individually
TKA 700 Specifications
| Brand | TRUMPF |
|---|---|
| Model | TruTool TKA 700 |
| Max Chamfer Length, Steel 400 N/mm² | 7 mm |
| Max Chamfer Height, Steel 400 N/mm² | 4.9 mm |
| Max Chamfer Length, Steel 600 N/mm² | 3.7 mm |
| Max Chamfer Length, Steel 800 N/mm² | 2.3 mm |
| Max Chamfer Length, Aluminum 250 N/mm² | 10 mm |
| Smallest Inner Radius | 18 mm |
| Smallest Bore Hole (Ø) | 35 mm |
| Minimum Sheet Thickness | 1.5 mm + hs |
| Working Speed (max.) | 4 m/min |
| Nominal Power Consumption | 1700 W |
| Length | 365 mm |
| Height | 152 mm |
| Weight | 3.9 kg |
Standard Accessories Included with the TKA 700
- Operator's manual
Important Note: Sold without multi-edge cutter mount/tool; indexable insert holders (0° or 15°-60° in 5° increments) are selected by application and available separately. This is a professional edge-trimming tool shipped via commercial freight.
