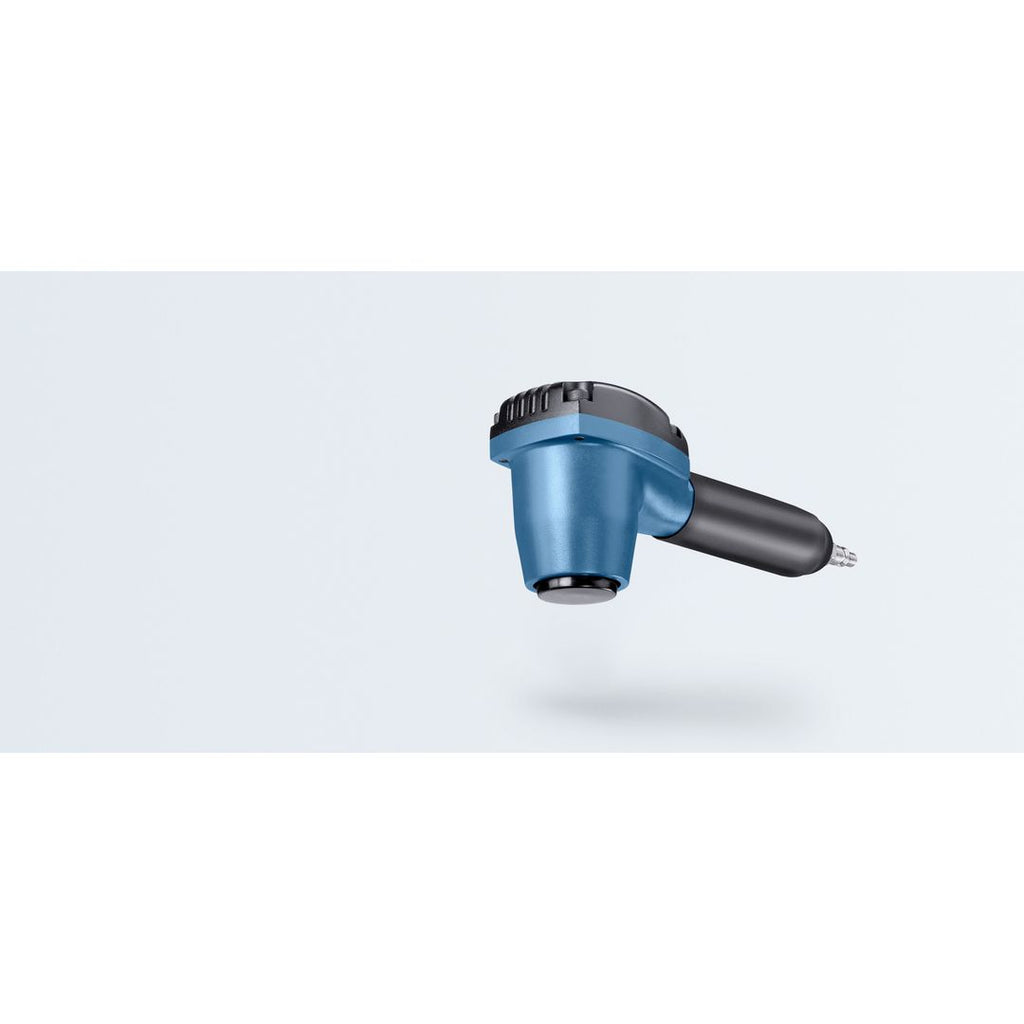

PS 100 Highlights
- Fast separation: Separates parts up to 10x faster than manual removal, even for small parts with recesses.
- Up to 12 mm connections: Separates nanojoint and microjoint connections up to 12 mm on steel, chrome steel, aluminum, or special steel.
- Multiple holding positions: Different holding options on the machine head and handle let you vary position while working.
- Precise pressure control: You control the frequency of the hammer blows by applying pressure at specific points, matched to material thickness and joint type.
- Damage-free removal: The rubberized hammer insert prevents tilting or damage when removing small parts.
- Interchangeable hammer inserts: Standard, soft, and hard inserts are available to suit the material and sensitivity of the parts.
PS 100 Specifications
| Brand | TRUMPF |
|---|---|
| Model | TruTool PS 100 |
| Scrap Skeleton Thickness (Max.) | 12 mm |
| Stroke Rate | 500 - 1500 strokes/min |
| Length | 223 mm |
| Connecting Thread | 1/4 in. |
| Air Consumption at 6 Bar | 0.06 - 0.12 m3/min |
| Maximum Operating Pressure | 6 bar |
| Weight (without hose or connection) | 1.3 kg |
Standard Accessories Included with the PS 100
- Operator's manual
Important Note: This is a pneumatic power tool shipped via commercial freight. Requires a compressed-air supply; hose and air-line connections are not included.
