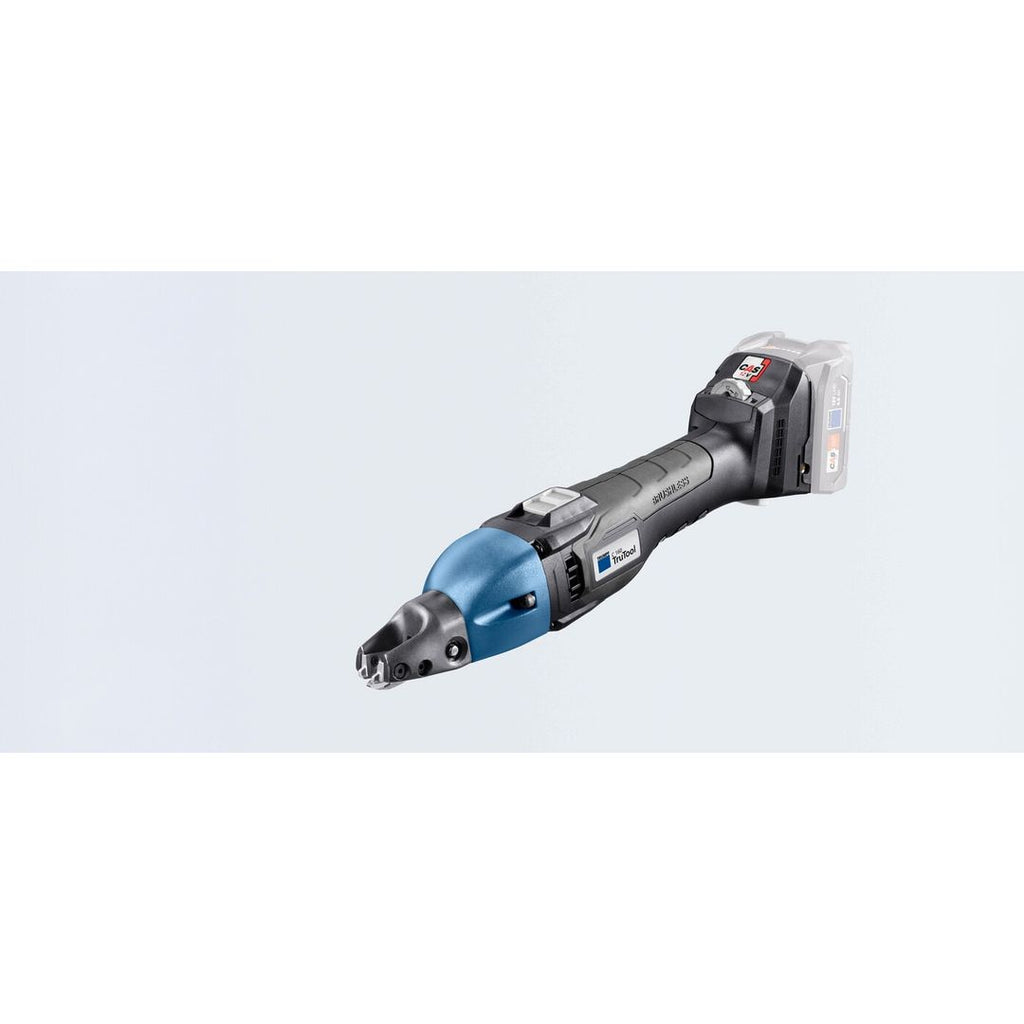

TruTool C 160 Highlights
- Compact 12V LiHD battery: Compatible across the 12V-36V Cordless Alliance System (CAS) recharger range, shared with other CAS partner-brand machines.
- Brushless motor: Practically unlimited service life, virtually wear-free, with minimal maintenance and increased runtime per charge.
- Soft-grip handle: Secure hold with low-vibration, fatigue-reducing operation.
- Distortion-free cuts: Well-suited to straight trimming, curved cuts, and C-L-U profiles with no scratching of the sheet surface.
- 4 interchangeable cutters available: CR cutter for stainless steel, curve cutter for contouring, and two straight cutters for thin (up to 0.04in) and thicker (0.04-0.06in) sheet, swapped tool-free via a quick-release locking bolt.

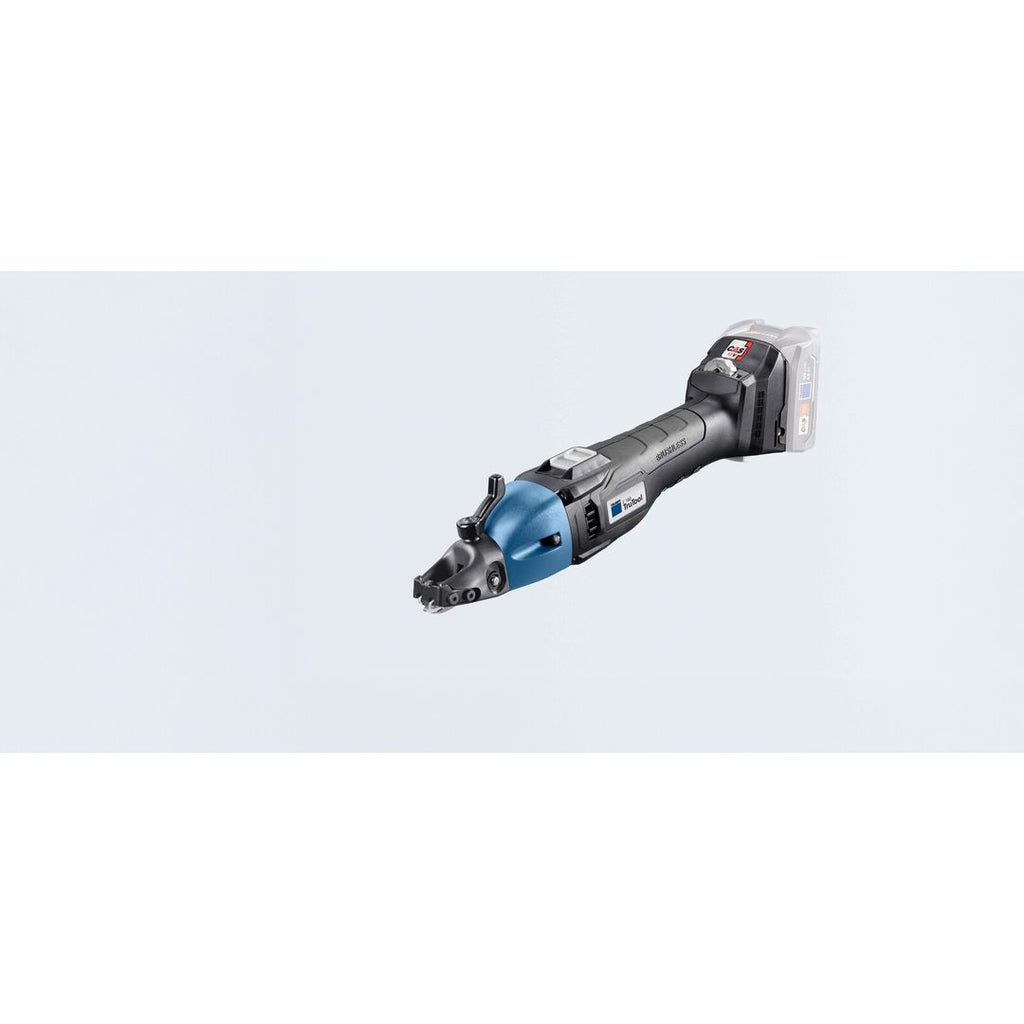

- Chip clipper version: Enables two-handed, single-pass operation on spiral ducts and interior cutouts.
TruTool C 160 Specifications
| Brand | TRUMPF |
|---|---|
| Model | TruTool C 160 |
| Max Sheet Thickness, Steel 400 N/mm² | 1.6 mm |
| Max Sheet Thickness, Steel 600 N/mm² | 1.2 mm |
| Max Sheet Thickness, Aluminum up to 250 N/mm² | 2 mm |
| Spiral Duct, Steel 400 N/mm² | 4 x 0.75 mm |
| Smallest Radius | L 48 mm / R 40 mm |
| Working Speed (max.) | 9 m/min |
| Starting Hole Diameter | 15 mm |
| Voltage | 12 V |
| Length | 357 mm |
| Height | 88 mm |
| Weight (incl. battery) | 1.6 kg |
Standard Accessories Included with the C 160
- 12V LiHD rechargeable battery and universal CAS charger
- Carrying case
Important Note: This is a professional sheet metal cutting tool shipped via commercial freight. Replacement cutters (straight, curve, CR, and fixed-cutter sets) are available separately.
