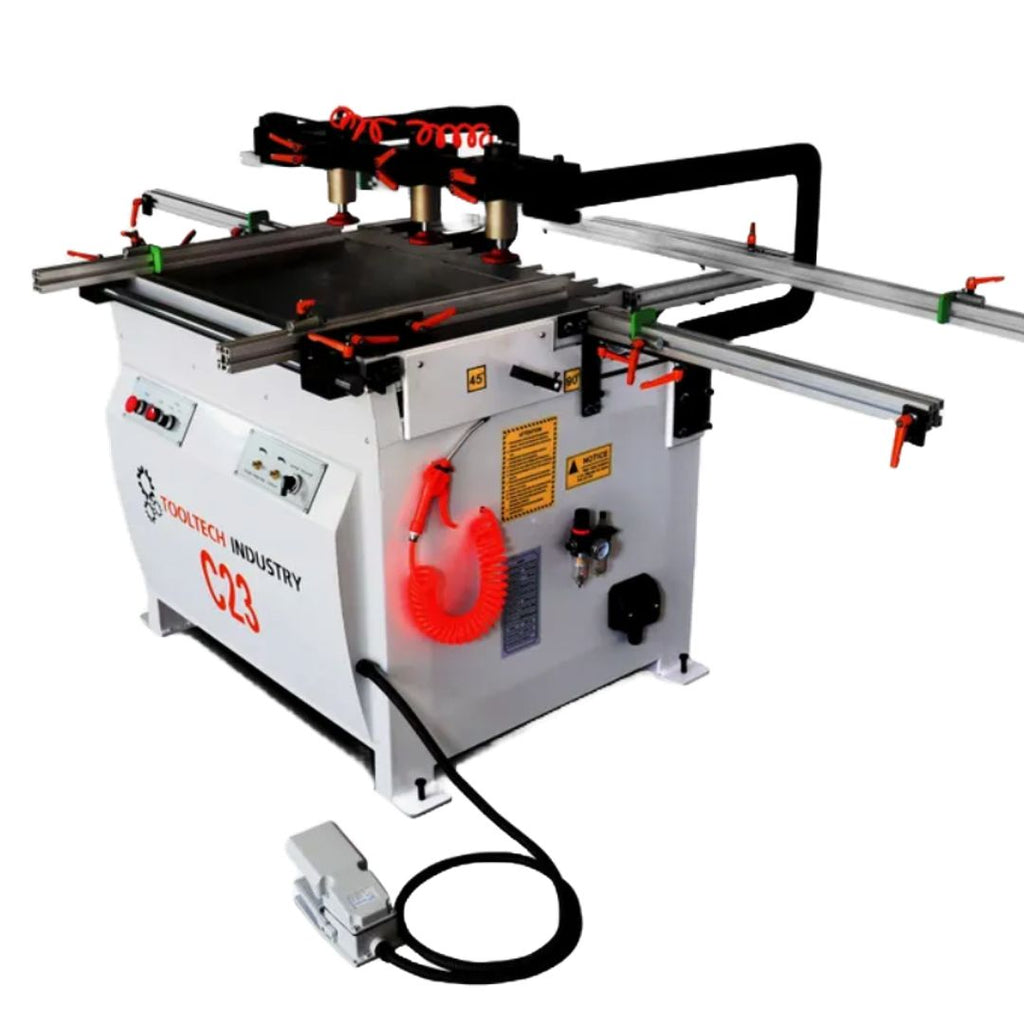

Tooltech C23 Highlights
- Pneumatic operation: Three pneumatic hold-downs and a pneumatic foot pedal for fast, repeatable boring.
- 23 spindles, 32 mm spacing: Long boring head for full-height cabinet sides and construction boring; first-to-last drill spans 27.7 in.
- Big motor: 2 HP, 220 V three-phase motor at 3400 RPM with overload protection.
- Long fence: 120 in line boring fence with 4 stops.
- Quick-change adapters: Includes 23 quick-change adapters and accepts 10 mm shank drill bits.
- Stainless steel spindles: Stainless spindles replace standard steel spindles for longer life.
What's Included & Requirements
- 120 in line boring fence with 4 stops
- 23 quick-change adapters
- 3 pneumatic hold-downs and pneumatic foot pedal
- Free set of 5 mm or 1/4 in brad point drill bits (tell us your preference when ordering)
- Requires an air supply (80-100 psi) and a 220 V three-phase outlet
Tooltech C23 Specifications
| Brand | Tooltech Industry |
|---|---|
| Model | C23 |
| Type | Line boring machine, pneumatic, vertical/horizontal |
| Spindles | 23 |
| Spindle center distance | 32 mm (first to last drill = 27.7 in) |
| Maximum drilling depth | 2.5 in |
| Maximum distance from board edge to head | 12 in |
| Fence | 120 in line boring fence with 4 stops |
| Motor | 2 HP, 220 V / 3 phase / 60 Hz, 3400 RPM, overload protection |
| Hold-downs | 3 pneumatic |
| Control | Pneumatic foot pedal |
| Operating pressure | 80-100 psi |
| Drill bit shank | 10 mm |
| Net weight | 816 lbs |
| Dimensions | 56 x 40 x 46 in (H) |
| Crated weight | 882 lbs |
| Crated dimensions | 61 x 44 x 50 in (H) |
Ideal For: Production cabinet, casework and millwork shops that bore full-height panels and need a heavy-duty 23-spindle machine.
Warranty: Backed by Tooltech's 2-year parts warranty.
Shipping: This item ships by freight/carrier from the manufacturer. We confirm shipping details with you before your order ships.
