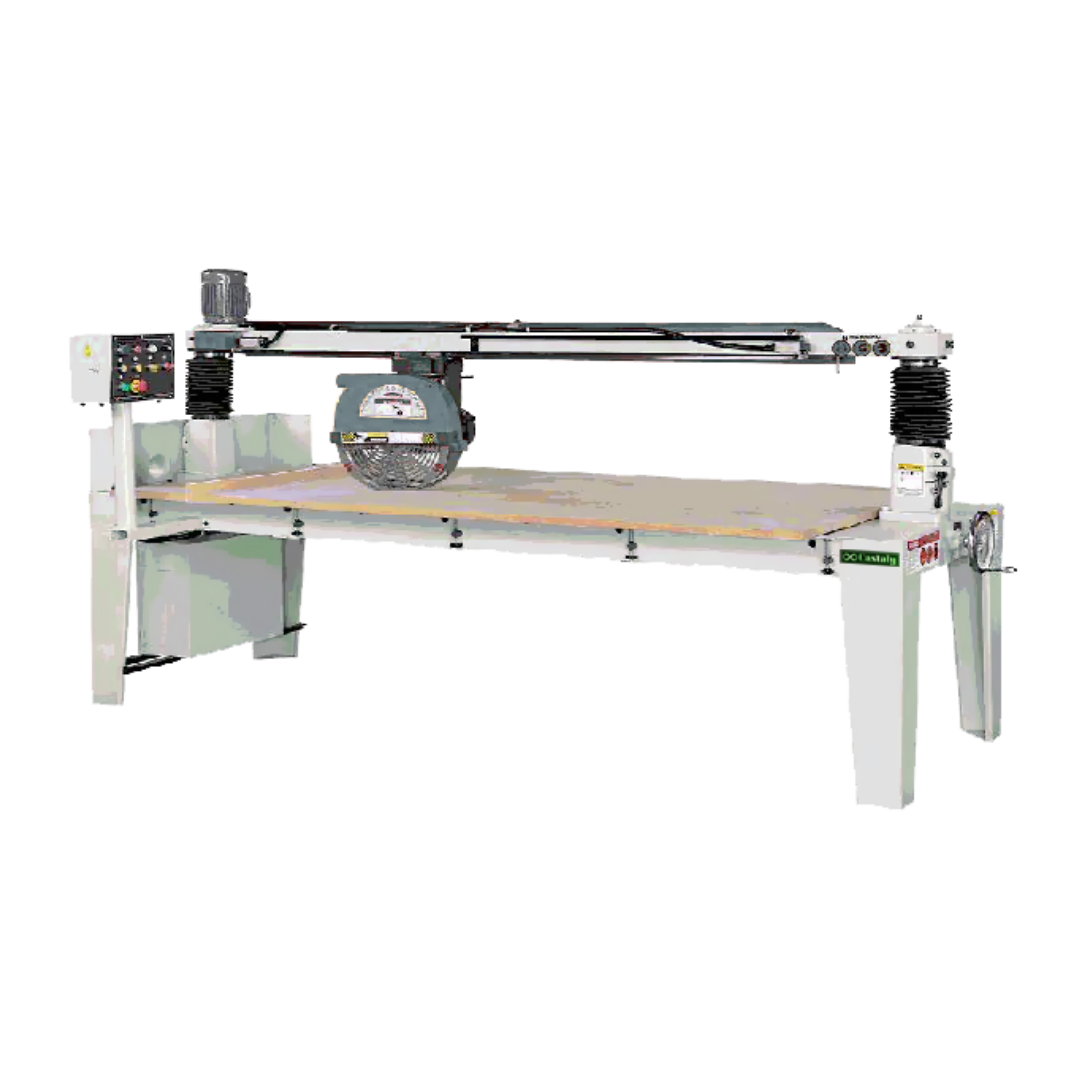

Castaly Tiltable 8' Automatic Panel Saw RS-DW2400 Applications
- Cabinet and furniture manufacturing
- Panel processing and millwork production
- Door and laminated board cutting
- Mass production environments requiring angle cutting
Designed for shops that require accurate 45° to 90° angle cutting with automatic cycle capability for higher production output.
Castaly Tiltable 8' Automatic Panel Saw RS-DW2400 Specifications
| Maximum Cutting Length | 8' |
|---|---|
| Maximum Cutting Thickness | 5-1/8" |
| Table Width | 50" |
| Saw Blade Diameter | 14" |
| Spindle Diameter | 1" |
| Saw Blade Motor | 7.5 HP, 3 Phase |
| Saw Blade Speed | 2,900 RPM |
| Saw Travel Motor | 1 HP with Inverter Variable Speed |
| Head Travel Bearings | 8 Bearings |
| Head Swiveling (Horizontal) | 45° – 90° |
| Hold Down Cylinders | 6 pcs |

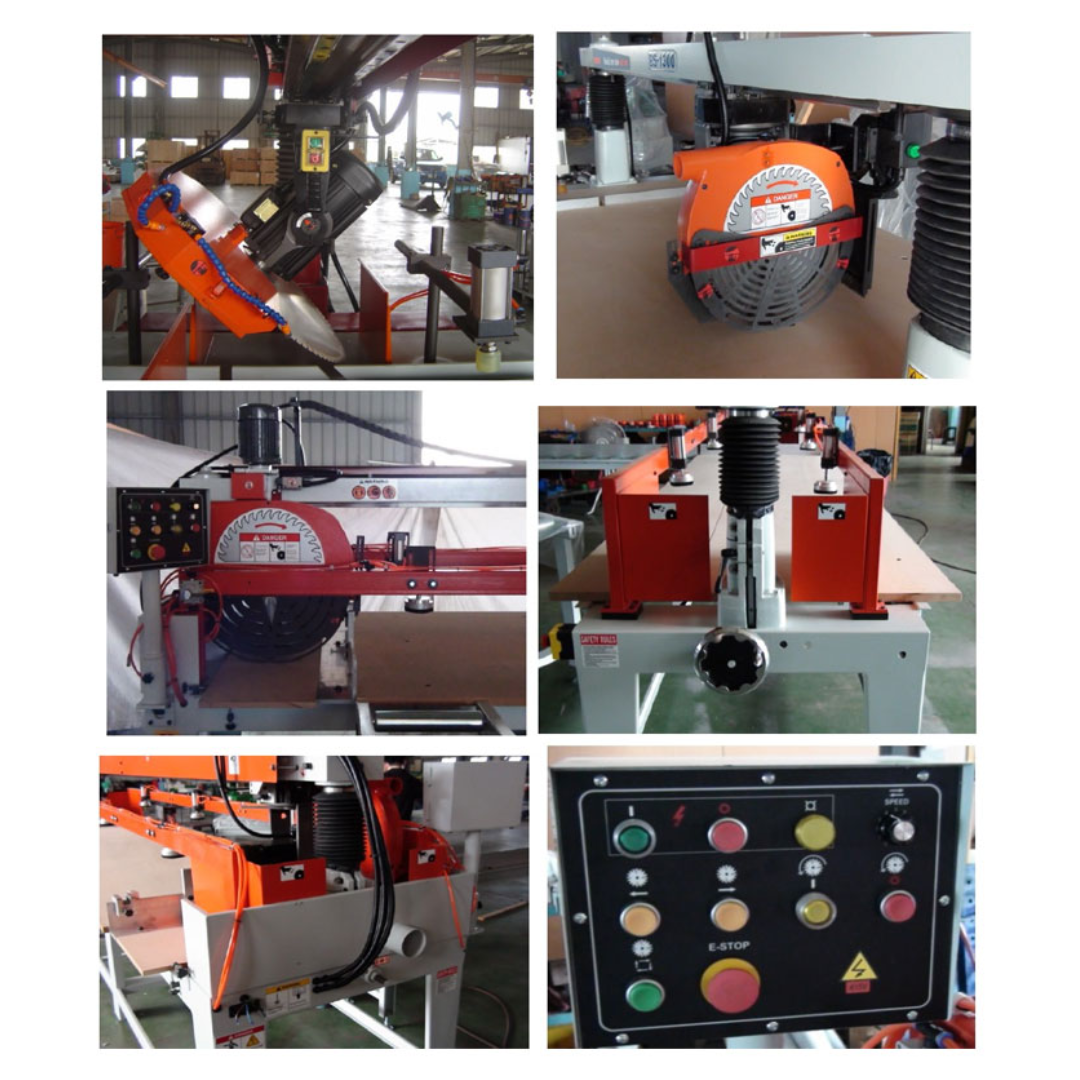

Castaly Tiltable 8' Automatic Panel Saw RS-DW2400 Performance & Construction
- Automatic Cutting Cycle increases efficiency and repeatability in production runs.
- 45° to 90° Tilting Saw Head allows flexible angle cutting with quick stop at left 45°.
- Hardened & Precision-Ground Rail ensures maximum wear resistance and slide accuracy.
- Saw Head on 8 Ball Bearings provides smooth, effortless travel movement.
- One-Piece Cast Iron Arm delivers superior rigidity and long-term durability.
- Heavy Sheet Metal Stand enhances structural stability during operation.
- Full Power 7.5 HP Industrial Motor built for continuous-duty cutting performance.
- Inverter-Controlled Travel Motor allows adjustable feed speed for optimized cutting quality.
- Safety Blade Guard & Anti-Kickback Attachment improves operator protection.
- Overload Protection Switch safeguards the motor from electrical stress.

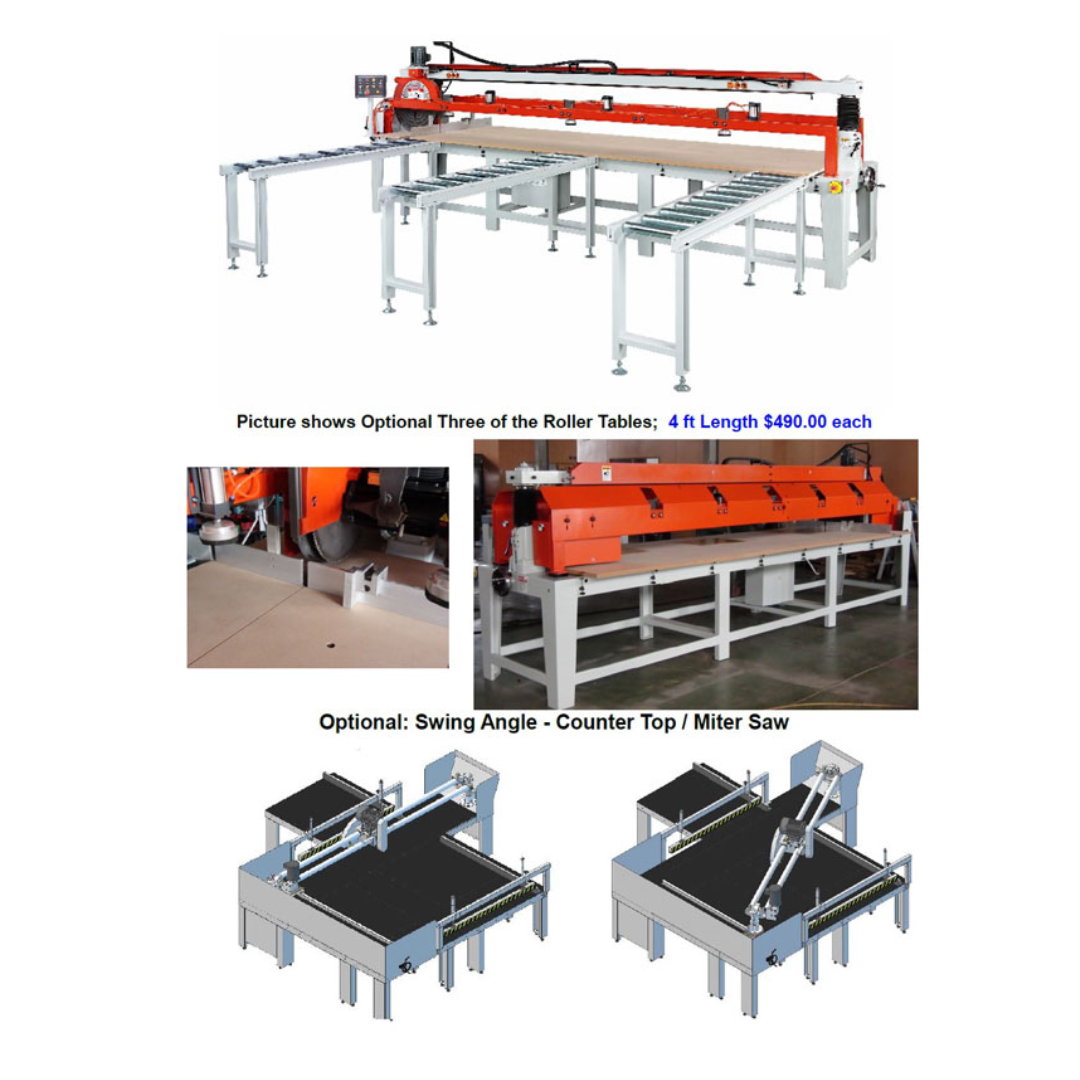

- Optional 4 ft Roller Conveyor available at $499.00 each for extended material support.
Why Choose the Castaly Tiltable 8' Automatic Panel Saw RS-DW2400
- High-precision 8' cutting capacity for large panels.
- Powerful 7.5 HP motor for demanding production work.
- Adjustable 45°–90° tilting for versatile angle applications.
- Heavy-duty construction designed for long-term industrial use.
- Automatic cutting cycle improves productivity and consistency.
The Castaly Tiltable 8' Automatic Panel Saw RS-DW2400 is a professional-grade solution for manufacturers seeking precision, durability, and efficient angle cutting in high-output production environments.
