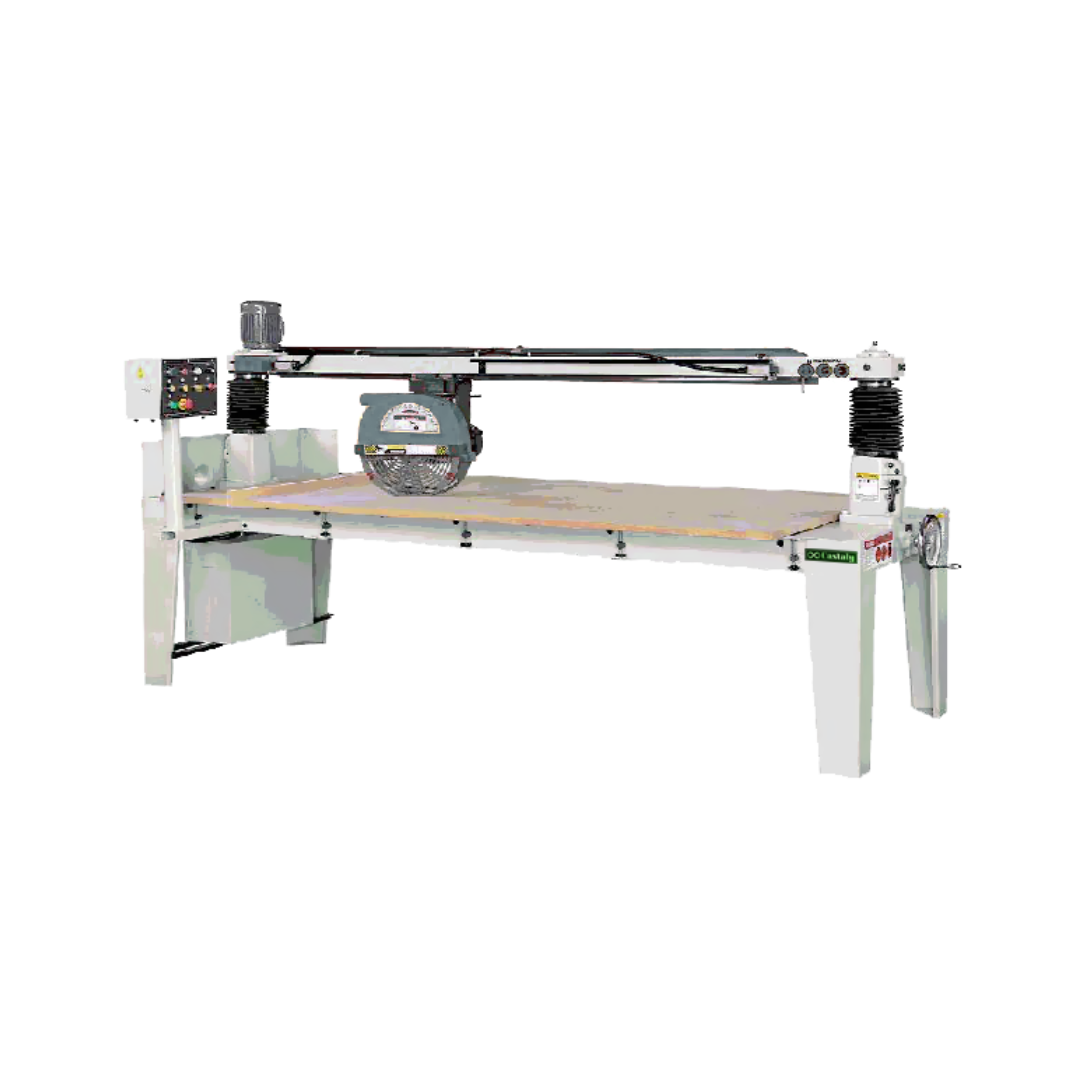

Castaly Tiltable 4' Automatic Panel Saw RS-DW1300 Applications
- Cabinet and furniture component production
- Short-panel processing and millwork fabrication
- Door parts and laminated board cutting
- Mass production operations requiring angle flexibility
Ideal for production shops that need compact 4' cutting capacity with precision angle adjustments from 45° to 90°.
Castaly Tiltable 4' Automatic Panel Saw RS-DW1300 Specifications
| Maximum Cutting Length | 4' |
|---|---|
| Maximum Cutting Thickness | 5-1/8" |
| Table Width | 50" |
| Saw Blade Diameter | 14" |
| Spindle Diameter | 1" |
| Saw Blade Motor | 7.5 HP, 3 Phase |
| Saw Blade Speed | 2,900 RPM |
| Saw Travel Motor | 1 HP with Inverter Variable Speed |
| Head Travel Bearings | 8 Bearings |
| Head Swiveling (Horizontal) | 45° – 90° |
| Hold Down Cylinders | 4 pcs |

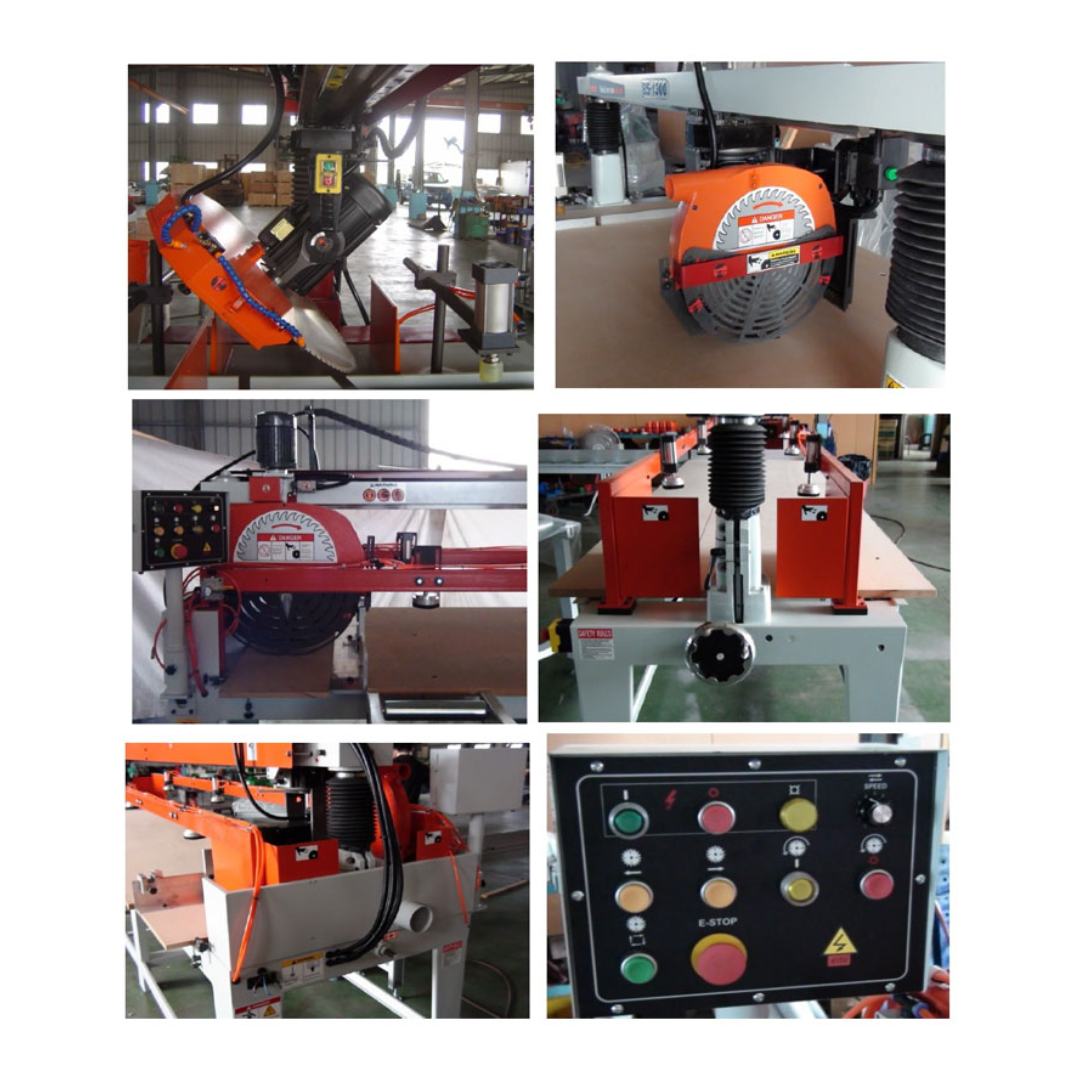

Castaly Tiltable 4' Automatic Panel Saw RS-DW1300 Performance & Construction
- Automatic Cutting Cycle increases productivity and ensures repeatable cutting accuracy.
- 45°–90° Tilting Head allows flexible angle cutting with quick stop at left 45°.
- Hardened & Precision-Ground Rail provides maximum wear resistance and superior slide accuracy.
- 8 Ball Bearing Head Travel System delivers smooth and effortless movement.
- One-Piece Cast Iron Arm ensures rigidity and long-term structural stability.
- Heavy Sheet Metal Stand supports vibration control during cutting operations.
- Full Power 7.5 HP Industrial Motor designed for continuous-duty production use.
- Inverter-Controlled Travel Motor enables adjustable feed speeds for optimal cutting quality.
- Safety Blade Guard enhances operator protection during operation.
- Anti-Kickback Attachment improves cutting safety and material control.
- Overload Protection Switch protects the motor from electrical overload conditions.

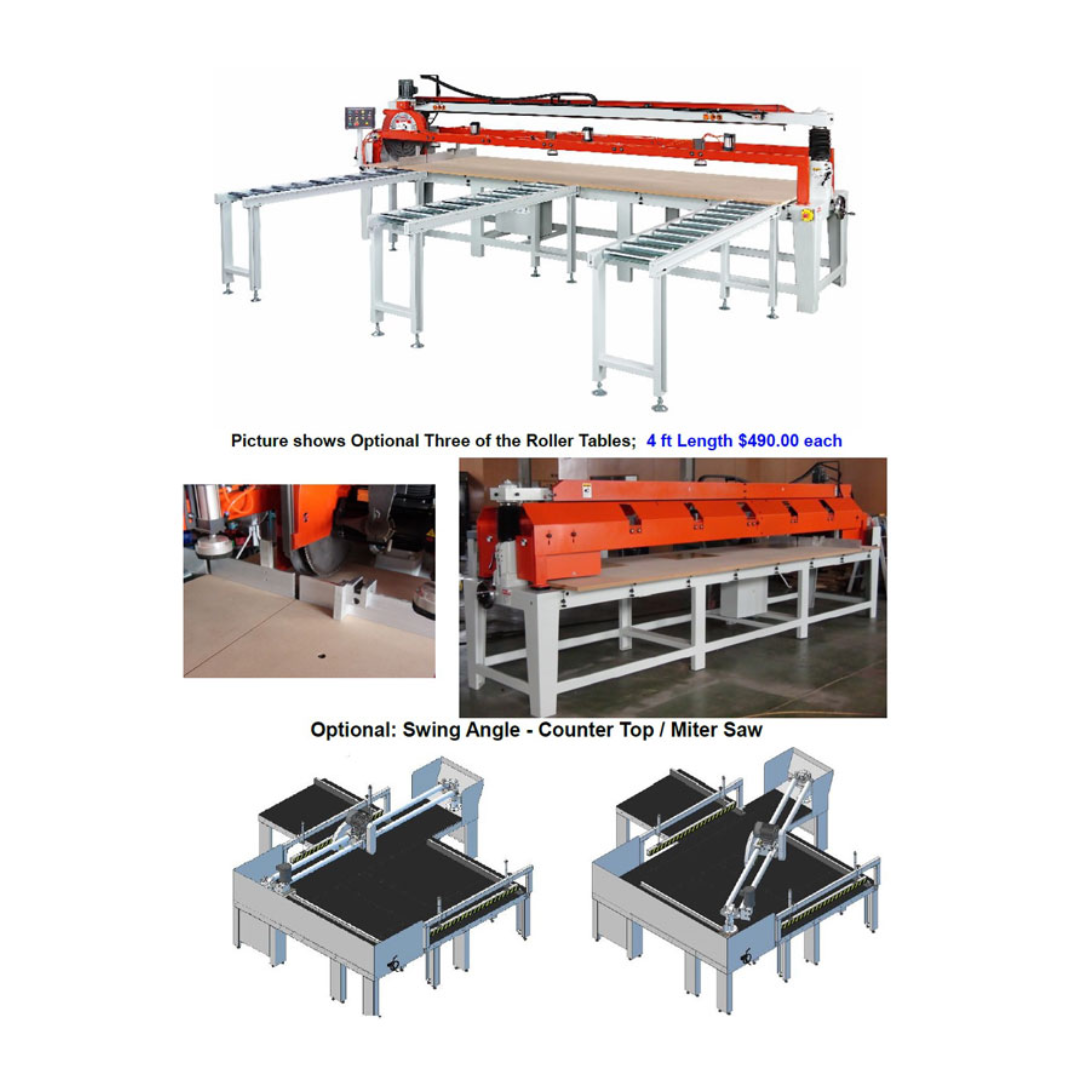

- Optional 4 ft Roller Conveyor available at $499.00 each for extended material support.
Why Choose the Castaly Tiltable 4' Automatic Panel Saw RS-DW1300
- Compact 4' cutting capacity ideal for smaller panels and parts.
- Powerful 7.5 HP motor for demanding industrial applications.
- Accurate 45°–90° angle cutting with firm angle locking system.
- Durable construction built for long-term production environments.
- Smooth automatic cutting cycle for increased workflow efficiency.
The Tiltable 4' Automatic Panel Saw RS-DW1300 delivers precision, durability, and production-ready performance—making it a reliable solution for shops that require compact capacity with full industrial power.
