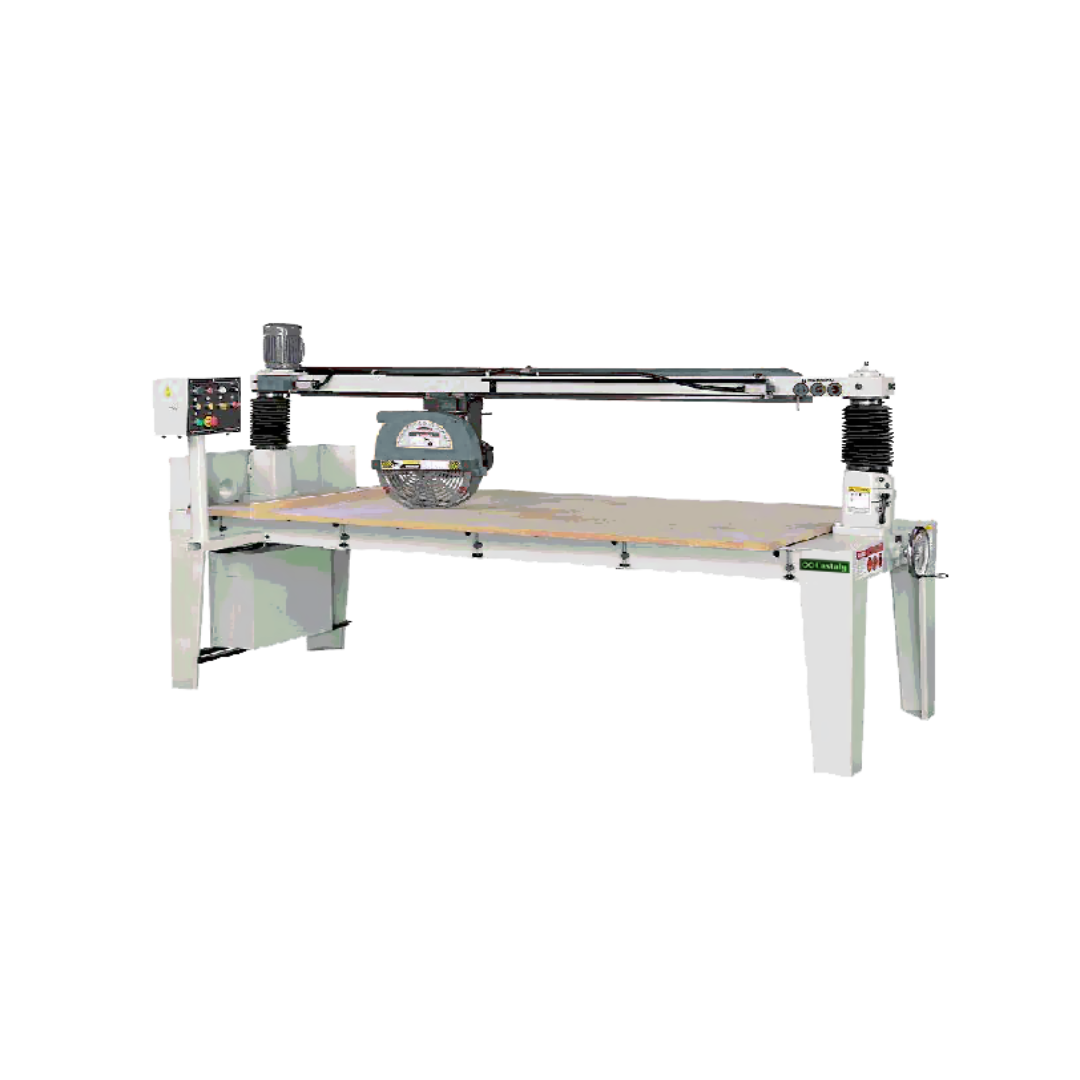

Castaly Tiltable 14' Automatic Panel Saw RS-DW4500 Applications
- Large cabinet and architectural millwork production
- Door and oversized panel manufacturing
- Industrial woodworking facilities
- Mass production operations requiring long cutting capacity
Built for manufacturers who require extended 14' cutting length with precise angle adjustment and reliable automatic operation.
Castaly Tiltable 14' Automatic Panel Saw RS-DW4500 Specifications
| Maximum Cutting Length | 14' |
|---|---|
| Maximum Cutting Thickness | 6-1/2" |
| Table Width | 50" |
| Saw Blade Diameter | 14" – 16" |
| Spindle Diameter | 1" |
| Saw Blade Motor | 7.5 HP, 3 Phase |
| Saw Blade Speed | 2,900 RPM |
| Saw Travel Motor | 1 HP with Inverter Variable Speed |
| Head Travel Bearings | 8 Bearings |
| Head Swiveling (Horizontal) | 45° – 90° |
| Hold Down Cylinders | 6 pcs |

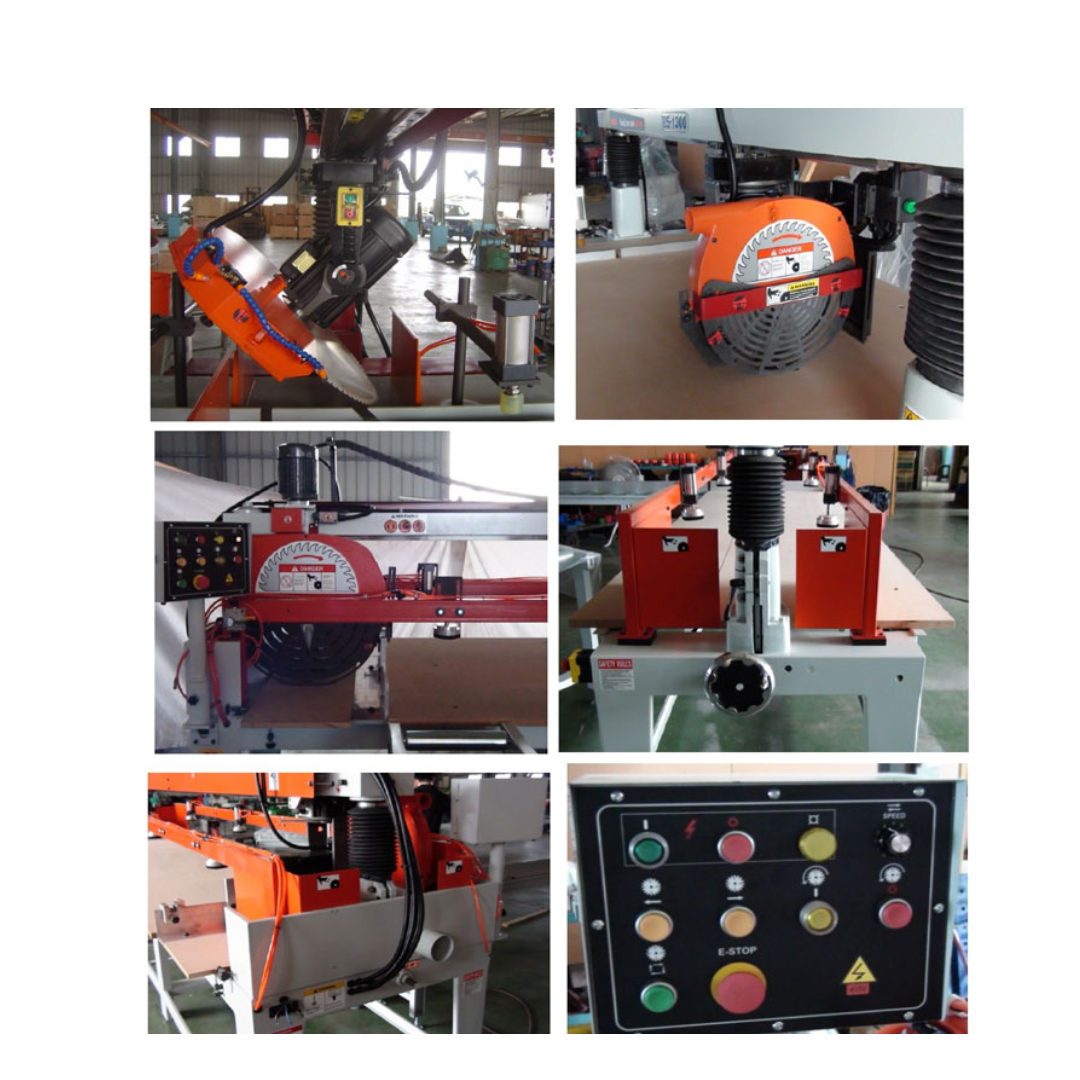

Castaly Tiltable 14' Automatic Panel Saw RS-DW4500 Performance & Construction
- Automatic Cutting Cycle increases productivity and ensures consistent repeatable cuts.
- 45°–90° Tilting Head allows flexible angle cutting with quick stop at left 45°.
- Hardened & Precision-Ground Rail provides superior wear resistance and slide accuracy.
- 8 Ball Bearing Head Travel System delivers smooth and effortless saw movement.
- One-Piece Cast Iron Arm ensures structural rigidity and long-term stability.
- Heavy Sheet Metal Stand enhances machine durability and vibration control.
- Full Power 7.5 HP Industrial Motor built for continuous-duty cutting applications.
- Inverter-Controlled Travel Motor enables adjustable feed speed for optimized cutting performance.
- Safety Saw Blade Guard improves operator protection during cutting operations.
- Anti-Kickback Attachment enhances safety and material control.
- Overload Protection Switch safeguards the motor from electrical overload conditions.

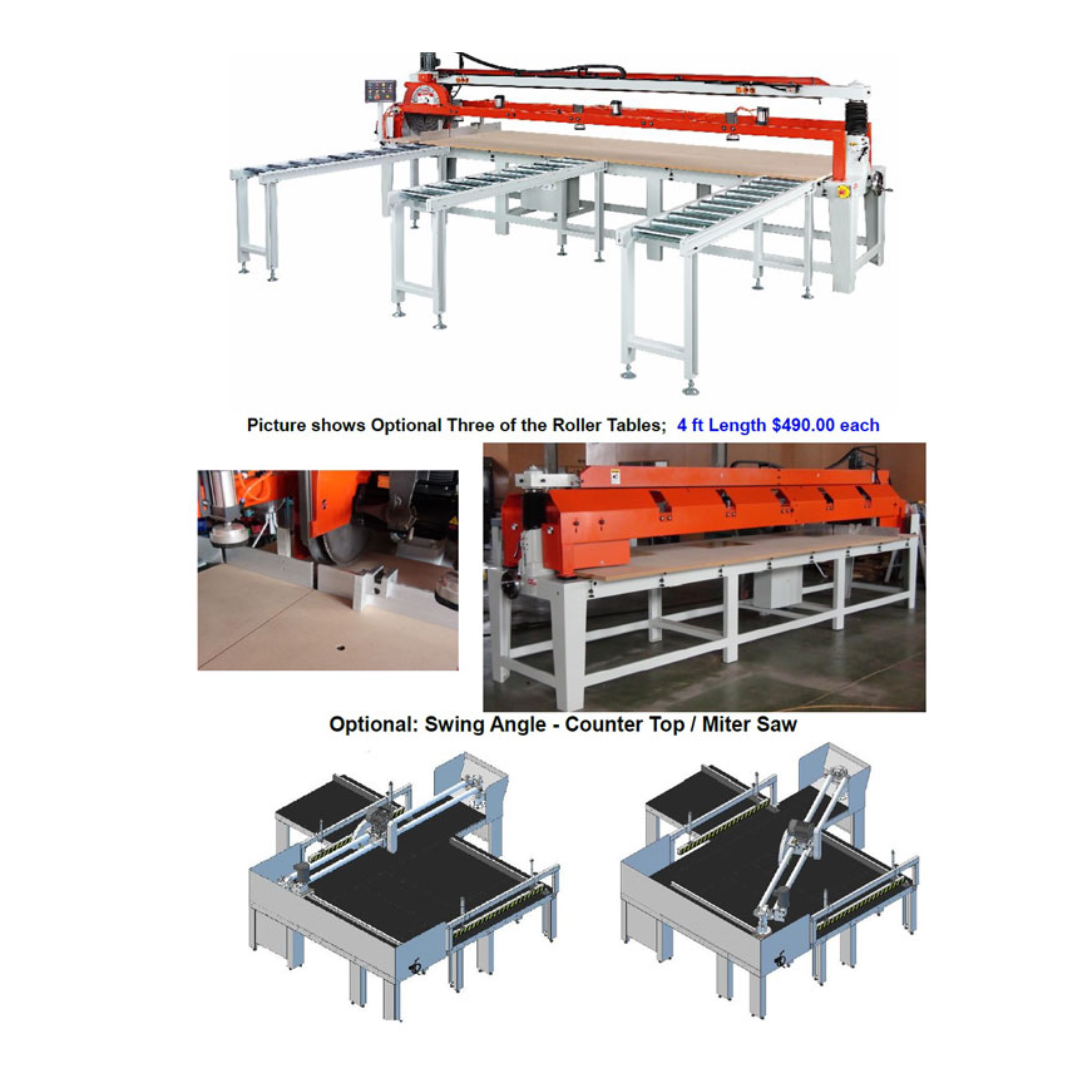

- Optional 4 ft Roller Conveyor available at $499.00 each for additional material support.
Why Choose the Castaly Tiltable 14' Automatic Panel Saw RS-DW4500
- Extended 14' cutting capacity for oversized panels.
- 6-1/2" maximum cutting thickness for heavy-duty applications.
- Precision 45°–90° angle cutting with secure angle locking.
- Industrial-grade construction built for high-output environments.
- Smooth automatic cutting cycle for improved production efficiency.
The Tiltable 14' Automatic Panel Saw RS-DW4500 is a powerful, production-ready solution for manufacturers requiring long cutting capacity, angle flexibility, and reliable industrial performance.
