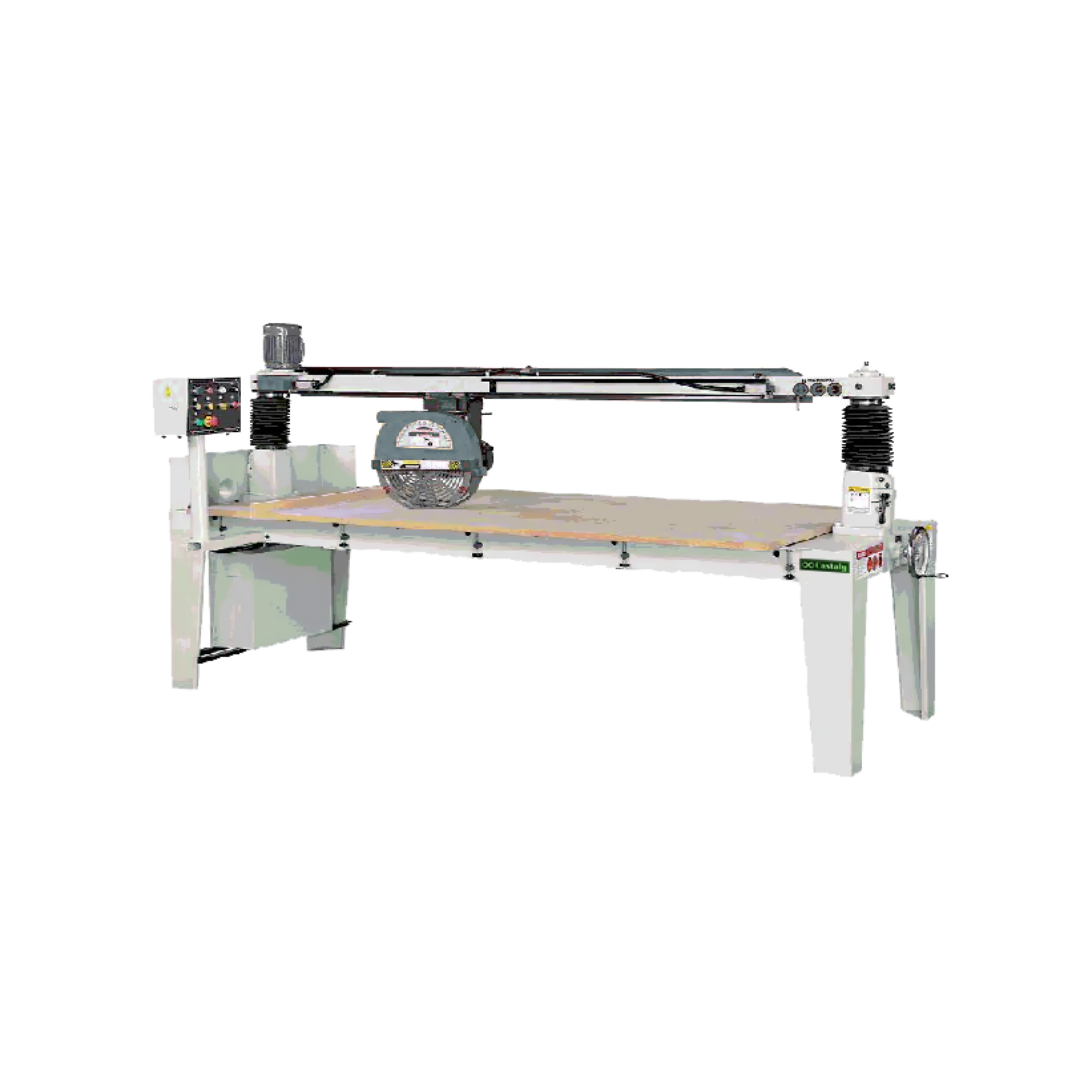

Castaly Tiltable 12' Automatic Panel Saw RS-DW3600 Applications
- Architectural millwork and cabinetry production
- Door and large panel manufacturing
- Industrial woodworking facilities
- Mass production cutting with angle flexibility
Designed for manufacturers requiring 12' cutting capacity with precise 45°–90° angle adjustment and automatic cycle efficiency.
Castaly Tiltable 12' Automatic Panel Saw RS-DW3600 Specifications
| Maximum Cutting Length | 12' |
|---|---|
| Maximum Cutting Thickness | 6-1/2" |
| Table Width | 50" |
| Saw Blade Diameter | 14" – 16" |
| Spindle Diameter | 1" |
| Saw Blade Motor | 7.5 HP, 3 Phase |
| Saw Blade Speed | 2,900 RPM |
| Saw Travel Motor | 1 HP with Inverter Variable Speed |
| Head Travel Bearings | 8 Bearings |
| Head Swiveling (Horizontal) | 45° – 90° |
| Hold Down Cylinders | 6 pcs |

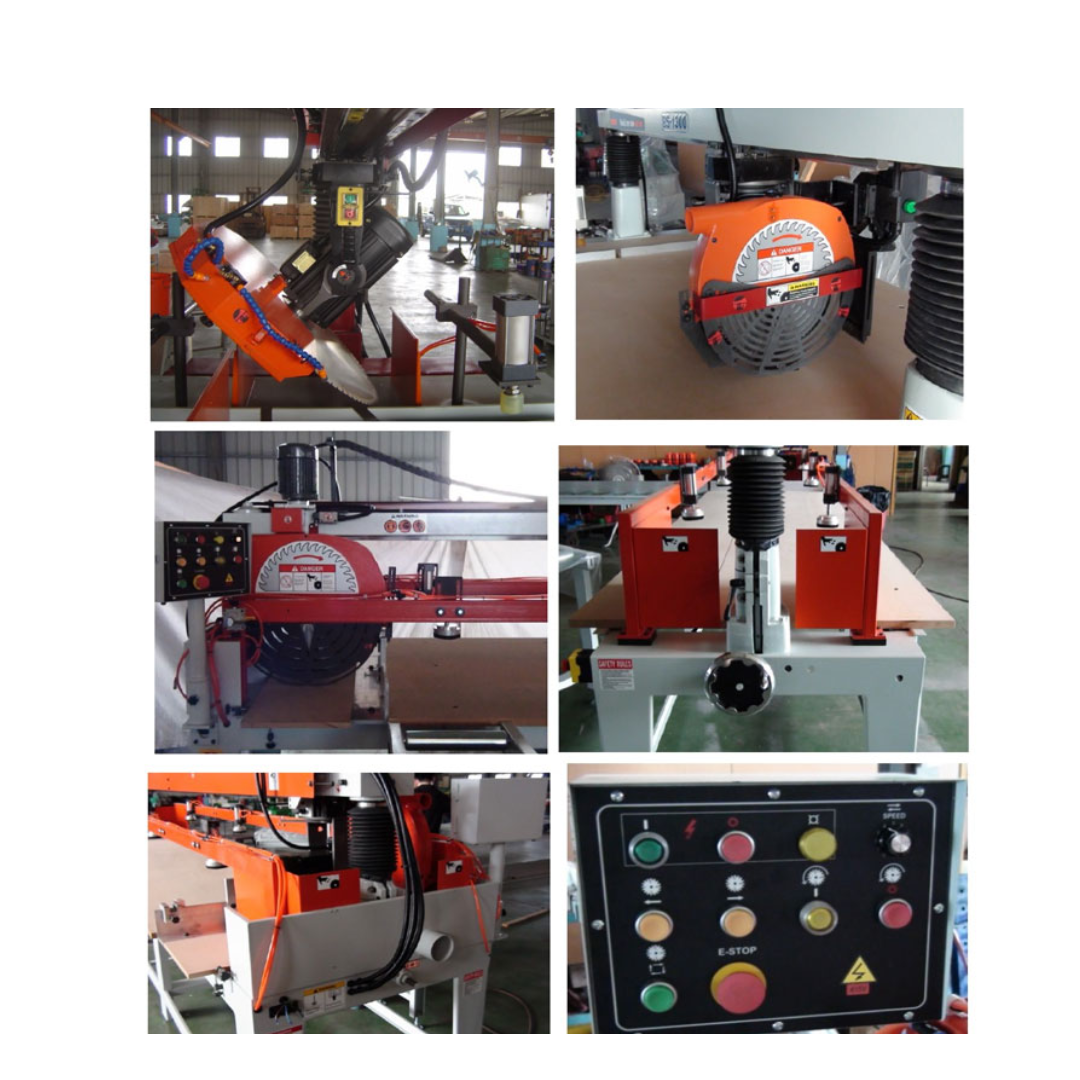

Castaly Tiltable 12' Automatic Panel Saw RS-DW3600 Performance & Construction
- Automatic Cutting Cycle improves production efficiency and repeatable accuracy.
- 45°–90° Tilting Saw Head with quick stop at left 45° for fast angle setup.
- Hardened & Precision-Ground Rail ensures maximum wear resistance and slide precision.
- 8 Ball Bearing Head Travel System delivers smooth, effortless saw movement.
- One-Piece Cast Iron Arm provides structural rigidity and durability.
- Heavy Sheet Metal Stand enhances machine stability during cutting operations.
- Full Power 7.5 HP Industrial Motor built for demanding, continuous-duty production.
- Inverter-Controlled Travel Motor allows adjustable feed speed for optimized cut quality.
- Safety Saw Blade Guard protects operators during operation.
- Anti-Kickback Attachment increases cutting safety and material control.
- Overload Protection Switch safeguards electrical components and motor lifespan.

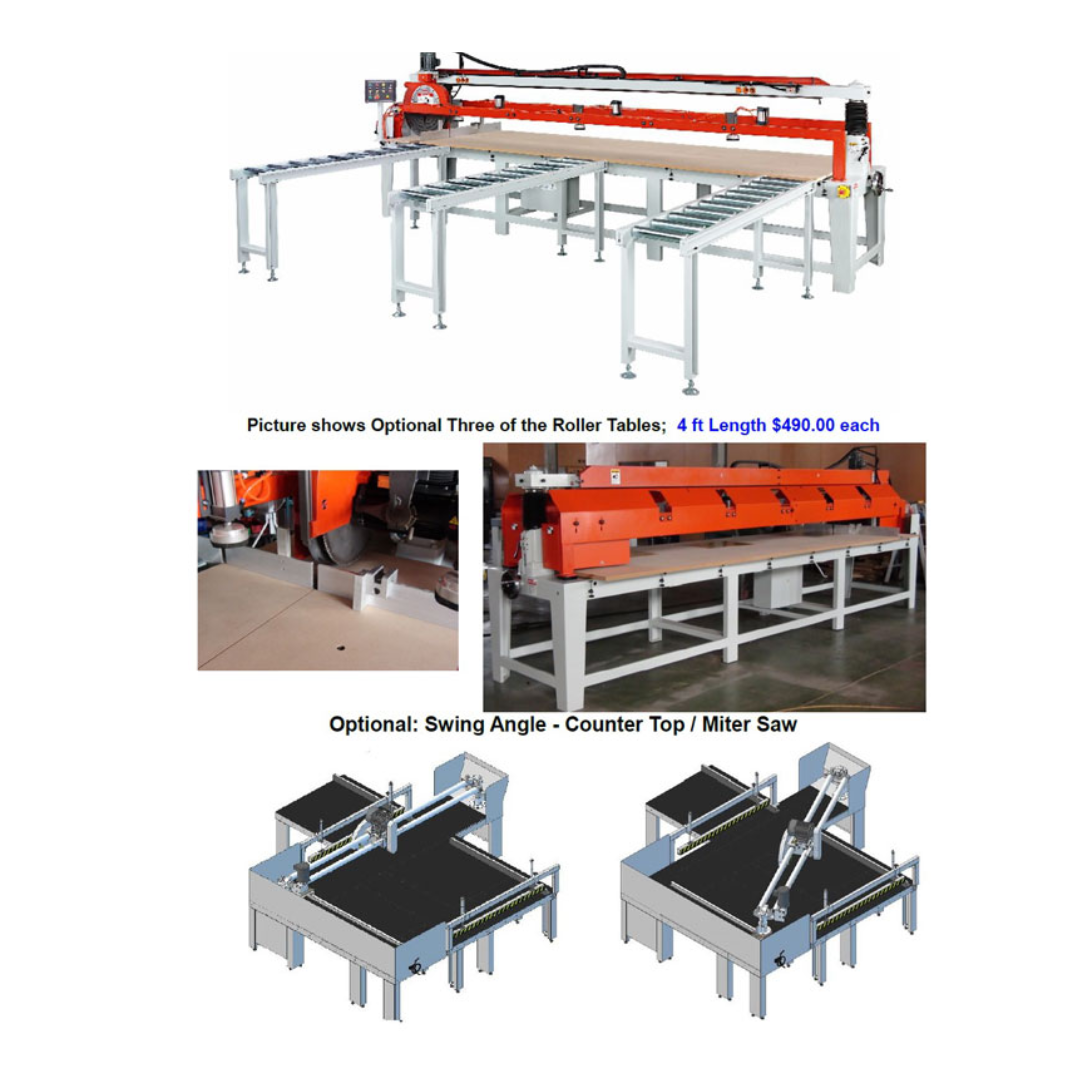

- Optional 4 ft Roller Conveyor available at $499.00 each for extended material support.
Why Choose the Castaly Tiltable 12' Automatic Panel Saw RS-DW3600
- 12' cutting capacity for large-format panels.
- 6-1/2" maximum thickness for heavy-duty applications.
- Precision 45°–90° angle cutting with secure head positioning.
- Industrial-grade construction built for high-output environments.
- Smooth automatic cycle enhances production workflow.
The Castaly Tiltable 12' Automatic Panel Saw RS-DW3600 delivers extended cutting capacity, precision angle flexibility, and reliable industrial performance—making it an ideal solution for high-volume panel processing operations.
