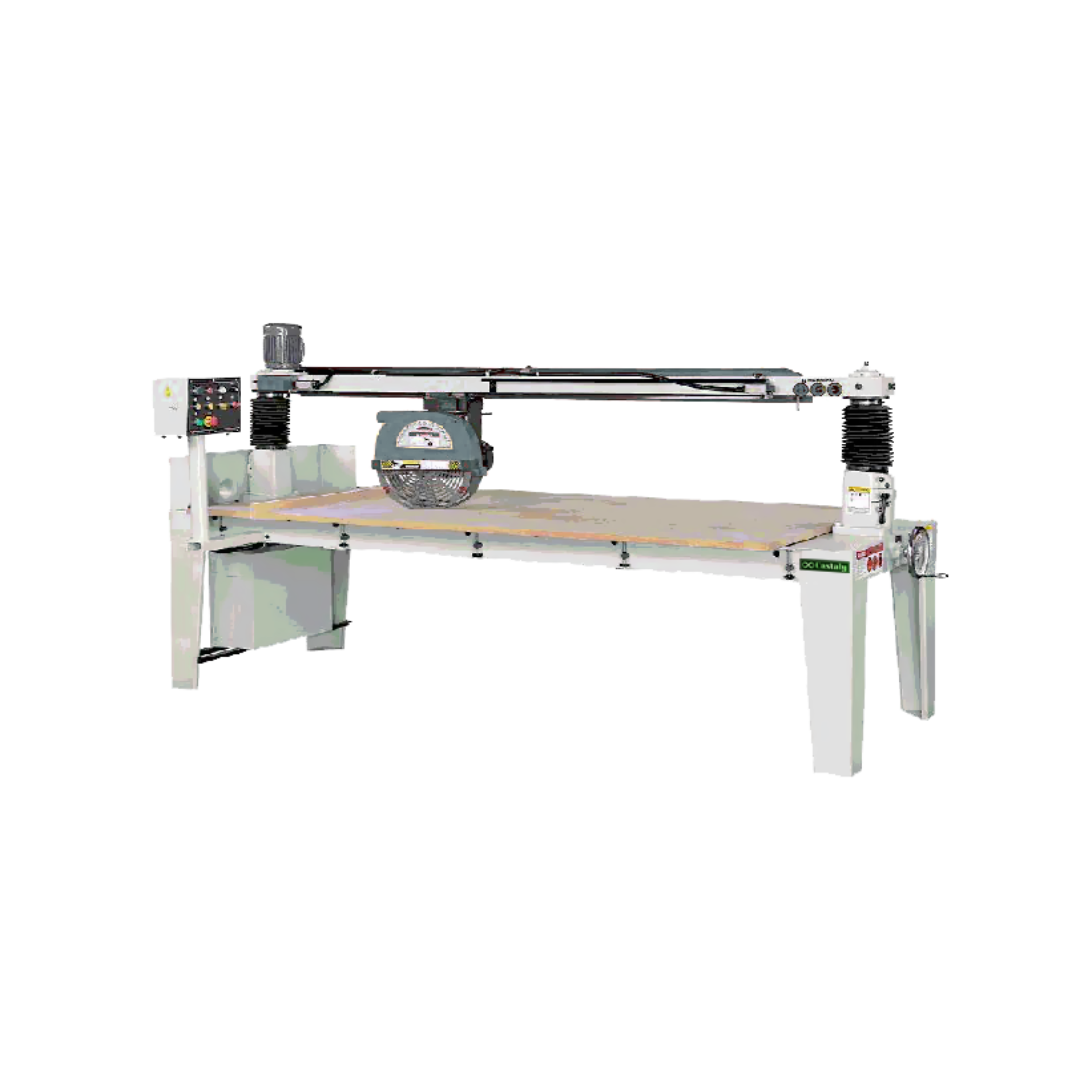

Castaly Tiltable 10' Automatic Panel Saw RS-DW3000 Applications
- Cabinet and architectural millwork production
- Door and panel manufacturing
- Industrial woodworking facilities
- Mass production operations requiring angle flexibility
Designed for shops requiring 10' cutting capacity with precise 45°–90° angle adjustments and automatic cycle efficiency.
Castaly Tiltable 10' Automatic Panel Saw RS-DW3000 Specifications
| Maximum Cutting Length | 10' |
|---|---|
| Maximum Cutting Thickness | 6-1/2" |
| Table Width | 50" |
| Saw Blade Diameter | 14" – 16" |
| Spindle Diameter | 1" |
| Saw Blade Motor | 7.5 HP, 3 Phase |
| Saw Blade Speed | 2,900 RPM |
| Saw Travel Motor | 1 HP with Inverter Variable Speed |
| Head Travel Bearings | 8 Bearings |
| Head Swiveling (Horizontal) | 45° – 90° |
| Hold Down Cylinders | 6 pcs |
Castaly Tiltable 10' Automatic Panel Saw RS-DW3000 Performance & Construction

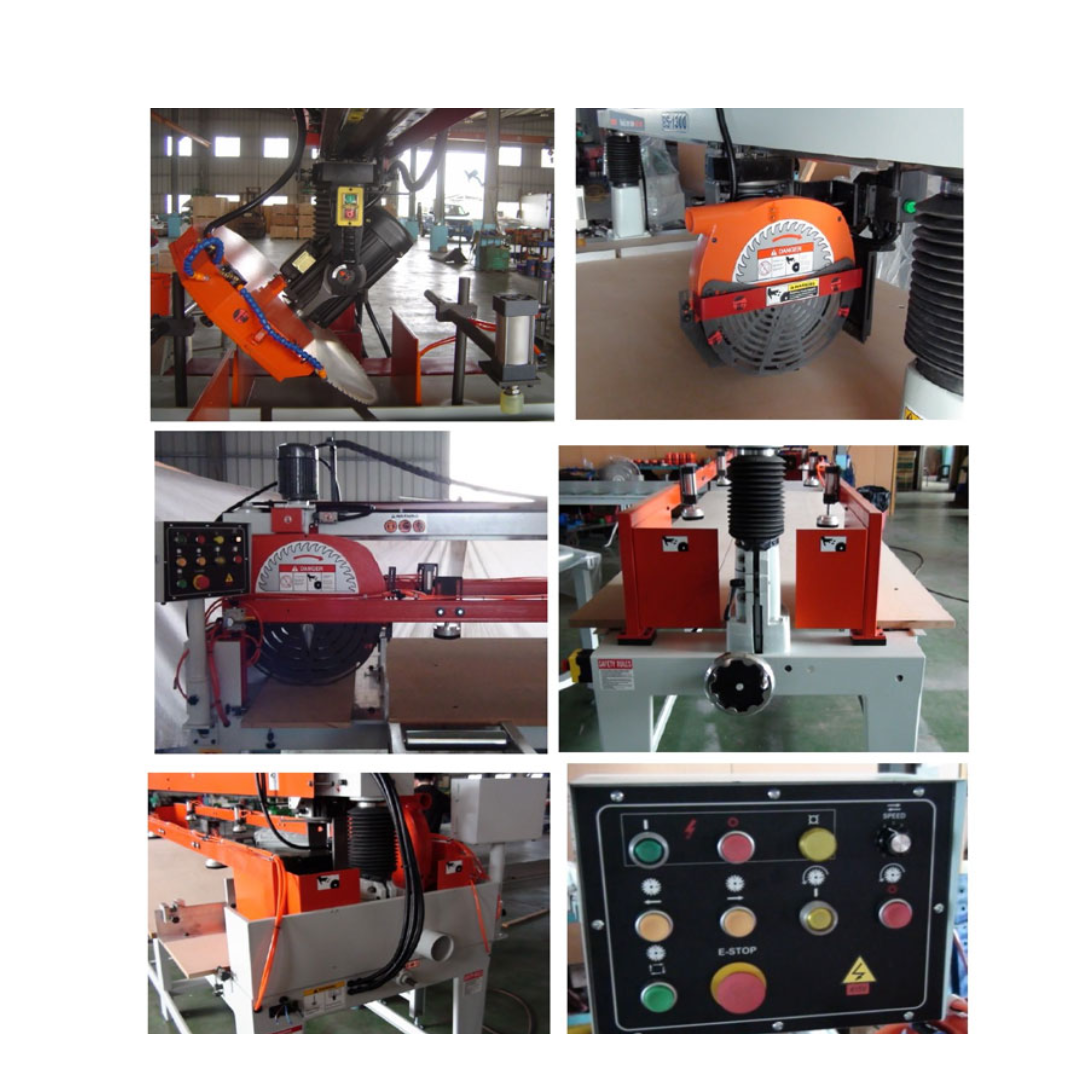

- Automatic Cutting Cycle improves production efficiency and ensures repeatable cutting accuracy.
- 45°–90° Tilting Saw Head with quick stop at left 45° for rapid angle setup.
- Hardened & Precision-Ground Rail delivers maximum wear resistance and superior slide precision.
- 8 Ball Bearing Head Travel System provides smooth, effortless saw movement.
- One-Piece Cast Iron Arm ensures structural rigidity and durability.
- Heavy Sheet Metal Stand enhances machine stability during operation.
- Full Power 7.5 HP Industrial Motor built for continuous-duty cutting performance.
- Inverter-Controlled Travel Motor allows adjustable feed speed for optimized cutting quality.
- Safety Saw Blade Guard improves operator protection.
- Anti-Kickback Attachment enhances safety and material control.
- Overload Protection Switch safeguards motor and electrical components.

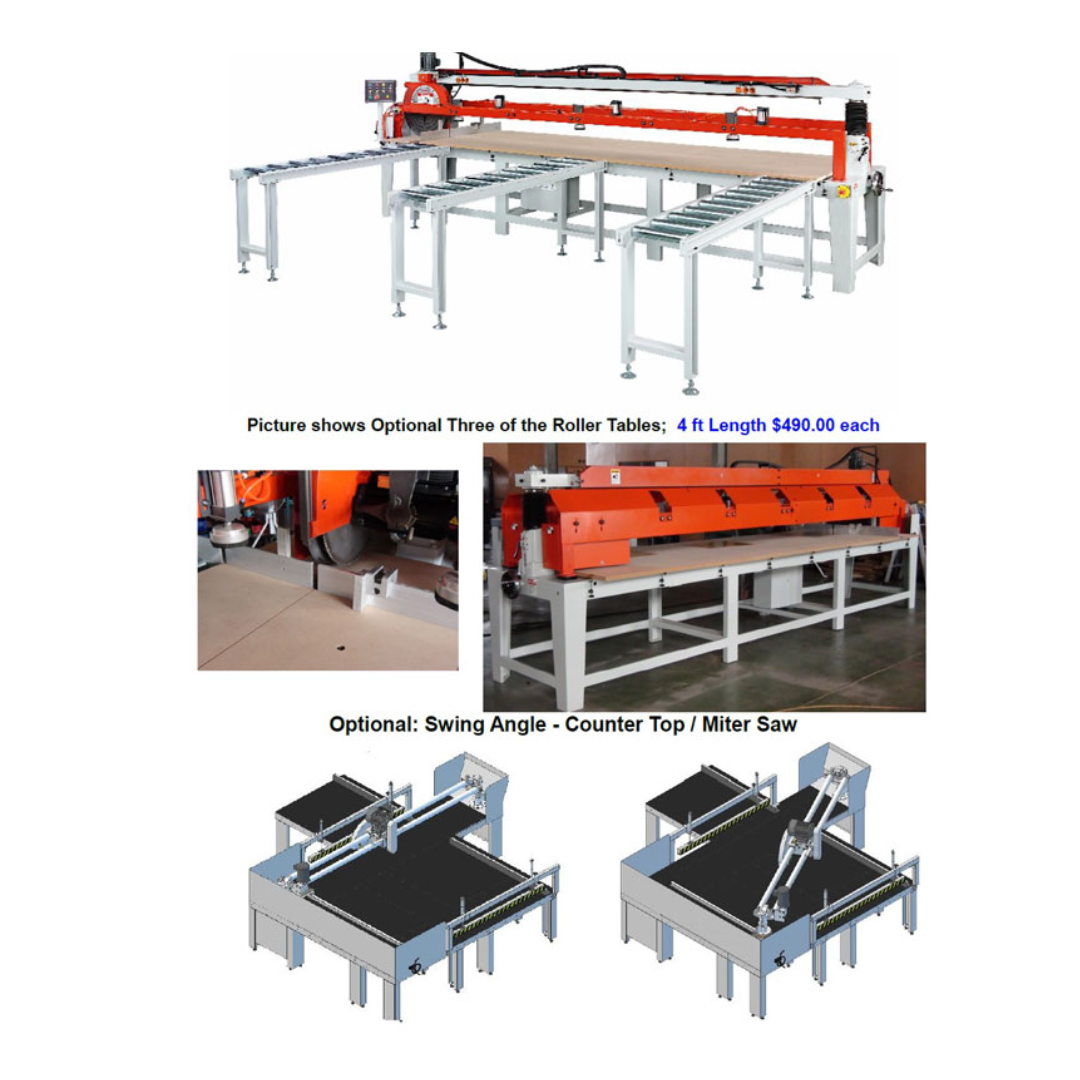

- Optional 4 ft Roller Conveyor available at $499.00 each for extended material handling support.
Why Choose the Castaly Tiltable 10' Automatic Panel Saw RS-DW3000
- 10' cutting capacity for medium to large panels.
- 6-1/2" cutting thickness for heavy-duty applications.
- Precision 45°–90° angle cutting with secure head positioning.
- Industrial-grade construction designed for high-output production.
- Smooth automatic cutting cycle enhances workflow efficiency.
The Castaly Tiltable 10' Automatic Panel Saw RS-DW3000 combines extended cutting capacity, angle flexibility, and industrial durability—making it a dependable solution for professional panel processing operations.
