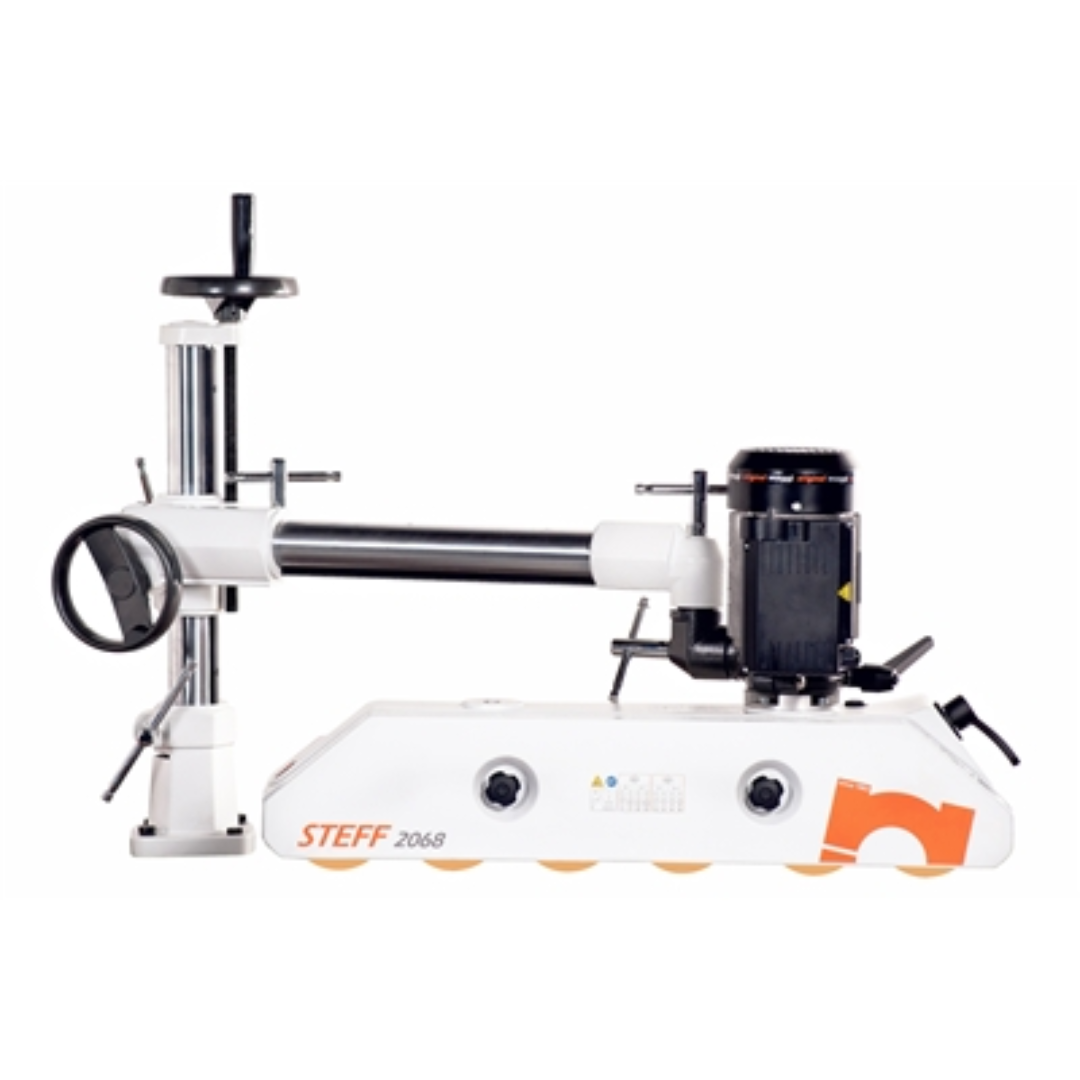

Steff 2068 Power Feeder Applications
- Shapers, table saws, and industrial router table systems
- High-production woodworking and manufacturing environments
- Feeding long, heavy, or large-format materials
- Operations requiring extended contact and maximum feed stability
Ideal for demanding applications where extended roller coverage ensures superior control and reduced material movement.
Steff 2068 Power Feeder Specifications
| Model | 2068 |
|---|---|
| Motor Power | 0.7 / 1 HP |
| Three-Phase Motor Power | 0.75 kW |
| Single-Phase Motor Power | 0.52 kW |
| Speed Settings | 8 |
| Feed Speeds | 6 / 13 / 16 / 21 / 36 / 42 / 54 / 102 FPM |
| Metric Feed Speeds | 2 / 4 / 5 / 6.5 / 11 / 13 / 16.5 / 33 m/min |
| Number of Rollers | 6 |
| Roller Diameter | 4-3/4" (Ø120 mm) |
| Roller Width | 2-1/4" (60 mm) |
| Roller Hardness | 50–60 Shore (Natural Rubber) |
| Vertical Travel | 1" |
| Spring Travel | 20 mm |
| Net Weight | 43 kg |
| Gross Weight | 47 kg |
| Shipping Weight | 220 lbs |
| Packaging Dimensions | 1000 × 560 × 340 mm |
Steff 2068 Power Feeder Performance & Construction
- Six-roller feeding system provides maximum surface contact, superior stability, and extended material support.
- Eight-speed gearbox allows precise feed rate adjustment for various materials and cutting operations.
- Powerful 0.7/1 HP motor delivers consistent torque for demanding industrial use.
- Sintered case hardened gears ensure long-lasting durability and reduced wear.
- Bronze alloy main drive gear enhances smooth transmission and operational reliability.
- Natural rubber rollers (60 shore) provide strong traction while protecting workpiece surfaces.
- Optional polyurethane and steel rollers available for specialized applications.
- Calibrated spring support system maintains consistent roller pressure and feeding accuracy.
- 1" vertical travel accommodates varying material thicknesses.
- Electrostatic paint finish improves resistance to corrosion and shop wear.
- Universal support column included for flexible installation and positioning.
- Optional 230V single-phase configuration available (additional cost applies).
Why Choose the Steff 2068 Power Feeder
- Six-roller configuration for maximum stability and extended feeding control.
- 8-speed versatility for handling a wide range of materials and operations.
- Heavy-duty construction for long-term industrial performance.
- Improves safety, consistency, and finish quality in woodworking processes.
The Steff 2068 Power Feeder is built for professionals who require maximum feeding stability, extended material support, and consistent high-performance results in demanding woodworking environments.
