Steff 2048 Power Feeder Applications
- Shapers, table saws, and industrial router table systems
- High-production woodworking shops and manufacturing environments
- Feeding hardwood, softwood, panels, and composite materials
- Applications requiring variable feed speeds and consistent pressure
Ideal for professional users who need maximum speed flexibility combined with stable, four-point feeding control.

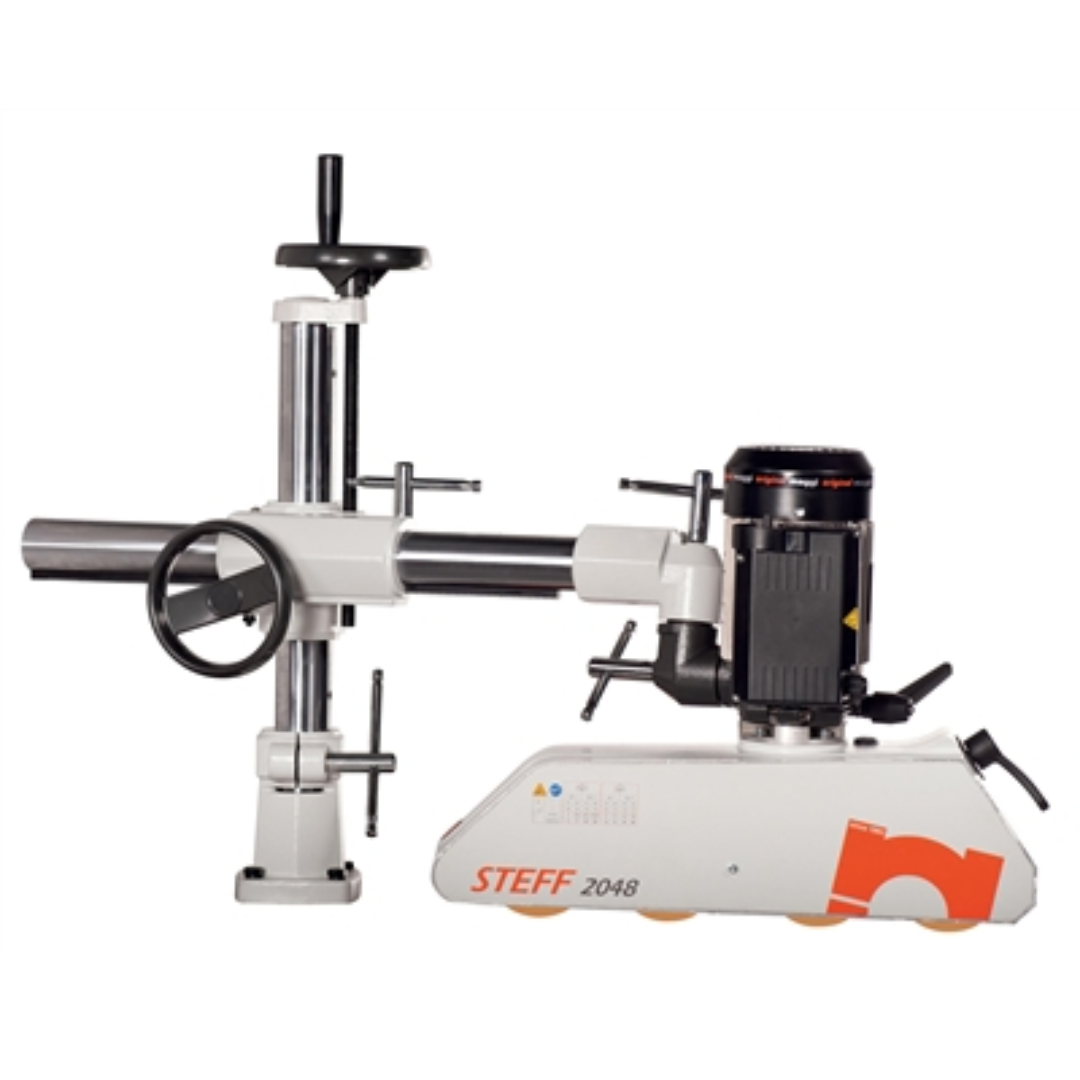

Steff 2048 Power Feeder Specifications
| Model | 2048 |
|---|---|
| Motor Power | 0.7 / 1 HP |
| Three-Phase Motor Power | 0.75 kW |
| Single-Phase Motor Power | 0.52 kW |
| Speed Settings | 8 |
| Feed Speeds | 6 / 13 / 18 / 21 / 36 / 42 / 54 / 102 FPM |
| Metric Feed Speeds | 2 / 4 / 5.5 / 6.5 / 11 / 13 / 16.5 / 33 m/min |
| Number of Rollers | 4 |
| Roller Diameter | 4-3/4" (Ø120 mm) |
| Roller Width | 2-1/4" (60 mm) |
| Roller Hardness | 50–60 Shore (Natural Rubber) |
| Vertical Travel | 1" |
| Spring Travel | 20 mm |
| Net Weight | 35 kg |
| Gross Weight | 37 kg |
| Shipping Weight | 163 lbs |
| Packaging Dimensions | 670 × 570 × 330 mm |
| Country of Manufacture | Italy |
Steff 2048 Power Feeder Performance & Construction
- Four-roller feeding system provides enhanced stability, improved grip, and consistent material control.
- Eight-speed gearbox offers maximum flexibility for a wide range of materials and machining operations.
- Powerful 0.7/1 HP motor ensures reliable torque for demanding industrial applications.
- Sintered case hardened gears deliver long-lasting durability and reduced wear.
- Bronze alloy main drive gear enhances smooth transmission and extends service life.
- Natural rubber rollers (60 shore) provide excellent traction while protecting workpiece surfaces.
- Optional polyurethane and steel rollers available for specialized feeding requirements.
- Calibrated spring support system maintains consistent pressure and feeding accuracy.
- 1" vertical travel allows adaptability for varying material thicknesses.
- Electrostatic paint finish improves resistance to corrosion and wear.
- Universal support column included for flexible setup and positioning.
- Optional 230V single-phase configuration available (additional cost applies).
- Made in Italy ensuring premium quality construction and engineering precision.
Why Choose the Steff 2048 Power Feeder
- 8-speed versatility for a wide range of woodworking applications.
- Four-roller system ensures maximum feeding stability and control.
- Durable Italian construction for long-term industrial performance.
- Improves safety, consistency, and finish quality in machining operations.
The Steff 2048 Power Feeder is a powerful and versatile feeding solution built for professionals who demand precision, durability, and maximum control in high-performance woodworking environments.
