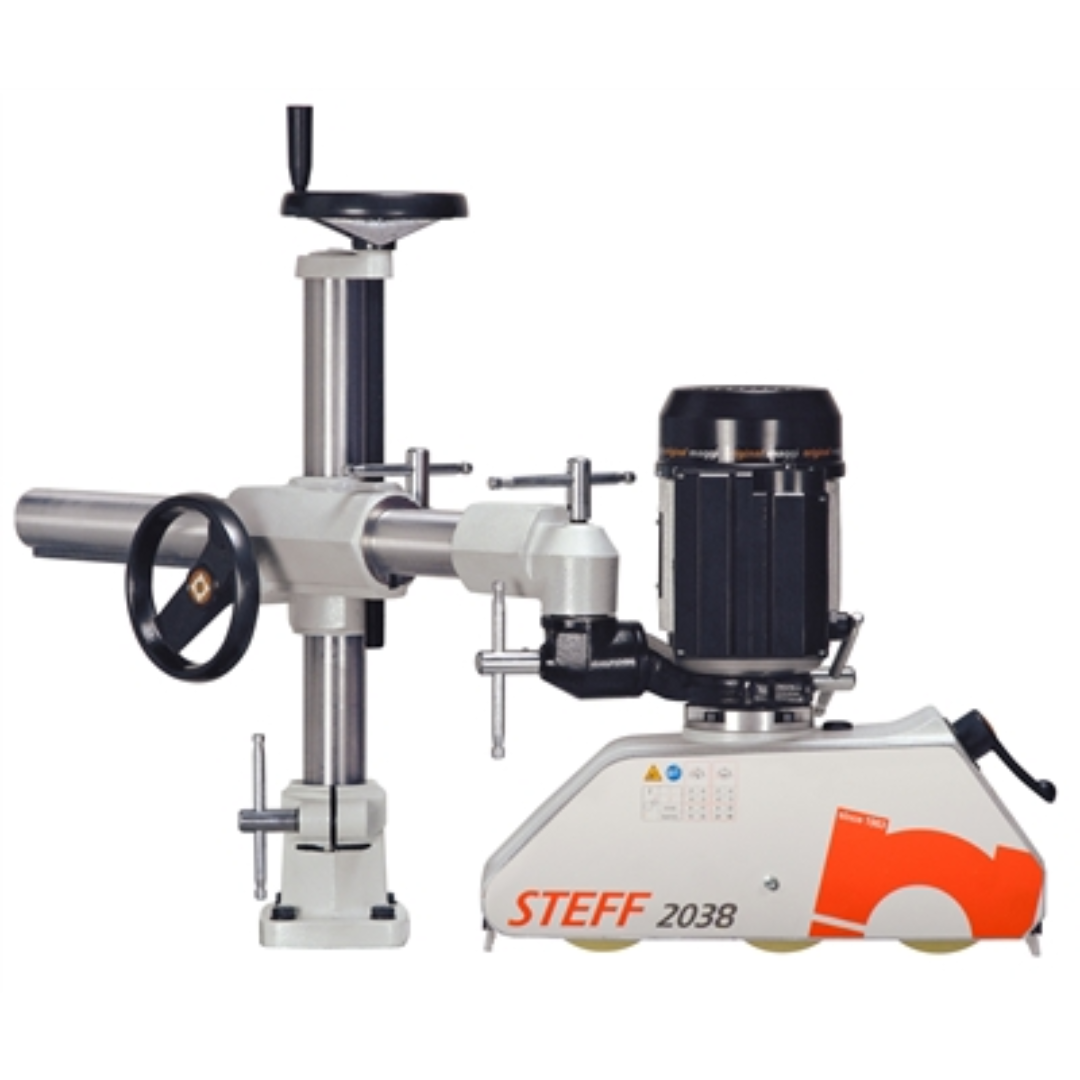

Steff 2038 3-Roller 8 Speed Power Feeder Applications
- Shapers, table saws, and heavy-duty router tables
- Production woodworking shops and industrial environments
- Precision feeding for hardwoods, softwoods, and composite materials
- Operations requiring a wide range of feed speeds for different tooling setups
Ideal for professionals who need maximum speed versatility and consistent feeding across varied machining conditions.
Steff 2038 3-Roller 8 Speed Power Feeder Specifications
| Model | 2038 |
|---|---|
| Motor Power | 1 HP |
| Three-Phase Motor Power | 0.75 kW |
| Single-Phase Motor Power | 0.52 kW |
| Speed Settings | 8 |
| Feed Speeds | 6 / 13 / 18 / 21 / 36 / 42 / 54 / 102 FPM |
| Metric Feed Speeds | 2 / 4 / 5.5 / 6.5 / 11 / 13 / 16.5 / 33 m/min |
| Number of Rollers | 3 |
| Roller Diameter | 4-3/4" (Ø120 mm) |
| Roller Width | 2-1/4" (60 mm) |
| Roller Hardness | 50–60 Shore (Natural Rubber) |
| Vertical Travel | 1" |
| Spring Travel | 20 mm |
| Machine Weight | 153 lbs |
| Net Weight | 31 kg |
| Gross Weight | 33 kg |
| Packaging Dimensions | 670 × 570 × 330 mm |
Steff 2038 3-Roller 8 Speed Power Feeder Performance & Construction
- Eight-speed gearbox delivers maximum flexibility for a wide range of materials and cutting operations.
- Three large-diameter rollers ensure stable, consistent feeding and superior grip.
- Powerful 1 HP motor provides reliable torque for demanding applications.
- Sintered case hardened gears enhance durability and long-term performance.
- Bronze alloy main drive gear ensures smooth operation and reduced wear.
- Natural rubber rollers (60 shore) provide optimal traction without damaging workpieces.
- Optional polyurethane or steel rollers available for specialized feeding requirements.
- Calibrated spring support system maintains consistent pressure and feed accuracy.
- 1" vertical travel allows flexibility when handling varying material thicknesses.
- Electrostatic paint finish protects against corrosion and shop wear.
- Universal support column included for easy installation and positioning.
- Optional 230V single-phase configuration available (additional cost applies).
Why Choose the Steff 2038 3-Roller 8 Speed Power Feeder
- Expanded 8-speed capability for unmatched versatility.
- Heavy-duty construction for long-term industrial use.
- Consistent feed pressure improves safety and finish quality.
- Flexible configuration options for different shop requirements.
The Steff 2038 3-Roller 8 Speed Power Feeder is the ideal solution for professional woodworkers who require precision, durability, and a wide range of feed speeds to handle diverse and demanding machining applications.
