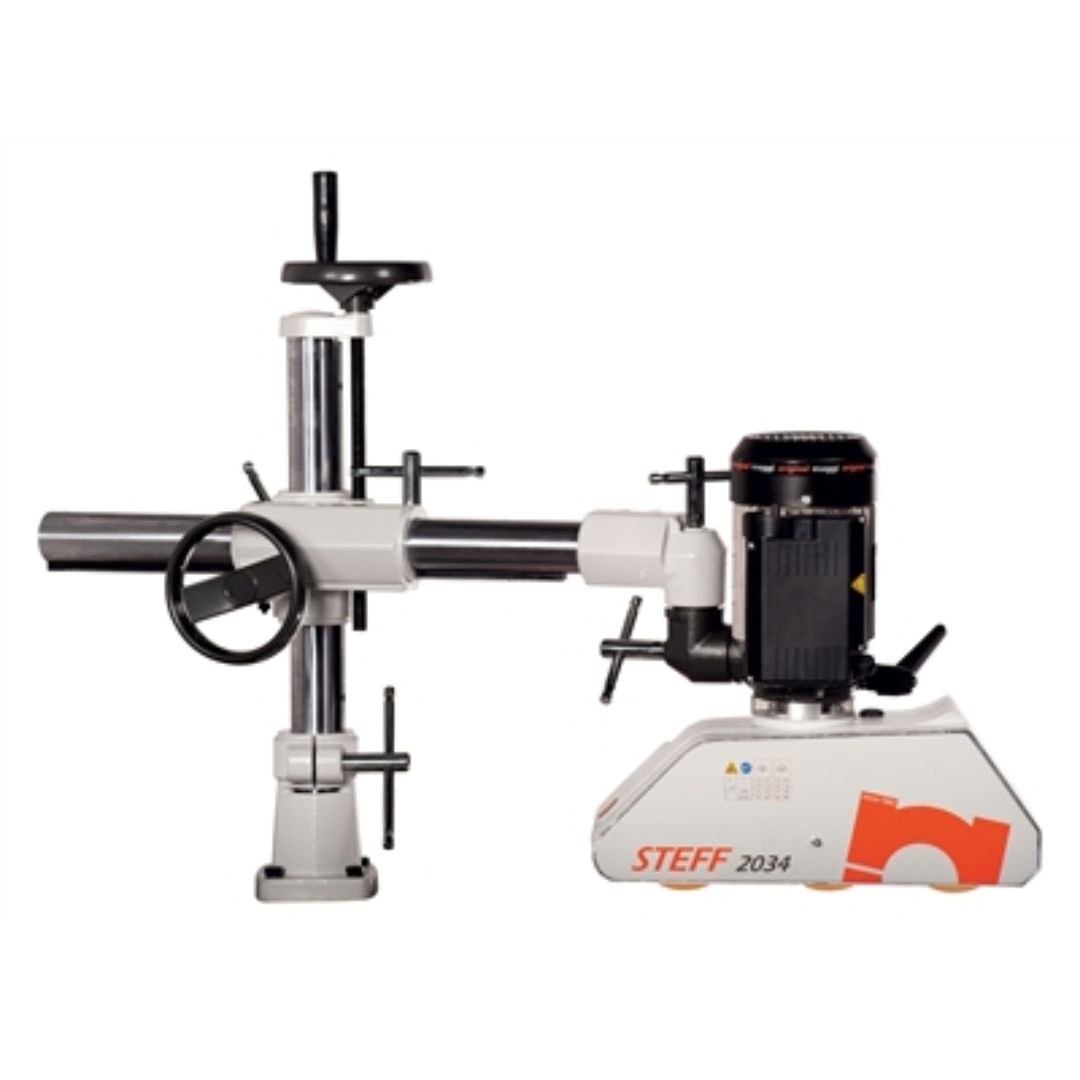

Steff 2034 Power Feeder Applications
- Shapers, table saws, and heavy-duty router table operations
- Professional woodworking shops and production environments
- Feeding hardwood, softwood, and composite materials
- Improving safety, consistency, and finish quality in machining processes
Designed for users who require stronger feed pressure and higher performance for demanding woodworking tasks.
Steff 2034 Power Feeder Specifications
| Model | 2034 |
|---|---|
| Motor Power | 1 HP |
| Three-Phase Motor Power | 0.75 kW |
| Single-Phase Motor Power | 0.52 kW |
| Power Supply | Standard (Add $100 for 230V Single Phase Option) |
| Number of Speeds | 4 |
| Feed Speeds | 13 / 26 / 36 / 72 FPM |
| Number of Rollers | 3 |
| Roller Diameter | 4-3/4" |
| Roller Width | 2-1/4" |
| Metric Roller Diameter | Ø120 mm |
| Metric Roller Width | 60 mm |
| Roller Hardness | 50–60 Shore (Natural Rubber) |
| Vertical Travel | 1" |
| Spring Travel | 20 mm |
| Net Weight | 30 kg |
| Gross Weight | 32 kg |
| Shipping Weight | 153 lbs |
| Packaging Dimensions | 670 × 570 × 330 mm |
Steff 2034 Power Feeder Performance & Construction
- Three large-diameter rollers provide superior grip and stability on larger workpieces.
- Four-speed feed system allows precise control for different materials and cutting conditions.
- Powerful 1 HP motor delivers consistent torque for demanding operations.
- Sintered case hardened gears ensure durability and long service life under heavy use.
- Bronze alloy main drive gear improves smoothness and reduces wear.
- Natural rubber rollers (60 shore) offer optimal traction without damaging material surfaces.
- Optional polyurethane and steel rollers available for specialized applications.
- Calibrated spring support system maintains constant pressure and feeding consistency.
- Electrostatic paint finish enhances corrosion resistance and durability.
- Universal support column included for flexible positioning and easy installation.
Why Choose the Steff 2034 Power Feeder
- High-torque 1 HP motor for demanding woodworking applications.
- Larger rollers for improved grip and feeding stability.
- Durable gear construction designed for long-term performance.
- Multiple speed options for precision control and versatility.
The Steff 2034 Power Feeder is built for professionals who demand strength, precision, and reliability in their material feeding system, making it an essential upgrade for high-performance woodworking environments.
