SawStop T-Glide Advance Fence Applications

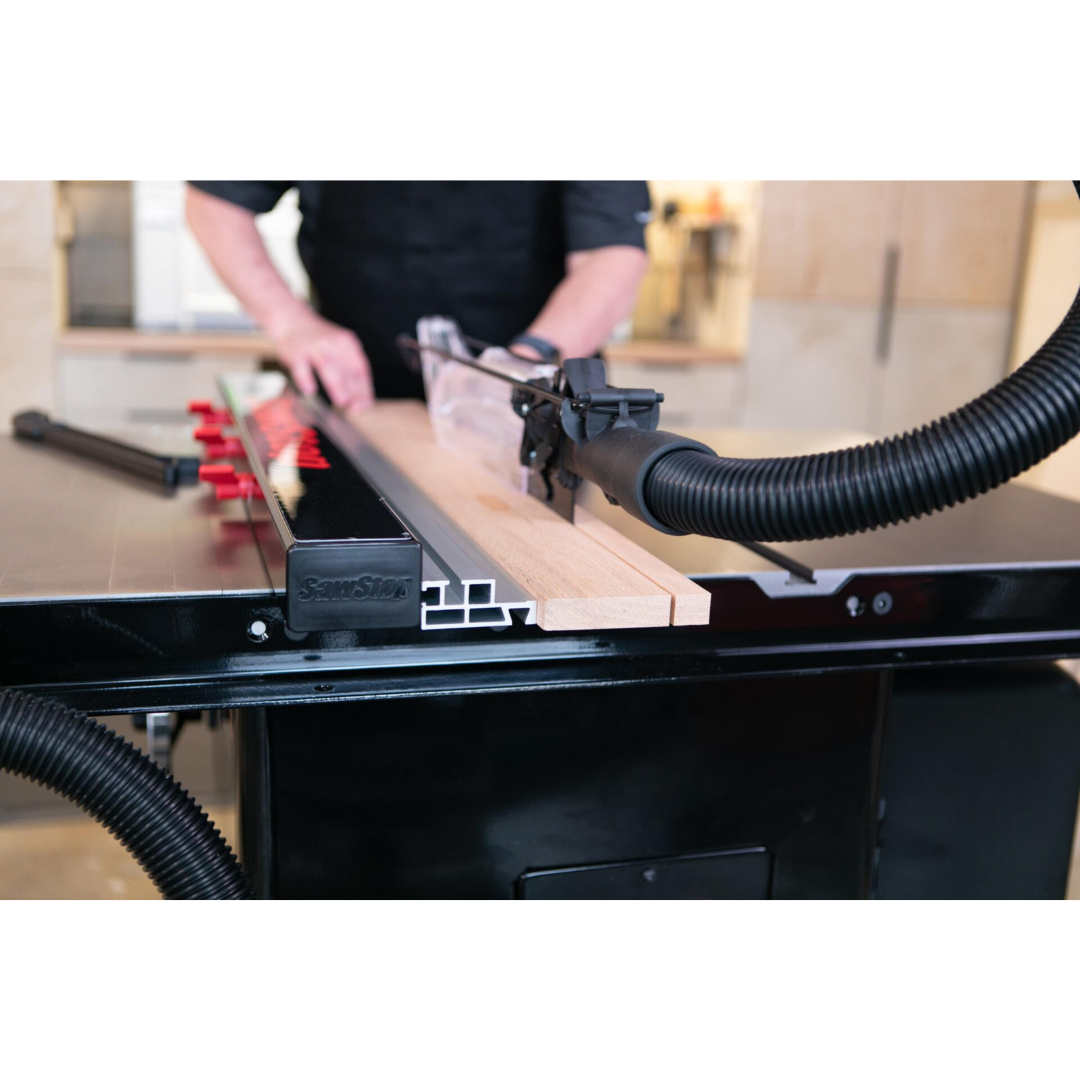

- Precision ripping and dimensioning of hardwoods, plywood, and sheet goods.
- Cabinet manufacturing and architectural millwork production.
- Furniture building and fine woodworking projects.
- Narrow rip cutting with improved push stick access.
- Flush trimming and straight-edge stock preparation.
- Jig mounting, feather board installation, and sacrificial fence applications.
- Repeatable production cuts and shop workflow optimization.
- Professional woodworking shops and advanced hobbyist workshops.
Designed for woodworkers seeking greater fence versatility, enhanced safety, and professional-grade cutting accuracy on compatible SawStop table saws.
SawStop T-Glide Advance Fence Specifications
| T-Glide Advance Fence for Professional Cabinet Saw (PCS) & Contractor Saw (CNS) | |
|---|---|
| Part Number | ATGP-FA |
| Overall Dimensions | 41" L × 16" W × 5" H |
| Aluminum Fence Face Dimensions | 34-3/4" L × 1-1/8" W × 2-3/4" H |
| Tube Dimensions | 35" L × 3" W × 2" H |
| Dovetail Slot Width | 5/16" at Narrow Point, 1/2" at Widest Point |
| Weight | 22 lbs. |
| Compatibility | SawStop Professional Cabinet Saw (PCS) and Contractor Saw (CNS) |
| T-Glide Advance Fence for Industrial Cabinet Saw (ICS) | |
|---|---|
| Part Number | ATGI-FA |
| Overall Dimensions | 48" L × 16" W × 5" H |
| Aluminum Fence Face Dimensions | 41" L × 1-1/8" W × 2-3/4" H |
| Tube Dimensions | 41-1/4" L × 3" W × 2" H |
| Dovetail Slot Width | 5/16" at Narrow Point, 1/2" at Widest Point |
| Weight | 24 lbs. |
| Compatibility | SawStop Industrial Cabinet Saw (ICS) |
Requires compatible SawStop T-Glide Fence Rails. Installs directly onto existing T-Glide rail systems with no conversion or modification required.
SawStop T-Glide Advance Fence Performance & Construction
- No-hassle installation allows the fence to fit directly onto existing SawStop T-Glide fence rails without modifications or additional conversion hardware.

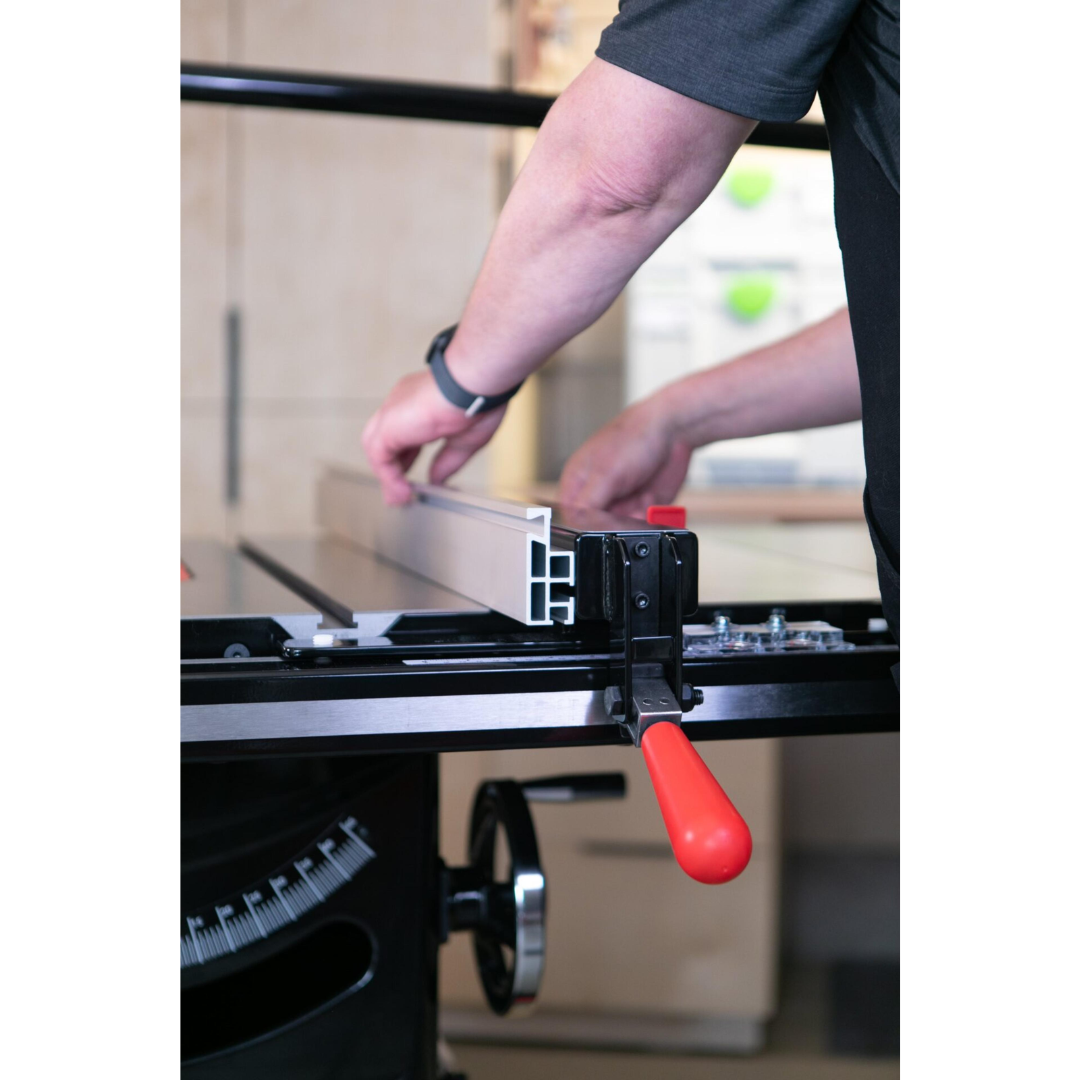

- Precision locking mechanism locks parallel to the blade once aligned, helping ensure repeatable and accurate cutting performance.

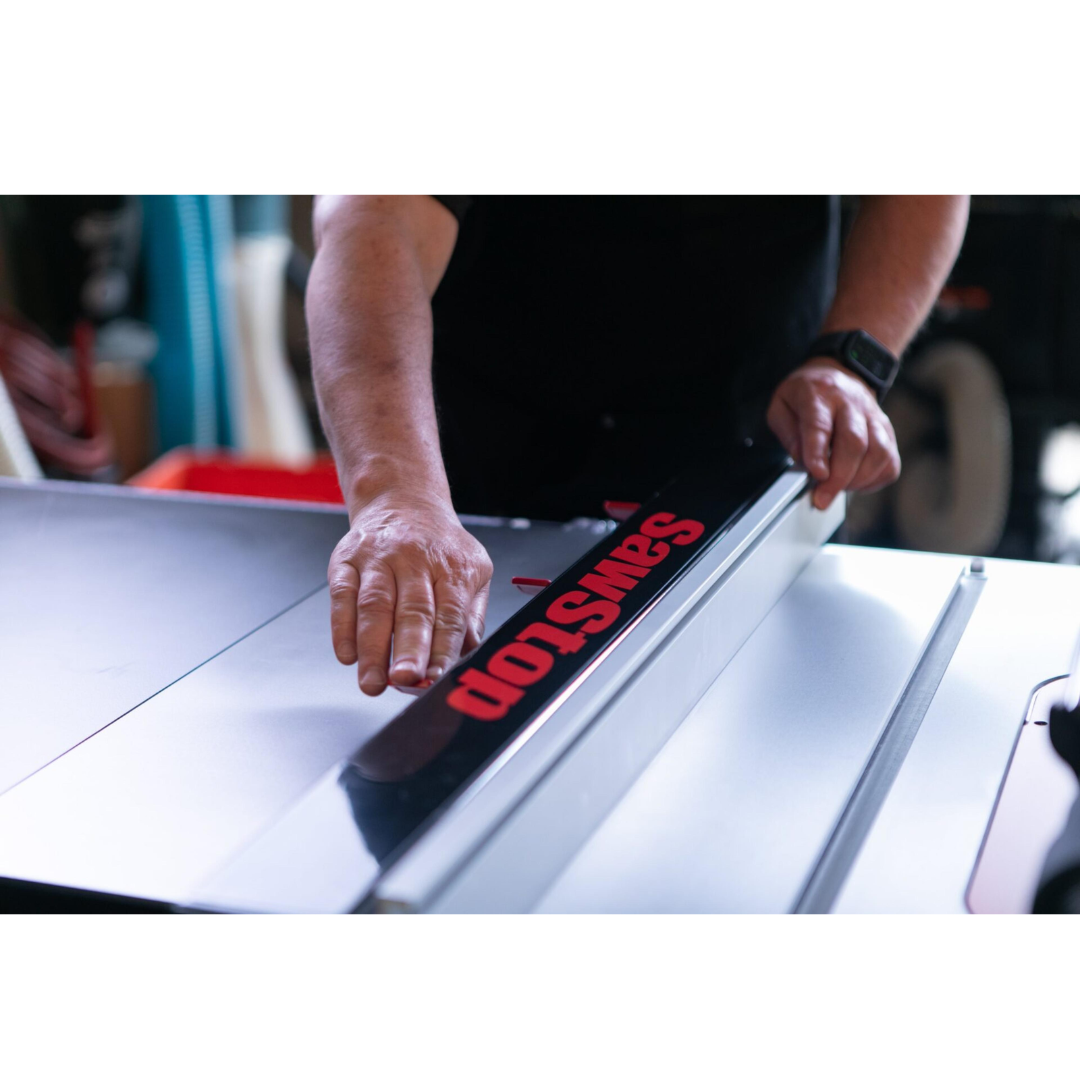

- Dead-flat aluminum fence face resists warping over time and provides a stable, highly accurate reference surface for workpieces.
- Hi-Low fence configuration allows the fence face to be positioned in multiple orientations to accommodate a wide range of cutting operations.

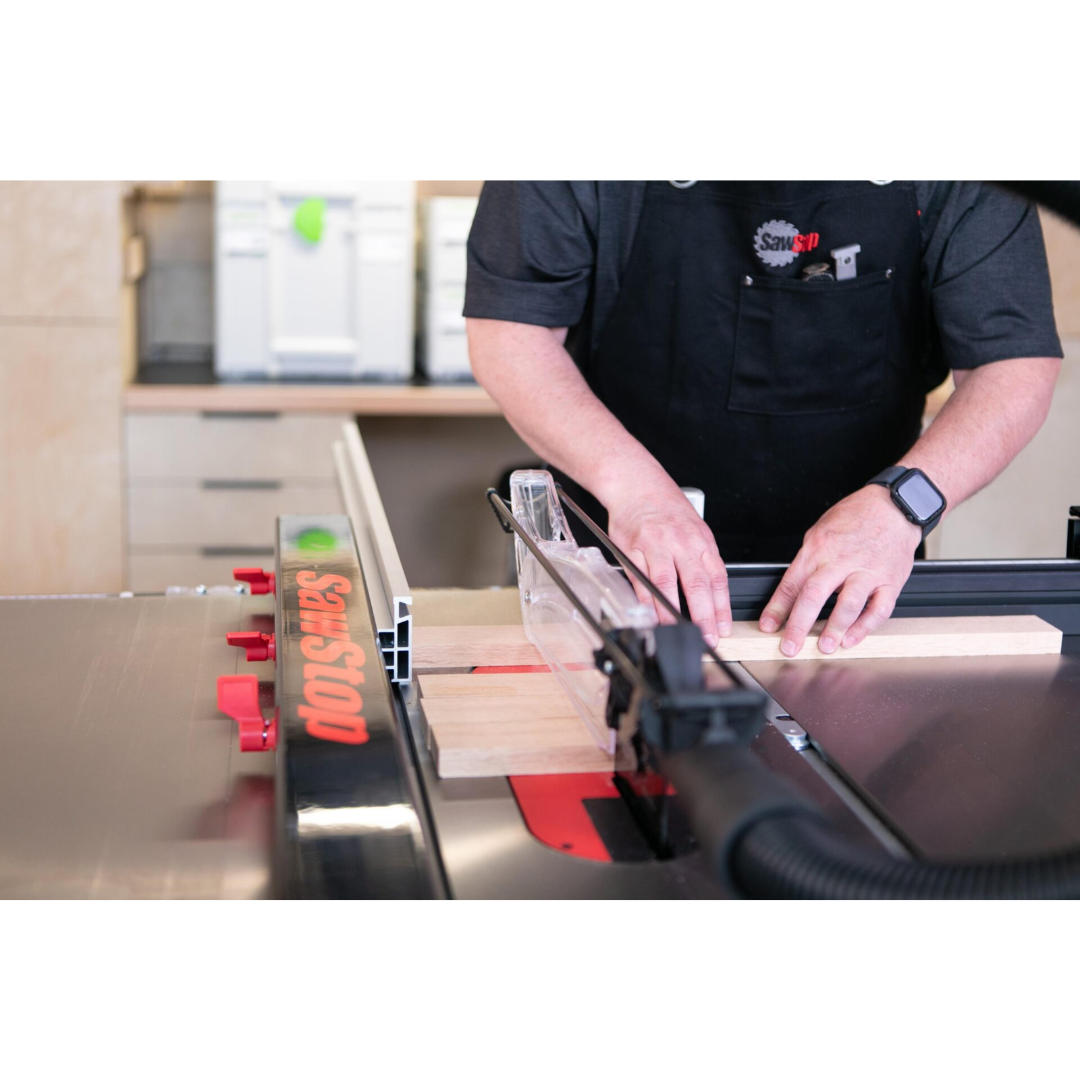

- Low-profile fence position fits beneath the blade guard for narrow rip cuts while providing improved access for push sticks and push blocks.

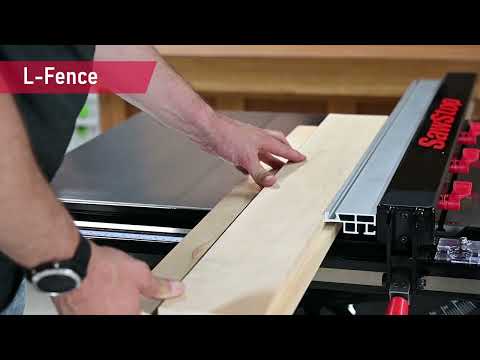

- Inverted "L" fence capability allows the fence to function as a flush-trimming or straight-lining fence for specialized woodworking tasks.

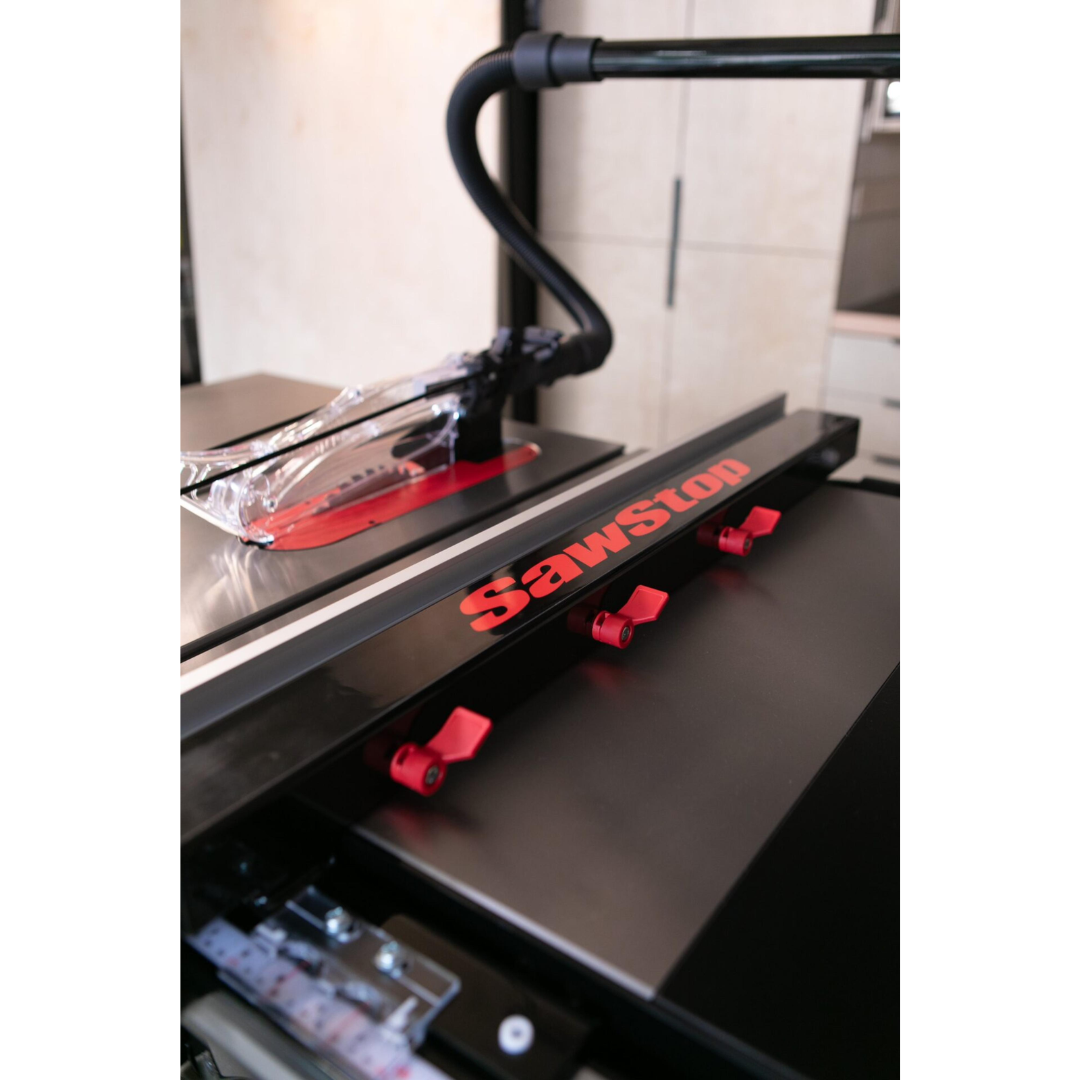

- Dovetail accessory slot enables quick attachment of feather boards, sacrificial fences, stops, jigs, and custom accessories without drilling or modification.

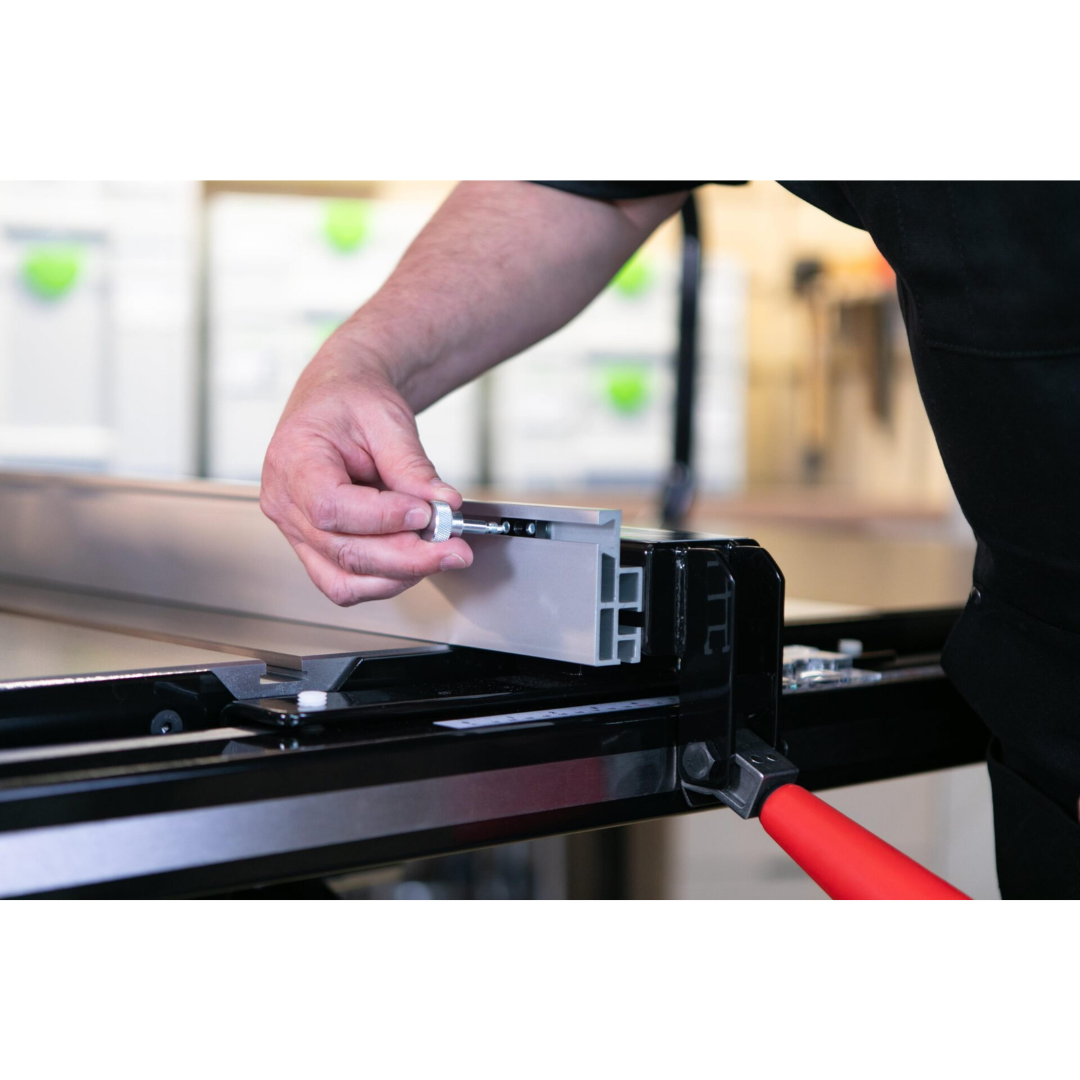

- Front-to-back sliding fence face allows users to reposition the fence face forward or backward based on the cutting application.
- Stop-block functionality is achieved by sliding the fence face forward so its end terminates before the blade, helping prevent offcuts from becoming trapped between the blade and fence during crosscut operations.

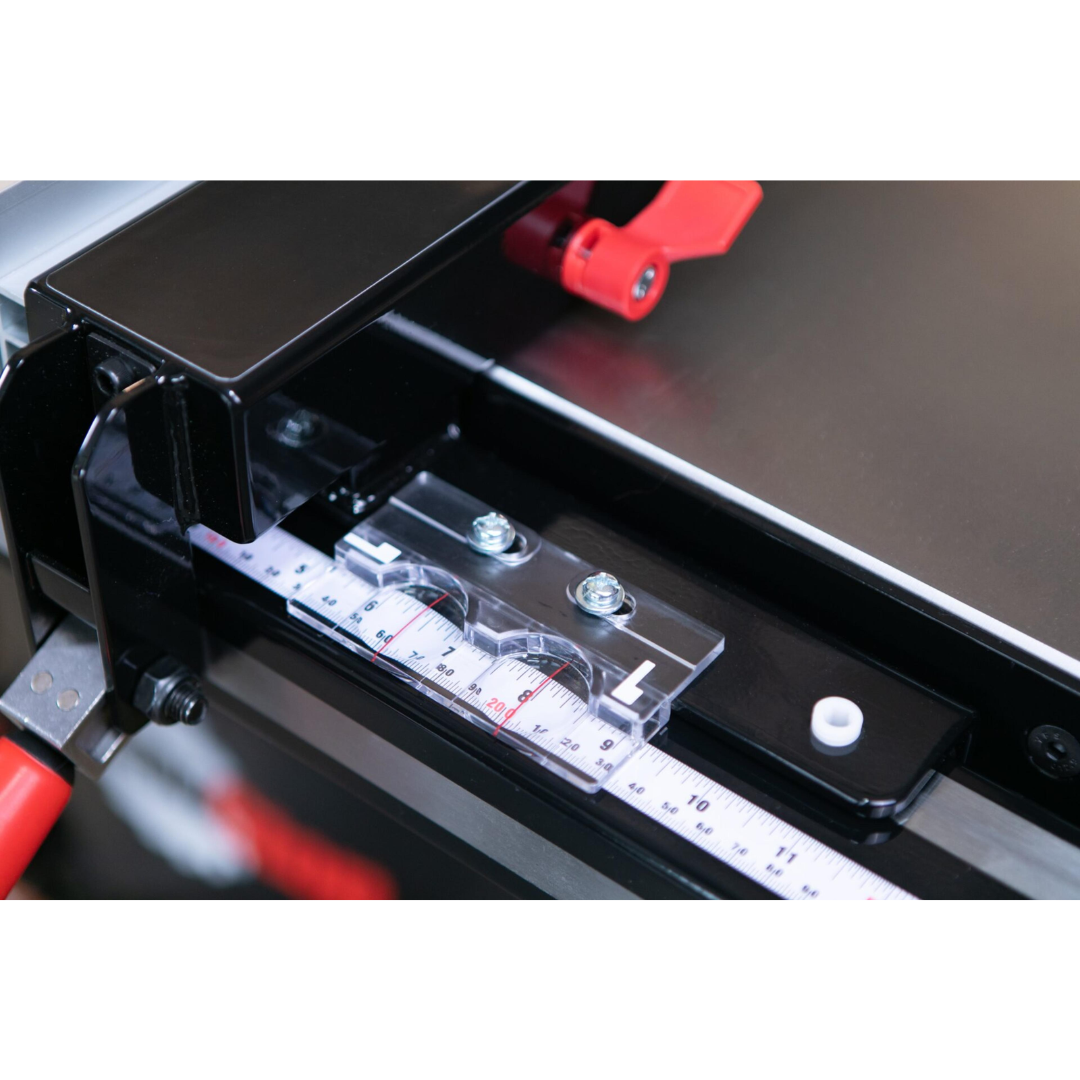

- Dual scale indicators provide dedicated measurement references for both high and low fence positions, ensuring accurate fence readings regardless of configuration.
- Integrated tail-end support rollers allow the fence to glide smoothly across the cast iron tabletop while reducing wear and surface marking.
- Fully reversible fence design allows the aluminum fence face to be mounted on the right side of the fence tube for left-of-blade operations.

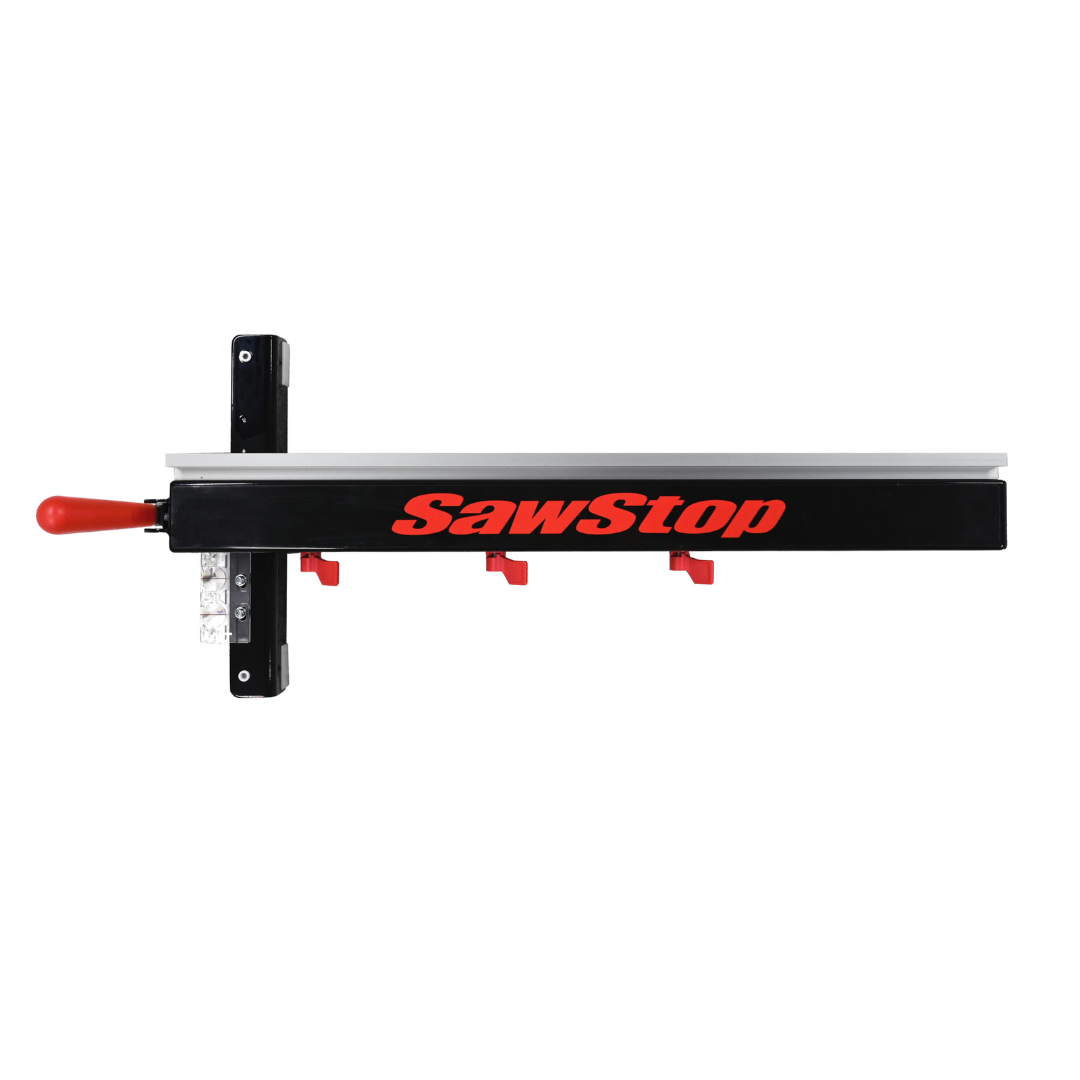

- Heavy-duty construction provides the durability, rigidity, and long-term reliability expected in professional woodworking environments.
SawStop T-Glide Advance Fence Compatibility
- ATGP-FA Variant: Compatible with SawStop Professional Cabinet Saw (PCS) and Contractor Saw (CNS).
- ATGI-FA Variant: Compatible with SawStop Industrial Cabinet Saw (ICS).
- Requires existing SawStop T-Glide Fence Rails.
- Direct replacement or upgrade for compatible T-Glide fence systems.
- Suitable for professional woodworking, production environments, and advanced hobby workshops.
SawStop T-Glide Advance Fence Included Components
- SawStop T-Glide Advance Fence Assembly
- (1) Hex Wrench
- (2) Dovetail Sliding Wedges
Why Choose the SawStop T-Glide Advance Fence
- Upgrades existing T-Glide systems without requiring rail modifications.
- Dead-flat aluminum fence face resists warping and maintains accuracy.
- Hi-Low fence functionality increases versatility and safety.
- Dovetail slot simplifies attachment of accessories, jigs, and sacrificial fences.
- Front-to-back sliding fence face supports advanced cutting techniques.
- Dual scale indicators provide accurate measurements in multiple fence positions.
- Integrated rollers improve glide performance and reduce table wear.
- Fully reversible design supports left-side blade operations.
- Available for PCS, CNS, and ICS SawStop table saw platforms.
The SawStop T-Glide Advance Fence combines premium construction, innovative versatility, and professional-grade accuracy into one advanced fence system. With its Hi-Low aluminum fence face, integrated accessory mounting capabilities, reversible design, and smooth-gliding operation, it provides woodworkers with a powerful upgrade for achieving greater precision, flexibility, and productivity in the workshop.
