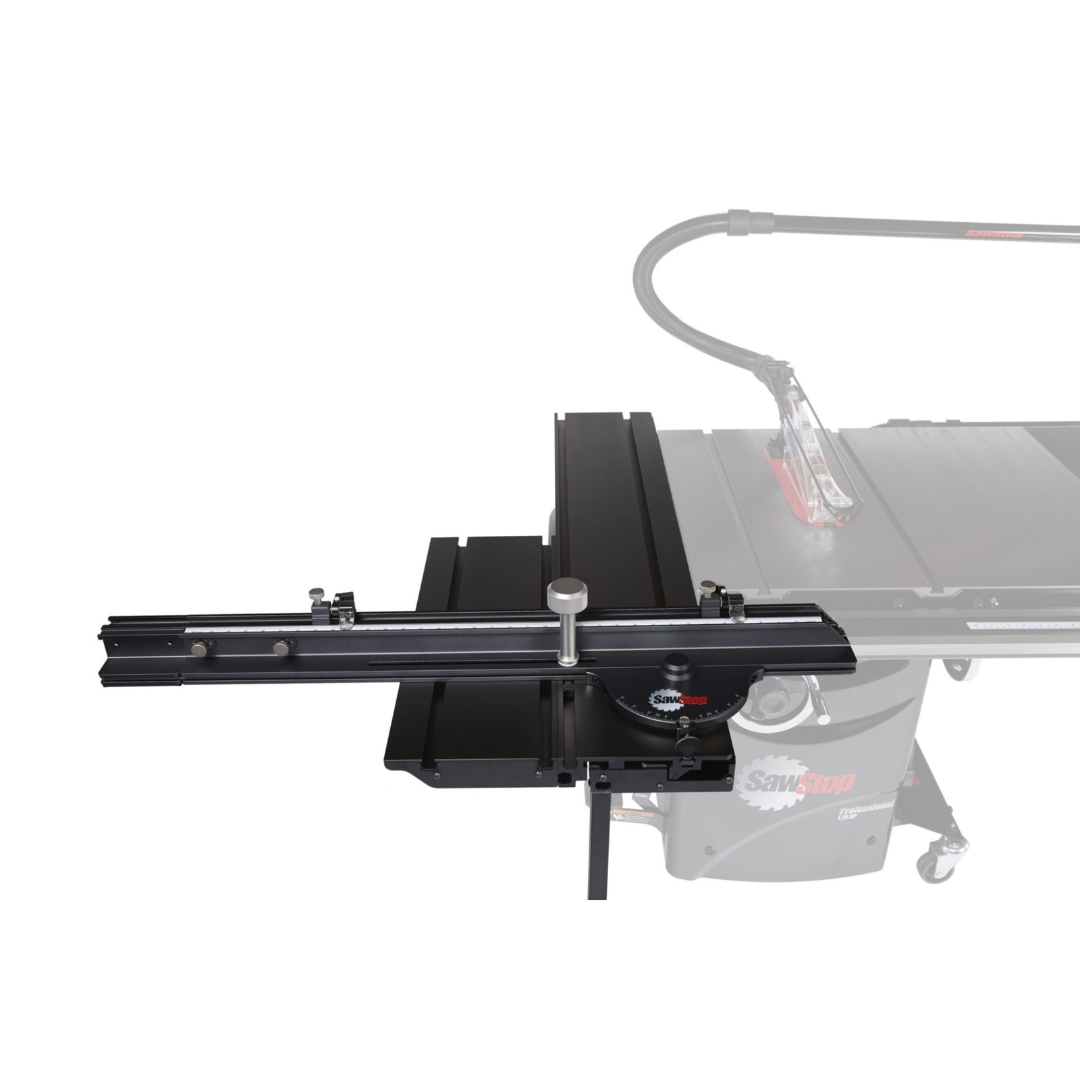

SawStop Sliding Crosscut Table TSA-SA48 Applications
- Precision crosscutting of plywood, MDF, hardwoods, and sheet goods.
- Cabinet manufacturing and custom woodworking production.
- Furniture construction requiring repeatable and accurate crosscuts.
- Miter cutting and angled crosscut operations up to ±60 degrees.
- Panel sizing and half-sheet material processing.
- Professional woodworking shops seeking improved workflow and efficiency.
- Contractor, Professional Cabinet, and Industrial Cabinet Saw installations.
Designed for woodworkers who demand exceptional crosscut accuracy, repeatability, material support, and flexibility in a compact workshop footprint.
SawStop Sliding Crosscut Table TSA-SA48 Specifications
| Part Number | TSA-SA48 |
|---|---|
| Table Depth | 47-1/4" |
| Table Travel | 55" |
| Crosscut Capacity | 48" |
| Crosscut Capacity (Flush Mount) | 36" |
| Fence Width | 43" |
| Fence Extension Capacity | 58" |
| Fence Scale | Imperial / Metric |
| Fence Scale Adjustment | Pressure-Adjustable |
| Miter Gauge Range | ±60 Degrees |
| Positive Detents | 15-Degree Intervals |
| Stops Included | 2 Large Flip Stops |
| Extrusion Material | T-6 6061 Aircraft-Grade Aluminum |
| Mounting Type | Pre-Drilled for SawStop Saws |
SawStop Sliding Crosscut Table TSA-SA48 Performance & Construction

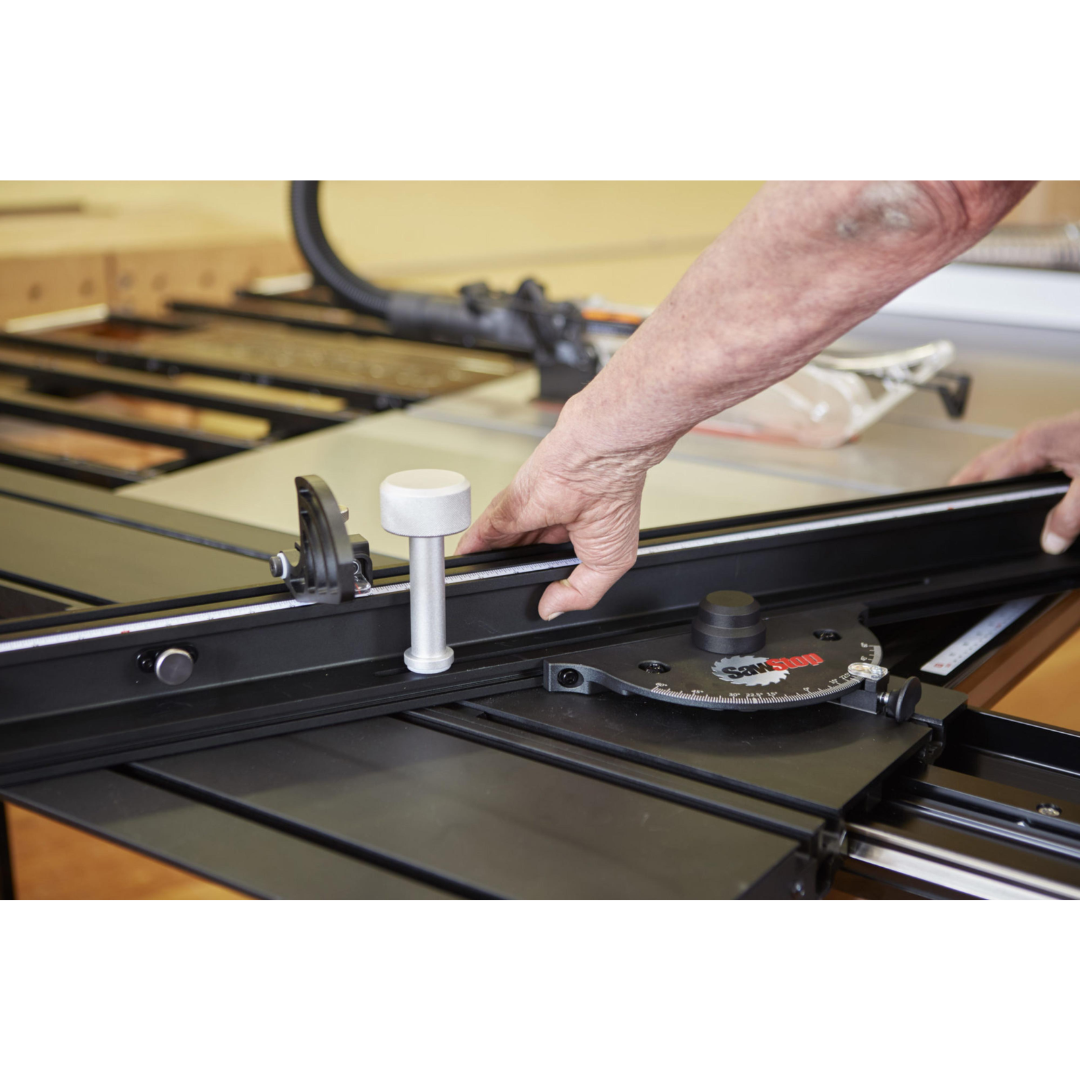

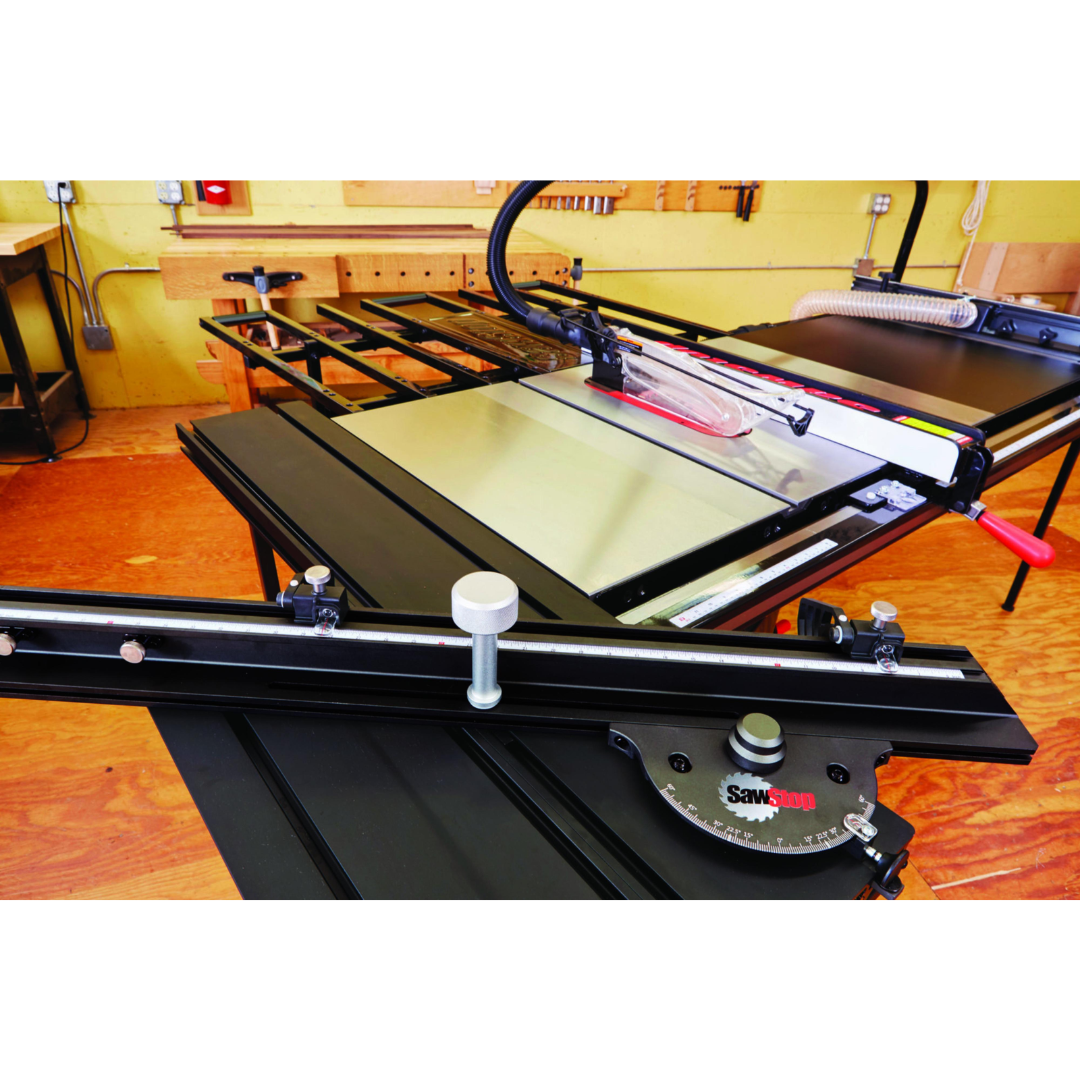

- Precision-engineered sliding carriage utilizes multiple large bearings for exceptionally smooth movement and consistent accuracy, even when handling larger workpieces.
- 55-inch travel capacity provides excellent range of motion for cutting large panels, cabinetry components, and furniture parts.
- Flexible mounting positions allow users to select either 36-inch flush-mount capacity or the full 48-inch crosscut configuration based on shop requirements.

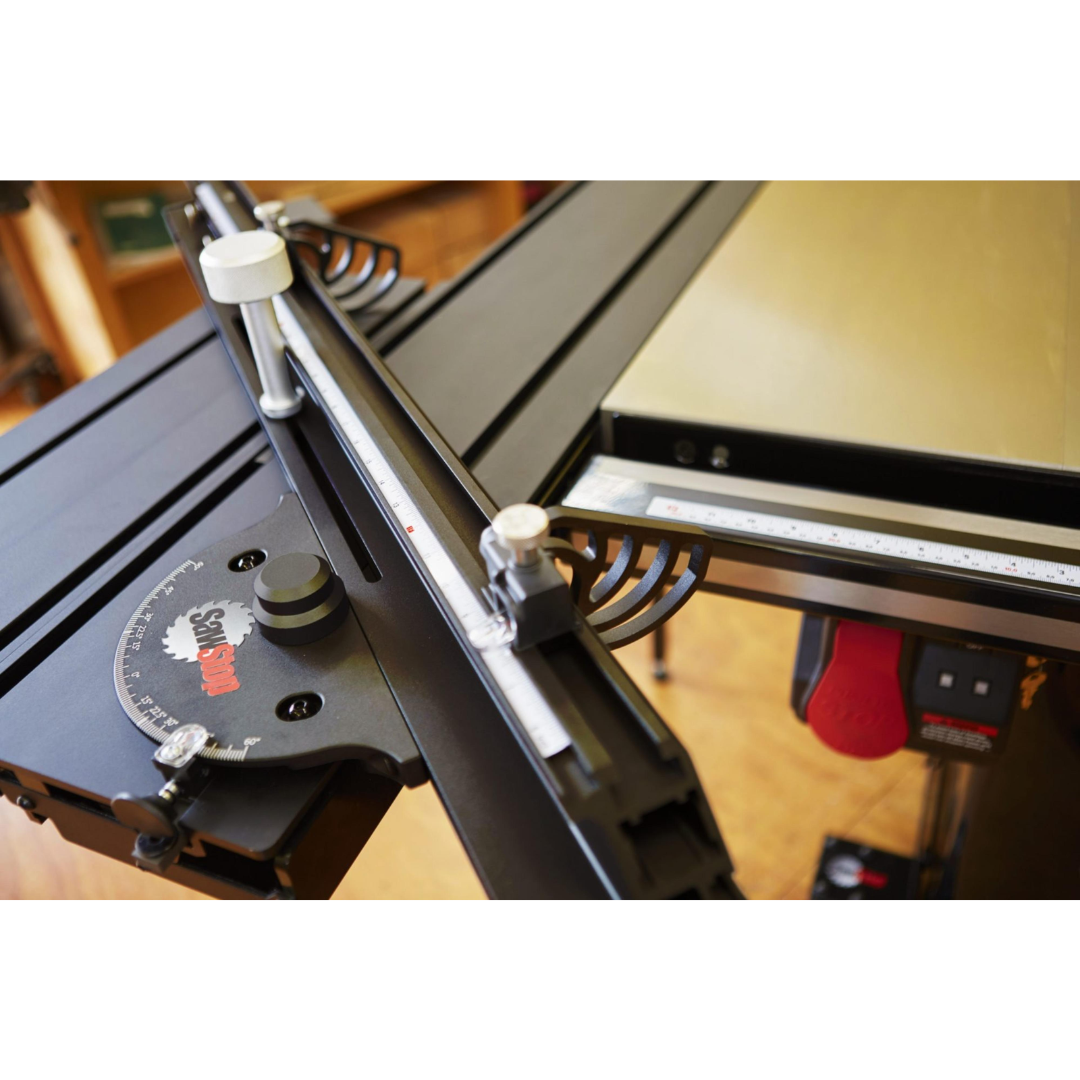

- Aircraft-grade T-6 6061 aluminum extrusions provide outstanding rigidity, dimensional stability, corrosion resistance, and long-term durability.

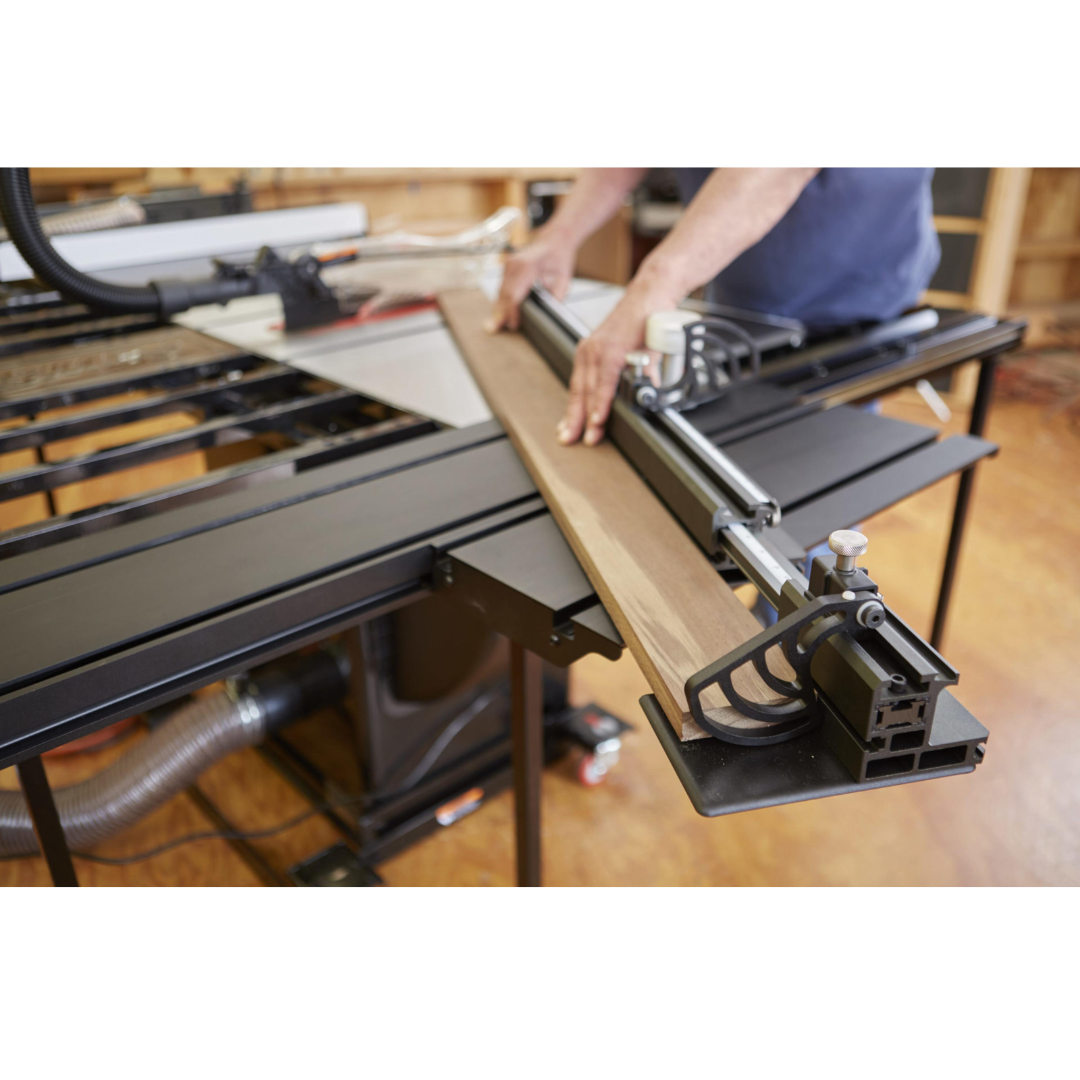

- Adjustable fence system allows users to position the fence closer to the blade for superior material support and cutting accuracy.
- Fence rotation up to ±60 degrees supports a wide variety of miter and angle-cutting applications while maintaining reliable alignment.
- Positive detents every 15 degrees simplify setup and improve repeatability for common angled cuts.

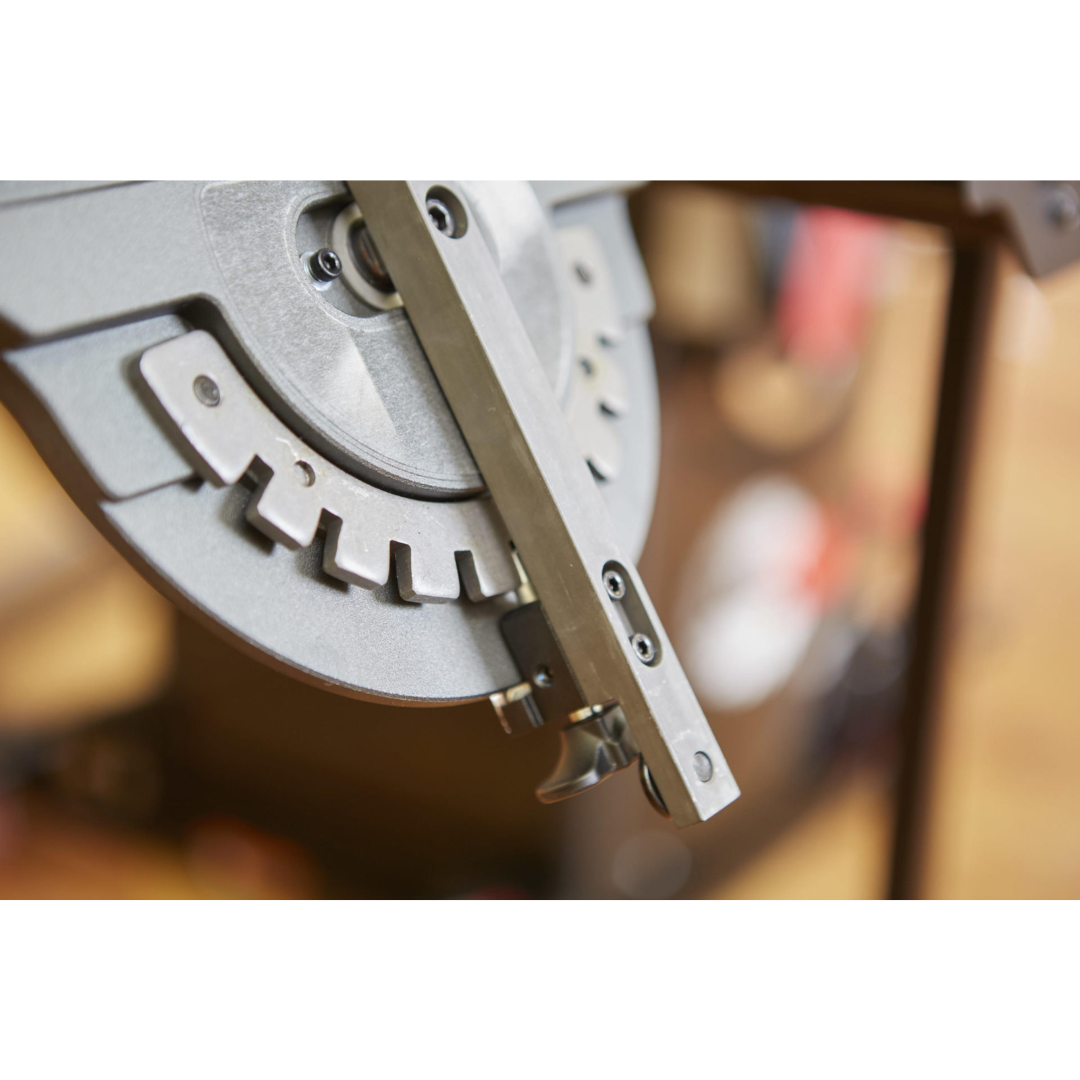

- Micro-adjustment capability helps fine-tune fence positioning for highly accurate detail work and production applications.
- 43-inch fence with extension capability to 58 inches provides exceptional support for larger panels and long stock.
- Zero-clearance compatibility allows users to easily install sacrificial fences for cleaner cuts and reduced tear-out.
- Dual large flip stops with magnified scales deliver fast, accurate, and repeatable length settings for production environments.
- Imperial and metric measuring scales support flexible measurement preferences and increased operator convenience.
SawStop Sliding Crosscut Table TSA-SA48 Included Components
- Sliding Table Assembly
- (2) Support Legs
- Fence Assembly
- Fence Extension Support Plate
- Extension Table Assembly
- (2) Large Flip Stops
- Knurled Pivot Handle
- 2" Grommet for CNS Saw
- Switch Box Mounting Bracket
- Owner's Manual
- (5) Hardware Packs
Why Choose the SawStop Sliding Crosscut Table TSA-SA48
- Provides up to 48 inches of crosscut capacity for handling larger workpieces.
- Precision bearing-supported sliding action delivers smooth operation under load.
- Fence rotates ±60 degrees with positive detents for accurate angle cuts.
- Micro-adjustment capability supports highly detailed woodworking applications.
- Aircraft-grade aluminum construction ensures long-term durability and precision.
- Large flip stops enable repeatable production cutting with minimal setup time.
- Compatible with SawStop Contractor, Professional Cabinet, and Industrial Cabinet Saws.
- Designed to improve workflow, accuracy, and productivity in professional woodworking environments.
The SawStop Sliding Crosscut Table TSA-SA48 combines premium construction, exceptional cutting precision, and production-level repeatability into one highly versatile crosscutting system. Whether you're processing sheet goods, building cabinetry, or creating precision furniture components, this sliding table delivers the accuracy, support, and smooth operation demanded by professional woodworkers.
