SawStop Router Lift RT-LFT Applications
- Professional cabinet and furniture manufacturing.
- Router table edge profiling, dado cutting, and joinery operations.
- Raised panel door production and decorative molding work.
- Precision pattern routing and template-guided machining.
- Custom woodworking shops requiring repeatable bit height adjustments.
- Educational woodworking facilities and advanced hobbyist workshops.
- Production environments where accurate setup changes improve efficiency.
Designed for woodworkers who require precise above-table adjustments, repeatable routing performance, and compatibility with multiple router motor sizes.

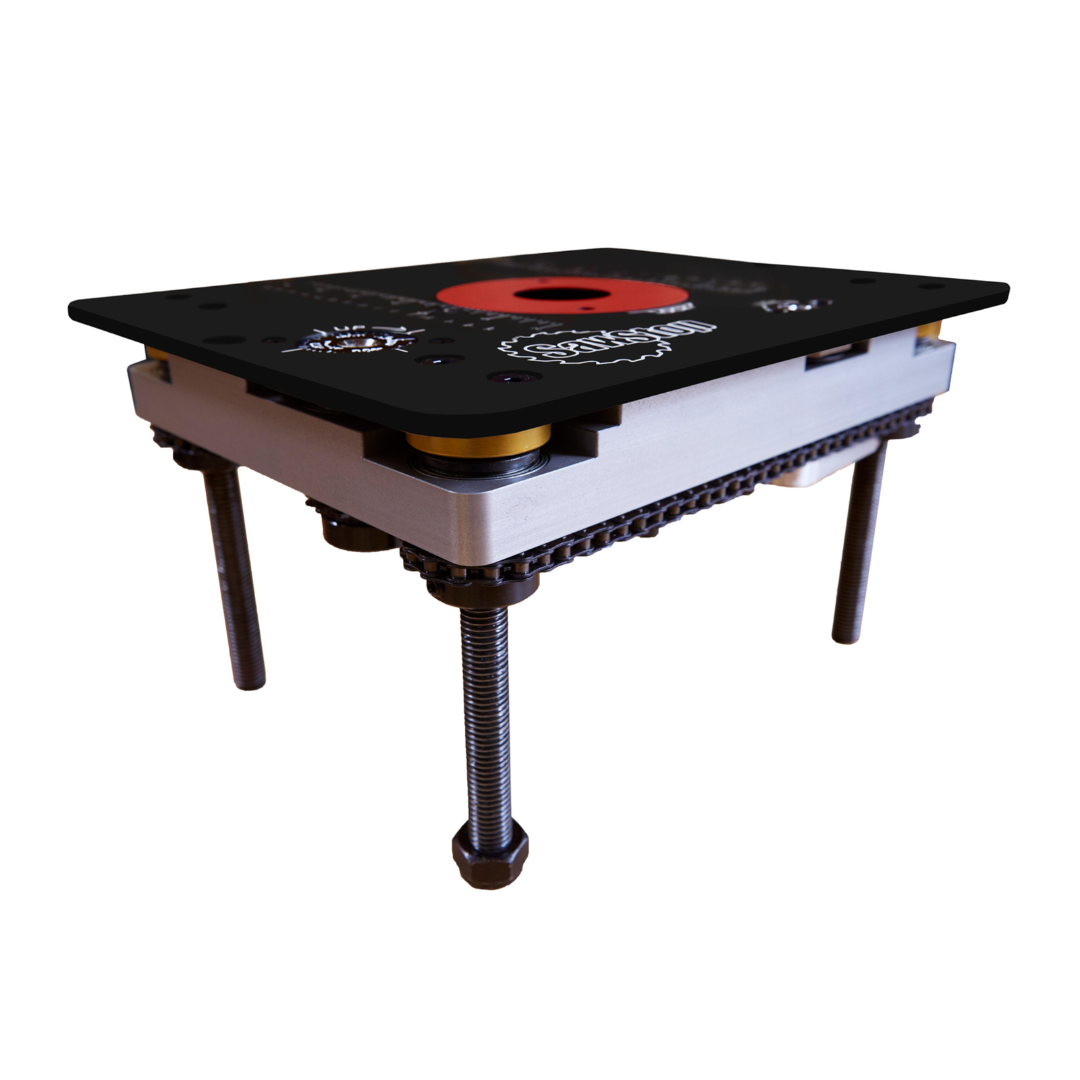

SawStop Router Lift RT-LFT Specifications
| Part Number | RT-LFT |
|---|---|
| Router Plate Material | Precision Aluminum Router Plate |
| Router Plate Size | 11 3/4" × 9 1/4" |
| Phenolic Insert Ring Diameter | 3 3/4" |
| Included Router Reducer Collars | 3 1/4" and 3 1/2" |
| Router Diameter Compatibility | 3.25", 3.5", or 4.0"–4.2" Routers |
| Overall Dimensions | 13" L × 10 1/4" W × 13 3/4" H |
| Dust Box Footprint | 14 3/4" × 12" |
SawStop Router Lift RT-LFT Performance & Construction

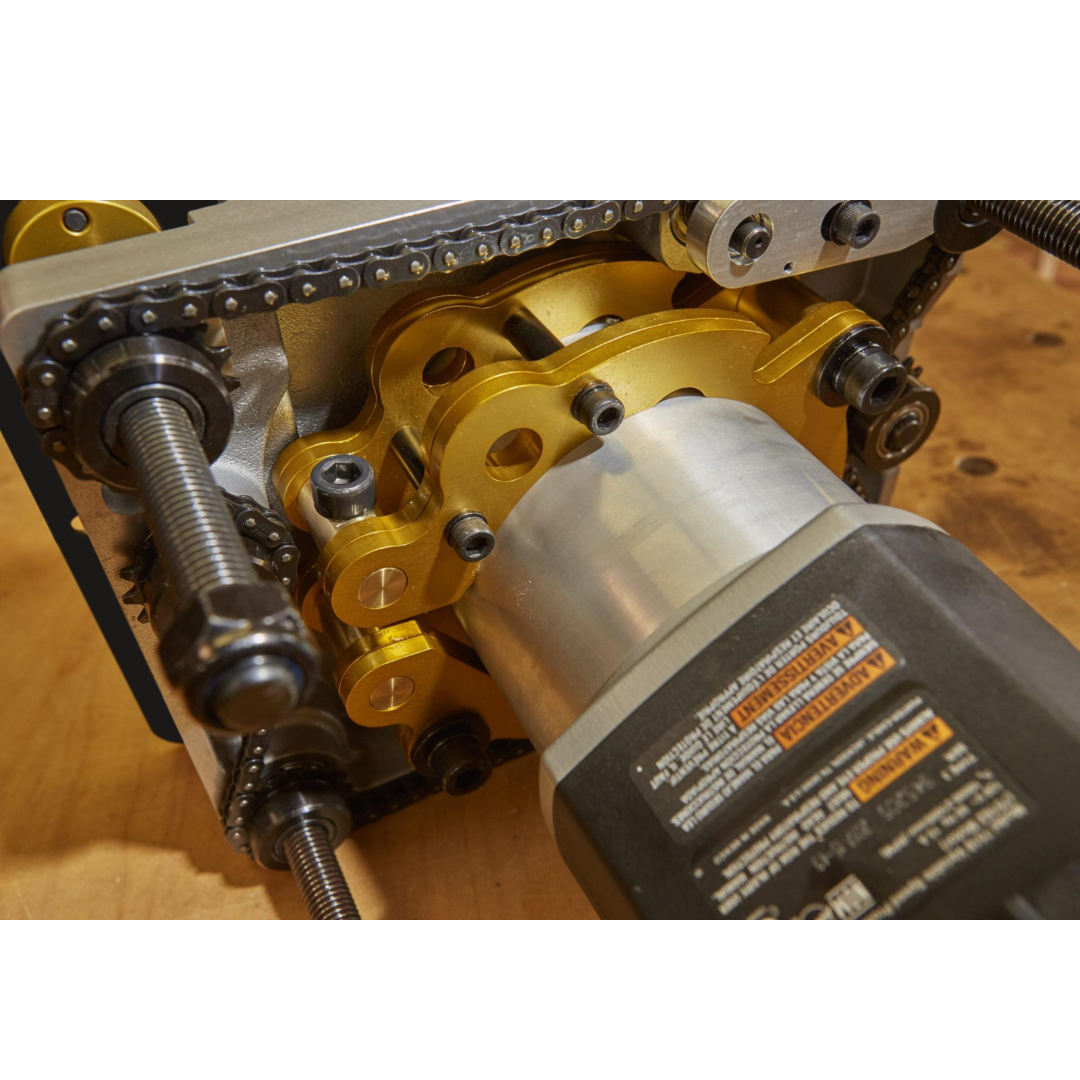

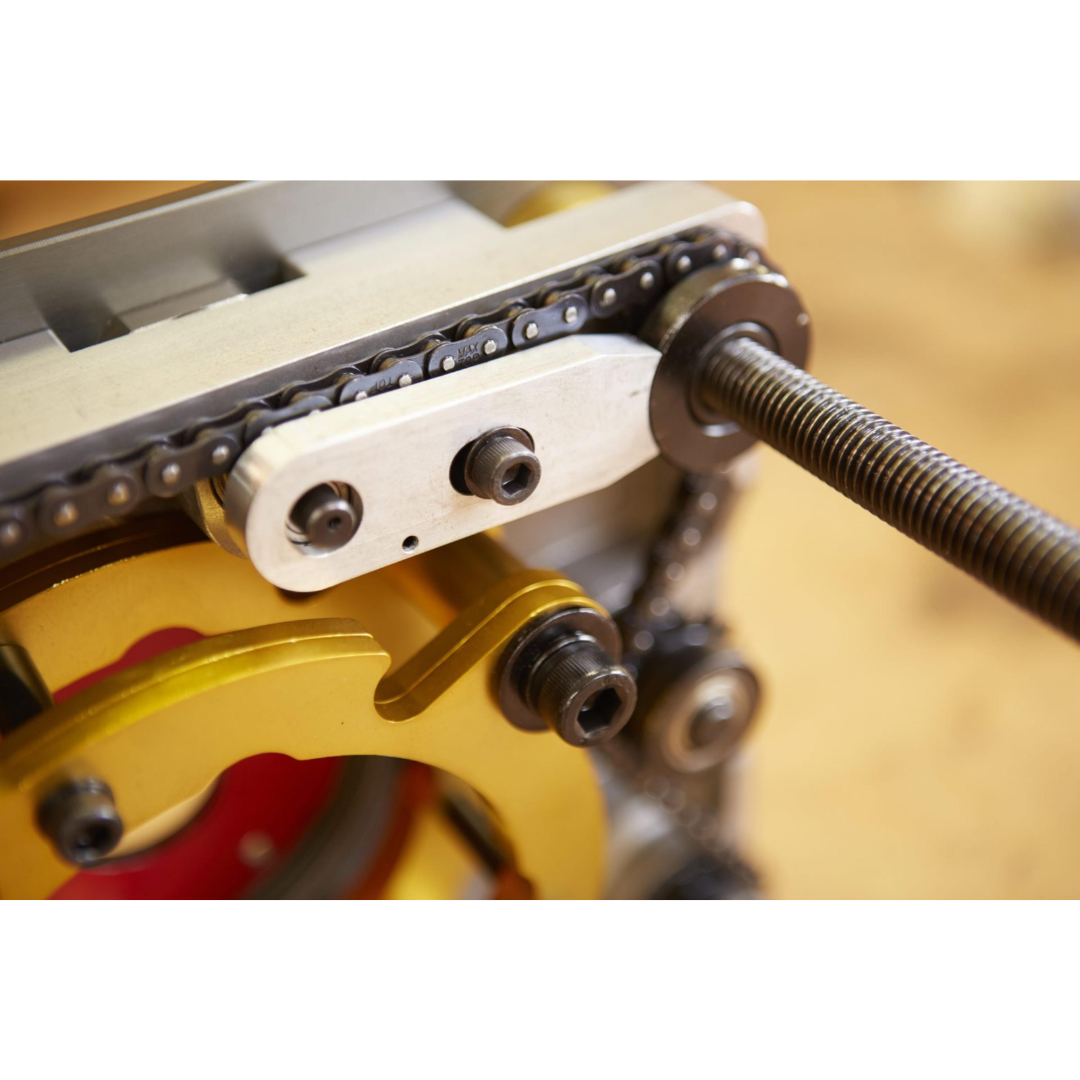

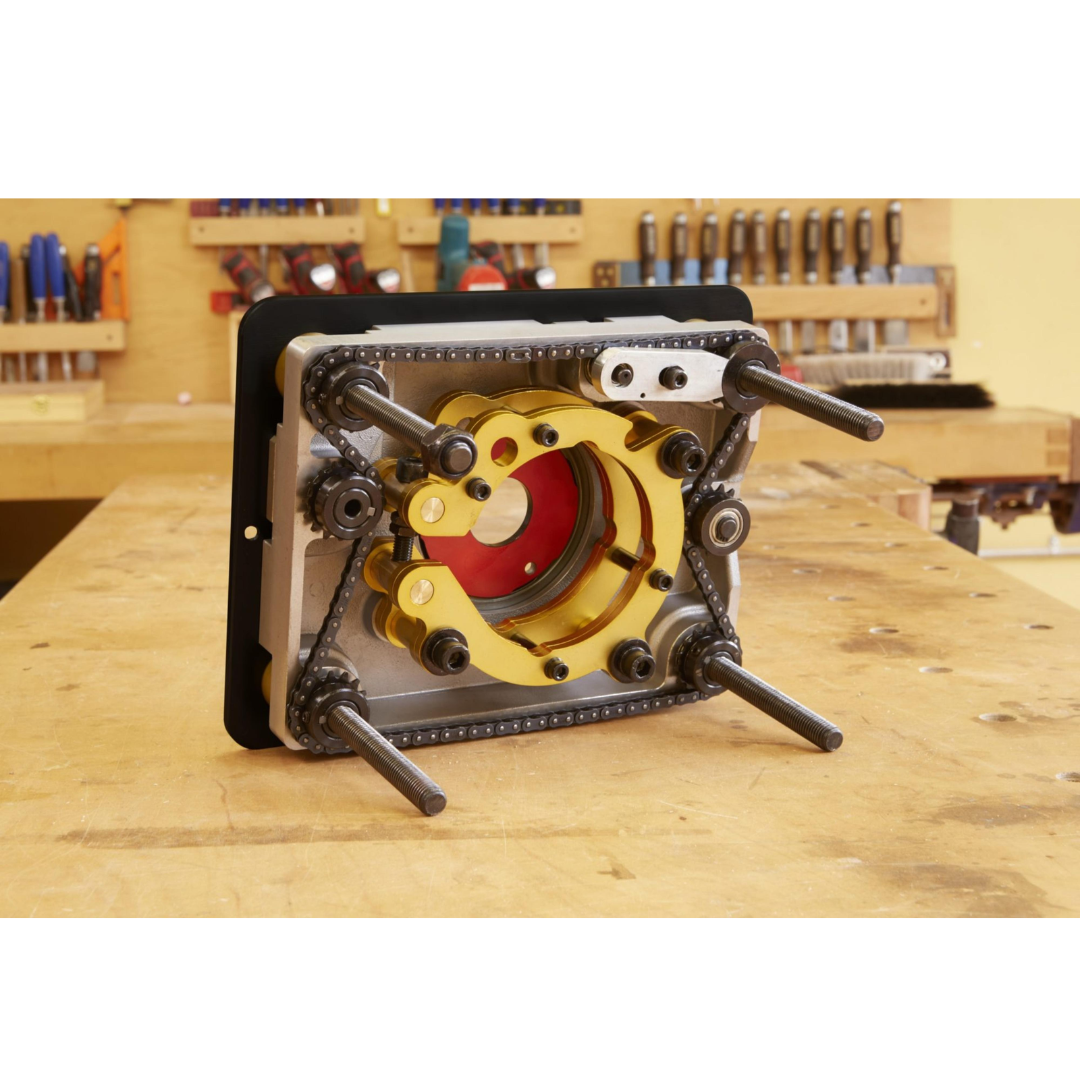

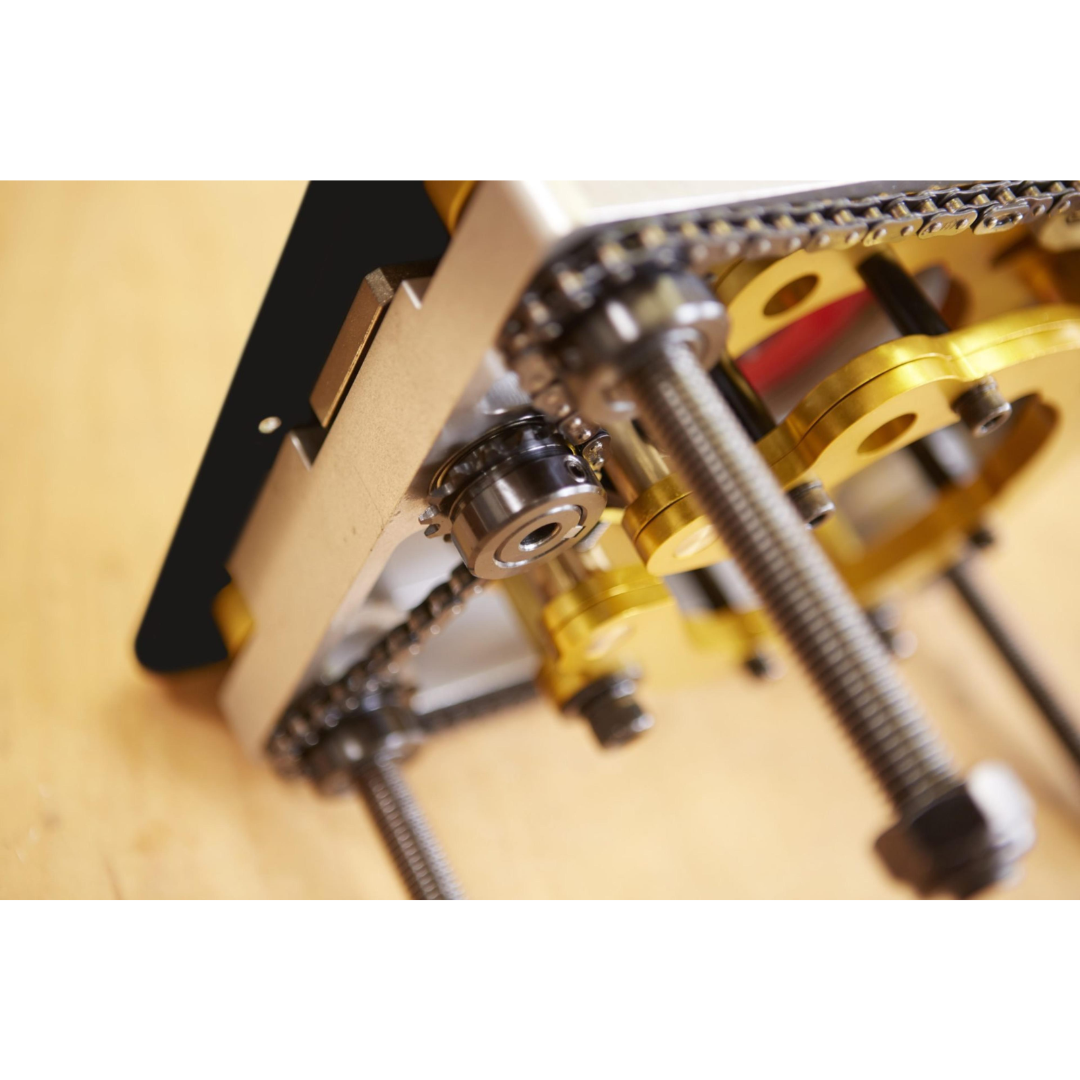

- Chain-Synchronized Four-Post Lift System provides exceptionally smooth, balanced lifting action while maintaining alignment throughout the full adjustment range.
- Precision Above-Table Adjustments allow accurate router bit height changes without removing the router from the table.
- Positive Locking Mechanism secures the router position during operation to help maintain consistent cutting depth.

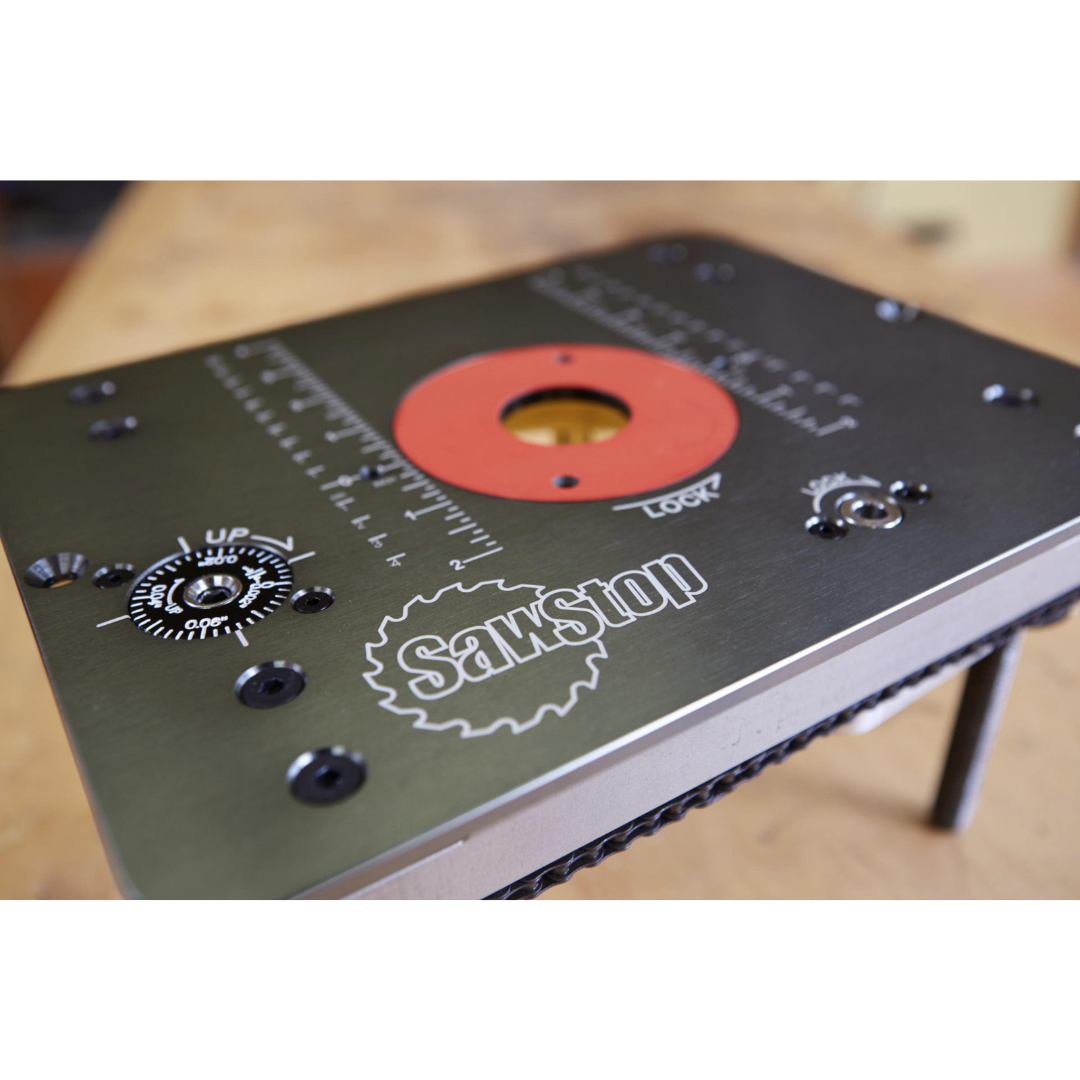

- Heavy-Duty Aluminum Router Plate delivers excellent rigidity and long-term dimensional stability.
- Adaptive Router Compatibility accommodates multiple router motor diameters through interchangeable reducer collars.
- Phenolic Insert Ring System helps optimize opening size around the cutting tool while supporting improved workpiece control.
- Precision Elevation Measurement assists users in achieving repeatable setups for production and custom routing tasks.
- Designed for SawStop Router Tables with a plate size that fits seamlessly into compatible SawStop router table systems.
SawStop Router Lift RT-LFT Included Components
- Four-Post Router Lift with Positive Lock Mechanism
- 1 1/2" Phenolic Router Table Insert Ring
- Insert Wrench
- (2) 3.5" Router Reducer Collars
- (1) 3.25" Router Reducer Collar
- 2.5mm Hex L-Wrench
- 3mm Hex L-Wrench
- 4mm Hex L-Wrench
- 6mm Hex L-Wrench
Everything needed for installation, router adaptation, insert ring adjustment, and precision setup is included with the SawStop Router Lift RT-LFT.
Why Choose the SawStop Router Lift RT-LFT
- Chain-synchronized four-post lifting system for smooth, accurate elevation control.
- Precision above-table adjustments improve workflow and setup efficiency.
- Positive locking mechanism helps maintain consistent cutting depth.
- Compatible with multiple router motor diameters using included reducer collars.
- Heavy-duty aluminum plate construction built for long-term professional use.
- Designed specifically to integrate with SawStop Router Tables.
- Ideal for cabinetmaking, furniture production, joinery, and precision routing applications.
The SawStop Router Lift RT-LFT combines professional-grade construction, exceptional adjustment precision, and versatile router compatibility to deliver the accuracy and reliability demanded by serious woodworkers and production shops.
