SawStop Revolution Miter Gauge TSA-RMG Applications
- Precision crosscutting on table saws.
- Cabinet and furniture manufacturing.
- Picture frames, architectural trim, and molding work.
- Multi-sided boxes and geometric woodworking projects.
- Production cutting requiring repeatable dimensions.
- Fine woodworking and custom joinery applications.
- Shop-built jig and fixture creation.
- Professional woodworking shops and advanced hobby workshops.
Designed for woodworkers who demand exceptional angle accuracy, smooth operation, repeatable cuts, and premium build quality from their miter gauge system.
SawStop Revolution Miter Gauge TSA-RMG Specifications
| Model Number | TSA-RMG |
|---|---|
| Miter Bar Length | 20" |
| Weight | 8.4 lbs. |
| Angle Range | 60° Left and Right |
| Fence Length (Retracted) | 19-1/2" |
| Fence Length (Fully Extended) | 37-1/2" |
| Fence Height | 3" |
| Miter Slot Compatibility | T-Shaped Slots - 3/4" Top, 1" Bottom, 3/8" Deep |
| Angle Adjustment Increments | 1°, 1/2°, 1/4°, and 1/10° |
| Maximum Repeatable Crosscut Capacity | 37-1/2" |
| Miter Plate Manufacturing Tolerance | Less Than .001" |
SawStop Revolution Miter Gauge TSA-RMG Performance & Construction

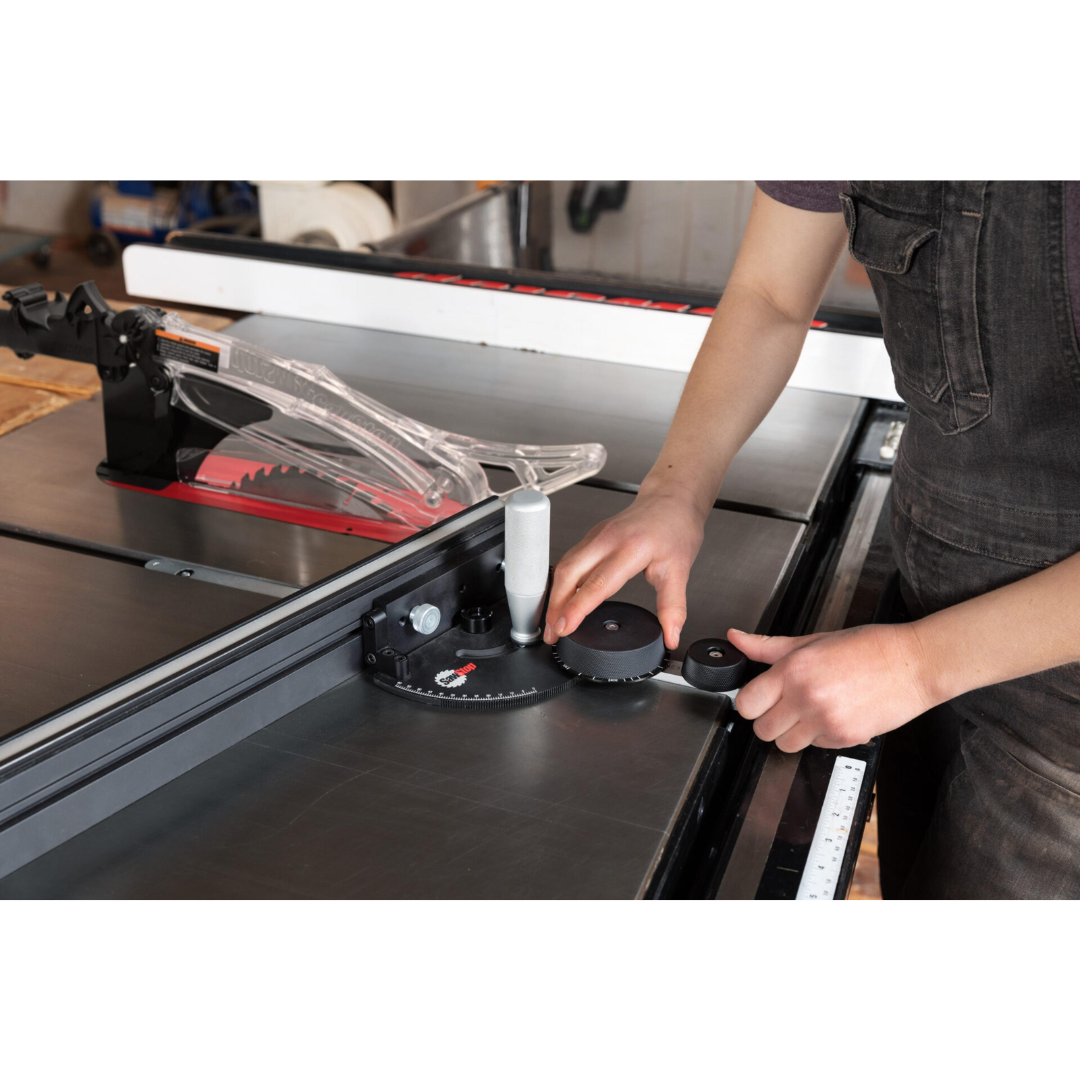

- Innovative geared angle adjustment dial allows users to quickly and accurately set angles with exceptional precision and repeatability.
- Selectable angle increments of 1°, 1/2°, 1/4°, and 1/10° provide unmatched control for demanding woodworking applications.
- Tactile positive-click feedback ensures each angle setting positively engages, helping eliminate guesswork during setup.
- Free-turn capability allows users to bypass the geared indexing system when custom angle positioning is required.
- Clearly identified common angle settings including 0°, 22-1/2°, 30°, and 45° improve workflow and setup efficiency.

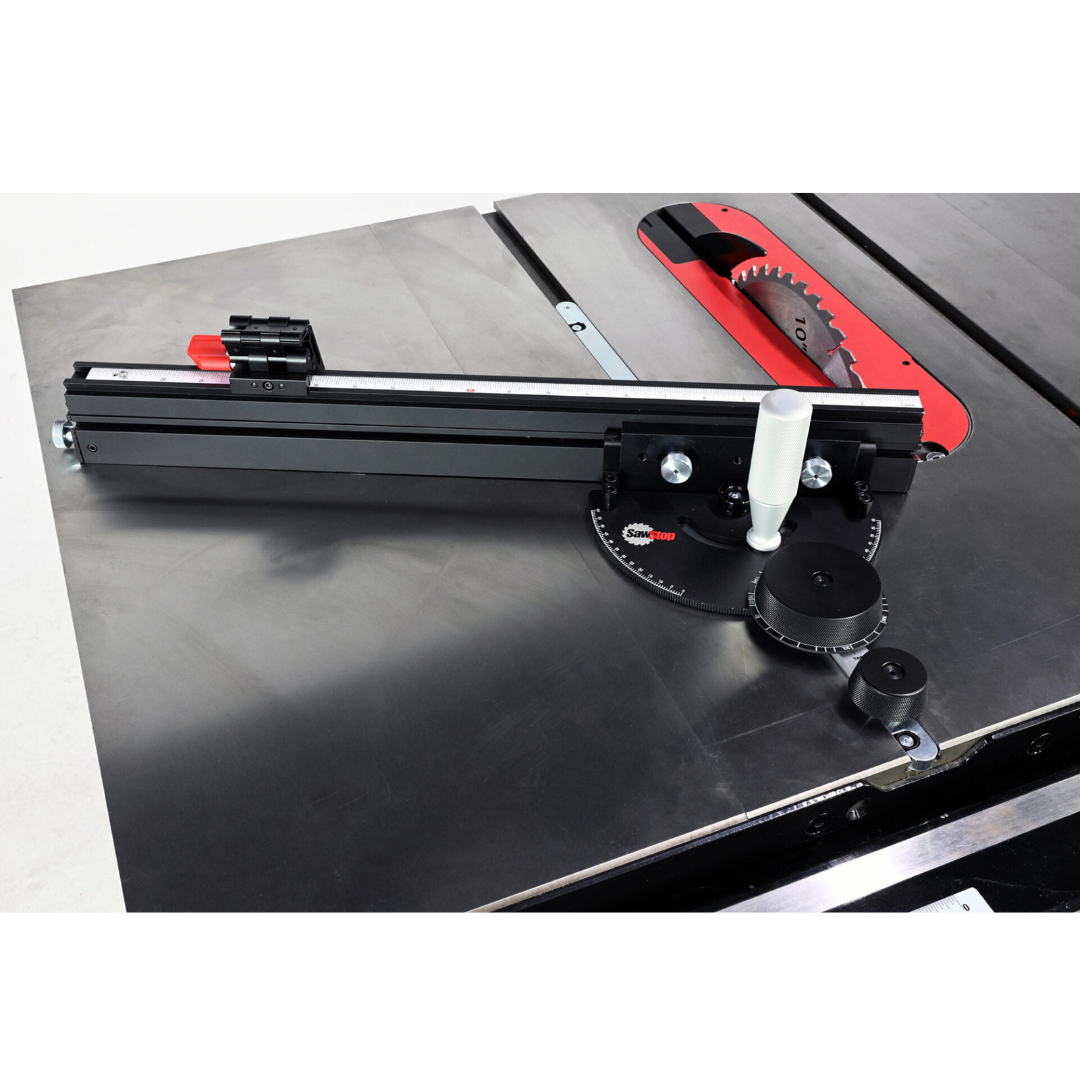

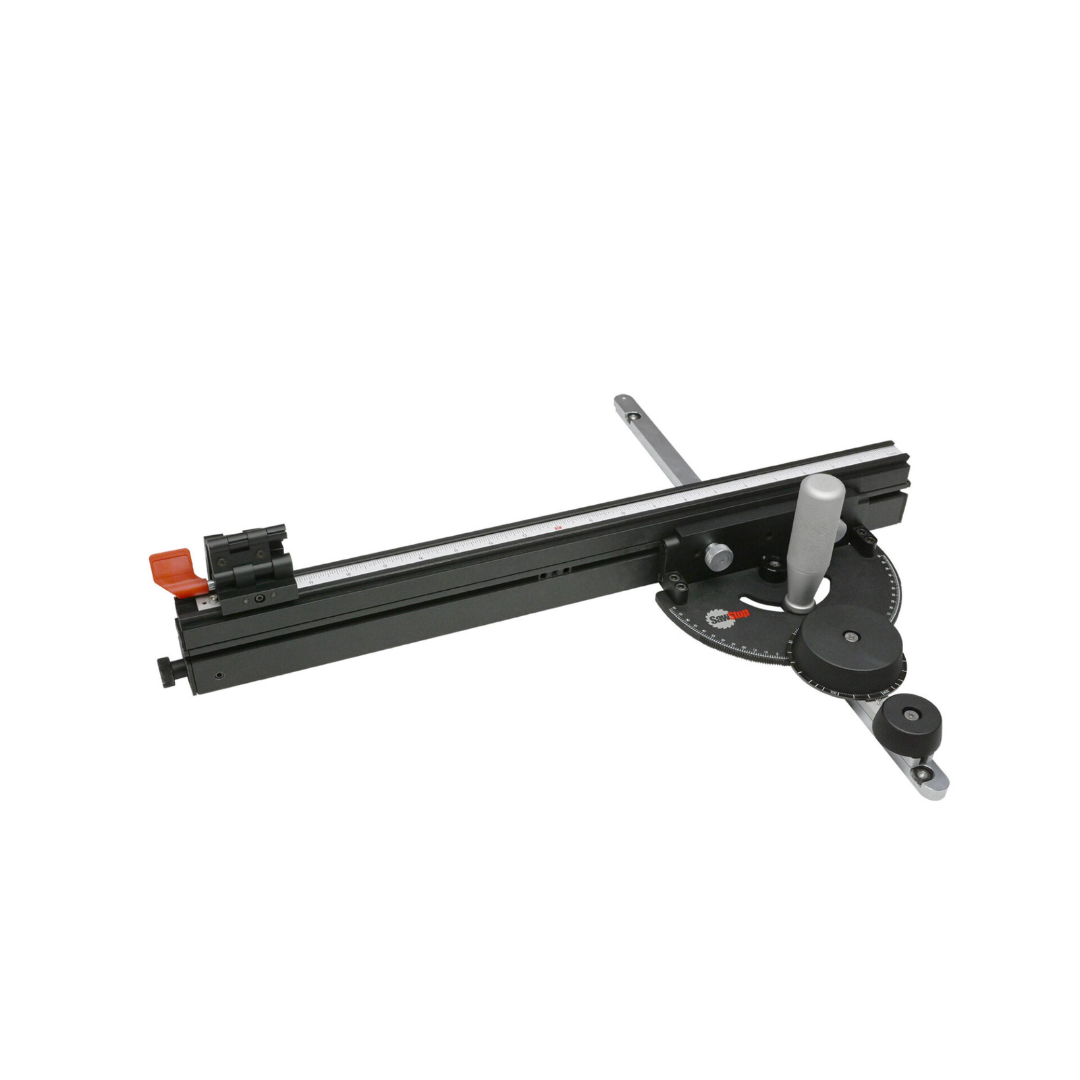

- Extruded aluminum telescoping fence provides a rigid, stable reference surface while extending from 19-1/2 inches to 37-1/2 inches for larger workpieces.
- Reversible fence design operates equally well in either left or right miter slots for maximum versatility.
- Sliding wedge attachment system simplifies the installation of sacrificial fences, stops, accessories, and custom jigs.
- Tool-free articulating flip stop enables repeatable cuts up to 37-1/2 inches while maintaining fast setup and adjustment.
- Integrated micro-adjustment system allows precise fine-tuning of cut lengths without repositioning the flip stop.
- Flip stop mounting provisions support custom jig attachments and locking configurations using the wedge system.

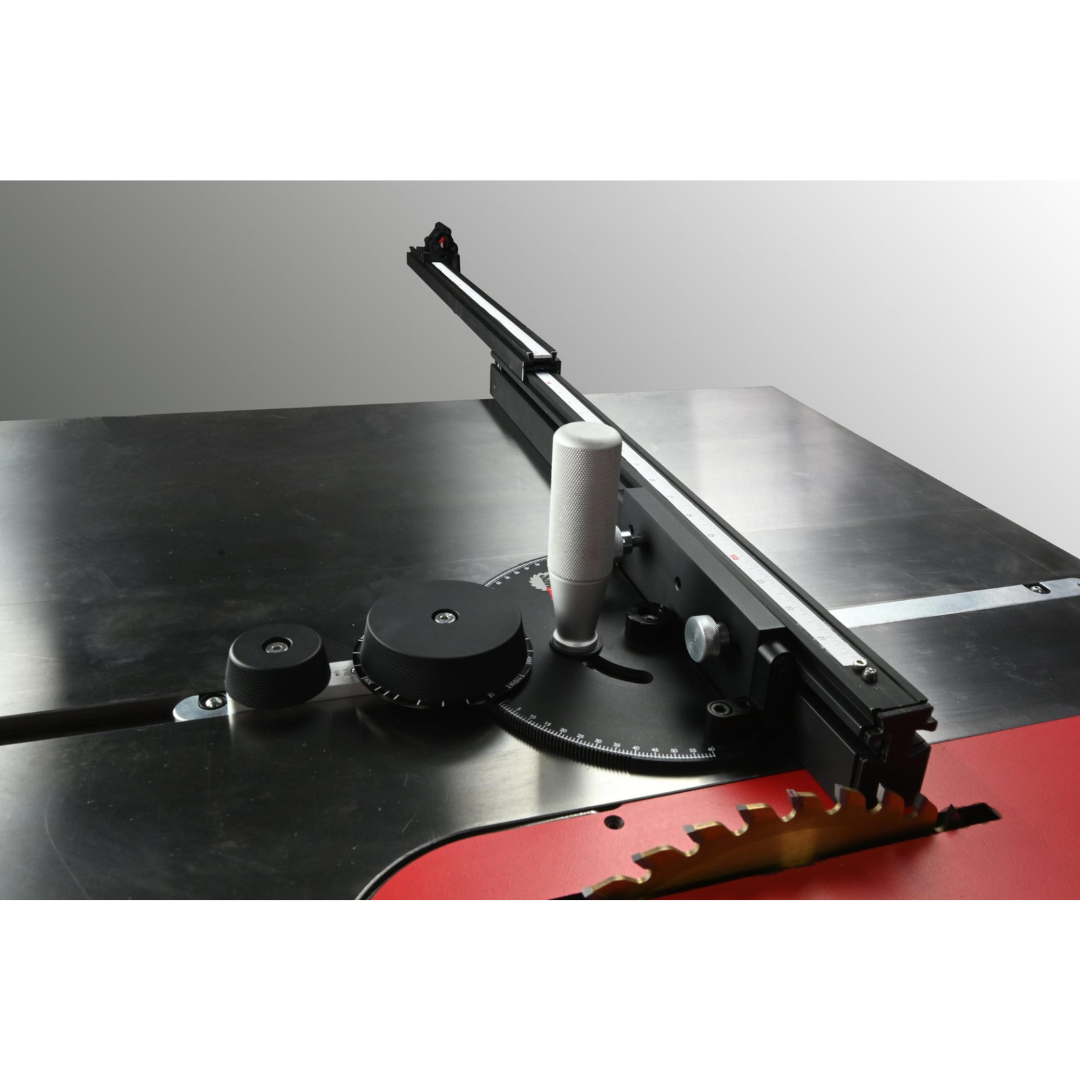

- Heavy-duty steel miter plate manufactured to machine tolerances of less than .001 inch delivers exceptional accuracy and durability.
- Anti-tip support washer fits 3/8" × 3/4" T-shaped miter slots to maintain gauge stability during wide crosscuts.
- Removable washer design allows compatibility with non-T-shaped miter slots when required.
- Three adjustable expansion pucks eliminate side-to-side movement within the miter slot for smoother travel and more accurate cuts.
SawStop Revolution Miter Gauge TSA-RMG Included Components
- Miter Gauge Body and Miter Bar Assembly
- Telescoping Fence
- Flip Stop Assembly
- (6) Sliding Wedges
- (3) Thumbscrews
- (1) 2mm Hex Wrench
- (1) 2.5mm Hex Wrench
- (1) 3mm Hex Wrench
- (1) 4mm Hex Wrench
Why Choose the SawStop Revolution Miter Gauge TSA-RMG
- Precision angle adjustments down to 1/10° increments.
- Geared indexing system with tactile feedback for reliable accuracy.
- Heavy-duty steel miter plate manufactured to less than .001" tolerances.
- Telescoping fence extends to 37-1/2" for larger crosscut applications.
- Micro-adjustable flip stop enables highly repeatable production cuts.
- Reversible fence design supports left and right miter slot operation.
- Adjustable expansion pucks eliminate miter slot play.
- Built for professional woodworking, cabinetry, furniture making, and precision joinery.
The SawStop Revolution Miter Gauge TSA-RMG combines innovative angle-setting technology, premium construction, and exceptional repeatability to create one of the most precise and versatile miter gauges available. Whether you're building furniture, cutting cabinetry components, creating frames, or producing complex geometric projects, this system delivers the confidence and accuracy needed for professional-quality results.
