SawStop Revolution Miter Gauge Systainer TSA-RMG-SYS Applications
- Precision crosscutting on table saws.
- Cabinet and furniture manufacturing.
- Picture frames, door frames, and trim work.
- Multi-sided boxes and geometric woodworking projects.
- Repeatable production cutting with stop systems.
- Custom jig building and specialty woodworking setups.
- Fine woodworking requiring highly accurate angle settings.
- Professional and advanced hobbyist workshops seeking superior miter control.
Ideal for woodworkers who demand exceptional accuracy, repeatable setups, organized storage, and fast angle adjustments for both production and custom projects.
SawStop Revolution Miter Gauge Systainer TSA-RMG-SYS Specifications
| Model Number | TSA-RMG-SYS |
|---|---|
| Systainer Outside Dimensions | 9" H × 31-1/8" W × 11-3/4" D |
| Systainer Inside Dimensions | 7-1/2" H × 31" W × 11" D |
| Weight (Full) | 8 lbs. |
| Maximum Repeatable Crosscut Capacity | 37-1/2" |
| Angle Adjustment Increments | 1°, 1/2°, 1/4°, and 1/10° |
| Common Preset Angles | 0°, 22-1/2°, 30°, and 45° |
| Fence Type | Extruded Aluminum Telescoping Fence |
| Miter Plate Tolerance | Less than .001" |
| Miter Bar Adjustment | Three Adjustable Expansion Pucks |
| Miter Slot Compatibility | Standard and 3/8" × 3/4" T-Shaped Slots |
SawStop Revolution Miter Gauge Systainer TSA-RMG-SYS Performance & Construction

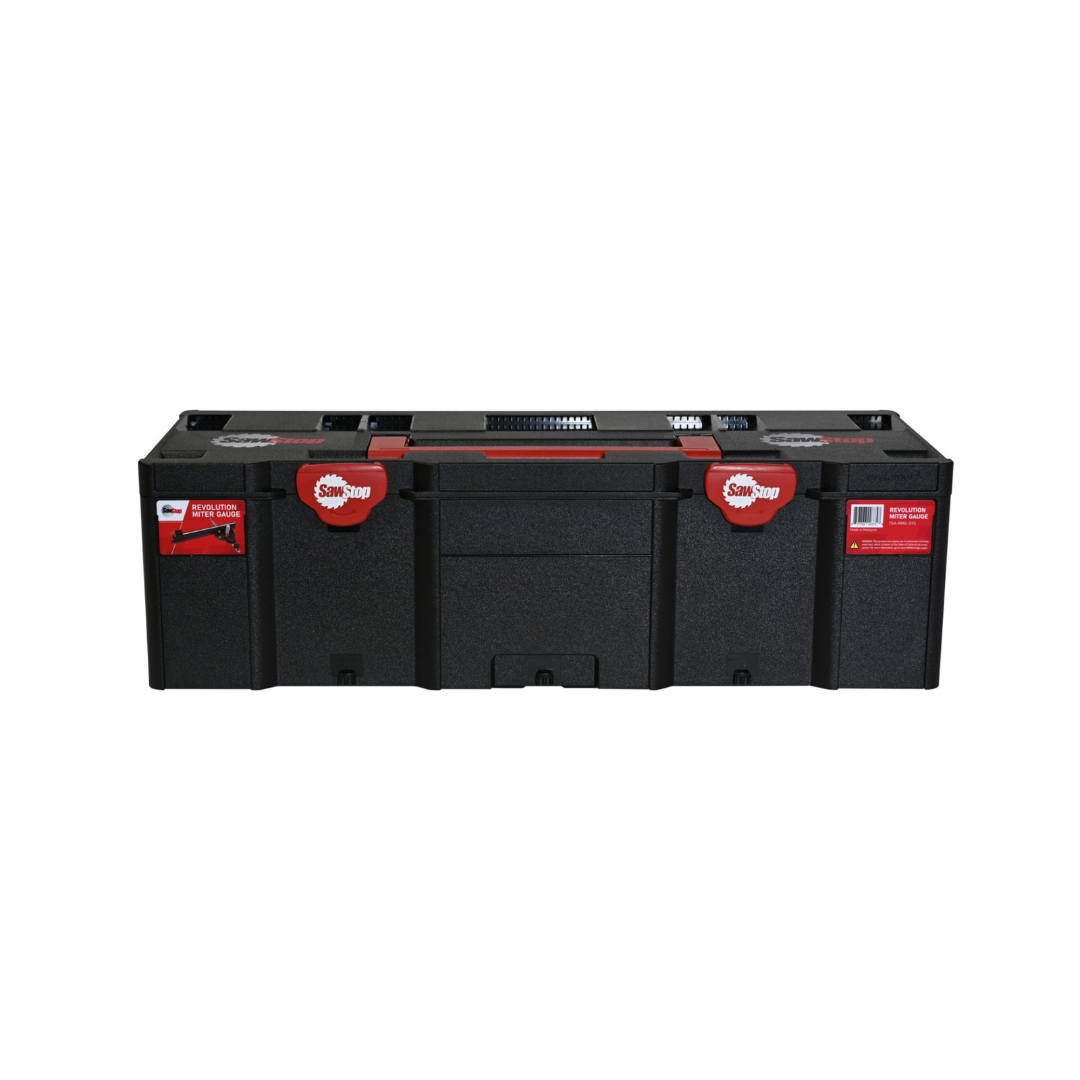

- Premium Systainer storage system stacks and links with compatible Systainers using a simple one-handed latch mechanism for organized workshop storage and transport.

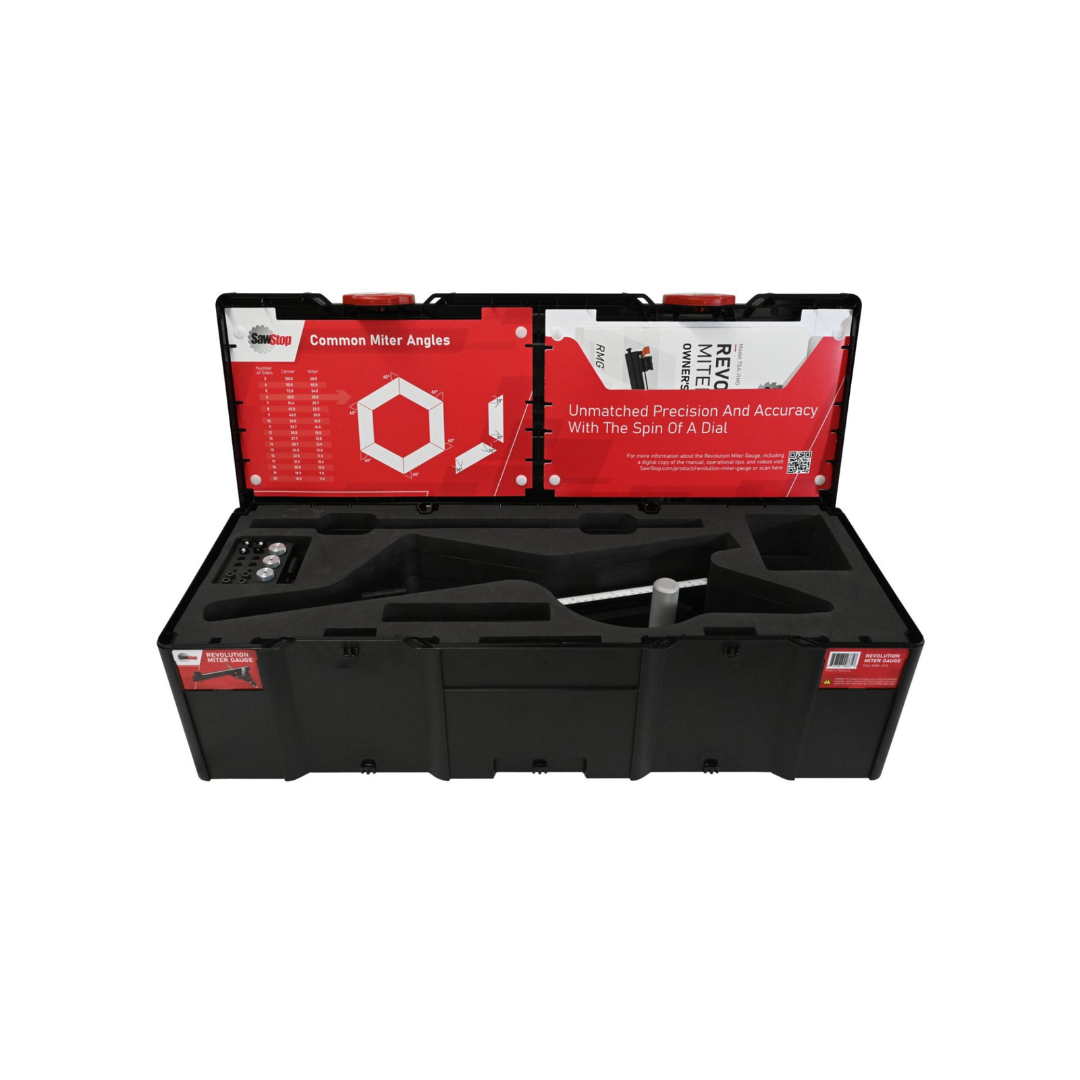

- Custom-cut foam insert securely holds the Revolution Miter Gauge, screws, wedges, wrenches, accessories, and even provides space for a user-supplied sacrificial fence.
- Geared precision angle adjustment dial allows fast, accurate angle changes with selectable increments of 1°, 1/2°, 1/4°, and 1/10°.
- Tactile positive-click positioning provides physical feedback when settings are engaged, helping ensure repeatable and reliable angle adjustments.
- Free-turn mode capability allows users to bypass the geared indexing system for custom angle setups when needed.
- Clearly marked common miter angles including 0°, 22-1/2°, 30°, and 45° speed up workflow and setup time.

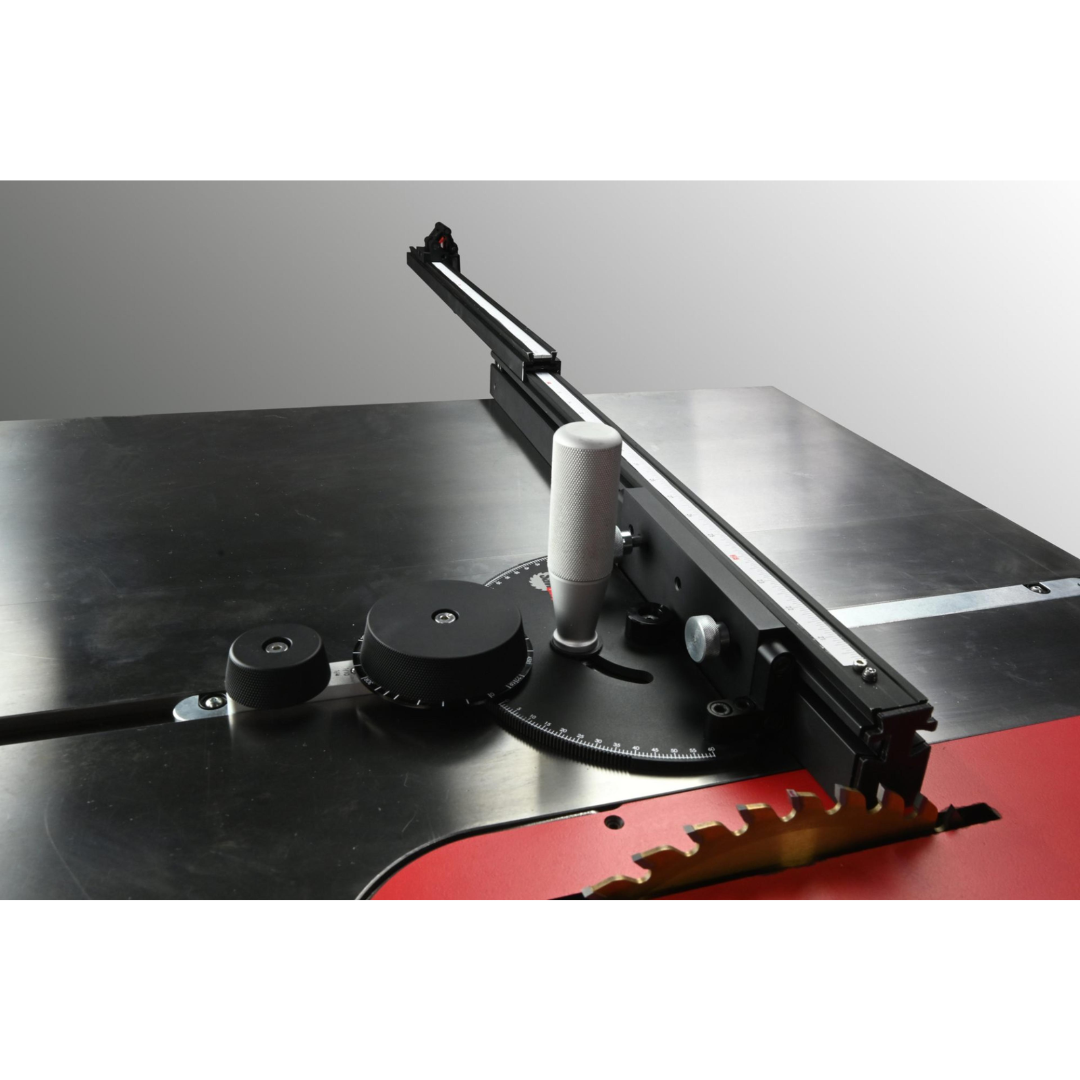

- Extruded aluminum telescoping fence delivers exceptional rigidity, support, and precision for larger workpieces while extending cutting versatility.
- Reversible fence design works equally well in either left or right table saw miter slots without sacrificing accuracy.
- Sliding wedge attachment system simplifies installation of sacrificial fences, stops, jigs, and accessories.

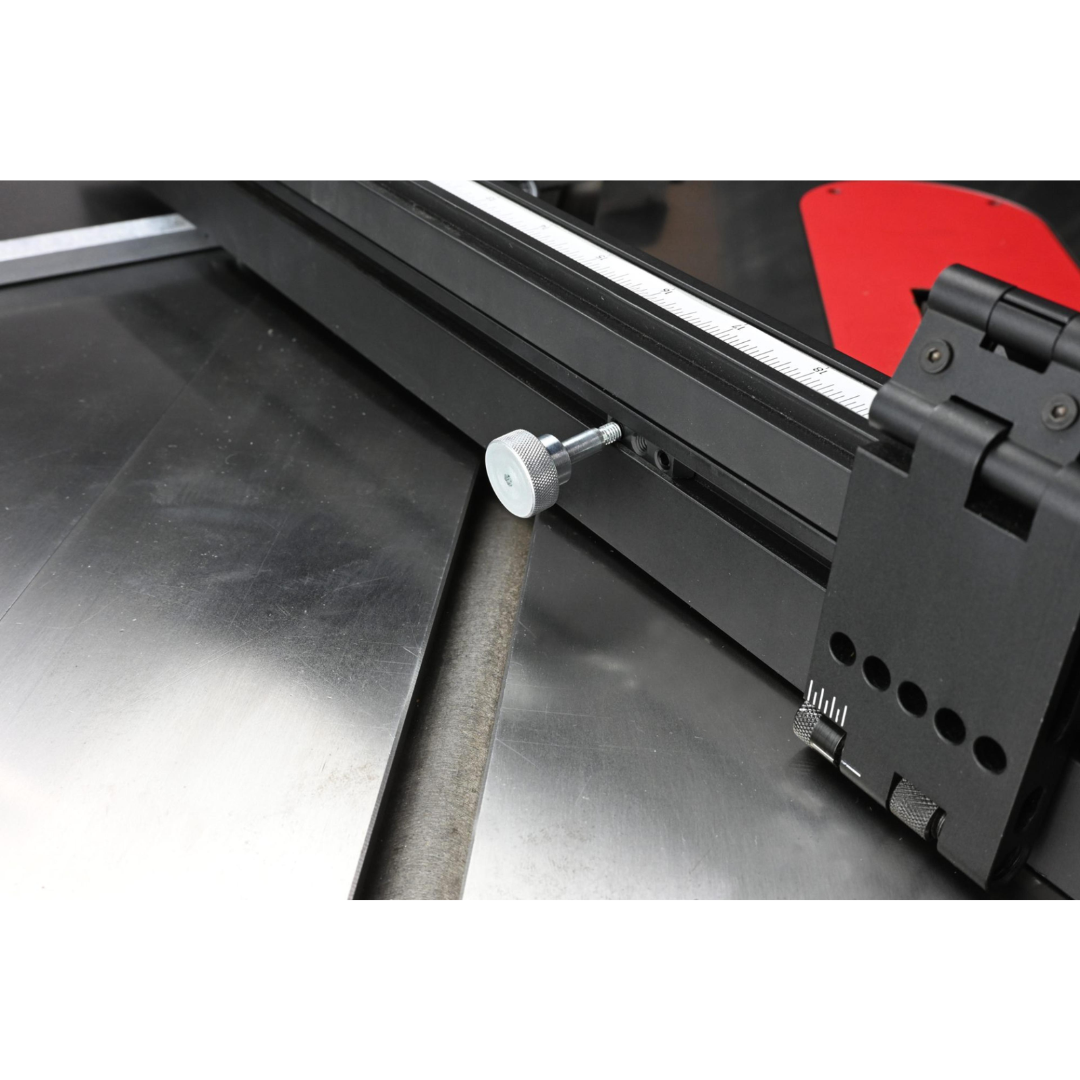

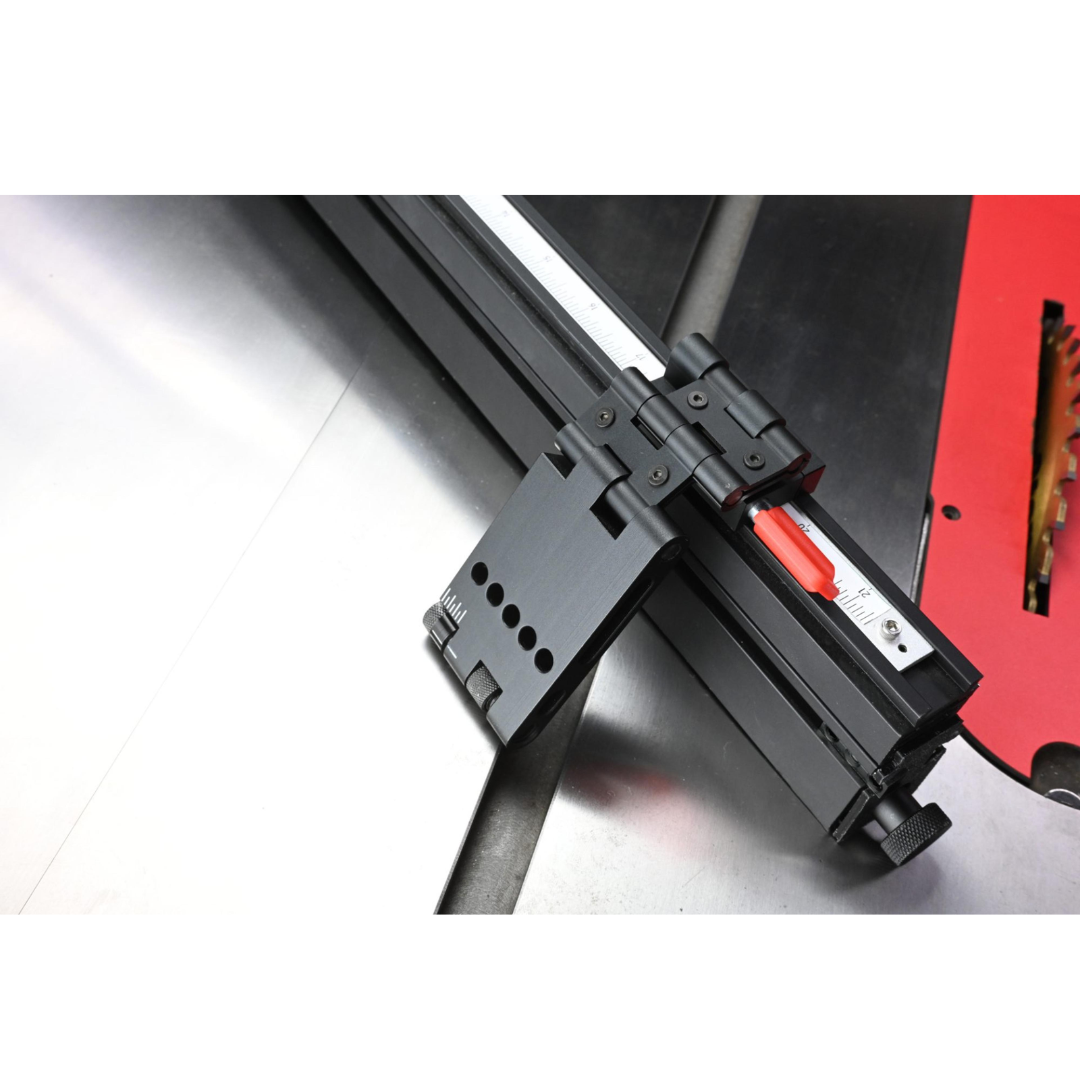

- Tool-free articulating flip stop enables repeatable cuts up to 37-1/2 inches while maintaining fast setup and adjustment.
- Integrated micro-adjustment system fine-tunes cut lengths without repositioning the flip stop, improving precision and productivity.
- Heavy-duty steel miter plate manufactured to machine tolerances of less than .001 inch for outstanding accuracy and smooth operation.
- Anti-tip support washer maintains stability in T-shaped miter slots during wide crosscuts and can be removed when using standard slots.
- Three adjustable expansion pucks eliminate side-to-side play within the miter slot, maximizing cutting precision.
- Project angle reference chart conveniently located inside the lid provides angle settings for multi-sided projects with up to 20 sides.
SawStop Revolution Miter Gauge Systainer TSA-RMG-SYS Included Components
- (1) XXL237 Systainer Storage Case (9" × 31" × 11-3/4")

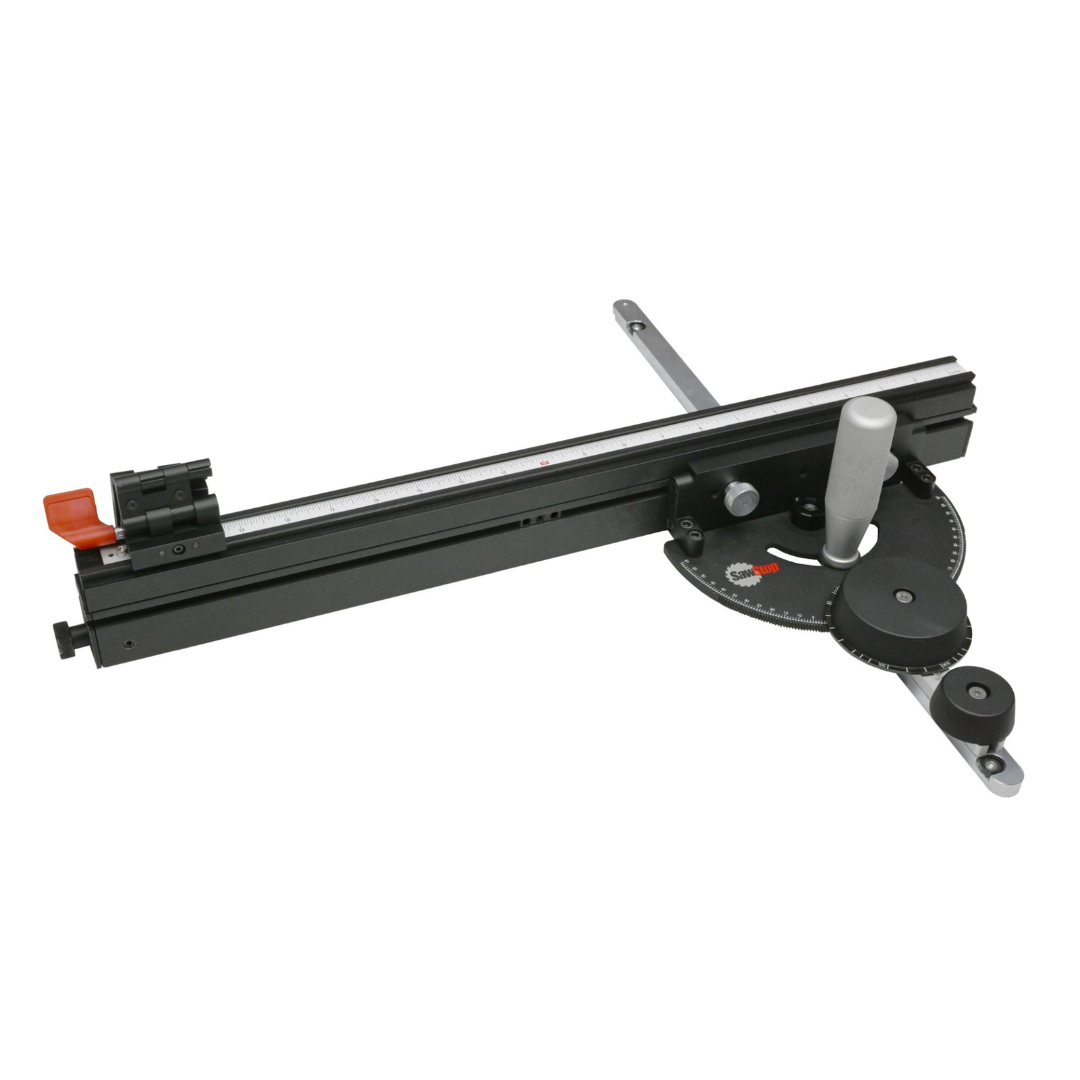

- (1) Revolution Miter Gauge
- (3) Extra Thumb Screws
- (4) Extra Wedge Clamps
- (6) M6 Flat-Head Screws for Sacrificial Fence Installation
- (1) Hex Key Set
- Custom-Cut Foam Storage Insert
SawStop Revolution Miter Gauge Systainer TSA-RMG-SYS Safety Information
WARNING: This product can expose you to chemicals including wood dust, which is known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov.
Why Choose the SawStop Revolution Miter Gauge Systainer TSA-RMG-SYS
- Exceptional angle-setting precision with adjustments down to 1/10° increments.
- Professional-grade geared dial system with tactile feedback.
- Durable modular Systainer storage and transportation solution.
- Custom foam insert keeps every component secure and organized.
- Repeatable crosscuts up to 37-1/2 inches with integrated flip stop.
- Micro-adjustment capability for highly accurate production work.
- Compatible with standard and T-shaped miter slots.
- Heavy-duty steel and aluminum construction engineered for long-term accuracy.
- Built-in project angle reference chart simplifies complex woodworking layouts.
The SawStop Revolution Miter Gauge Systainer TSA-RMG-SYS delivers professional-grade accuracy, repeatability, and organization in one complete package. From fine furniture and cabinetry to complex geometric projects and production cutting, this system provides the precision, durability, and convenience serious woodworkers demand.
