SawStop Professional Cabinet Saw Applications
- Professional cabinet and millwork production
- Furniture manufacturing and fine woodworking
- Custom woodworking shops and production facilities
- Educational woodworking programs and trade schools
- Architectural millwork and trim fabrication

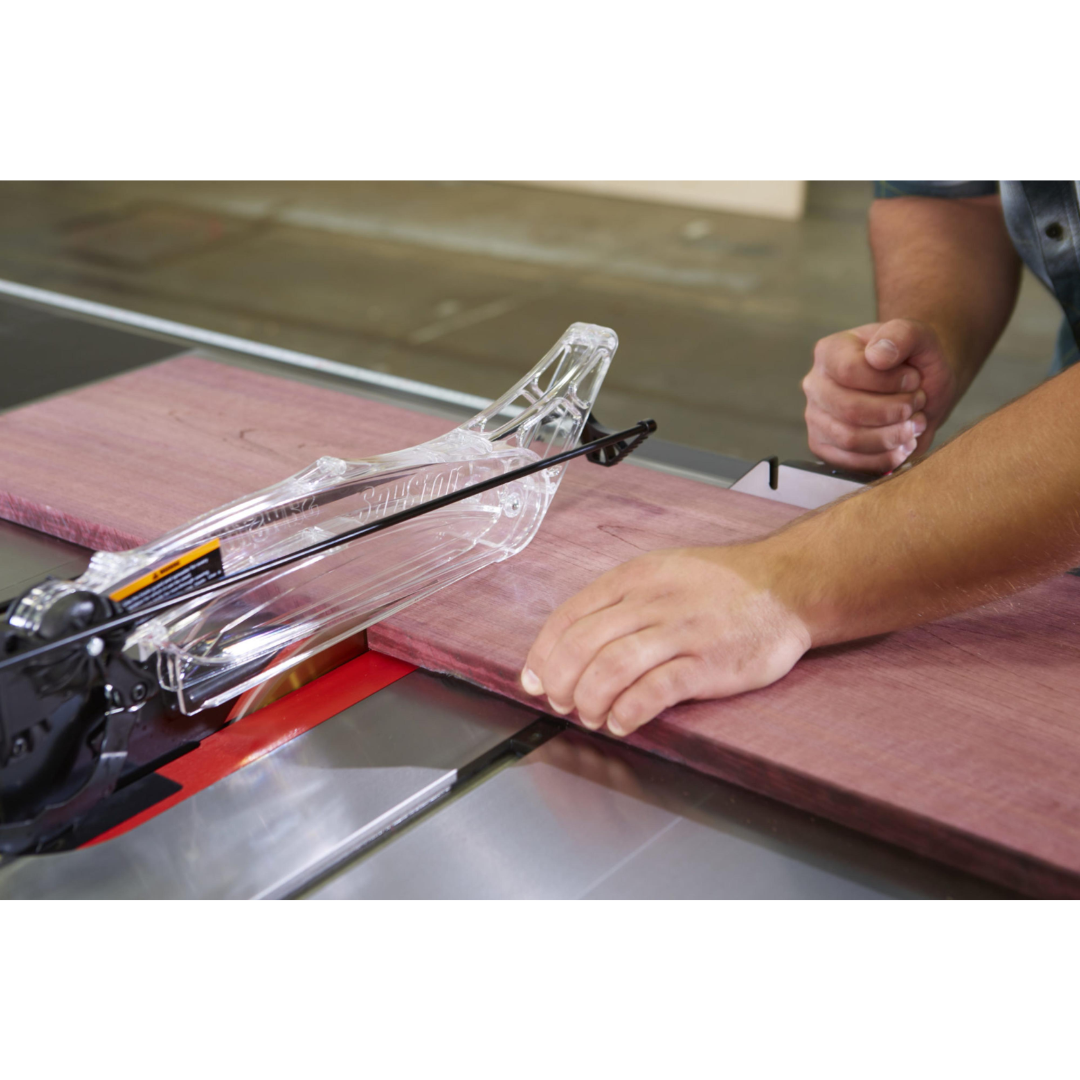

- Precision ripping, crosscutting, beveling, and joinery work
- Processing hardwoods, plywood, MDF, melamine, and composite materials
- High-volume woodworking operations requiring exceptional accuracy
The SawStop Professional Cabinet Saw is engineered for woodworkers who require industrial-level precision, exceptional durability, superior dust collection, and the highest level of table saw safety available.
SawStop Professional Cabinet Saw Specifications

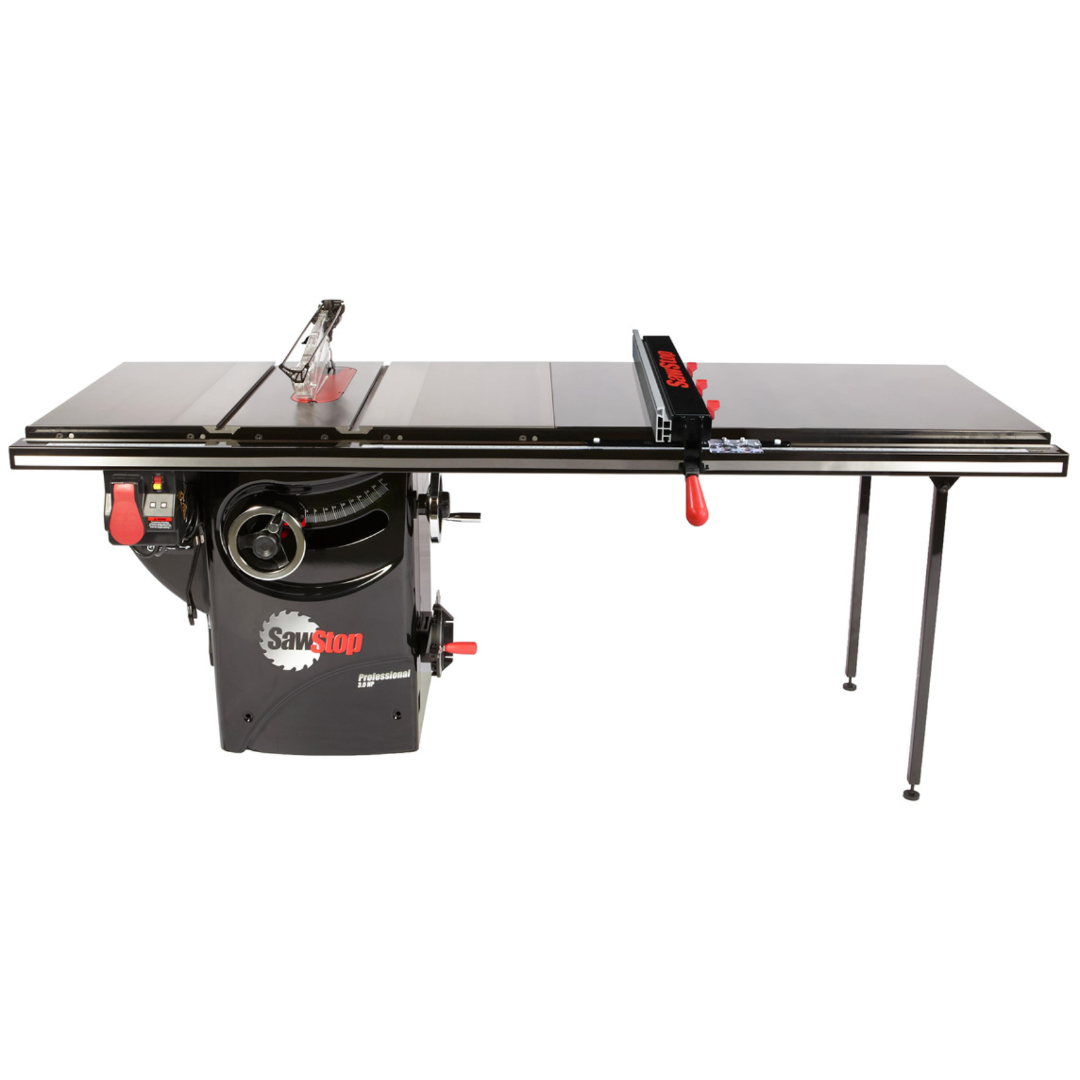

| Assembly Configuration | PCS31230-ATGP52 Professional Cabinet Saw with 52" Professional T-Glide Fence System, Rails & Extension Table |
|---|---|
| Motor Power | 3 HP TEFC Motor |
| Electrical Configuration | 230V, Single Phase, 13A, NEMA 6-15P Plug with 9' Cord |
| Blade Diameter | 10" |
| Included Blade | 40-Tooth Professional Grade Blade |
| Arbor Diameter | 5/8" |
| Dado Blade Capacity | 8" Dado Set Compatible |
| Maximum Dado Width | 29/32" |
| Maximum Depth of Cut at 0° | 3-1/8" |
| Maximum Depth of Cut at 45° | 2-1/4" |
| Maximum Rip Capacity Right of Blade | 52" |
| Maximum Rip Capacity Left of Blade | 12" |
| Blade Tilt | Left Tilt |
| Overall Dimensions | 85-1/4" W x 33" D x 34" H |
| Cabinet Footprint | 19-3/8" W x 19-3/8" D |
| Cast Iron Main Table | 20" W x 27" D |
| Cast Iron Table with Wings | 44" W x 27" D |
| Extension Table | 40-1/8" W x 27" D |
| Cast Iron Extension Wings | 12" W x 27" D Each |
| Dust Collection Port | 4" |
| Table Saw Weight | 335 lbs |
| Assembled Weight with 52" Fence System | 449 lbs |
| Shipping Weight | 528 lbs (4 Boxes) |
| Shipping Dimensions | 42" W x 31" D x 30" H |
SawStop Professional Cabinet Saw 52" T-Glide Advance Fence System
- Heavy-Gauge Steel Fence and Rail Construction delivers exceptional rigidity and years of accurate performance without fence deflection.
- 52" Rip Capacity easily handles full sheets of plywood, cabinet components, architectural panels, and oversized woodworking projects.

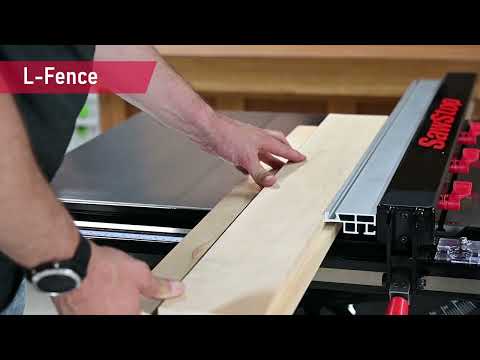

- Three Operating Positions include High Fence, Low Fence, and L-Fence configurations for maximum versatility.
- Dovetail Accessory Groove allows attachment of custom jigs, featherboards, stops, and production accessories.
- Dual Magnified Measurement Indicators provide precise fence positioning for both high and low fence settings.
- Positive Lockdown Design ensures smooth operation and repeatable accuracy throughout the full rip range.
- Multi-Function Aluminum Fence Face supports a wide range of cutting applications while improving material control.
The 52" Professional T-Glide Advance Fence System is widely recognized as one of the most accurate and durable fence systems available for professional woodworking applications.
SawStop Professional Cabinet Saw Performance & Construction
- Powerful 3 HP Motor provides the cutting power needed to rip hardwoods, sheet goods, composites, and production materials with ease.
- Premium Cabinet-Mounted Trunnion System delivers exceptional stability, vibration control, and long-term alignment accuracy.
- Precision Arbor Assembly is engineered for strength, smooth operation, and outstanding cutting performance.
- Gas Piston Elevation System allows smooth, effortless blade height adjustments for enhanced operator control.
- Ultra-Flat Cast Iron Work Surface is measured diagonally with a maximum gap of only 0.010" for exceptional machining accuracy.
- Low Arbor Runout maintains a maximum allowable runout of just 0.001" for cleaner, more precise cuts.
- Dual V-Ribbed Static Dissipative Belts reduce vibration while improving power transfer and cut quality.

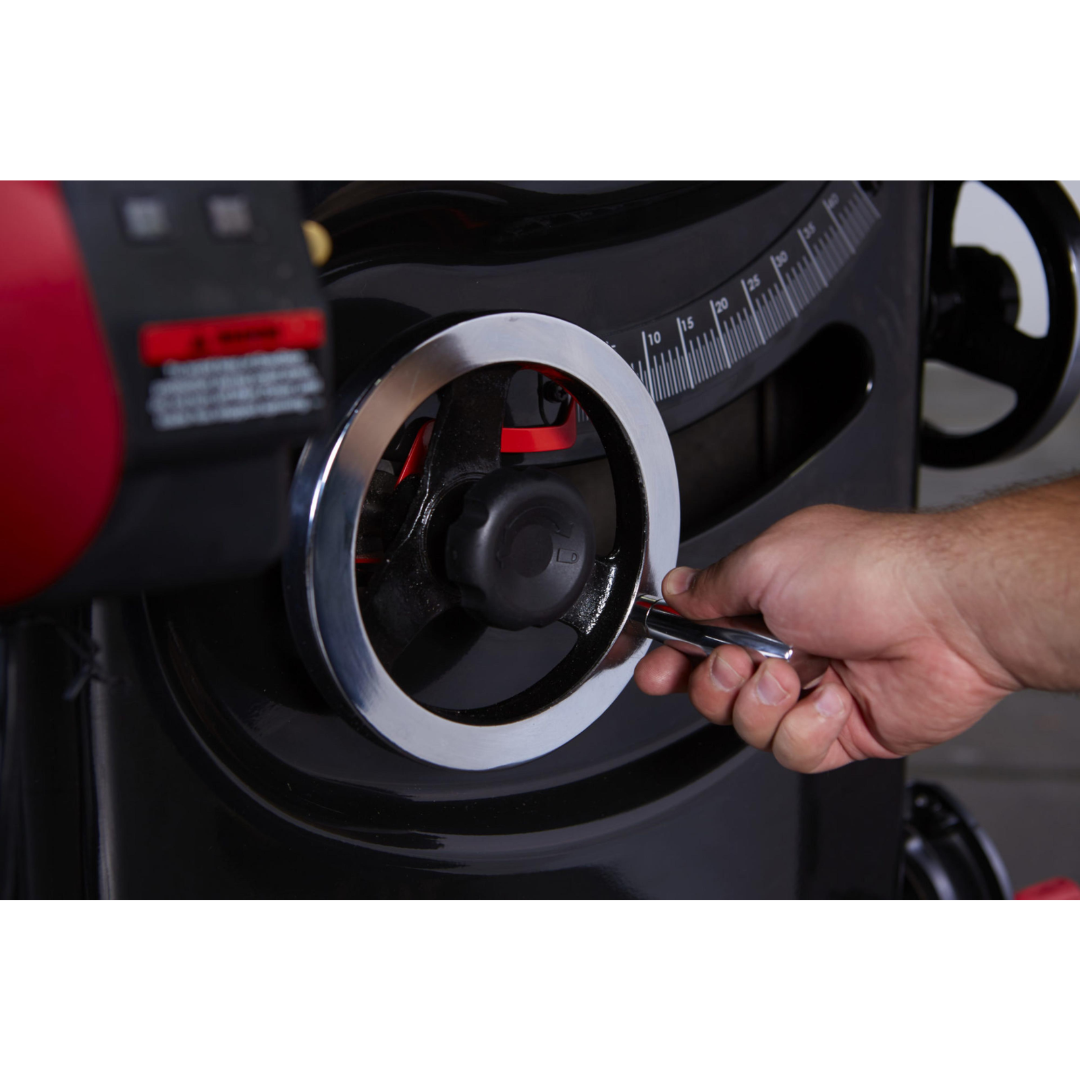

- Cast Iron Handwheels with Chrome Handles provide smooth and precise blade height and bevel adjustments.
SawStop Professional Cabinet Saw Dust Collection System
- 99% Dust Collection Efficiency helps maintain a cleaner, safer, and more productive woodworking environment.
- Included Dust Collection Blade Guard captures airborne dust directly above the cutting area.
- Advanced Internal Blade Shrouding improves below-table dust extraction performance.
- 4" Dust Collection Port easily connects to central dust collection systems and dust extractors.
- Polycarbonate Dust Collection Guard maintains excellent blade visibility while improving dust capture.

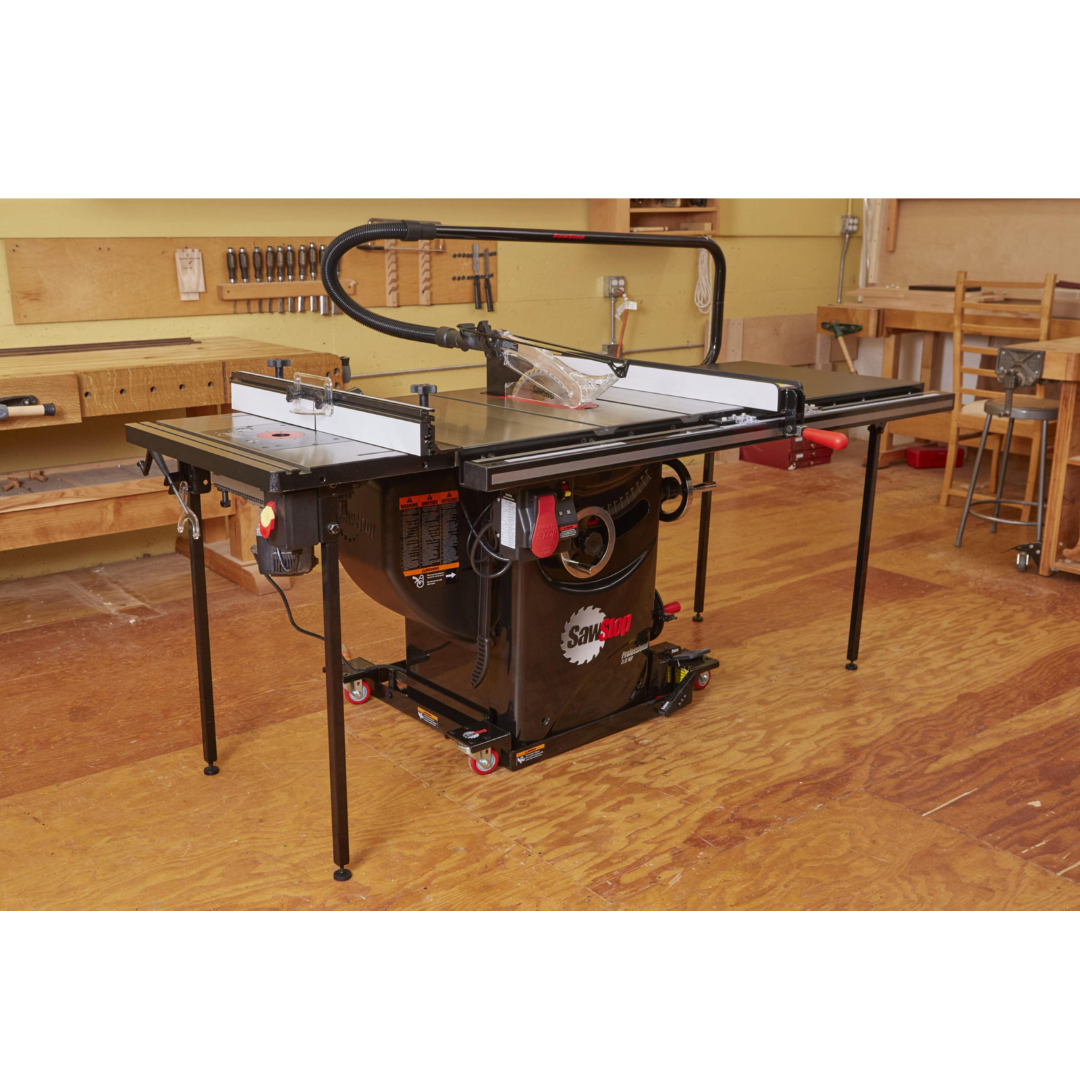

- Optional Overarm Dust Collection System (Model TSA-ODC) further improves airborne dust management by routing dust directly to the collection port.
The advanced dust management system captures debris both above and below the table, helping create a cleaner shop environment and reducing airborne dust exposure.
SawStop Professional Cabinet Saw Safety & Reliability
- SawStop Patented Safety System detects contact with skin and stops the blade in less than 5 milliseconds before retracting it below the table.
- Advanced Control Box Assembly houses the power controls, safety electronics, and onboard computer.
- Continuous System Monitoring constantly checks critical operating systems to help ensure safe operation.
- Professional Riving Knife System helps reduce kickback potential while maintaining cutting efficiency.
- Precision Safety Components are engineered to integrate seamlessly with the saw's performance capabilities.
SawStop's revolutionary safety technology has redefined table saw safety by helping minimize the severity of blade-contact injuries without compromising cutting performance.
Why Choose the SawStop Professional Cabinet Saw
- SawStop's top-selling cabinet saw platform.
- Powerful 3 HP motor for demanding woodworking applications.
- Professional-grade 52" T-Glide Advance Fence System.
- 99% dust collection performance with included dust guard.
- Exceptional fit, finish, and attention to detail.
- Precision-ground cast iron construction throughout.
- Ultra-flat table surface and low runout tolerances.
- Industry-leading SawStop safety technology.
- Built for years of professional production use.
- Outstanding combination of precision, power, and protection.
The SawStop Professional Cabinet Saw combines professional-grade power, unmatched build quality, superior dust collection, and revolutionary safety technology into one of the most respected cabinet saws available today. For woodworkers seeking precision, reliability, and long-term performance, it remains the benchmark by which other cabinet saws are measured.
