SawStop Premium Dado Set Systainer BTS-DS8-SYS Applications
- Cabinet and casework construction requiring precise dado and groove joinery.
- Furniture manufacturing and custom woodworking projects.
- Shelving systems, drawer construction, and panel assembly.
- Professional woodworking shops utilizing SawStop table saws.

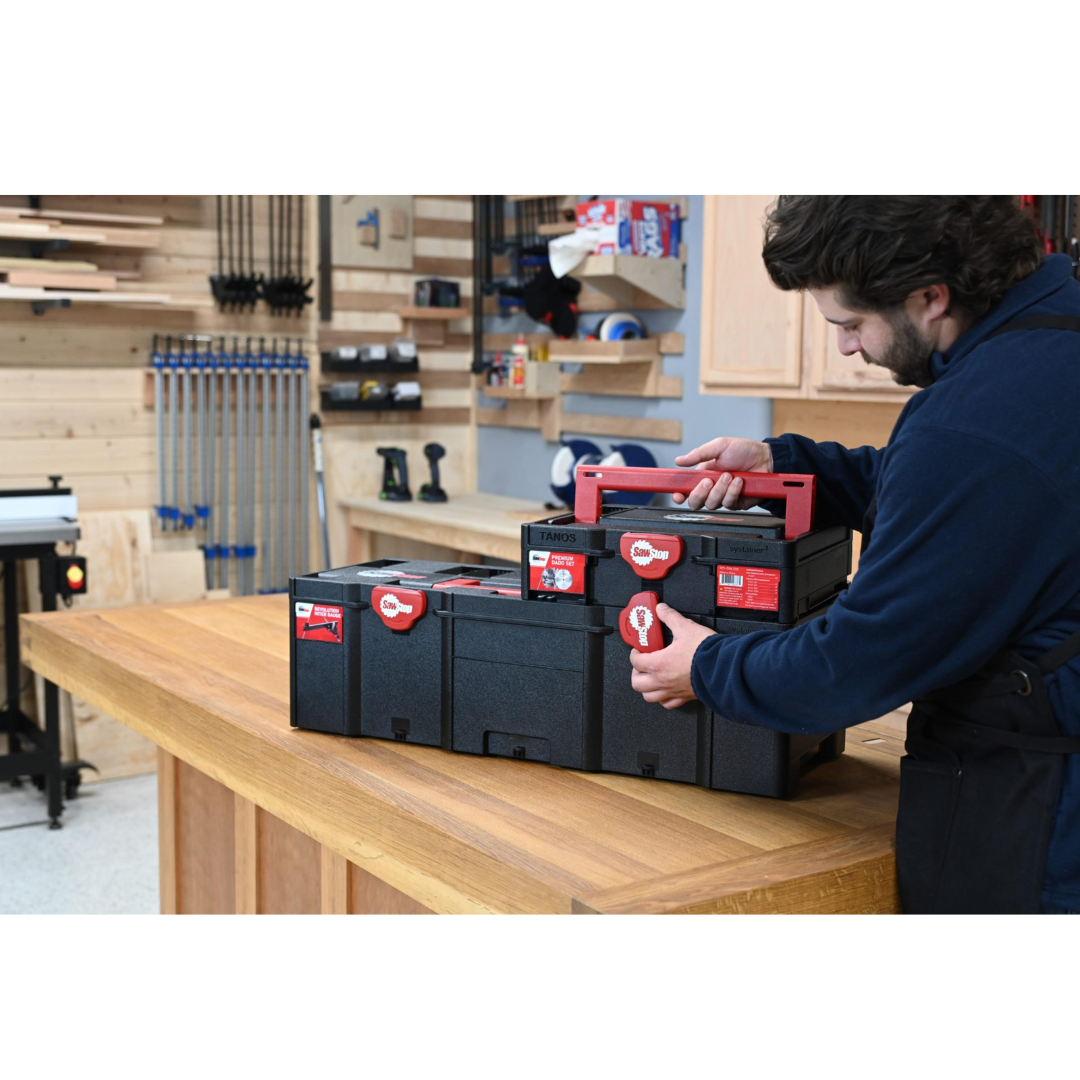

- Jobsite and workshop environments requiring organized blade storage and transport.
- Precision joinery applications where accurate width adjustments are essential.
- Woodworkers seeking cleaner cuts with reduced tear-out and improved edge quality.
The SawStop Premium Dado Set Systainer BTS-DS8-SYS allows users to create precise dado widths from 1/4" to 29/32" using various chipper and shim combinations for highly accurate woodworking joinery.
SawStop Premium Dado Set Systainer BTS-DS8-SYS Specifications
| Model Number | BTS-DS8-SYS |
|---|---|
| Systainer Outside Dimensions | 4-1/2" H × 15-1/2" W × 11-5/8" D |
| Systainer Inside Dimensions | 2-3/4" H × 15-3/8" W × 10-3/4" D |
| Weight (Empty Systainer) | 3 lbs |
| Total Weight Including Case | 8.2 lbs |
| Arbor Hole | 5/8" |
| Outer Blades | (2) 8" Diameter, 24-Tooth, 1/8" Kerf |
| 4-Tooth Chipper | (1) 8" Diameter, 1/4" Kerf |
| 4-Tooth Chippers | (2) 8" Diameter, 1/8" Kerf |
| 4-Tooth Chipper | (1) 8" Diameter, 1/16" Kerf |
| 4-Tooth Chipper | (1) 8" Diameter, 1/32" Kerf |
| Included Shims | (3) 0.004" and (3) 0.008" |
| Adjustable Cutting Width Range | 1/4" to 29/32" |
| Hook Angle | -5° |
| Compatibility | All SawStop Table Saws Except CTS Compact Table Saw |
SawStop Premium Dado Set Systainer BTS-DS8-SYS Features & Performance

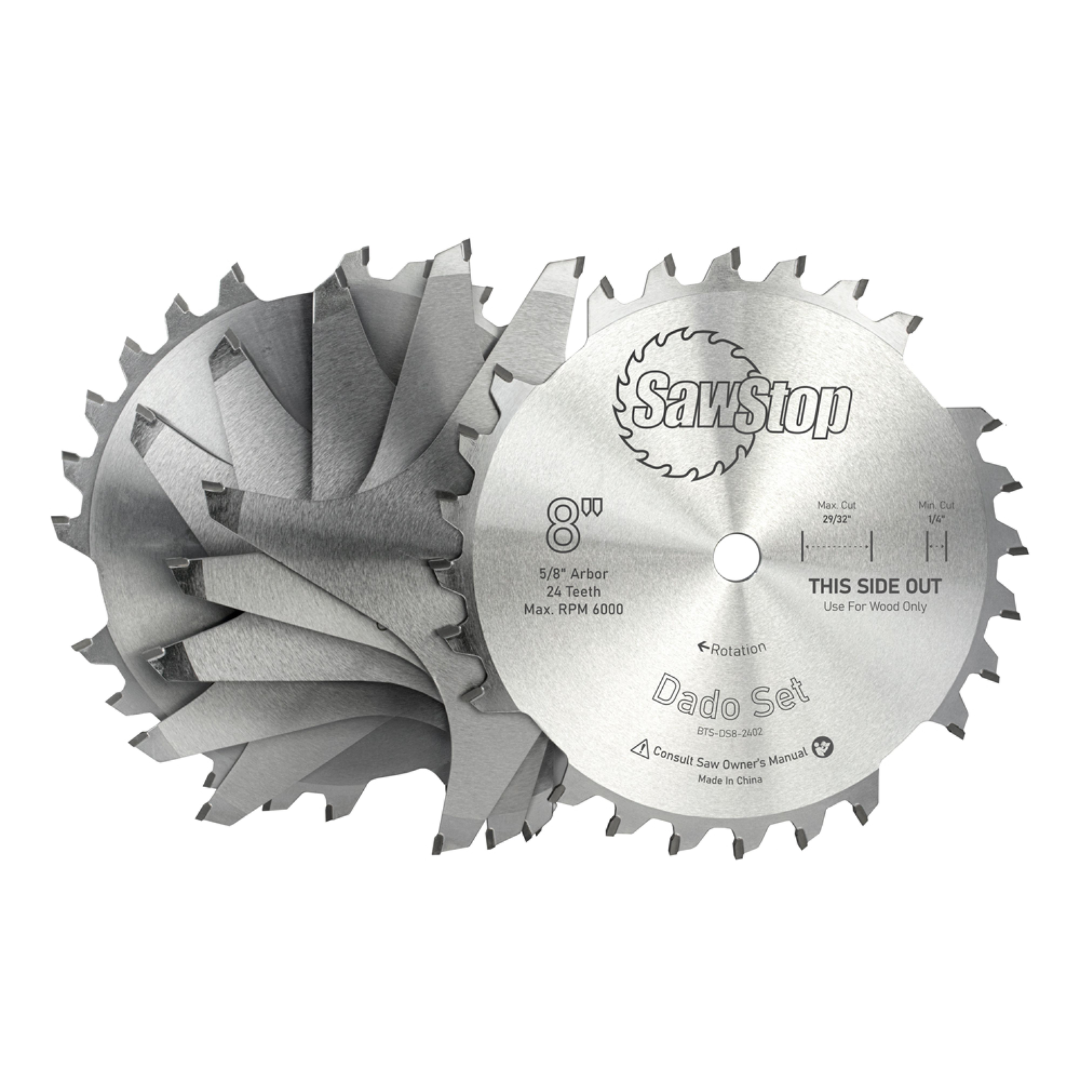

- Premium 8" Dado Blade Set: Includes two 24-tooth outer blades with left- and right-bevel tooth grind geometry designed for smooth, accurate cuts and excellent edge quality.
- Five Precision Chippers: Multiple chipper widths allow fine-tuned dado sizing for cabinetry, shelving, furniture construction, and other joinery applications.
- Adjustable Width Capability: Creates dado widths ranging from 1/4" to 29/32" using combinations of chippers and precision shims.
- Reduced Tear-Out Design: A -5° hook angle minimizes blade aggressiveness and helps produce cleaner one-pass cuts with less splintering.

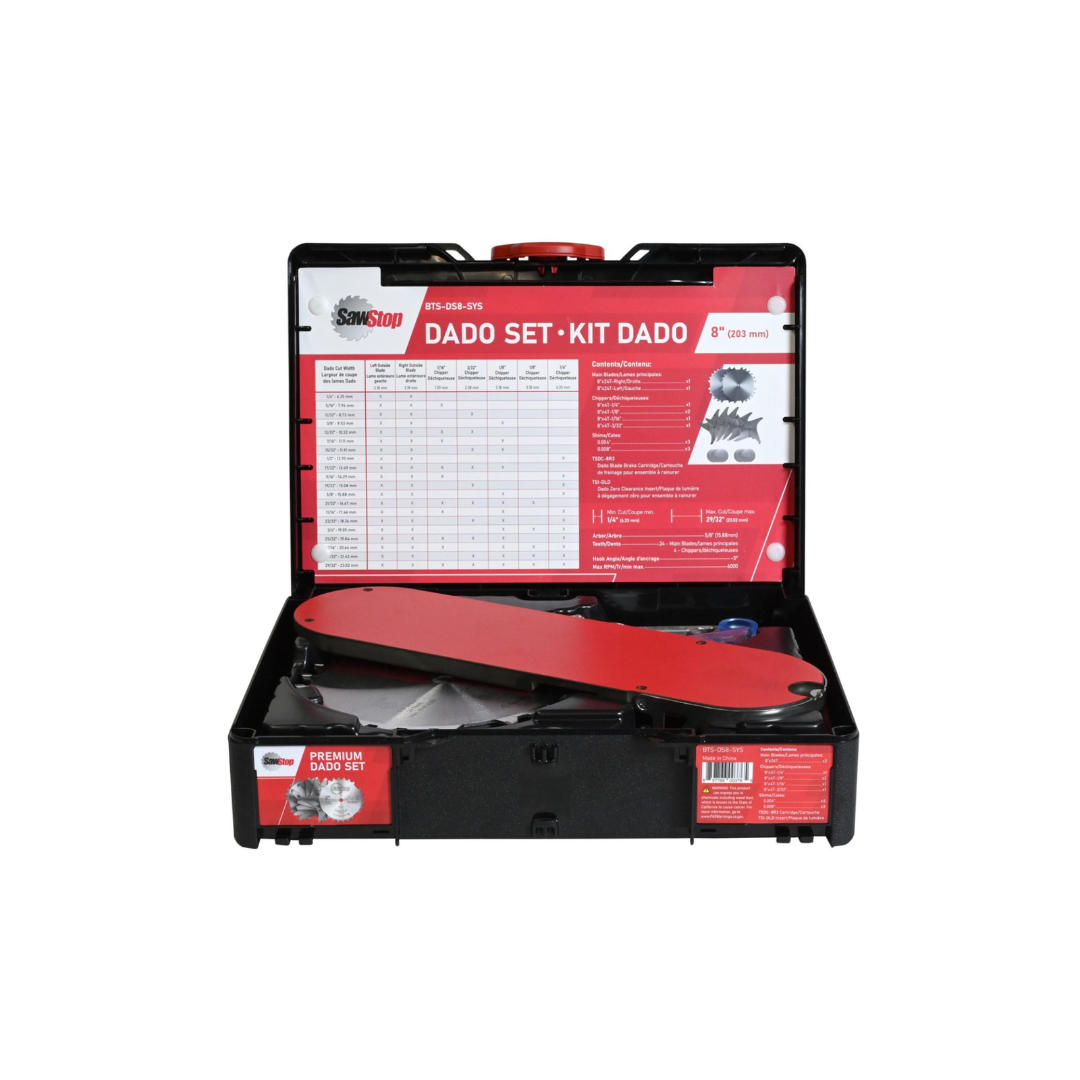

- Custom-Molded Foam Insert: Securely holds blades, chippers, shims, brake cartridge, and accessories to prevent movement and damage during storage or transportation.

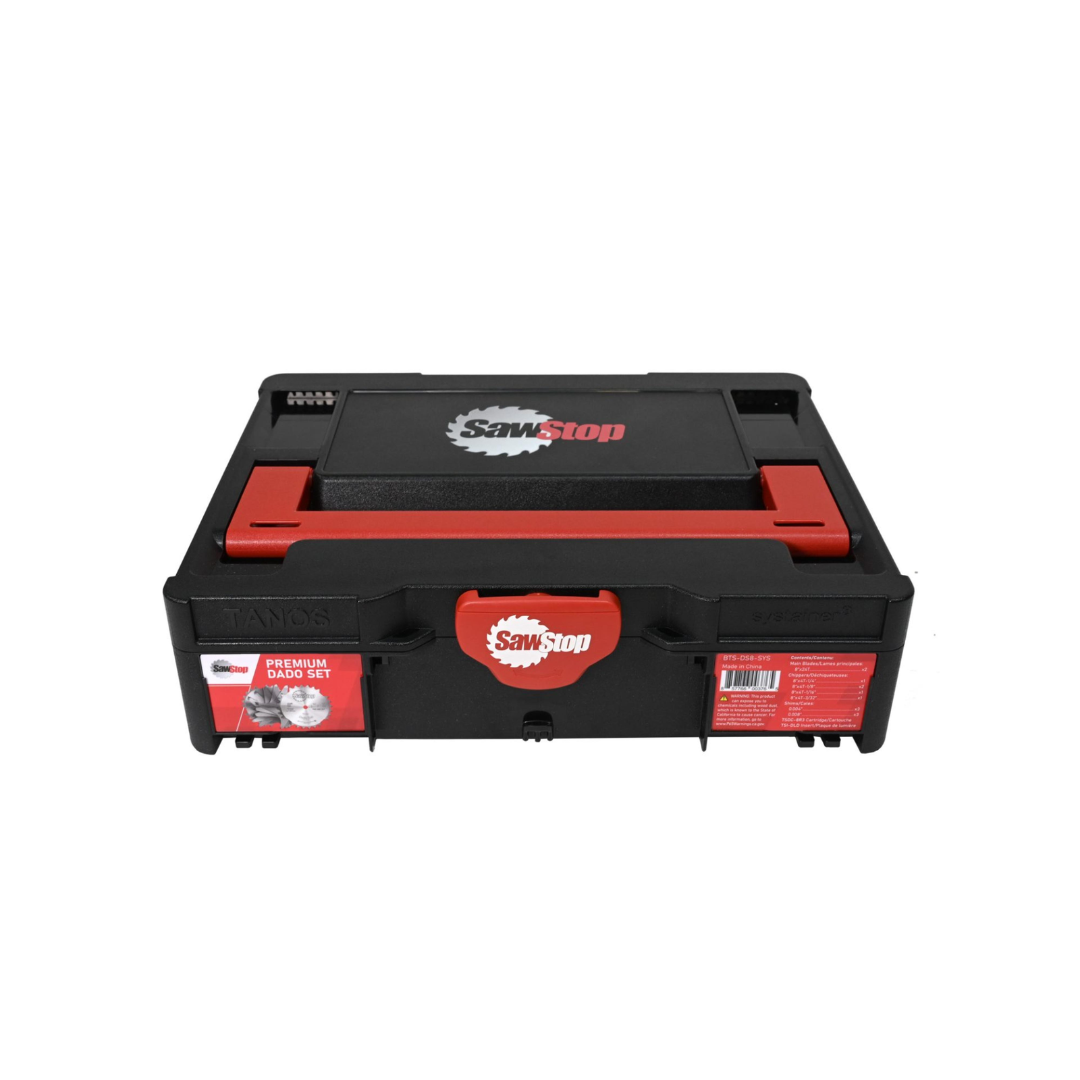

- Lockable Systainer Storage: Durable modular Systainer design protects valuable cutting components while providing easy access and organization.
- Stackable Modular System: Integrates with other Systainer storage products using a simple one-handed latch mechanism for convenient workshop organization.

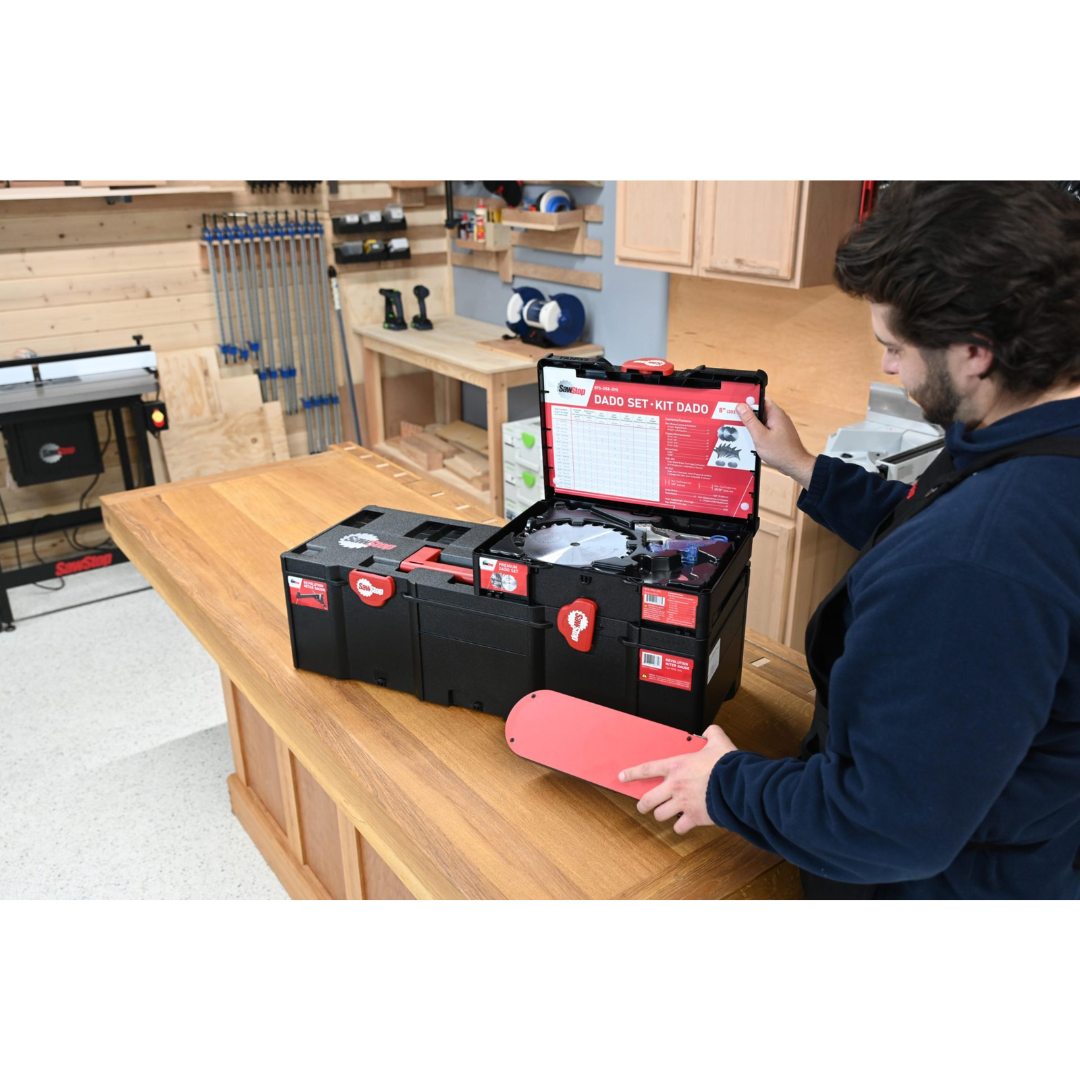

- Precision Setup Chart: Lid-mounted reference chart provides chipper and shim combinations for quickly achieving exact dado widths.
- Dado Brake Cartridge Included: Comes complete with the required SawStop dado brake cartridge for compatible SawStop table saw operation.
- Zero-Clearance Insert Included: Provides improved workpiece support and cleaner cuts on compatible SawStop cast iron table saws.
SawStop Premium Dado Set Systainer BTS-DS8-SYS Included Items
- (1) M112 Systainer Storage Case – 4" × 15-1/2" × 11-5/8"
- (1) Complete Premium Dado Set
- (1) 8" 24-Tooth Right-Angle Outer Blade
- (1) 8" 24-Tooth Left-Angle Outer Blade
- (1) 8" 4-Tooth 1/4" Chipper
- (2) 8" 4-Tooth 1/8" Chippers
- (1) 8" 4-Tooth 1/16" Chipper
- (1) 8" 4-Tooth 1/32" Chipper
- (3) 0.004" Precision Shims
- (3) 0.008" Precision Shims
- (1) SawStop 8" Dado Brake Cartridge
- (1) Dado Zero-Clearance Insert Plate for Cast Iron Saws
SawStop Premium Dado Set Systainer BTS-DS8-SYS Compatibility Information
- Compatible with all SawStop table saw models except the Compact Table Saw (CTS).
- Requires use of the included SawStop dado brake cartridge.
- Included zero-clearance insert plate is designed for SawStop cast iron table saws.
- SawStop Jobsite Saw Pro users require insert plate model TSI-DJB (sold separately).
- 5/8" arbor compatibility supports proper installation on approved SawStop saw systems.
Always verify compatibility with your specific SawStop table saw model before installation. The included insert plate is intended for cast iron SawStop saws and is not compatible with every SawStop model.
Why Choose the SawStop Premium Dado Set Systainer BTS-DS8-SYS
- Complete premium dado cutting solution with storage and safety components included.
- Produces highly accurate dadoes, grooves, rabbets, and joinery cuts.
- Precision width adjustment from 1/4" to 29/32".
- Custom-molded Systainer keeps all components organized and protected.
- Cleaner cuts with reduced tear-out thanks to the -5° hook angle design.
- Compatible with most SawStop table saws for professional woodworking performance.
- Modular Systainer system integrates with existing Systainer storage solutions.
The SawStop Premium Dado Set Systainer BTS-DS8-SYS combines professional-grade cutting performance, organized storage, and SawStop safety compatibility into one comprehensive package, making it an ideal solution for woodworkers who demand precision, convenience, and reliable results.
