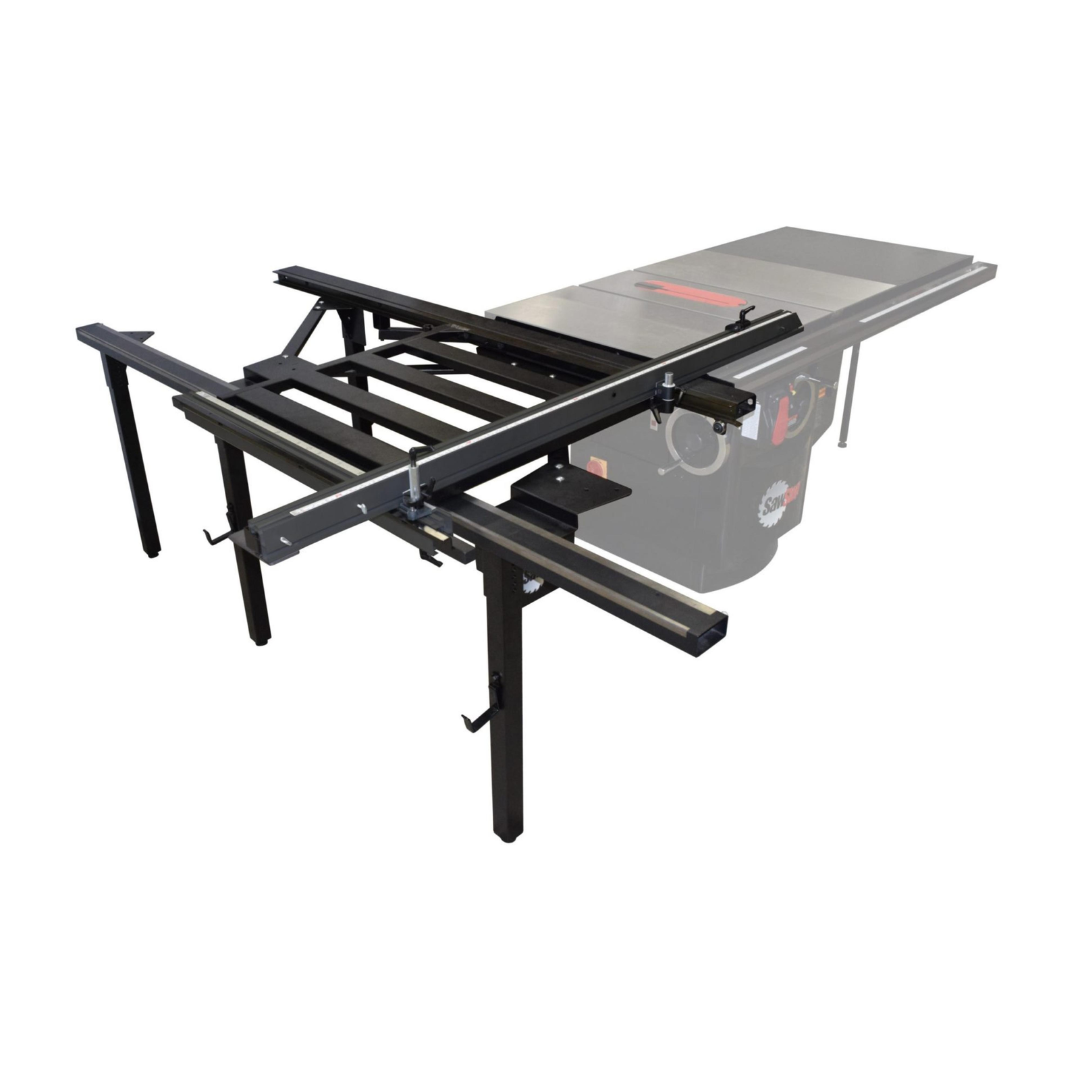

SawStop Large Sliding Table TSA-SA70 Applications
- Cabinet and furniture manufacturing
- Processing plywood, MDF, melamine, and sheet goods
- Large panel sizing and crosscutting operations
- Architectural millwork production
- Production woodworking facilities
- Industrial woodworking shops requiring repeatable cutting accuracy
- High-volume material handling and panel processing applications
Designed for demanding industrial environments where accurate cutting of large panels and heavy materials is a daily requirement.
SawStop Large Sliding Table TSA-SA70 Specifications
| Model | TSA-SA70 |
|---|---|
| Sliding Table Dimensions | 30" × 30-1/2" |
| Maximum Table Travel | 71-1/2" |
| Maximum Crosscut Capacity (Front Mount) | 49" |
| Maximum Crosscut Capacity (Rear Mount) | 70" |
| Weight Capacity (Fully Extended) | 350 lbs |
| Bearing System | 14 Sealed Steel Bearings |
| Fence Material | Aluminum |
| Flip Stop | Included |
| Net Weight | 173 lbs |
| Assembly Time | Approximately One Day |
SawStop Large Sliding Table TSA-SA70 Features & Performance
- Industrial-Grade Steel Construction provides exceptional rigidity and long-term durability for demanding production environments.
- Oversized Sliding Table Platform offers excellent support for large sheet goods and oversized workpieces.
- 350-Pound Load Capacity allows safe handling of heavy panels and materials while maintaining smooth operation.
- 14 Sealed Steel Bearings deliver smooth, reliable, and repeatable sliding performance with minimal maintenance requirements.
- Maximum 70-Inch Crosscut Capacity supports processing of large panels and full-size sheet goods with exceptional accuracy.
- 71-1/2-Inch Table Travel provides extended movement for efficient cutting of oversized materials.

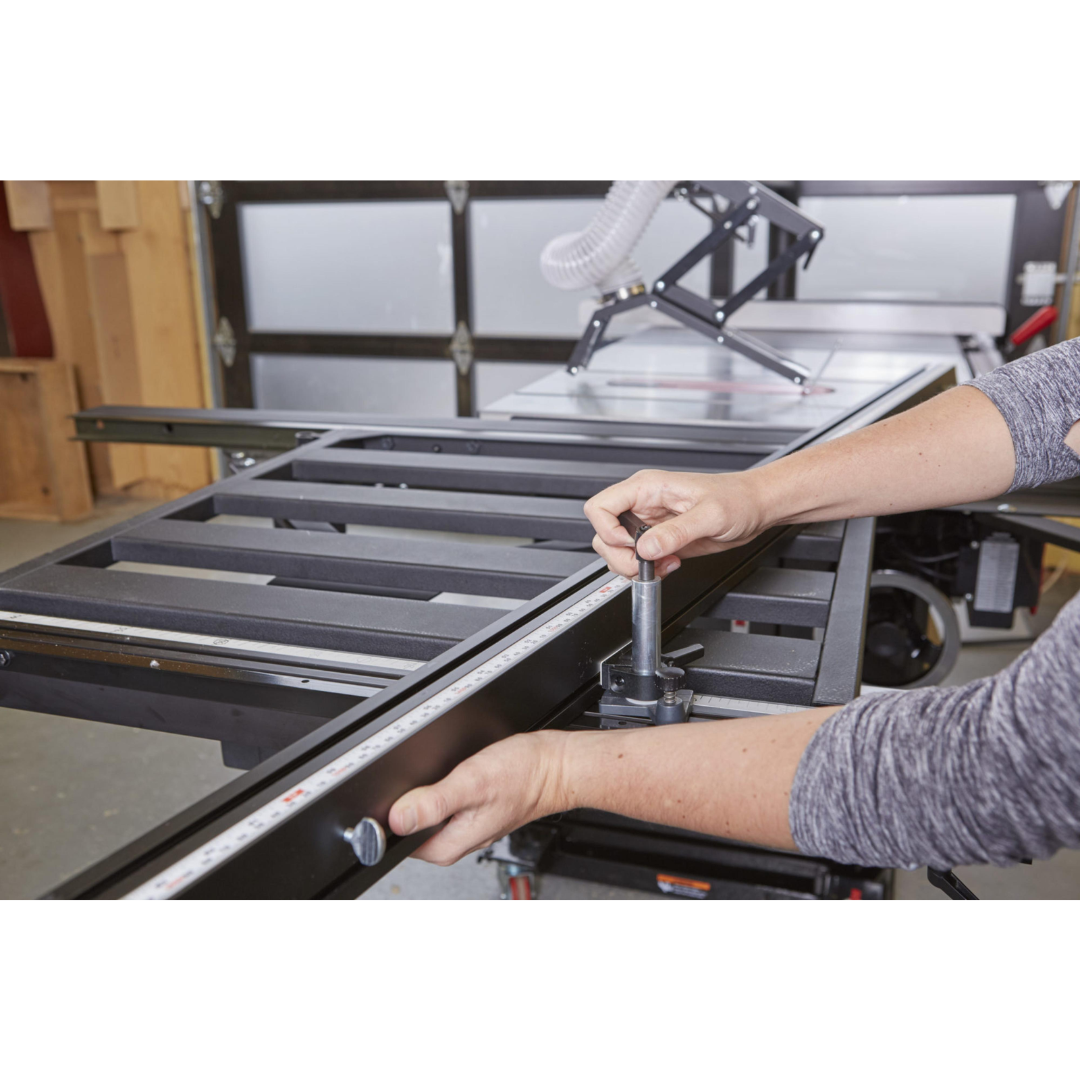

- Precision Aluminum Fence System helps ensure accurate alignment and repeatable cutting performance.

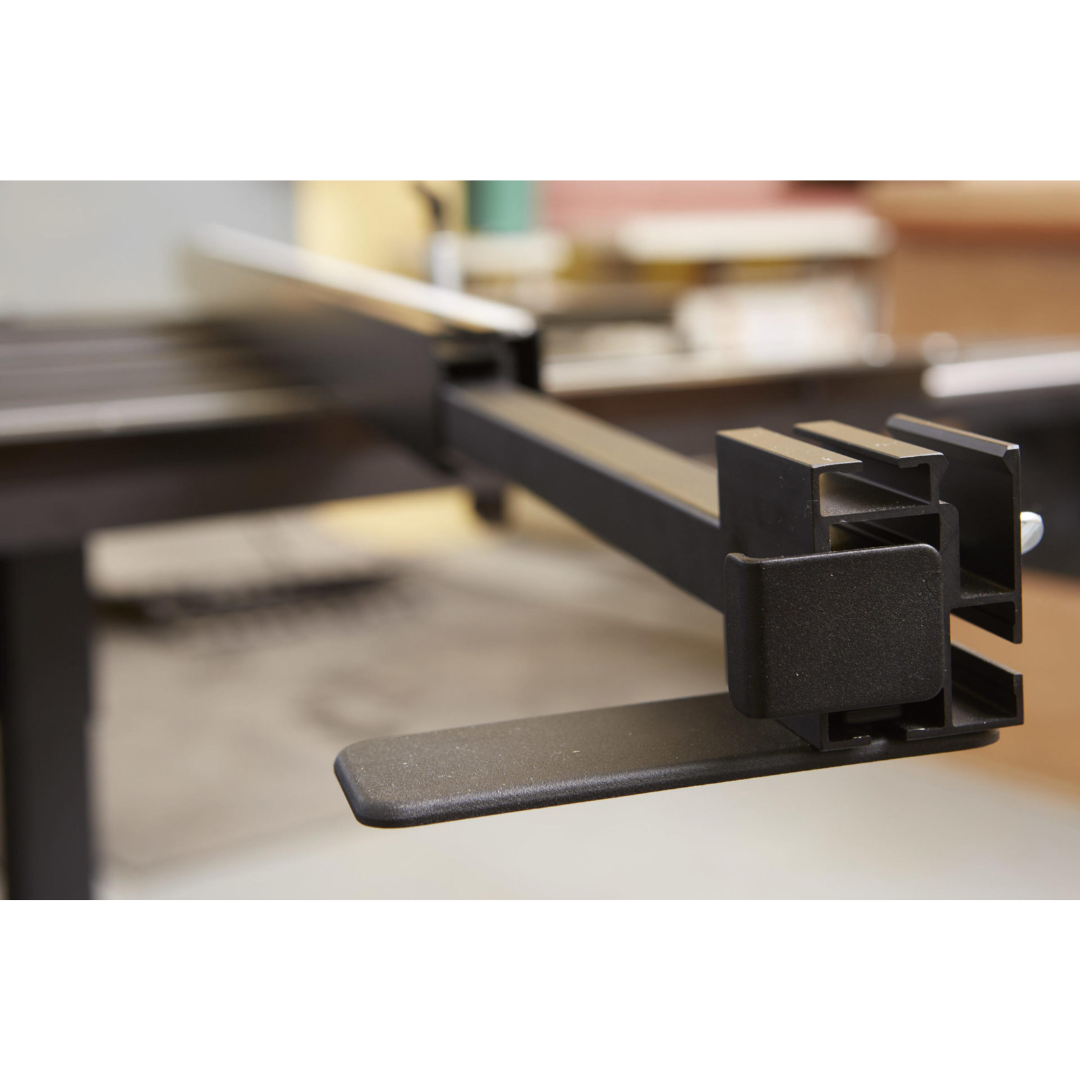

- Integrated Fence Storage Brackets allow the fence to be removed and conveniently stored on the side of the sliding table when not in use.
- Included Flip Stop enables quick setup of repeat cuts and improves production efficiency.
- Positive Angle Detents at 0°, 15°, 22.5°, 30°, and 45° allow rapid angle selection for accurate miter and crosscut operations.
SawStop Large Sliding Table TSA-SA70 Versatility & Adjustability
- Six Mounting Configurations provide exceptional flexibility for adapting the system to various shop layouts and workflows.
- Traditional and European Setup Options allow operators to configure the sliding table to match preferred cutting methods.

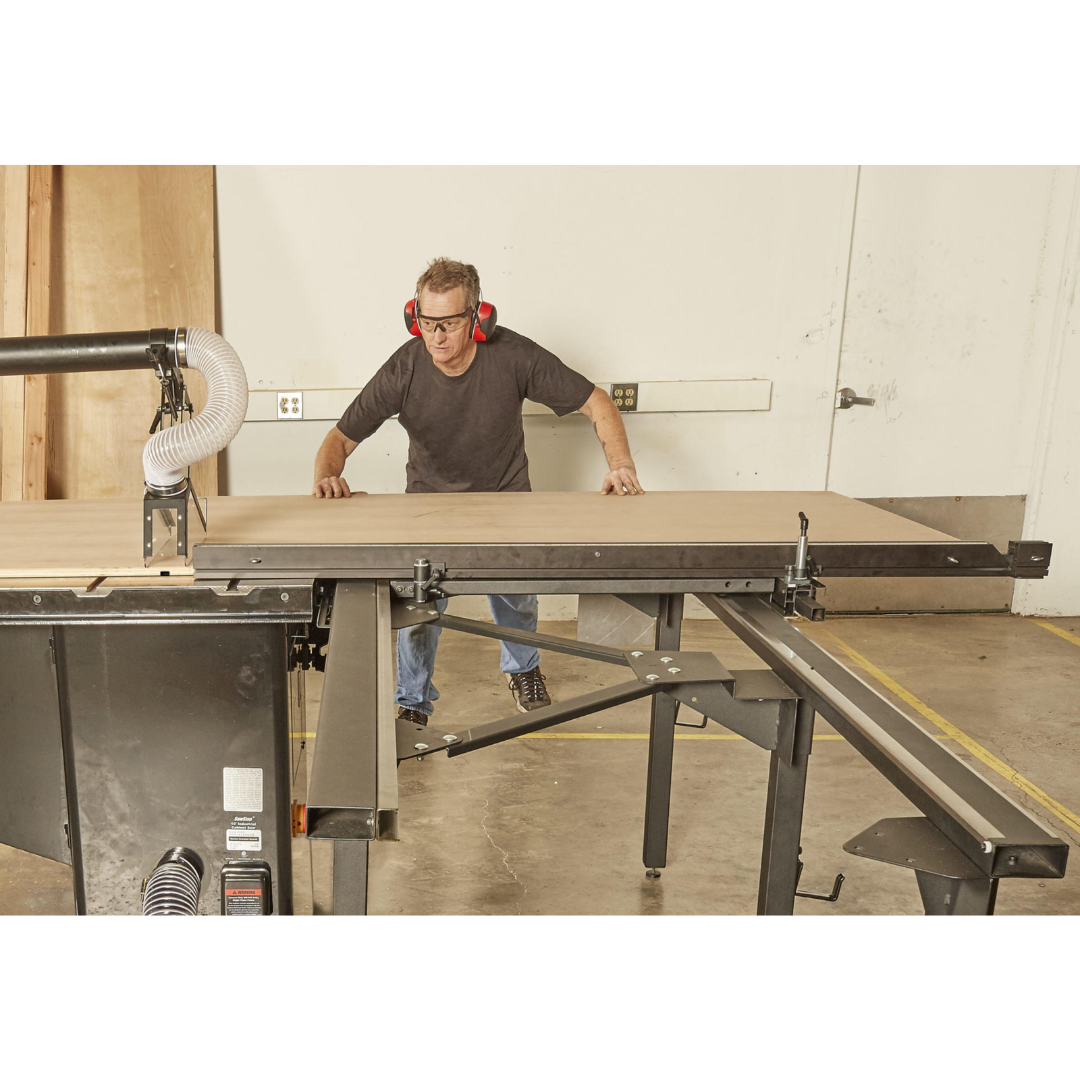

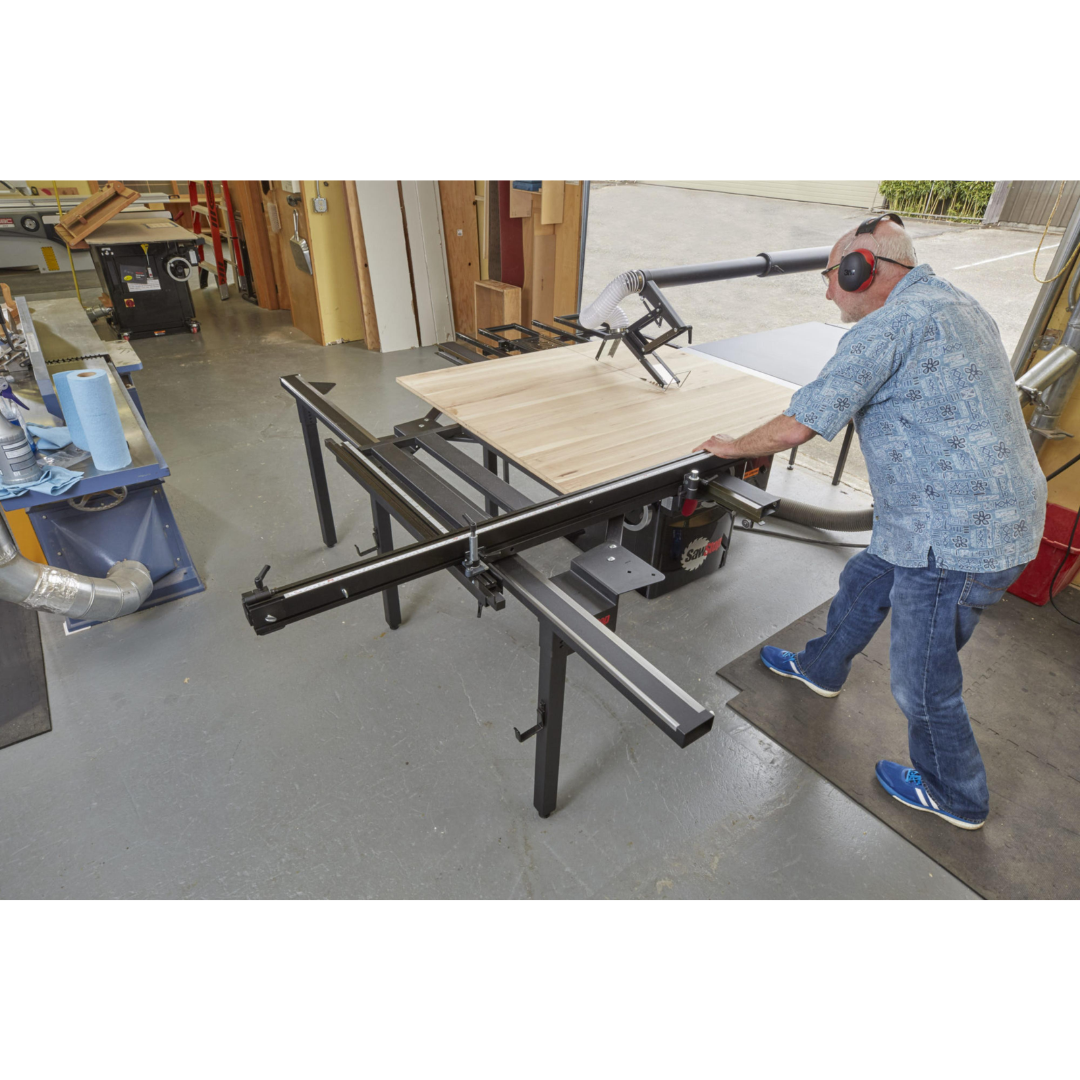

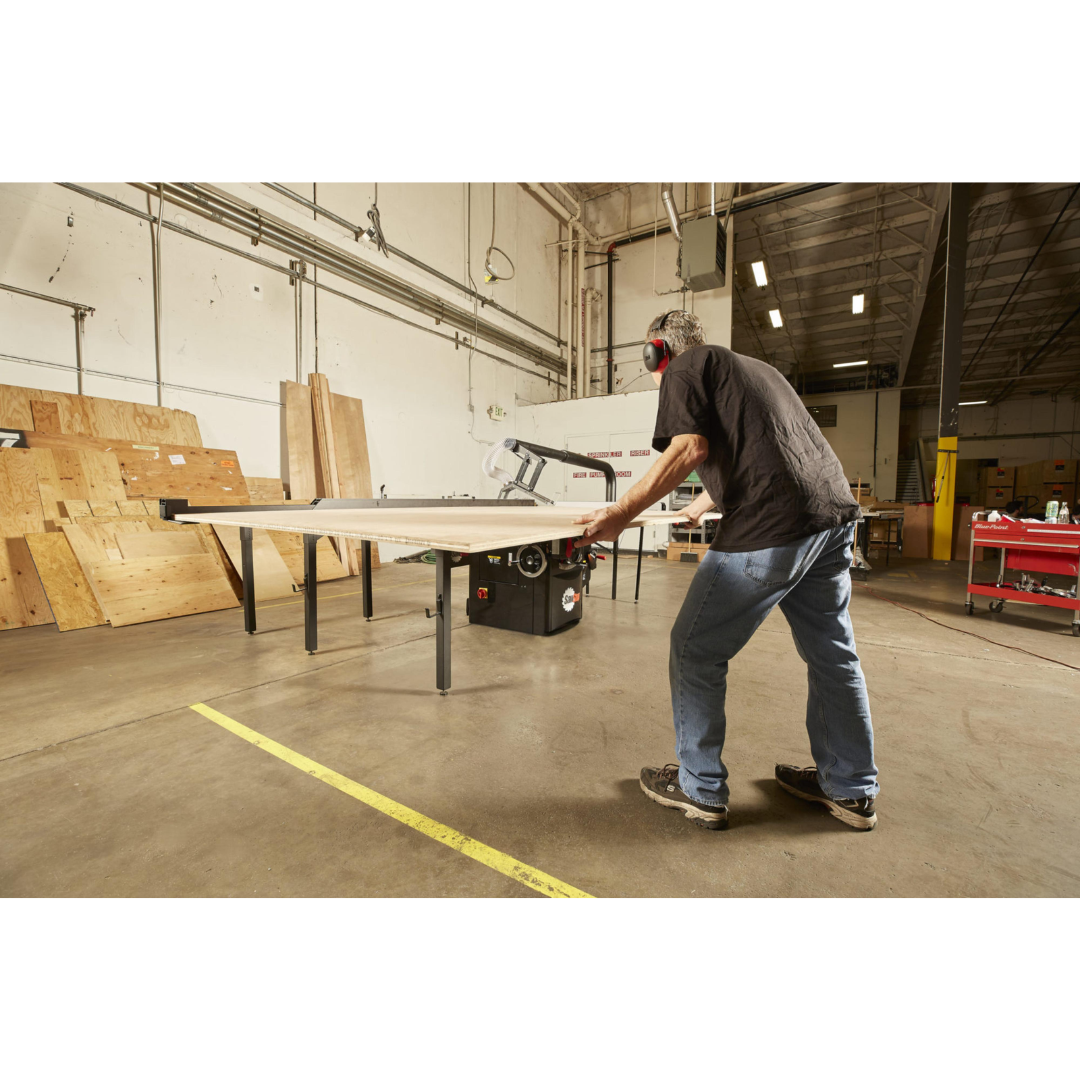

- Large Panel Handling Capability improves safety and control when processing sheet goods and oversized stock.
- Repeatable Measurement System helps increase productivity and consistency in production environments.
- Adjustable Fence and Guide Components provide precise setup control for a wide range of woodworking applications.
The combination of multiple mounting options, angle detents, and repeatable fence positioning makes the TSA-SA70 highly adaptable for both custom and production woodworking operations.
SawStop Large Sliding Table TSA-SA70 Included Components
- Sliding Table
- Inner Guide Tube
- Outer Guide Tube
- Crosscut Fence
- Angle Guide Rail
- Mounting Bracket
- (4) Support Legs
- (2) Leg Brackets
- (2) Stepped Leg Brackets
- Positioning Plate
- Front Bracket
- Support Tube
- (3) Lateral Brackets
- (2) Guide Bearing Assemblies
- Fence Pivot Assembly
- Flip Stop
- Fence Lock Assembly
- Fence Extension
- Logo Plate
- Owner's Manual
Why Choose the SawStop Large Sliding Table TSA-SA70
- Industrial-grade construction built for demanding shop environments.
- 70-inch crosscut capacity handles large panels with ease.
- 350-pound load rating supports heavy sheet goods and materials.
- 14 sealed bearings provide smooth and reliable sliding action.
- Multiple mounting configurations maximize installation flexibility.
- Included flip stop and angle detents improve productivity and accuracy.
The SawStop Large Sliding Table TSA-SA70 delivers professional-grade panel processing performance with exceptional accuracy, durability, and versatility. Designed for industrial woodworking applications, it provides the control, capacity, and repeatability needed to efficiently process large workpieces while maintaining the precision that professional shops demand.
